JZS147R-BEPQFW (1993)

Toyota Lexus Gs300

Production Aug 1993 - Aug 1997

Engine 2JZGE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9303-9708)

Click highlighted areas on diagram

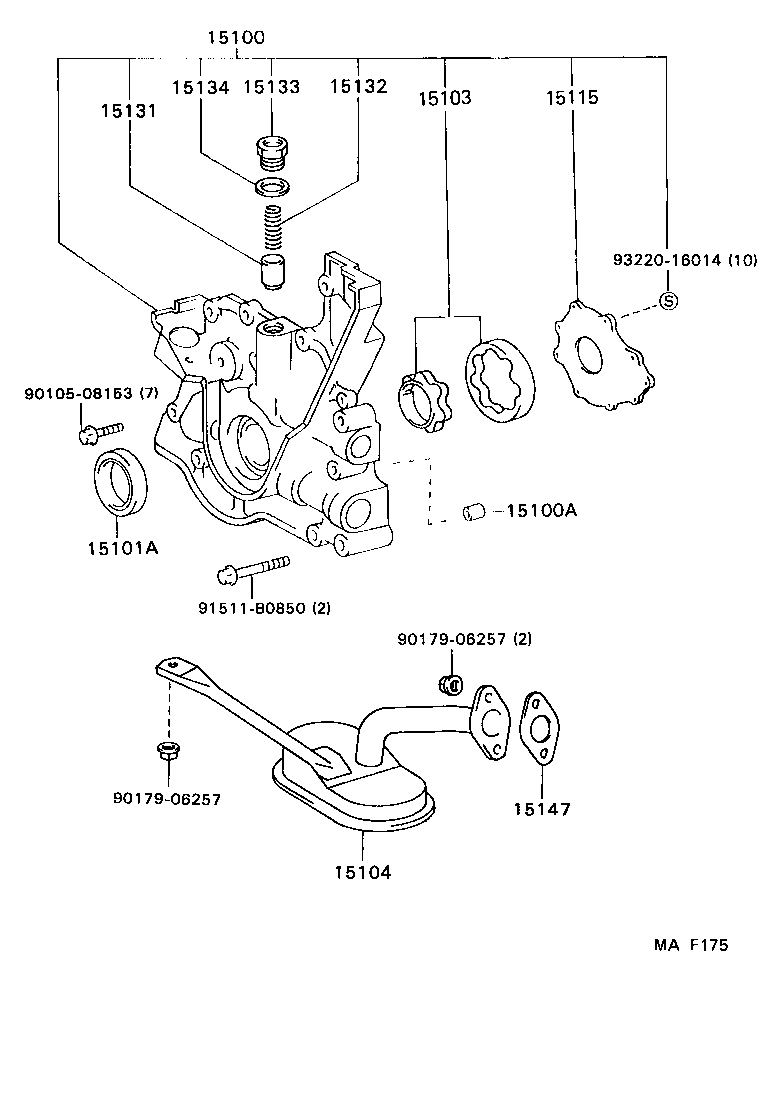

diagram

Part #	Description	Period	Qty	Price
15100 - PUMP ASSY, OIL
15100-46040	2JZGE..JZS147	03/1993 - 04/1993	1
15100-46042	2JZGE..JZS147	02/1996 - 08/1997	1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021	2JZGE..JZS147	03/1993 - 08/1997	2
15101A - SEAL(FOR CRANKSHAFT)
90311-46001	2JZGE..JZS147	03/1993 - 08/1997	1
15103 - GEAR SET, OIL PUMP
15103-46040	2JZGE..JZS147	03/1993 - 09/1993	1
15103-46070	2JZGE..JZS147	09/1993 - 08/1997	1
15104 - STRAINER SUB-ASSY, OIL
15104-46011	2JZGE..JZS147	03/1993 - 08/1993	1
15104-46060	2JZGE..JZS147	08/1993 - 08/1997	1
15115 - COVER, OIL PUMP
15115-46040	2JZGE..JZS147	03/1993 - 08/1997	1
15131 - VALVE, OIL PUMP RELIEF
15131-46040	2JZGE..JZS147	03/1993 - 04/1993	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46020	2JZGE..JZS147	03/1993 - 08/1997	1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-17010	2JZGE..JZS147	03/1993 - 08/1997	1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-17010	2JZGE..JZS147	03/1993 - 08/1995	1
15134-67020	2JZGE..JZS147	08/1995 - 08/1997	1
15147 - GASKET, OIL STRAINER
15147-46010	2JZGE..JZS147	03/1993 - 08/1997	1
Common parts
90105-08153
90179-06257
91511-B0850
93220-16014
