JZS147L-BEPQFV (1993)
Toyota Lexus Gs300

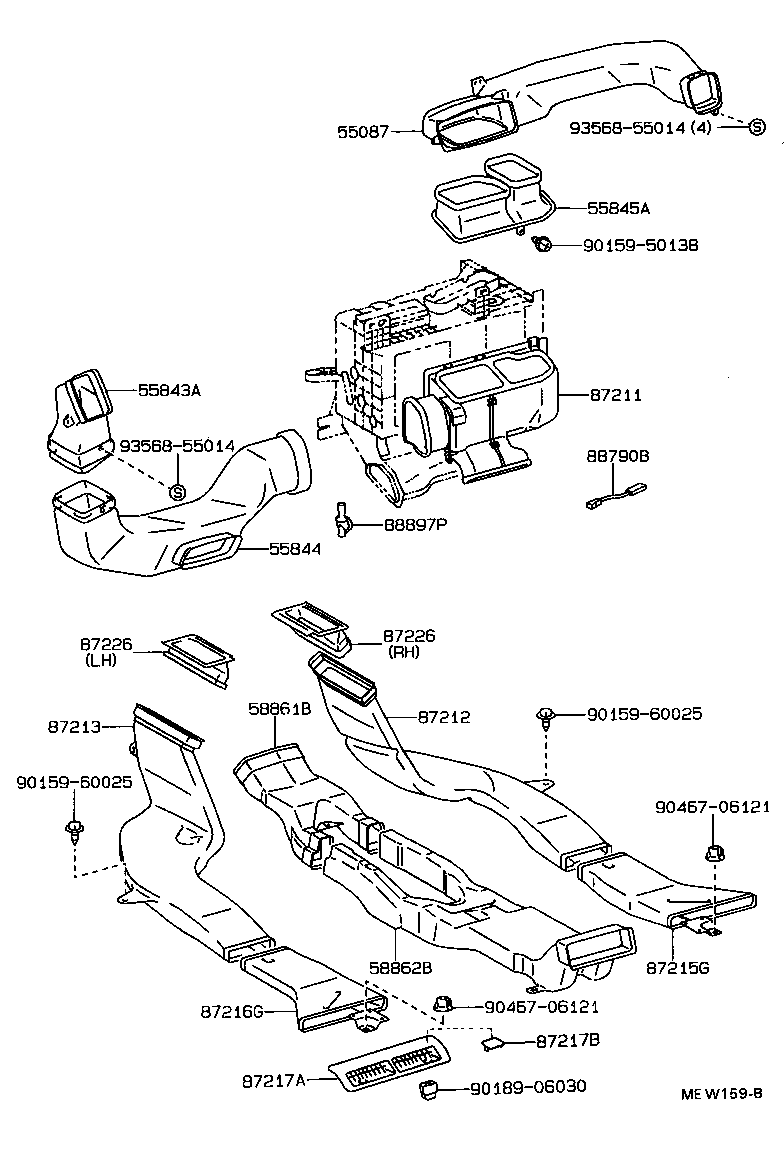

ILLUST NO. 1 OF 3(9303-9708)LHD
FRONT DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55846-30140 |
JZS147..LHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30180 |
JZS147..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-30150 |
JZS147..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-30180 |
JZS147..LHD |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-30060 |
JZS147..LHD |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58086-30020 |
JZS147..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-30590 |
JZS147..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30350 |
JZS147 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30270 |
JZS147 |
1 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-30260 |
JZS147 |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-30240 |
JZS147 |
1 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-50030G0 |
JZS147 LI.SPRUCE,TRIM6# |
2 | ||
| 87217-50030A0 |
JZS147 IVORY,TRIM0# |
2 | ||
| 87217-50030B0 |
JZS147 GRAY,TRIM1# |
2 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A0 |
JZS147 IVORY,TRIM0# |
4 | ||
| 90950-01693G0 |
JZS147 LI.SPRUCE,TRIM6# |
4 | ||
| 90950-01693B0 |
JZS147 GRAY,TRIM1# |
4 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-30020 |
JZS147 RH |
1 | ||
| 87226-30030 |
JZS147 LH |
1 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-30020 |
JZS147 RH |
1 | ||
| 87226-30030 |
JZS147 LH |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28010 |
JZS147 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-30730 |
JZS147..LHD |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90159-60025 | ||||
| 90189-06030 | ||||
| 90467-06121 | ||||
| 93568-55014 | ||||

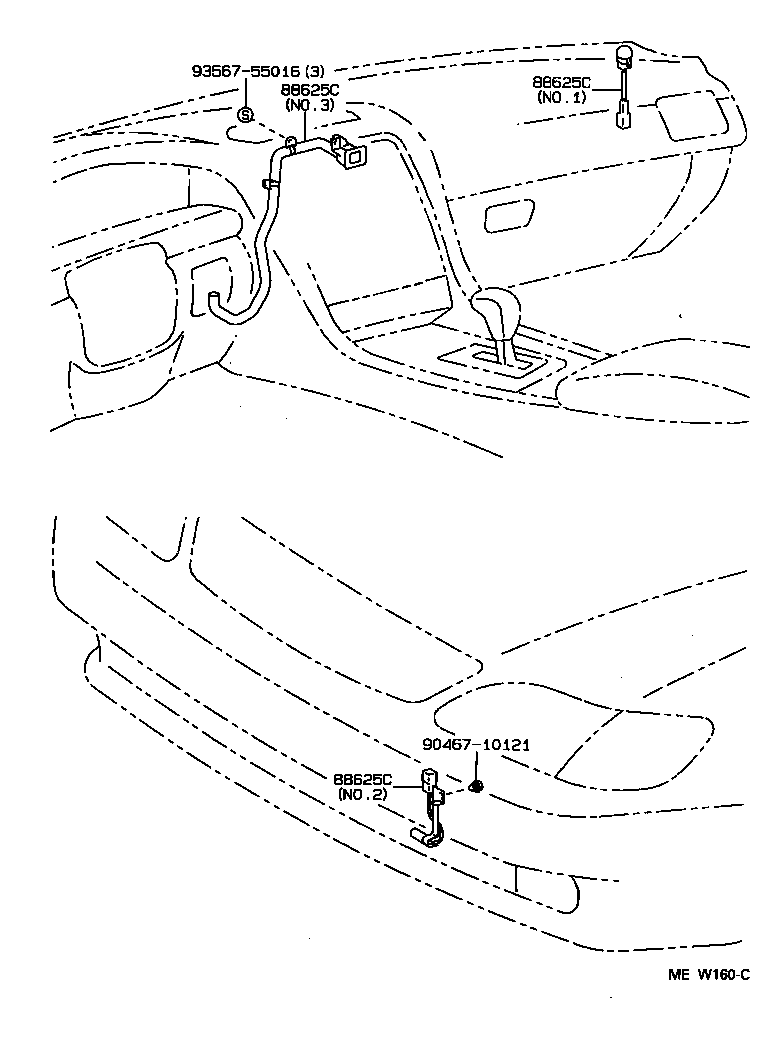

ILLUST NO. 2 OF 3(9303-9708)
AUTO AIR SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88790-30040 |
JZS147..LHD NO.3 |
1 | ||
| 88625-3A050 |
JZS147 NO.1 |
1 | ||
| 88625-30880 |
JZS147 NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88790-30040 |
JZS147..LHD NO.3 |
1 | ||
| 88625-3A050 |
JZS147 NO.1 |
1 | ||
| 88625-30880 |
JZS147 NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88790-30040 |
JZS147..LHD NO.3 |
1 | ||
| 88625-3A050 |
JZS147 NO.1 |
1 | ||
| 88625-30880 |
JZS147 NO.2 |
1 | ||
| Common parts | ||||
| 90467-10121 | ||||
| 93567-55016 | ||||

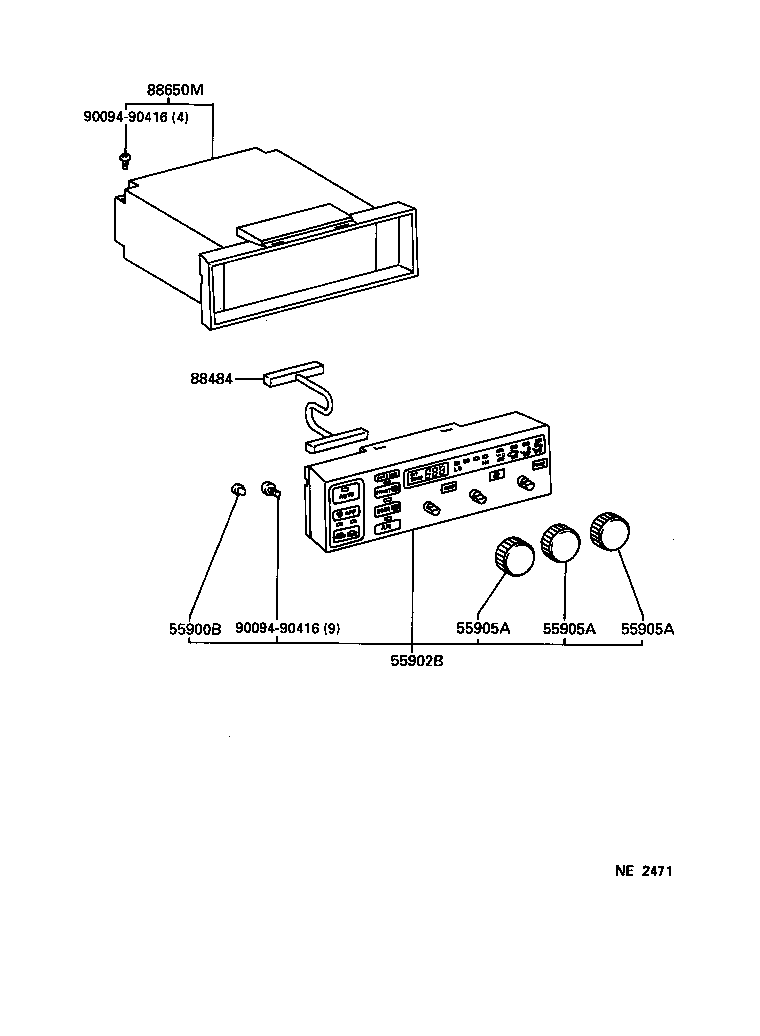

ILLUST NO. 3 OF 3(9303-9708)
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60220 |
JZS147 14V 1.12W,BROWN BASE |
2 | ||
| 84999-60200 |
JZS147 14V 0.84W |
1 | ||
| 84999-60230 |
JZS147 14V 1.12W,GRAY BASE |
4 | ||
| 84999-60210 |
JZS147 14V 1.12W,BLACK BASE |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-30070 |
JZS147..GCC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30210 |
JZS147 |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30210 |
JZS147 |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-30210 |
JZS147 |
3 | ||
| 88484 - WIRE, COOLER, NO.1 | ||||
| 88484-30010 |
JZS147 |
1 | ||
| 88650M - COMPUTER ASSY, AIR CONDITIONER | ||||
| 88650-30880 |
JZS147..GCC |
1 | ||
| 88650-30881 |
JZS147..GCC |
1 | ||
| 88650-30882 |
JZS147..GCC |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
