JZS147L-BEPQFV (1993)

Toyota Lexus Gs300

Production Mar 1993 - Aug 1997
Engine 2JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9303-9708)

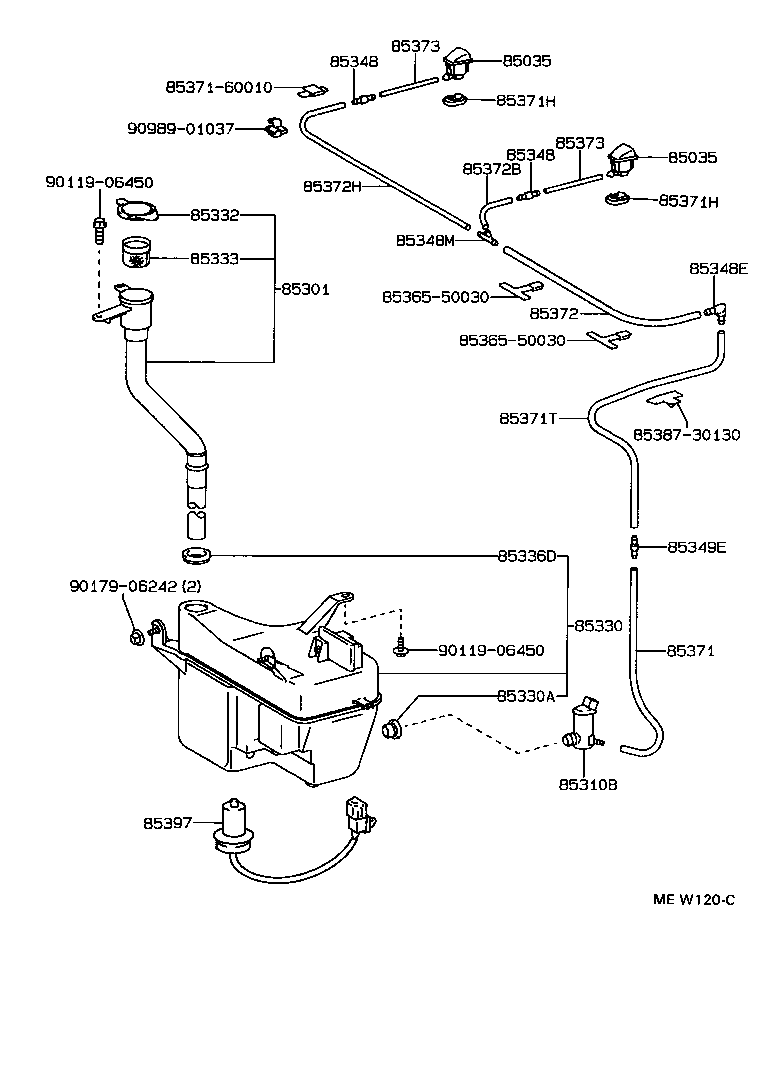

Click highlighted areas on diagram

diagram 85035 85035 85301 85310B 85330 85330A 85332 85333 85336D 85348 85348 85348E 85348M 85349E 8536550030 8536550030 85371 8537160010 85371H 85371H 85371T 85372 85372B 85372H 85373 85373 8538730130 85397 9011906450 9011906450 9017906242 9098901037
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85385-30030E1

JZS147..GCC

BEIGE MM,4K9

 2
85385-30030B0

JZS147

SUPER SILVER ME,176

 2
85385-30030D0

JZS147..GCC

WINE RED MIC,3J8

 2
85385-30030A0

JZS147..GCC

WARM GRAY PM,046

 2
85385-30030B1

JZS147..GCC

DK BL GRAY ME,183

 2
85385-30030J0

JZS147..GCC

DK BLUE MCFP,8J5

 2
85385-30030G0

JZS147..GCC

BL GREEN MIO,6M2

 2
85385-30030C0

JZS147..GCC

BLACK,202

 2
85385-30030G1

JZS147..GCC

GRAYISH GREEN M.M,6N0

 2
85385-30030E2

JZS147..GCC

BEIGE ME,4M9

 2
85385-30030D1

JZS147..GCC

MEGENTA MC.,3L3

 2
85385-30030A1

JZS147..GCC

SUPER WHITE PEARL MC,051

 2
85385-30030G2

JZS147..GCC

DK.GREEN MC.P.I.O,6N9

 2
85385-30030B2

JZS147..GCC

SILVER ME,199

 2
85385-30030J1

JZS147..GCC

DK.BLUE MC.,8L1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85385-30030E1

JZS147..GCC

BEIGE MM,4K9

 2
85385-30030B0

JZS147

SUPER SILVER ME,176

 2
85385-30030D0

JZS147..GCC

WINE RED MIC,3J8

 2
85385-30030A0

JZS147..GCC

WARM GRAY PM,046

 2
85385-30030B1

JZS147..GCC

DK BL GRAY ME,183

 2
85385-30030J0

JZS147..GCC

DK BLUE MCFP,8J5

 2
85385-30030G0

JZS147..GCC

BL GREEN MIO,6M2

 2
85385-30030C0

JZS147..GCC

BLACK,202

 2
85385-30030G1

JZS147..GCC

GRAYISH GREEN M.M,6N0

 2
85385-30030E2

JZS147..GCC

BEIGE ME,4M9

 2
85385-30030D1

JZS147..GCC

MEGENTA MC.,3L3

 2
85385-30030A1

JZS147..GCC

SUPER WHITE PEARL MC,051

 2
85385-30030G2

JZS147..GCC

DK.GREEN MC.P.I.O,6N9

 2
85385-30030B2

JZS147..GCC

SILVER ME,199

 2
85385-30030J1

JZS147..GCC

DK.BLUE MC.,8L1

 2
85301 - INLET SUB-ASSY, WASHER
85301-30010

JZS147

 1
85301-30011

JZS147

 1
85310B - MOTOR & PUMP ASSY, WINDSHIELD WASHER
85310-20190

JZS147

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-30250

JZS147

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

JZS147

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-22031

JZS147

 1
85316-33120

JZS147

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-12470

JZS147

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

JZS147

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

JZS147

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

JZS147

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14030

JZS147

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85348-12250

JZS147

 1
85349E - JOINT, WINDSHIELD WASHER HOSE, NO.5
85334-22480

JZS147

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33827

JZS147

L=420

 1
85371H - COVER, WASHER NOZZLE SERVICE HOLE
85371-50010

JZS147

 2
85371H - COVER, WASHER NOZZLE SERVICE HOLE
85371-50010

JZS147

 2
85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
90099-33884

JZS147

L=1400

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

JZS147

L=1450

 1
90099-33080

JZS147..GCC

L=1450

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

JZS147

L=1450

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

JZS147

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

JZS147

L=1450

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

JZS147

L=1450

 2
85397 - SWITCH ASSY,LEVEL WARNING
85397-33180

JZS147

 1
Common parts
85365-50030
85371-60010
85387-30130
90119-06450
90179-06242
90989-01037
