JZS147L-BEPQFV (1993)
Toyota Lexus Gs300

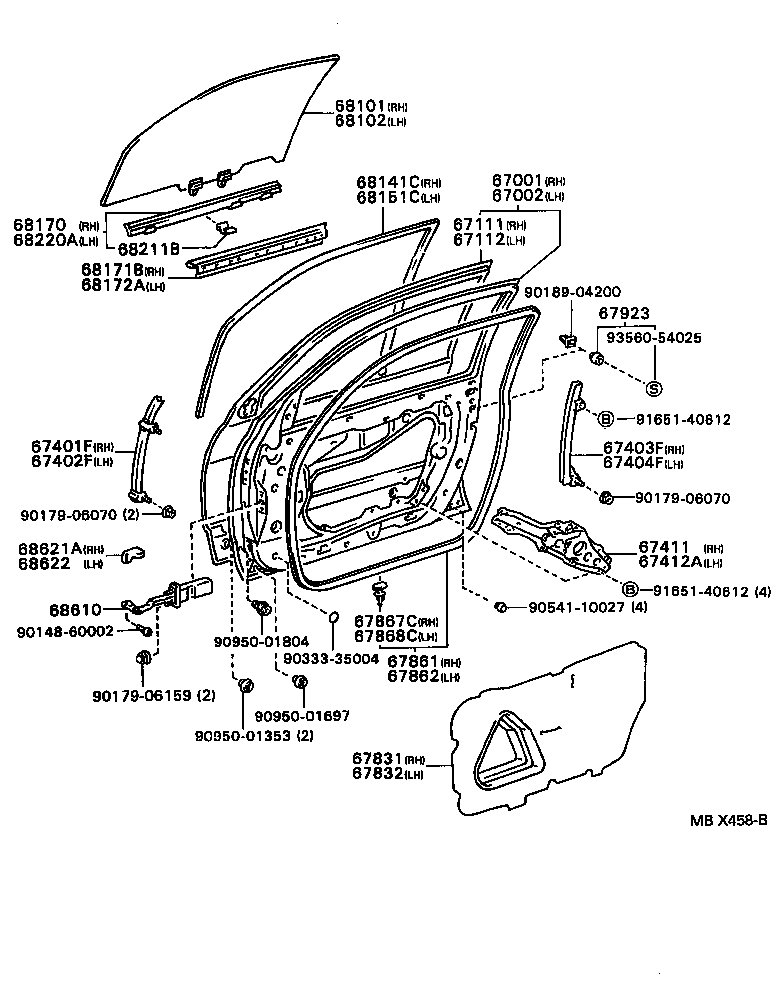

ILLUST NO. 1 OF 4(9303- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30660 |
JZS147 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30730 |
JZS147 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-30380 |
JZS147 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-30440 |
JZS147 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-30210 |
JZS147 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-30210 |
JZS147 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30130 |
JZS147 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30130 |
JZS147 |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-30181 |
JZS147 |
1 | ||
| 67411-30180 |
JZS147 |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-30180 |
JZS147 |
1 | ||
| 67412-30181 |
JZS147 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30350 |
JZS147 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30210 |
JZS147 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30220 |
JZS147 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30220 |
JZS147 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-30060 |
JZS147 |
34 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30060 |
JZS147 |
34 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-30010 |
JZS147 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-30470 |
JZS147 *TEM,T=4.0,GRAY |
1 | ||
| 68101-30550 |
JZS147 *TEM,T=4.0,BRONZE |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-30550 |
JZS147 *TEM,T=4.0,BRONZE |
1 | ||
| 68102-30470 |
JZS147 *TEM,T=4.0,GRAY |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-30250 |
JZS147 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-30100 |
JZS147 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-30250 |
JZS147 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30110 |
JZS147 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30050 |
JZS147 |
1 | ||
| 68211B - CLIP(FOR FRONT DOOR GLASS WEATHERSTRIP) | ||||
| 68212-30020 |
JZS147 |
4 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68220-30180 |
JZS147 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-30040 |
JZS147 LH |
1 | ||
| 68610-30100 |
JZS147 RH |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-30020 |
JZS147 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-30020 |
JZS147 |
1 | ||
| Common parts | ||||
| 90148-60002 | ||||
| 90179-06070 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 90333-35004 | ||||
| 90541-10027 | ||||
| 90950-01353 | ||||
| 90950-01697 | ||||
| 90950-01804 | ||||
| 91651-40612 | ||||
| 93560-54025 | ||||

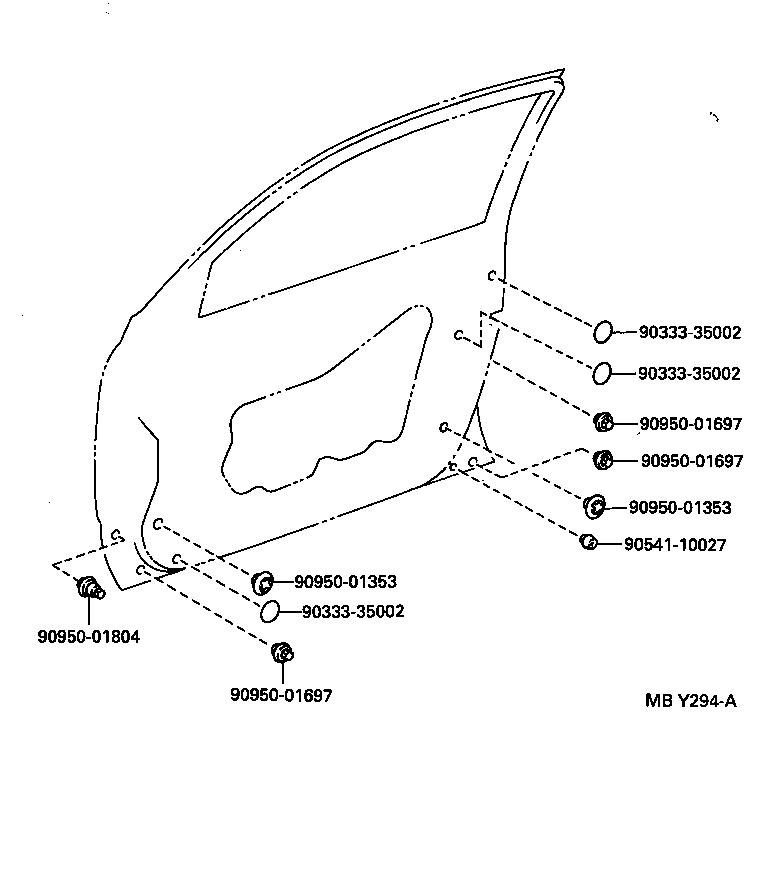

ILLUST NO. 2 OF 4(9303- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-35002 | ||||
| 90541-10027 | ||||
| 90950-01353 | ||||
| 90950-01697 | ||||
| 90950-01804 | ||||

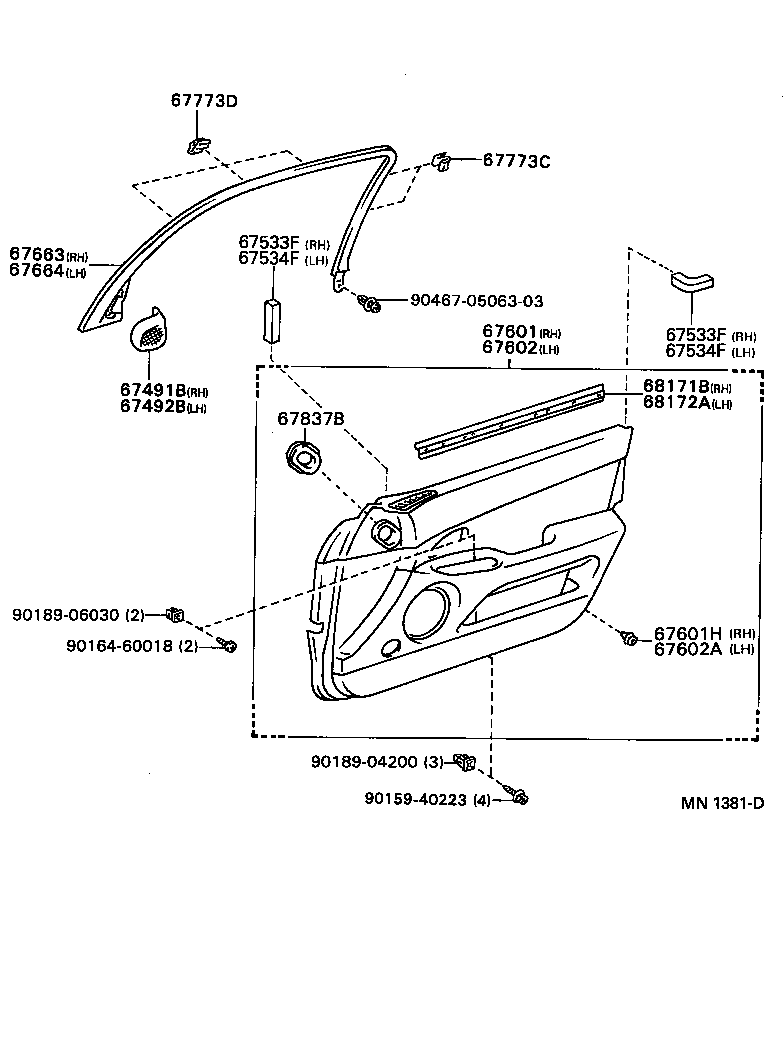

ILLUST NO. 3 OF 4(9303- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-30120E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 67491-30120B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 67491-30120G0 |
JZS147 SPRUCE GRAY,TRIM6# |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-30120B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 67492-30120E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 67492-30120G0 |
JZS147 SPRUCE GRAY,TRIM6# |
1 | ||
| 67533F - PAD, FRONT DOOR LOWER FRAME GARNISH, RH | ||||
| 67534-30010 |
JZS147 |
2 | ||
| 67533F - PAD, FRONT DOOR LOWER FRAME GARNISH, RH | ||||
| 67534-30010 |
JZS147 |
2 | ||
| 67534F - PAD, FRONT DOOR LOWER FRAME GARNISH, LH | ||||
| 67534-30010 |
JZS147 |
2 | ||
| 67534F - PAD, FRONT DOOR LOWER FRAME GARNISH, LH | ||||
| 67534-30010 |
JZS147 |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3F190A0 |
JZS147 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67610-3F191G0 |
JZS147..LHD W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 67610-3F191A0 |
JZS147..LHD W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67610-3F190G0 |
JZS147 W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 67610-3F271B0 |
JZS147..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3F190B0 |
JZS147 W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3F191B1 |
JZS147..LHD W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3F270B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 67610-3F193A0 |
JZS147..LHD W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67610-3F193G0 |
JZS147..LHD W(LEATHER SEAT),SPRUCE,TRIM6# |
1 | ||
| 67610-3F192B1 |
JZS147..LHD W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3F192A0 |
JZS147..LHD W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67610-3F272B0 |
JZS147..LHD MD.GRAY,TRIM1# |
1 | ||
| 67610-3F192G0 |
JZS147..LHD W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 67610-3F193B1 |
JZS147..LHD W(LEATHER SEAT),MD.GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28020 |
JZS147 |
5 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3F711G0 |
JZS147..LHD W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 67620-3F710G0 |
JZS147 W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 67620-3F710B0 |
JZS147 W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F780B0 |
JZS147 GRAY,TRIM1# |
1 | ||
| 67620-3F712B1 |
JZS147..LHD W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F781B0 |
JZS147..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F711B1 |
JZS147..LHD W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3F712A0 |
JZS147..LHD W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67620-3F711A0 |
JZS147..LHD W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67620-3F712G0 |
JZS147..LHD W(LEATHER SEAT),LI.SPRUCE,TRIM6# |
1 | ||
| 67620-3F713A0 |
JZS147..LHD W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67620-3F710A0 |
JZS147 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 67620-3F782B0 |
JZS147..LHD MD.GRAY,TRIM1# |
1 | ||
| 67620-3F713B1 |
JZS147..LHD W(LEATHER SEAT),MD.GRAY,TRIM1# |
1 | ||
| 67620-3F713G0 |
JZS147..LHD W(LEATHER SEAT),SPRUCE,TRIM6# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28020 |
JZS147 |
5 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-30010G0 |
JZS147 SPRUCE GRAY,TRIM6# |
1 | ||
| 67663-30010B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 67663-30010E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-30010E0 |
JZS147 SABLE,TRIM0# |
1 | ||
| 67664-30010G0 |
JZS147 SPRUCE GRAY,TRIM6# |
1 | ||
| 67664-30010B0 |
JZS147 SHADOW GRAY,TRIM1# |
1 | ||
| 67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-30040 |
JZS147 |
4 | ||
| 67773D - CLIP, DOOR TRIM UPPER RETAINER, NO.2 | ||||
| 67774-30010 |
JZS147 |
6 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-50010 |
JZS147 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30110 |
JZS147 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30050 |
JZS147 |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90164-60018 | ||||
| 90189-04200 | ||||
| 90189-06030 | ||||
| 90467-0506303 | ||||
ILLUST NO. 2 OF 2(9303- )
| Part # | Description | Qty | Price |
|---|
