UZS190L-BETQKW (2005)
Toyota Lexus Gs30/35/43/460
(0501- )GRS190,URS190,UZS190
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-30A70 |
UZS190 |
1 | ||
| 48131-30B30 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-30B30 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 48131-30A70 |
UZS190 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-30250 |
GRS190,UZS190 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-30250 |
GRS190,UZS190 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-30020 |
GRS190,UZS190 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-30020 |
GRS190,UZS190 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80304 |
UZS190..LHD..EUR MARK 48510-30750,SPARE TIRE-WITHOUT |
1 | ||
| 48510-80217 |
UZS190 MARK 48510-30680 |
1 | ||
| 48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH | ||||
| 48519-30030 |
UZS190 |
1 | ||
| 48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH | ||||
| 48519-30030 |
UZS190 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80043 |
UZS190 MARK 48520-30160 |
1 | ||
| 48520-80087 |
UZS190..LHD..EUR MARK 48520-30200,SPARE TIRE-WITHOUT |
1 | ||
| 48553 - CAP, SHOCK ABSORBER, UPPER | ||||
| 48553-30100 |
UZS190 |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-30340 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
2 | ||
| 48680-30310 |
UZS190 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-30070 |
GRS190,UZS190 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30660 |
GRS190,UZS190 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30570 |
GRS190,UZS190 |
2 | ||
| 48815-30620 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-30090 |
GRS190,UZS190 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48809-30080 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 48809-30060 |
GRS190,UZS190 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48824-30130 |
GRS190,UZS190 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48824-30130 |
GRS190,UZS190 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48809-30060 |
GRS190,UZS190 |
1 | ||
| 48807-30010 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 | ||||
| 53729-53020 |
GRS190,UZS190 |
2 | ||
| Common parts | ||||
| 90105-14153 | ||||
| 90119-10940 | ||||
| 90119-10965 | ||||
| 90177-12002 | ||||
| 90178-10014 | ||||
| 90179-10174 | ||||
| 90179-14045 | ||||
| 94151-21241 | ||||

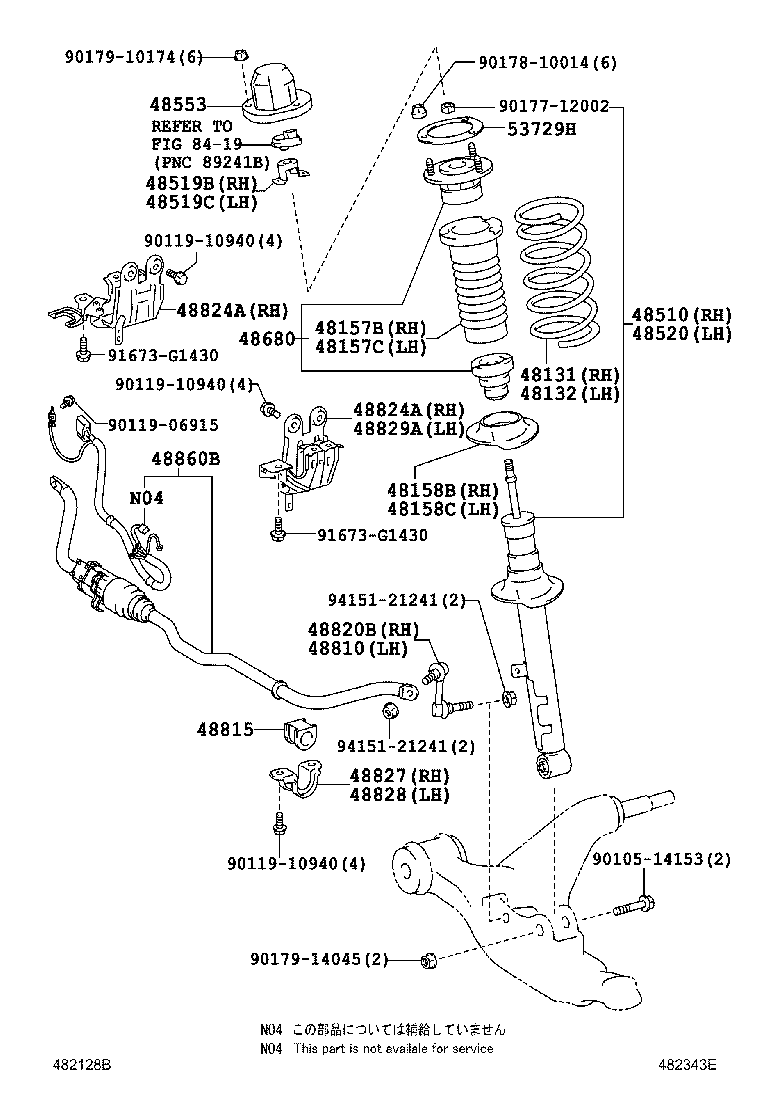

| Linked diagrams | ||||
| 8419 | ||||
(0607-0709)UZS190..EUR
W(ACTIVE STABILIZER SUSPENSION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-30A70 |
UZS190 |
1 | ||
| 48131-30B30 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-30B30 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 48131-30A70 |
UZS190 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-30250 |
GRS190,UZS190 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-30250 |
GRS190,UZS190 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-30020 |
GRS190,UZS190 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-30020 |
GRS190,UZS190 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80304 |
UZS190..LHD..EUR MARK 48510-30750,SPARE TIRE-WITHOUT |
1 | ||
| 48510-80217 |
UZS190 MARK 48510-30680 |
1 | ||
| 48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH | ||||
| 48519-30030 |
UZS190 |
1 | ||
| 48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH | ||||
| 48519-30030 |
UZS190 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80043 |
UZS190 MARK 48520-30160 |
1 | ||
| 48520-80087 |
UZS190..LHD..EUR MARK 48520-30200,SPARE TIRE-WITHOUT |
1 | ||
| 48553 - CAP, SHOCK ABSORBER, UPPER | ||||
| 48553-30100 |
UZS190 |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-30340 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
2 | ||
| 48680-30310 |
UZS190 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-30070 |
GRS190,UZS190 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30570 |
GRS190,UZS190 |
2 | ||
| 48815-30620 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-30090 |
GRS190,UZS190 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48809-30080 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 48809-30060 |
GRS190,UZS190 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48809-30080 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 48809-30060 |
GRS190,UZS190 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48824-30130 |
GRS190,UZS190 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48824-30130 |
GRS190,UZS190 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48809-30060 |
GRS190,UZS190 |
1 | ||
| 48807-30010 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 48860B - ACTUATOR ASSY, FRONT ACTIVE STABILIZER CONTROL | ||||
| 48860-30030 |
UZS190..LHD..EUR SPARE TIRE-WITHOUT |
1 | ||
| 53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 | ||||
| 53729-53020 |
GRS190,UZS190 |
2 | ||
| Common parts | ||||
| 90105-14153 | ||||
| 90119-06915 | ||||
| 90119-10940 | ||||
| 90177-12002 | ||||
| 90178-10014 | ||||
| 90179-10174 | ||||
| 90179-14045 | ||||
| 91673-G1430 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 8419 | ||||
