UZS190L-BETQKV (2005)

Toyota Lexus Gs30/35/43/460

Production Jan 2005 - Sep 2007
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )LHD

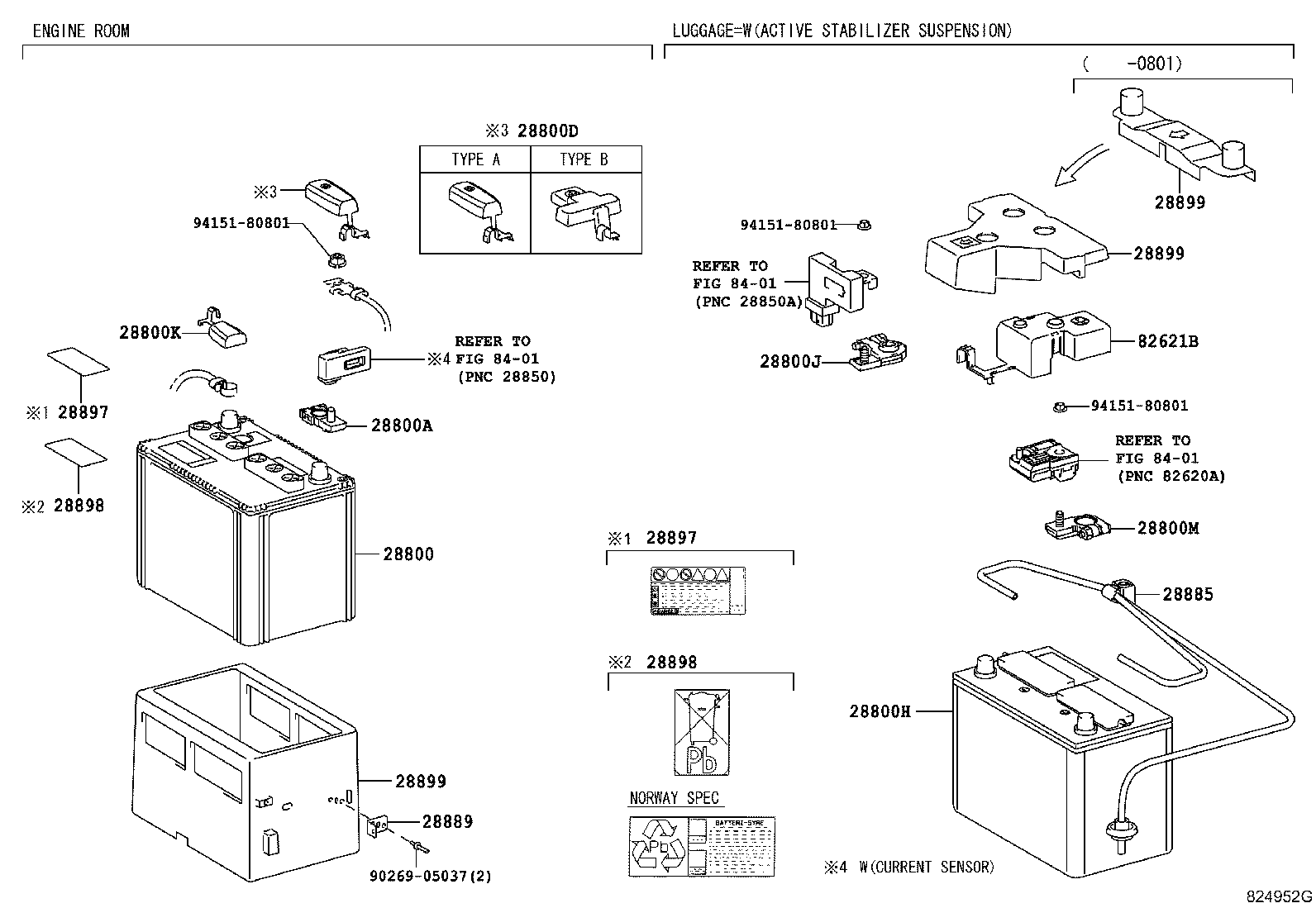

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800H 28800J 28800K 28800M 28885 28889 28897 28897 28898 28898 28899 28899 28899 82621B 8401 8401 8401 9026905037 9415180801 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-50070

3GR#,3UZFE..GRS190,UZS190..LHD

80D26R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05062

3GR#,3UZFE..GRS190,UZS190..LHD

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-50470

3GRFE,3UZFE..GRS190,UZS190..LHD

 1
82821-50470

3GRFE,3UZFE..GRS190,UZS190..LHD

TYPE A:REFER TO ILLUSTRATION

 1
28800K - COVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)
82821-50450

3GR#,3UZFE..GRS190,UZS190

 1
28889 - BRACKET, BATTERY WIRE CLAMP
28889-31010

3GR#,3UZFE..GRS190,UZS190..LHD

 1
28899 - INSULATOR, BATTERY
28899-31030

3GR#,3UZFE..GRS190,UZS190..LHD

ENGINE ROOM

 1
28899 - INSULATOR, BATTERY
28899-31030

3GR#,3UZFE..GRS190,UZS190..LHD

ENGINE ROOM

 1
28899 - INSULATOR, BATTERY
28899-31030

3GR#,3UZFE..GRS190,UZS190..LHD

ENGINE ROOM

 1
Common parts
90269-05037
94151-80801
Linked diagrams
8401
