UZS190L-BETQKV (2005)
Toyota Lexus Gs30/35/43/460
Production
Jan 2005
-
Sep 2007
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

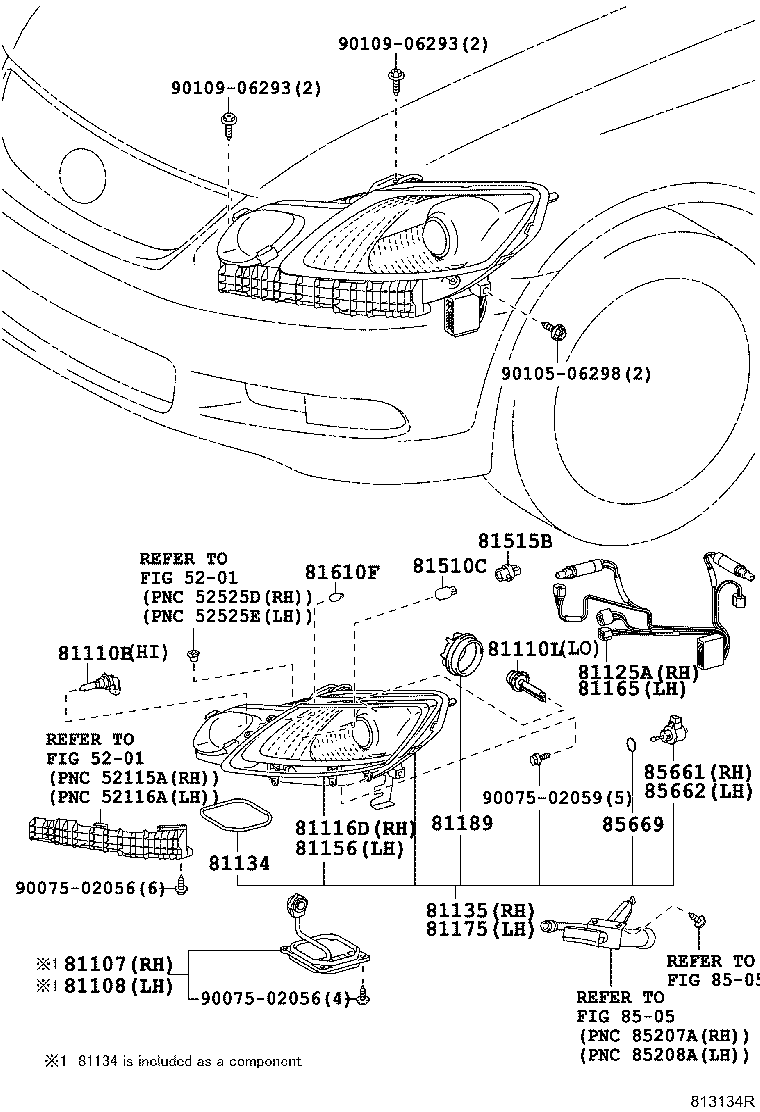

ILLUST NO. 1 OF 2(0501- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-47150 |
GRS190,UZS190..LHD |
1 | ||
| 81108-30B90 |
GRS190,UZS190..LHD |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81108-30B90 |
GRS190,UZS190..LHD |
1 | ||
| 81107-47150 |
GRS190,UZS190..LHD |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13066 |
GRS190,UZS190 12V 65W,HALOGEN |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20024 |
GRS190,UZS190 42V 35W |
2 | ||
| 81116D - RIM, HEAD LAMP, RH | ||||
| 81116-30B80 |
GRS190,UZS190 |
1 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-30B80 |
GRS190,UZS190 |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
GRS190,UZS190 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-30B90 |
GRS190,UZS190..LHD |
1 | ||
| 81145-30B91 |
GRS190,UZS190..LHD |
1 | ||
| 81156 - RIM, HEADLAMP, LH | ||||
| 81156-30B90 |
GRS190,UZS190 |
1 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81165-30B91 |
GRS190,UZS190 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-30C02 |
GRS190,UZS190..LHD |
1 | ||
| 81185-30C01 |
GRS190,UZS190..LHD |
1 | ||
| 81185-30C00 |
GRS190,UZS190..LHD |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
GRS190,UZS190 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60026 |
GRS190,UZS190 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GRS190,UZS190 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48030 |
GRS190,UZS190..LHD |
1 | ||
| 85661-48030 |
GRS190,UZS190..LHD |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48030 |
GRS190,UZS190..LHD |
1 | ||
| 85661-48030 |
GRS190,UZS190..LHD |
1 | ||
| 85661-48030 |
GRS190,UZS190..LHD |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
GRS190,UZS190 |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90075-02059 | ||||
| 90105-06298 | ||||
| 90109-06293 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 8505 | ||||
ILLUST NO. 2 OF 2(0501- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-30050 |
GRS190,UZS190 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-30030 |
GRS190,UZS190 |
1 | ||
