UZS190L-BETQKV (2005)

Toyota Lexus Gs30/35/43/460

Production Jan 2005 - Sep 2007
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

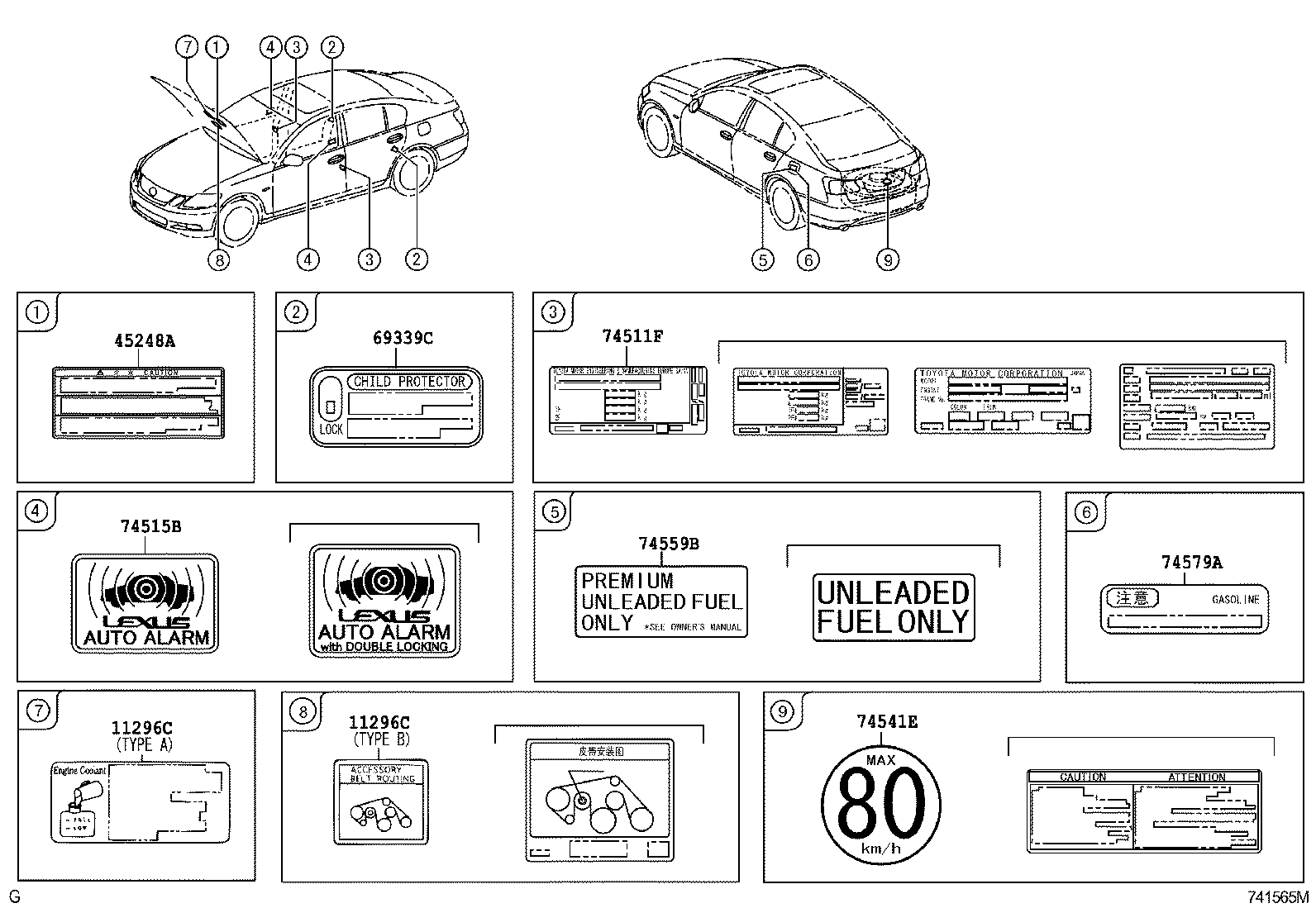

ILLUST NO. 1 OF 2(0501- )

Click highlighted areas on diagram

diagram 11296C 11296C 45248A 69339C 74511F 74515B 74541E 74559B 74579A
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

3GR#,3UZFE..GRS190,UZS190

TYPE A

 1
11296-50290

3UZFE..UZS190..GCC

PHILIPPIN SPEC,TYPE B

 1
11296-50290

3UZFE..UZS190..GCC

TYPE B

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

3GR#,3UZFE..GRS190,UZS190

TYPE A

 1
11296-50290

3UZFE..UZS190..GCC

PHILIPPIN SPEC,TYPE B

 1
11296-50290

3UZFE..UZS190..GCC

TYPE B

 1
45248A - LABEL, STEERING ACTUATOR CAUTION
45248-30010

UZS190

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

GRS190,UZS190

 2
69339-48010

GRS190,UZS190

 2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

GRS190,UZS190..GCC,GEN

*111

 1
74515B - PLATE, THEFT WARNING
74515-30040

UZS190..LHD;GRS190..GCC,GEN;GRS190..LHD..EUR

 2
74559B - LABEL, FUEL INFORMATION
74559-50010

UZS190..GCC

 1

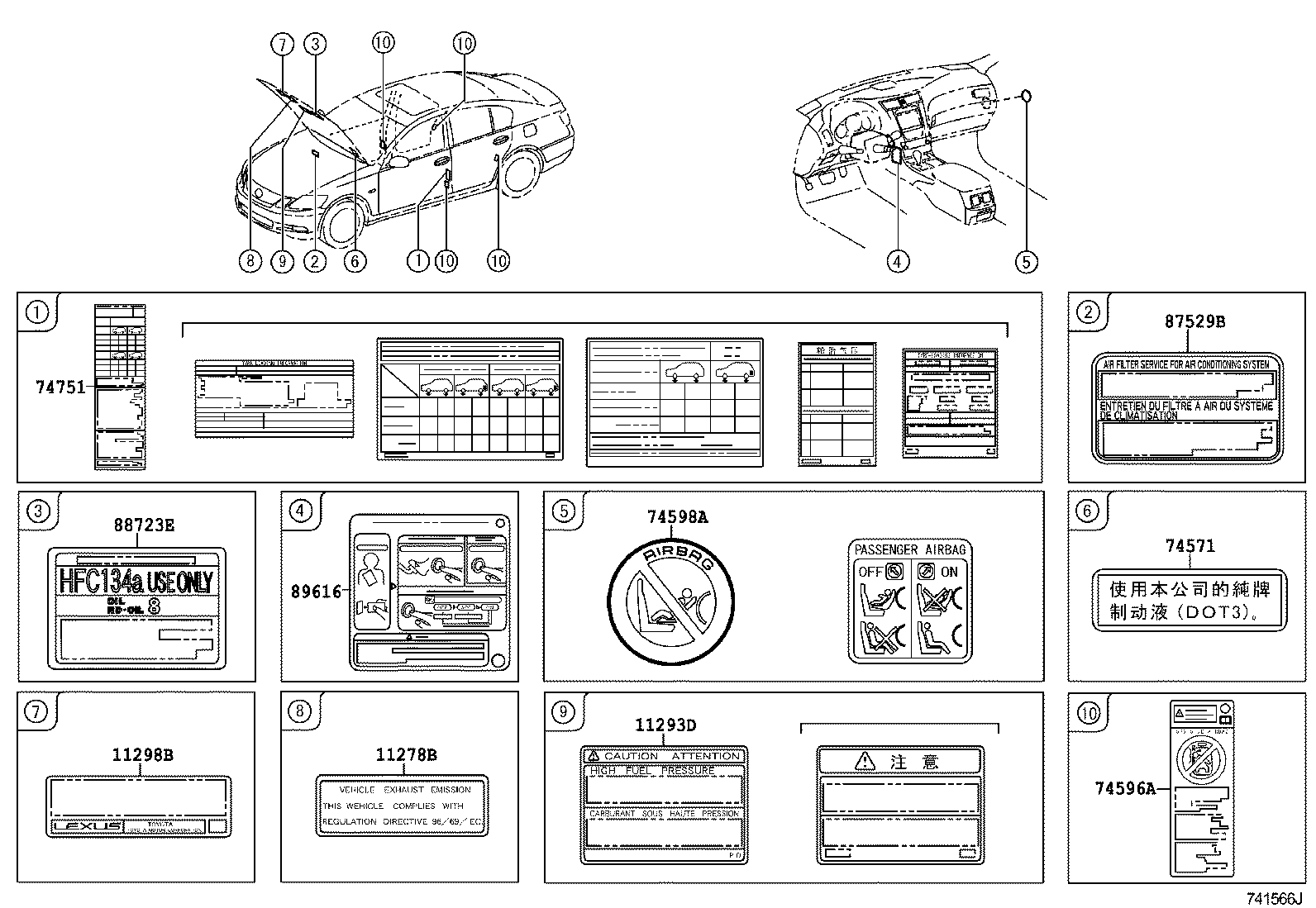

ILLUST NO. 2 OF 2(0501- )

Click highlighted areas on diagram

diagram 11278B 11293D 11298B 74571 74596A 74598A 74751 87529B 88723E 89616
Part # Description Qty Price
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-50610

3UZFE..UZS190..GCC

PHILIPPIN SPEC

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-30040

GRS190,UZS190..GCC

 2
74596-30030

UZS190..GCC

PHILIPPIN SPEC

 2
74596-30040

GRS190,UZS190..GCC

SRS AIR BAG-WITH(REAR SIDE)

 4
74596-30030

UZS190..GCC

PHILIPPIN SPEC&SRS AIR BAG-WITH(REAR SIDE)

 4
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

GRS190,UZS190..GCC,GEN

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-30750

GRS190,UZS190..GCC

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

GRS190,UZS190

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-28220

GRS190,UZS190

 1
89616 - LABEL, PUSH START INFORMATION
89616-30051

GRS190,UZS190..GCC

 1
