UZS190L-BETQKV (2005)

Toyota Lexus Gs30/35/43/460

Production Jan 2005 - Sep 2007
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )LHD

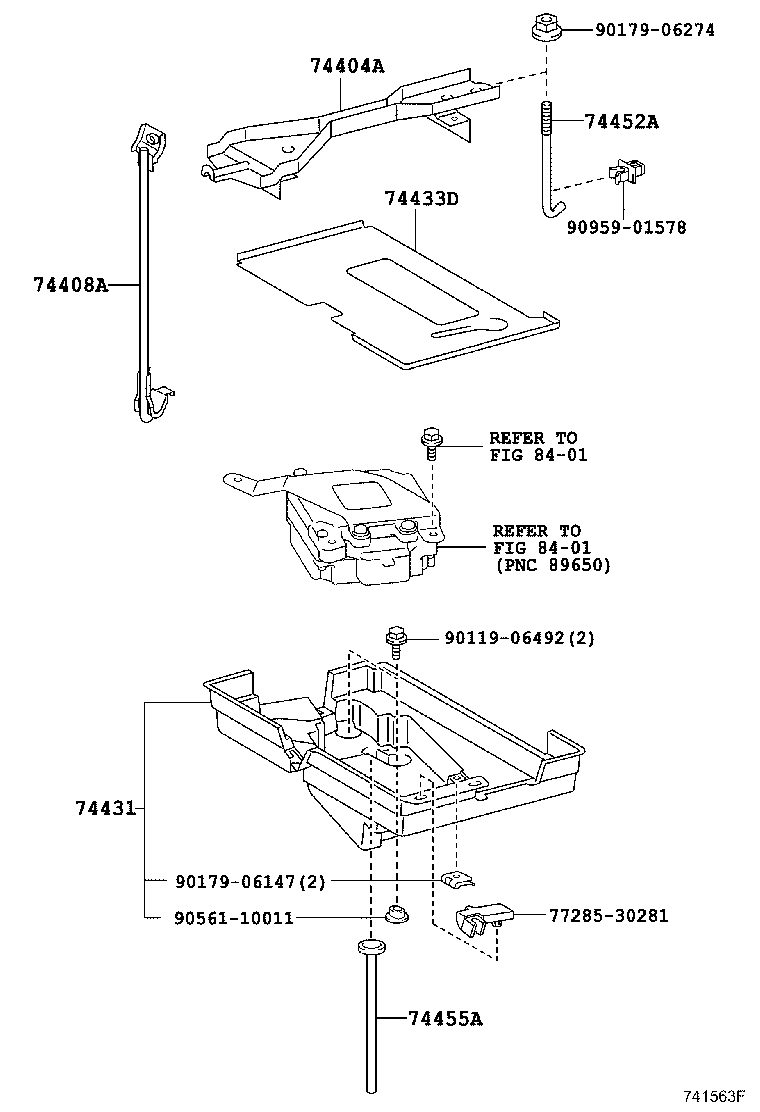

Click highlighted areas on diagram

diagram 74404A 74408A 74431 74433D 74452A 74455A 7728530281 8401 8401 9011906492 9017906147 9017906274 9056110011 9095901578
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-22370

GRS190,UZS190

 1
74408A - BOLT SUB-ASSY, BATTERY CLAMP, NO.2
74408-22030

GRS190,UZS190

 1
74431 - TRAY, BATTERY
74431-30200

GRS190,UZS190..LHD

 1
74433D - SUPPORT, BATTERY TRAY,NO.1
74433-30030

GRS190,UZS190..LHD

 1
74433-30031

GRS190,UZS190..LHD

 1
74452A - BOLT, BATTERY CLAMP, NO.2
74452-51010

GRS190,UZS190

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

GRS190,UZS190

 1
Common parts
77285-30281
90119-06492
90179-06147
90179-06274
90561-10011
90959-01578
Linked diagrams
8401
