UZS190L-BETQKV (2005)
Toyota Lexus Gs30/35/43/460
ILLUST NO. 1 OF 3(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-30100 |
GRS190,UZS190 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-30100 |
GRS190,UZS190 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-30071 |
GRS190,UZS190 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-30071 |
GRS190,UZS190 |
1 | ||
| 57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57257-30040 |
GRS190,UZS190 |
1 | ||
| 57257-30041 |
GRS190,UZS190 |
1 | ||
| 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-30091 |
GRS190,UZS190 |
1 | ||
| 57258-30090 |
GRS190,UZS190 |
1 | ||
| 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-30091 |
GRS190,UZS190 |
1 | ||
| 57258-30090 |
GRS190,UZS190 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-30151 |
GRS190,UZS190 |
1 | ||
| 57407-30150 |
GRS190,UZS190 |
1 | ||
| 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-30080 |
GRS190,UZS190 |
1 | ||
| 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-30080 |
GRS190,UZS190 |
1 | ||
| 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-30020 |
GRS190,UZS190 |
1 | ||
| 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-30020 |
GRS190,UZS190 |
1 | ||
| 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-30030 |
GRS190,UZS190 |
1 | ||
| 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57427-30030 |
GRS190,UZS190 |
1 | ||
| 57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57508-30020 |
GRS190,UZS190 |
1 | ||
| 57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57509-30020 |
GRS190,UZS190 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-30061 |
GRS190,UZS190 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-30110 |
GRS190,UZS190 |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-30050 |
GRS190,UZS190 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-30450 |
GRS190,UZS190 |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-30160 |
GRS190,UZS190 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-30190 |
GRS190,UZS190 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
GRS190,UZS190 |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
GRS190,UZS190 |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-30350 |
GRS190,UZS190 |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-30050 |
GRS190,UZS190 |
1 | ||
| 58209-30050 |
GRS190,UZS190 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58202-30091 |
GRS190,UZS190 |
1 | ||
| 58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2 | ||||
| 58246-22020 |
GRS190,UZS190 |
1 | ||
| 58261A - COVER, TRANSMISSION | ||||
| 58261-30231 |
GRS190,UZS190..LHD |
1 | ||
| 58261-30231 |
GRS190,UZS190..LHD |
1 | ||
| 58261-30230 |
GRS190,UZS190..LHD |
1 | ||
| 58298E - BRACKET, HOT AIR INTAKE, NO.1 | ||||
| 58298-30030 |
GRS190,UZS190 |
1 | ||
| 58299C - BRACKET, HOT AIR INTAKE, NO.2 | ||||
| 58299-30010 |
GRS190,UZS190 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-30210 |
GRS190,UZS190 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-30752 |
GRS190,UZS190 |
1 | ||
| 58307-30750 |
GRS190,UZS190 |
1 | ||
| 58307-30753 |
GRS190,UZS190 |
1 | ||
| 58307-30751 |
GRS190,UZS190 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-30360 |
GRS190,UZS190 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-30200 |
GRS190,UZS190 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-30200 |
GRS190,UZS190 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-30020 |
GRS190,UZS190 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-30030 |
GRS190,UZS190 |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-30040 |
GRS190,UZS190 |
1 | ||
| 58385-30040 |
GRS190,UZS190 |
1 | ||
| 58385-30040 |
GRS190,UZS190 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-30020 |
GRS190,UZS190 |
1 | ||
| 58386-30020 |
GRS190,UZS190 |
1 | ||
| 58386-30020 |
GRS190,UZS190 |
1 | ||
| 58790B - CARRIER ASSY, JACK | ||||
| 58790-30010 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 90105-08088 | ||||
| 90115-06242 | ||||
| 90115-06243 | ||||
| 90115-06301 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 3 OF 3(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-30060 |
GRS190,UZS190 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-30030 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||
ILLUST NO. 2 OF 3(0501- )UZS190 ; (0501- )URS190..EUR
W(ACTIVE STABILIZER SUSPENSION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52383B - PROTECTOR, DIFFERENTIAL SUPPORT, NO.1 | ||||
| 52383-30010 |
GRS190,UZS190 |
1 | ||
| 52384A - PROTECTOR, DIFFERENTIAL SUPPORT, NO.2 | ||||
| 52384-30010 |
GRS190,UZS190 |
1 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-30040 |
UZS190 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-30040 |
UZS190 |
1 | ||
| 58167C - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-30052 |
GRS190,UZS190 |
1 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-30052 |
GRS190,UZS190 |
1 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-30050 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 90159-60500 | ||||
| 90159-60507 | ||||
| 90179-06306 | ||||
| 90189-06066 | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||

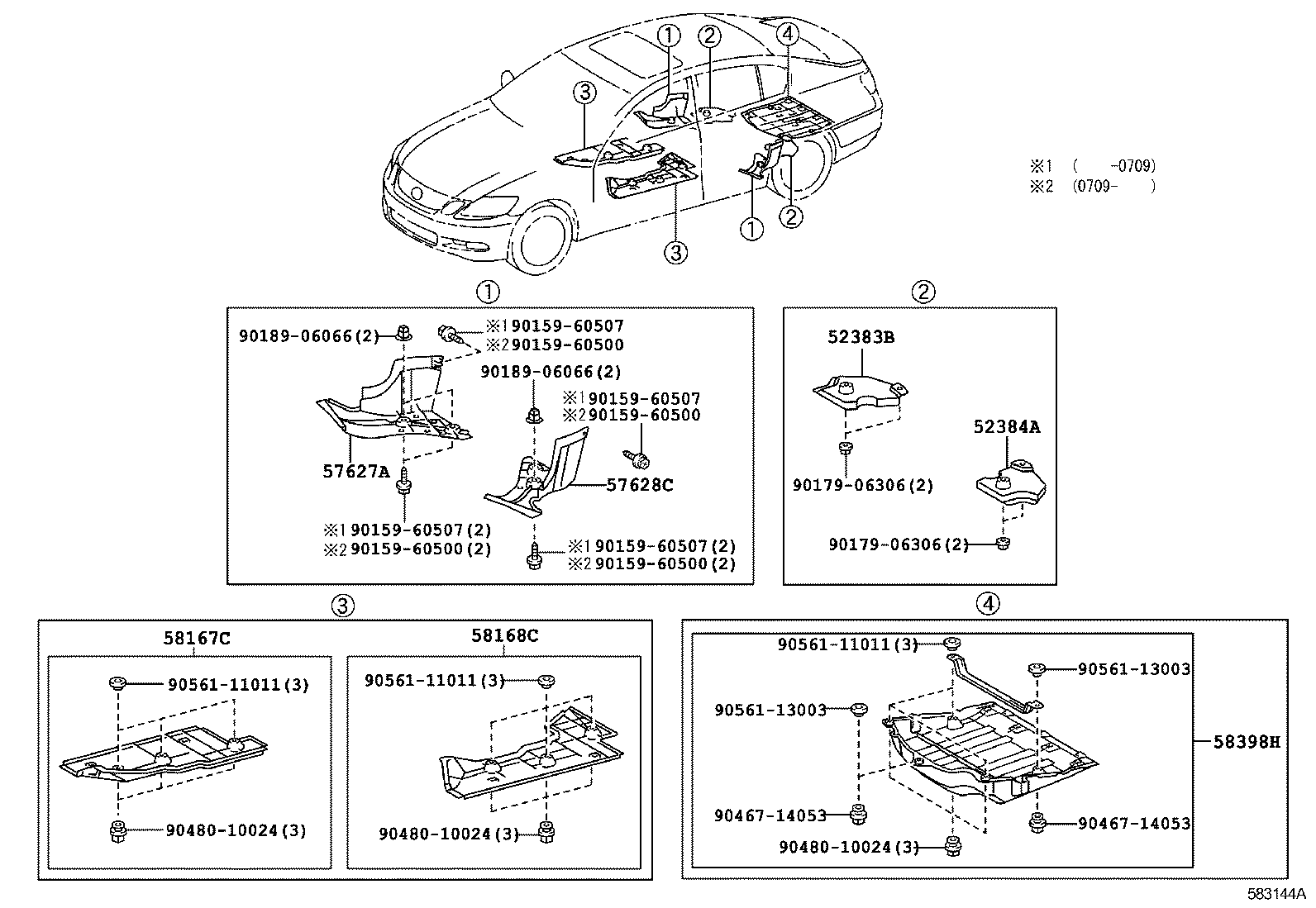

ILLUST NO. 2 OF 3(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52383B - PROTECTOR, DIFFERENTIAL SUPPORT, NO.1 | ||||
| 52383-30010 |
GRS190,UZS190 |
1 | ||
| 52384A - PROTECTOR, DIFFERENTIAL SUPPORT, NO.2 | ||||
| 52384-30010 |
GRS190,UZS190 |
1 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-30040 |
UZS190 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-30040 |
UZS190 |
1 | ||
| 58167C - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-30052 |
GRS190,UZS190 |
1 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-30052 |
GRS190,UZS190 |
1 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-30050 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 77289-30070 | ||||
| 77289-30110 | ||||
| 90159-60500 | ||||
| 90159-60507 | ||||
| 90179-06306 | ||||
| 90189-06066 | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||
