UZS190L-BETQKV (2005)

Toyota Lexus Gs30/35/43/460

Production Jan 2005 - Sep 2007
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )GRS196,UZS190 ; (0501- )GRS190..GCC,GEN

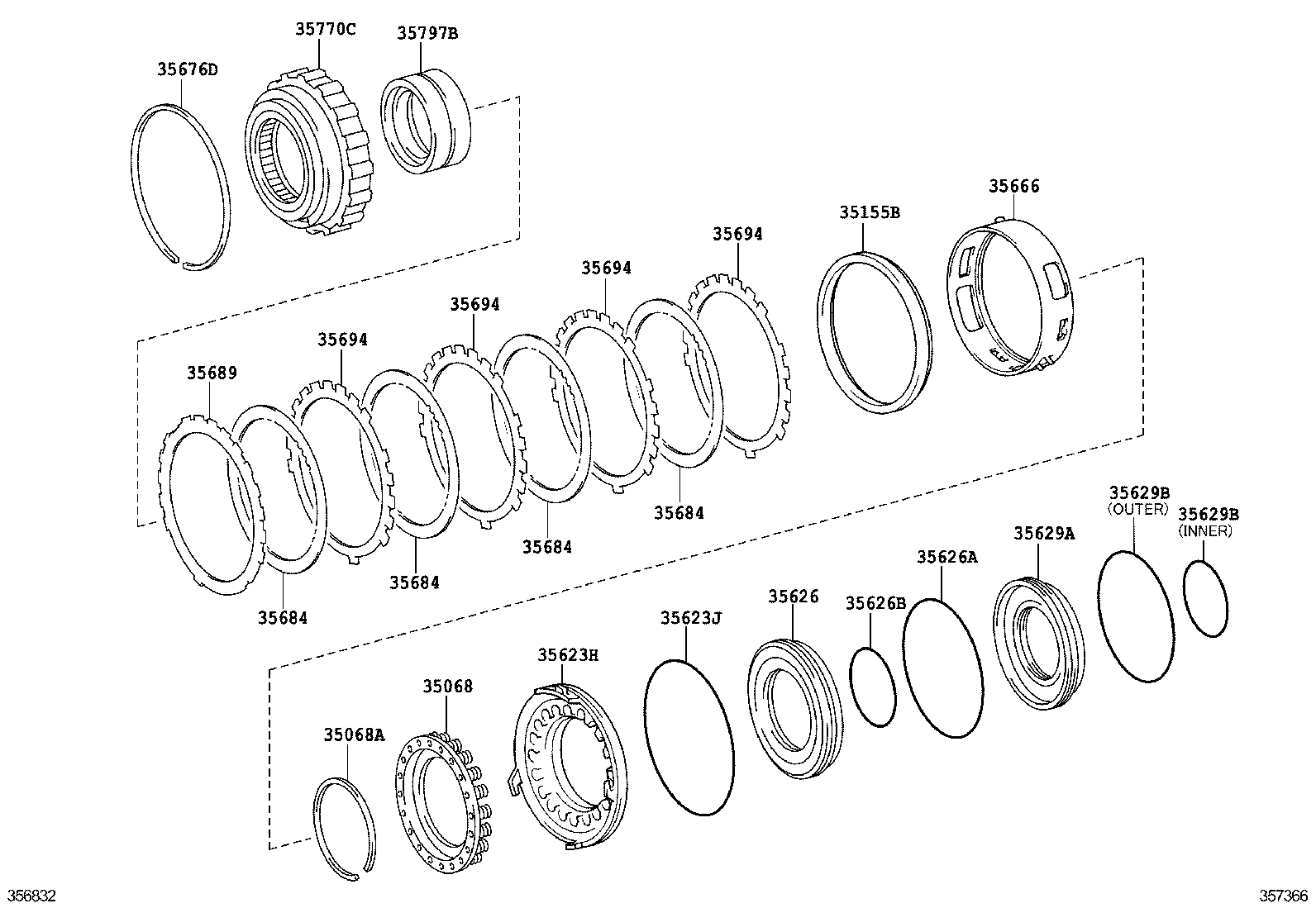

Click highlighted areas on diagram

A760E,A760H,A761E

diagram 35068 35068A 35155B 35623H 35623J 35626 35626A 35626B 35629A 35629B 35629B 35666 35676D 35684 35684 35684 35684 35689 35694 35694 35694 35694 35770C 35797B
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-60010

UZS190;GRS190..GCC,GEN

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-61001

UZS190;GRS190..GCC,GEN

 1
35155B - SLEEVE, REAR COVER
35155-50010

UZS190;GRS190..GCC,GEN

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-50030

UZS190;GRS190..GCC,GEN

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99087

UZS190;GRS190..GCC,GEN

 1
35626 - SLEEVE, BRAKE REACTION
35626-50010

UZS190;GRS190..GCC,GEN

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99144

UZS190;GRS190..GCC,GEN

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-79003

UZS190;GRS190..GCC,GEN

 1
35629A - PISTON, BRAKE, NO.4
35629-50020

UZS190;GRS190..GCC,GEN

 1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-99084

UZS190;GRS190..GCC,GEN

OUTER

 1
90301-67006

UZS190;GRS190..GCC,GEN

INNER

 1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-99084

UZS190;GRS190..GCC,GEN

OUTER

 1
90301-67006

UZS190;GRS190..GCC,GEN

INNER

 1
35666 - TUBE, BRAKE APPLY
35666-50010

UZS190;GRS190..GCC,GEN

 1
35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)
90521-99131

UZS190;GRS190..GCC,GEN

 1
35684 - DISC, BRAKE, NO.4
35684-50010

UZS190;GRS190..GCC,GEN

 4
35684 - DISC, BRAKE, NO.4
35684-50010

UZS190;GRS190..GCC,GEN

 4
35684 - DISC, BRAKE, NO.4
35684-50010

UZS190;GRS190..GCC,GEN

 4
35684 - DISC, BRAKE, NO.4
35684-50010

UZS190;GRS190..GCC,GEN

 4
35689 - FLANGE, BRAKE, NO.4
35689-60100

UZS190;GRS190..GCC,GEN

T=1.8,MARK 0

 1
35689-60140

UZS190;GRS190..GCC,GEN

T=2.6,MARK 8

 1
35689-60160

UZS190;GRS190..GCC,GEN

T=3.0,MARK 12

 1
35689-60150

UZS190;GRS190..GCC,GEN

T=2.8,MARK 10

 1
35689-60170

UZS190;GRS190..GCC,GEN

T=3.2,MARK 14

 1
35689-60120

UZS190;GRS190..GCC,GEN

T=2.2,MARK 4

 1
35689-60130

UZS190;GRS190..GCC,GEN

T=2.4,MARK 6

 1
35689-60110

UZS190;GRS190..GCC,GEN

T=2.0,MARK 2

 1
35694 - PLATE, BRAKE, NO.4
35694-60011

UZS190;GRS190..GCC,GEN

 4
35694 - PLATE, BRAKE, NO.4
35694-60011

UZS190;GRS190..GCC,GEN

 4
35694 - PLATE, BRAKE, NO.4
35694-60011

UZS190;GRS190..GCC,GEN

 4
35694 - PLATE, BRAKE, NO.4
35694-60011

UZS190;GRS190..GCC,GEN

 4
35770C - CLUTCH ASSY, 1WAY NO.3
35770-50010

UZS190;GRS190..GCC,GEN

 1
35797B - RACE, 1 WAY CLUTCH, INNER
35797-50030

UZS190;GRS190..GCC,GEN

 1
35797-50031

UZS190;GRS190..GCC,GEN

 1
