Toyota Lexus gs30/35/43/460 UZS190 MANIFOLD

Part #	Description	Period	Qty
17102 - MANIFOLD SUB-ASSY, INTAKE, UPPER
17102-50014	3UZFE..UZS190	01/2005 - 09/2007	1
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17104-50160	3UZFE..UZS190	01/2005 - 09/2007	1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17105-50160	3UZFE..UZS190	01/2005 - 09/2007	1
17111 - MANIFOLD, INTAKE
17101-50010	3UZFE..UZS190	01/2005 - 09/2007	1
17114B - GASKET, INTAKE FLANGE
17116-50010	3UZFE..UZS190	01/2005 - 09/2007	1
17127 - GASKET, SURGE TANK COVER
17127-50010	3UZFE..UZS190	01/2005 - 09/2007	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006	3UZFE..UZS190	01/2005 - 09/2007	3
17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006	3UZFE..UZS190	01/2005 - 09/2007	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10015	3UZFE..UZS190	01/2005 - 09/2007	16
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10015	3UZFE..UZS190	01/2005 - 09/2007	16
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-50150	3UZFE..UZS190	01/2005 - 09/2007	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-50140	3UZFE..UZS190	01/2005 - 09/2007	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-50021	3UZFE..UZS190	01/2005 - 09/2007	1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-50021	3UZFE..UZS190	01/2005 - 09/2007	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50020	3UZFE..UZS190	01/2005 - 09/2007	2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-50020	3UZFE..UZS190	01/2005 - 09/2007	2
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-50010	3UZFE..UZS190	01/2005 - 09/2007	1
17335 - ACTUATOR, INTAKE AIR CONTROL VALVE
17335-50011	3UZFE..UZS190	01/2005 - 09/2007	1
Common parts
90105-06198
90116-08160
90116-08324
90148-80026
90179-06074
90179-08153
90179-10070
90182-08001
90339-05018
90339-09003
90341-12028
90430-12005
90467-15021
91511-B0830
91511-J0820
91621-J0612
92122-60828
92122-B0614
92122-B0820
96132-51100

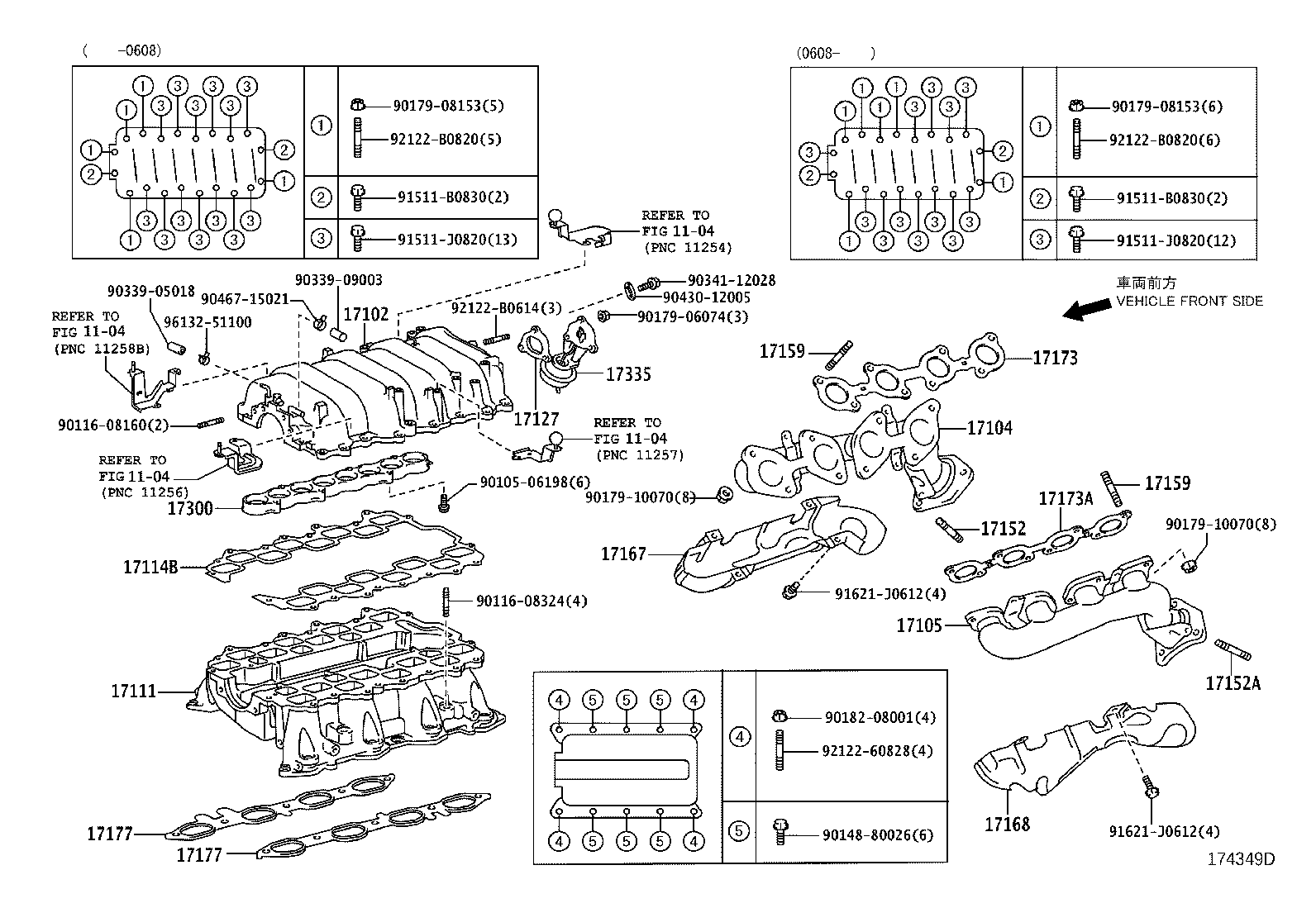

Linked diagrams
1104

UZS190L-BETQKV (2005)

(0501-0809)3UZFE
