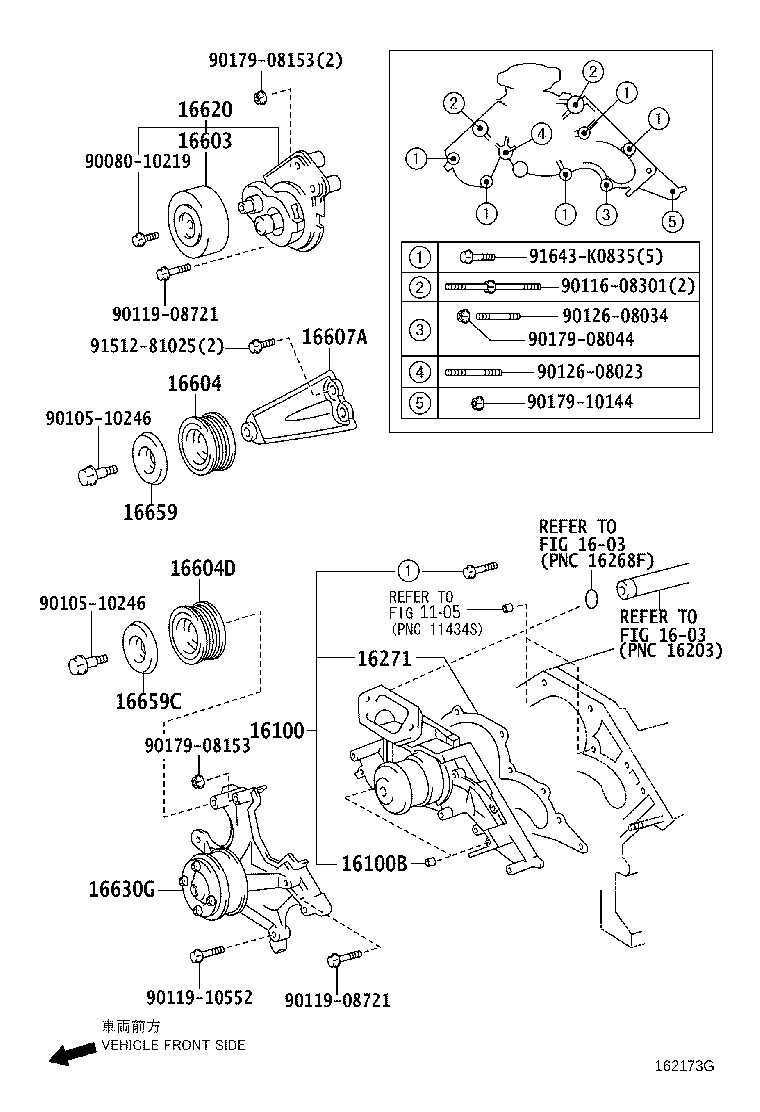

Toyota Lexus gs30/35/43/460 UZS190 WATER PUMP

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-59275	3UZFE..UZS190	01/2005 - 09/2007	1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021	3UZFE..UZS190	01/2005 - 09/2007	2
16271 - GASKET, WATER PUMP
16271-50010	3UZFE..UZS190	01/2005 - 09/2007	1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-0W030	3UZFE..UZS190	01/2005 - 09/2007	1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-50030	3UZFE..UZS190	01/2005 - 09/2007	1
16604D - PULLEY SUB-ASSY, IDLER, NO.3
16604-50030	3UZFE..UZS190	01/2005 - 09/2007	1
16607A - BRACKET SUB-ASSY, IDLER PULLEY, NO.1
16607-50010	3UZFE..UZS190	01/2005 - 09/2007	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W100	3UZFE..UZS190	01/2005 - 09/2006	1
16620-0W101	3UZFE..UZS190	09/2006 - 09/2007	1
16630G - PULLEY ASSY, IDLER
16630-50011	3UZFE..UZS190	01/2005 - 09/2007	1
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-50022	3UZFE..UZS190	01/2005 - 09/2007	1
16659C - PLATE, IDLER PULLEY COVER, NO.1
16659-50022	3UZFE..UZS190	01/2005 - 09/2007	1
Common parts
90080-10219
90105-10246
90116-08301
90119-08721
90119-10552
90126-08023
90126-08034
90179-08044
90179-08153
90179-10144
91512-81025
91643-K0835
Linked diagrams
1105
1603

UZS190L-BETQKV (2005)
