URS190L-BEZQHW (2007)
Toyota Lexus Gs30/35/43/460
Production
Sep 2007
-
Dec 2011
Engine
1URFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )URS190..LHD

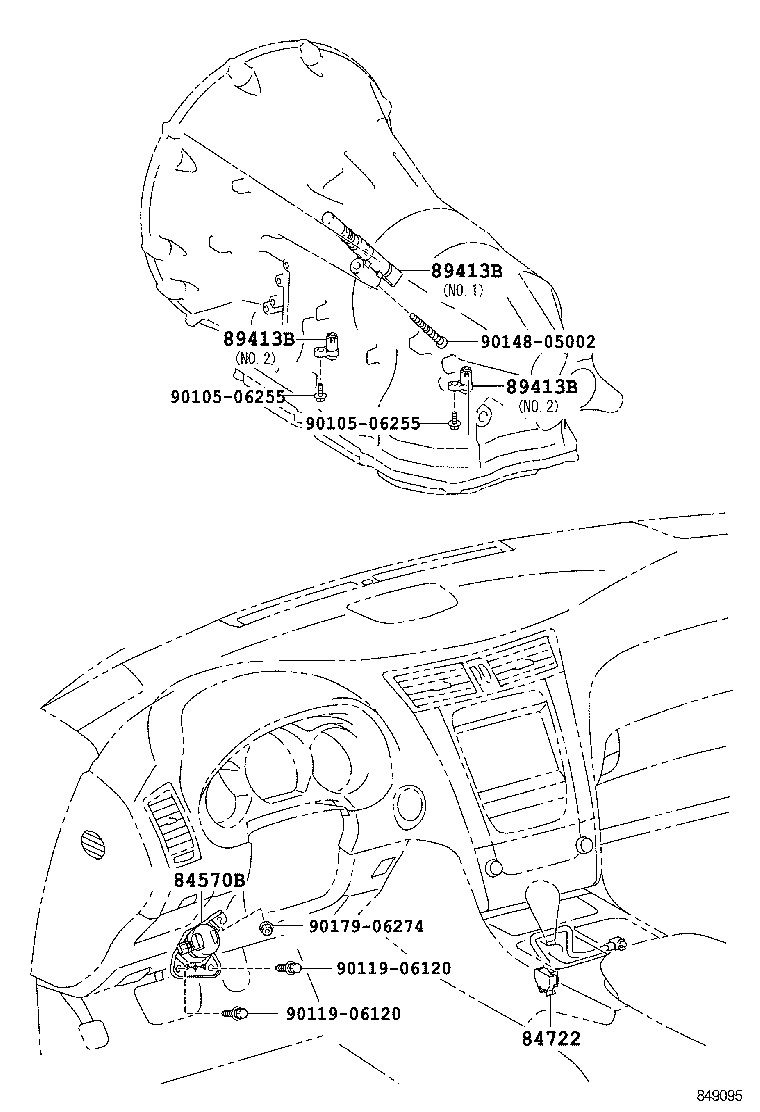

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84570B - SWITCH ASSY, KICK DOWN | ||||
| 84570-30100 |
URS190..LHD;GRS190..LHD..EUR |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-20240 |
GRS19#,URS190,UZS190..LHD |
1 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-50010 |
URS190 NO.1 |
1 | ||
| 89413-50020 |
URS190 NO.2 |
2 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-50010 |
URS190 NO.1 |
1 | ||
| 89413-50020 |
URS190 NO.2 |
2 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-50010 |
URS190 NO.1 |
1 | ||
| 89413-50020 |
URS190 NO.2 |
2 | ||
| Common parts | ||||
| 90105-06255 | ||||
| 90119-06120 | ||||
| 90148-05002 | ||||
| 90179-06274 | ||||
