GRS196L-BETQHW (2009)

Toyota Lexus Gs30/35/43/460

Production Jul 2009 - Dec 2011
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0907- )2GRFSE

Click highlighted areas on diagram

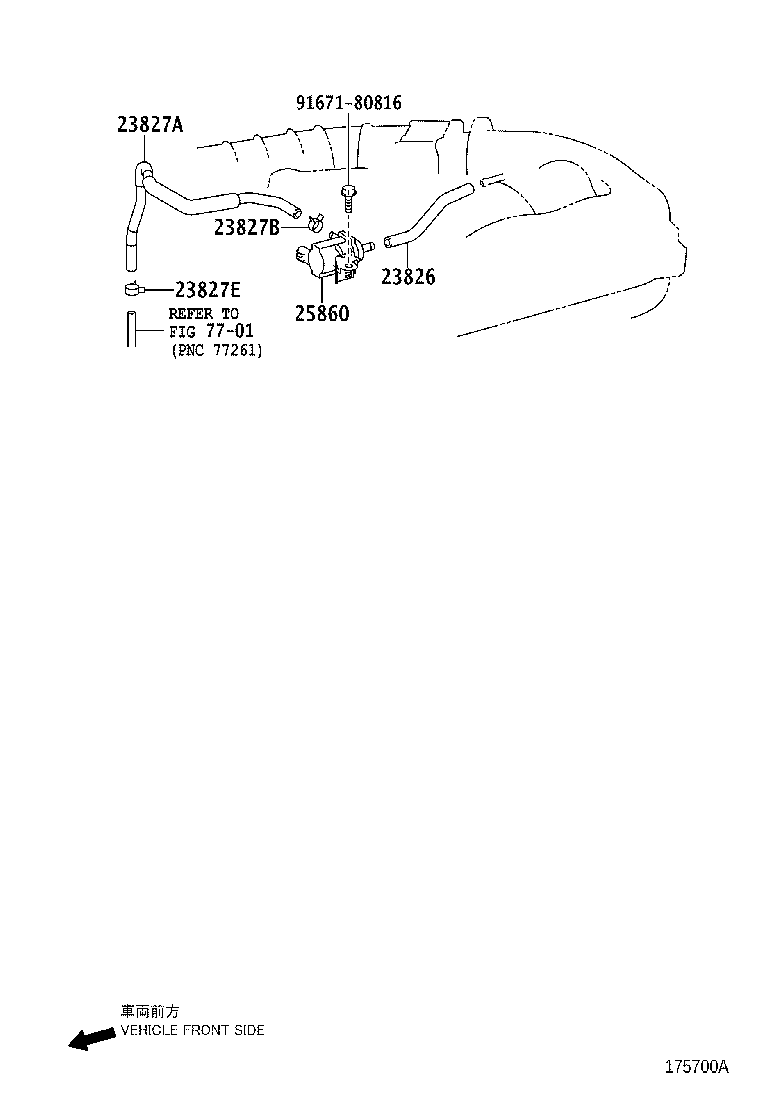

diagram 23826 23827A 23827B 23827E 25860 7701 9167180816
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31030

2GRFSE..GRS196

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-31020

2GRFSE..GRS196

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31060

2GRFSE..GRS196

 1
Common parts
91671-80816
Linked diagrams
7701
