GRS196L-BETQHW (2009)

Toyota Lexus Gs30/35/43/460

Production Jul 2009 - Dec 2011
Engine 2GRFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0907- )2GRFSE

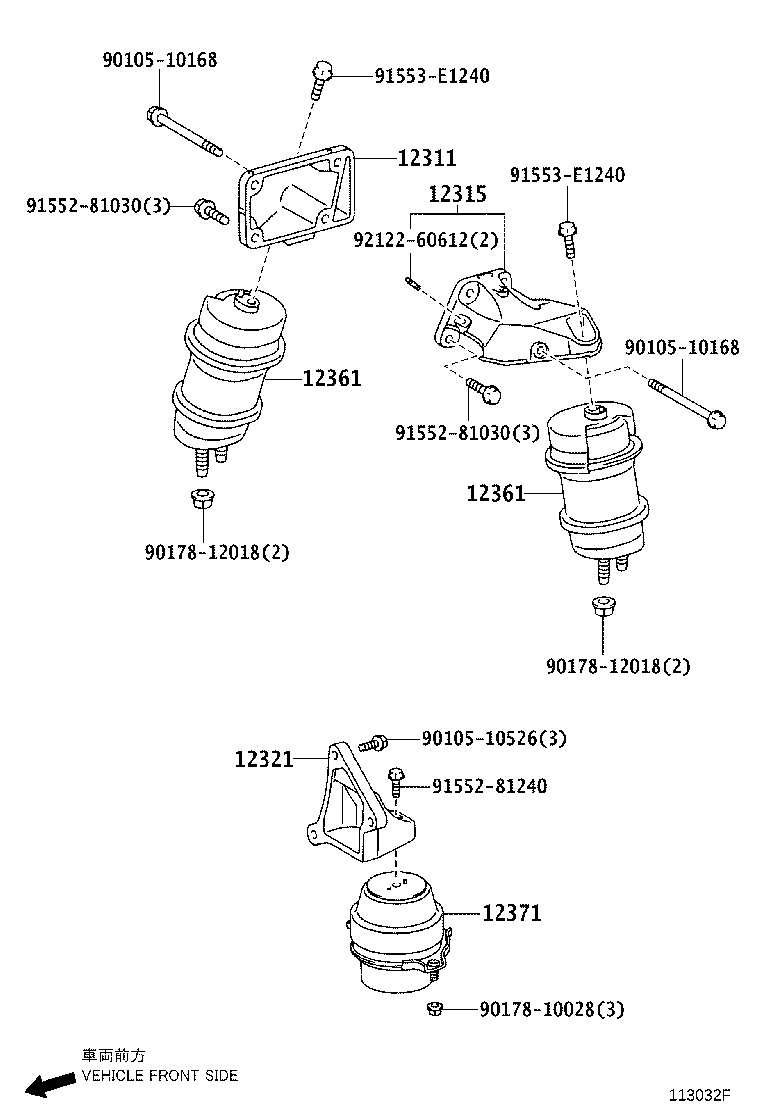

Click highlighted areas on diagram

diagram 12311 12315 12321 12361 12361 12371 9010510168 9010510168 9010510526 9017810028 9017812018 9017812018 9155281030 9155281030 9155281240 91553E1240 91553E1240 9212260612
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31050

2GRFSE..GRS196

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-31020

2GRFSE..GRS196

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31040

2GRFSE..GRS196

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31111

2GRFSE..GRS196

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31111

2GRFSE..GRS196

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31081

2GRFSE..GRS196

 1
Common parts
90105-10168
90105-10526
90178-10028
90178-12018
91552-81030
91552-81240
91553-E1240
92122-60612
