GRS190R-BETQK (2007)

Toyota Lexus Gs30/35/43/460

Production Sep 2007 - Dec 2011
Engine 3GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )RHD

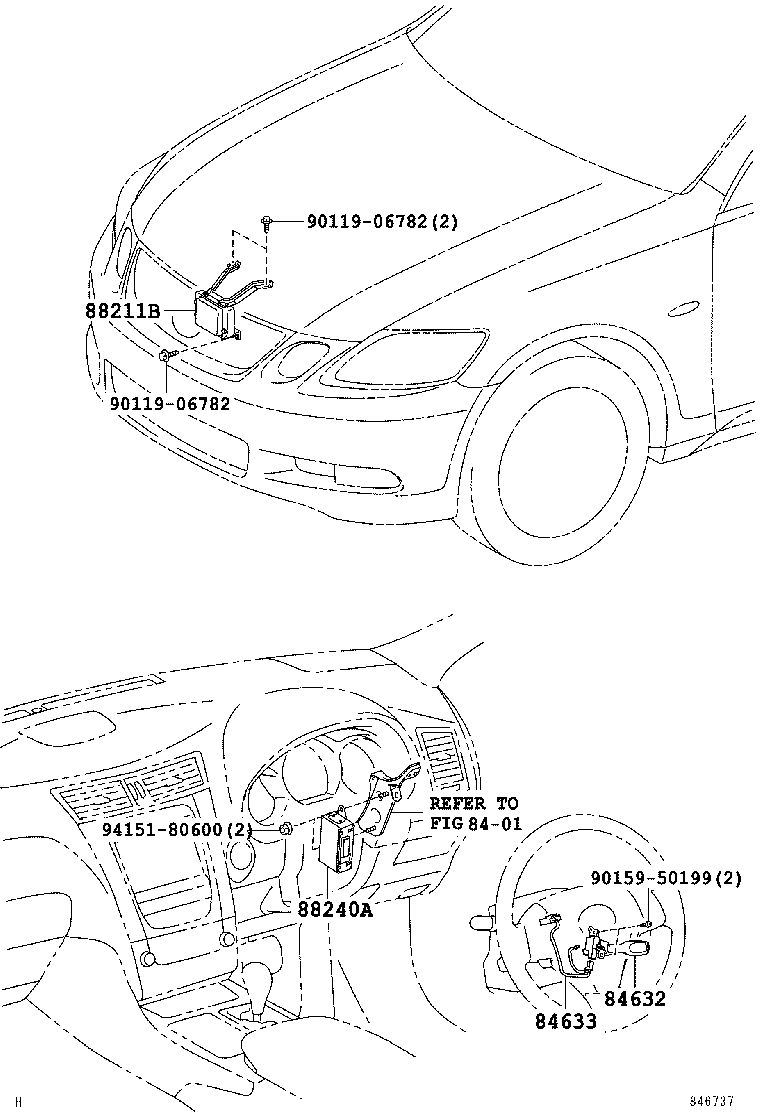

Click highlighted areas on diagram

diagram 8401 84632 84633 88211B 88240A 9011906782 9011906782 9015950199 9415180600
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-34011

GRS19#,URS190,UZS190

 1
84632-34011

GRS190,UZS190

 1
84632-58011

GRS190..GEN

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48010

GRS190..GEN

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

 1
84633-48020

GRS190,UZS190

 1
84633-48020

GRS19#,URS190,UZS190

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-30210

GRS190..GEN

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

 1
88240A - COMPUTER ASSY, DISTANCE CONTROL
88240-30411

GRS190..GEN

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

 1
88240-30412

GRS190..GEN

PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

 1
Common parts
90119-06782
90159-50199
94151-80600
Linked diagrams
8401
