GRS190R-BETQK (2007)
Toyota Lexus Gs30/35/43/460
ILLUST NO. 1 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080D - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-30050 |
GRS19#,URS190,UZS190 |
1 | ||
| 81080-30050 |
GRS190,UZS190 |
1 | ||
| 81080E - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-30060 |
GRS190,UZS190 |
1 | ||
| 81080-30060 |
GRS19#,URS190,UZS190 |
1 | ||
| 81080F - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-30050 |
GRS19#,URS190,UZS190 |
1 | ||
| 81080-30050 |
GRS190,UZS190 |
1 | ||
| 81080G - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-30060 |
GRS190,UZS190 |
1 | ||
| 81080-30060 |
GRS19#,URS190,UZS190 |
1 | ||
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-22040 |
GRS19#,URS190,UZS190 |
1 | ||
| 81080-22040 |
GRS190,UZS190 |
1 | ||
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-30010 |
GRS19#,URS190 |
2 | ||
| 81080-30010 |
GRS190,UZS190 |
1 | ||
| 81080-30010 |
GRS190,URS190,UZS190 |
1 | ||
| 81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION | ||||
| 81080-30010 |
GRS190,UZS190 |
1 | ||
| 81080-30010 |
GRS19#,URS190,UZS190 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-22040 |
GRS19#,URS190,UZS190 |
1 | ||
| 81080-22040 |
GRS190,UZS190 |
1 | ||
| 81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-30010 |
GRS19#,URS190 |
2 | ||
| 81080-30010 |
GRS190,URS190,UZS190 |
1 | ||
| 81080-30010 |
GRS190,UZS190 |
1 | ||
| 81080R - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-30010 |
GRS19#,URS190,UZS190 |
1 | ||
| 81080-30010 |
GRS190,UZS190 |
1 | ||
| 81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-30010 |
GRS190,UZS190 |
1 | ||
| 81080-30010 |
GRS19#,URS190,UZS190 |
1 | ||
| 81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION | ||||
| 81081-30010 |
GRS190,UZS190..RHD |
1 | ||
| 81081-30040 |
GRS190,URS190..RHD |
1 | ||
| 81081A - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81081-30020 |
GRS19#,URS190,UZS190 |
1 | ||
| 81081-30020 |
GRS190,UZS190 |
1 | ||
| 81081B - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3 | ||||
| 81081-30050 |
GRS190,URS190..RHD |
1 | ||
| 81081-30030 |
GRS190,UZS190..RHD |
1 | ||
| 81230D - LAMP ASSY, FRONT DOOR COURTESY, RH | ||||
| 81230-30180 |
GRS190,UZS190 |
1 | ||
| 81230-30180 |
GRS19#,URS190,UZS190 |
1 | ||
| 81230E - LAMP ASSY, FRONT DOOR COURTESY, LH | ||||
| 81310-30010 |
GRS190,UZS190 |
1 | ||
| 81310-30010 |
GRS19#,URS190,UZS190 |
1 | ||
| 81230F - LAMP ASSY, REAR DOOR COURTESY, RH | ||||
| 81230-30180 |
GRS190,UZS190 |
1 | ||
| 81230-30180 |
GRS19#,URS190,UZS190 |
1 | ||
| 81230G - LAMP ASSY, REAR DOOR COURTESY, LH | ||||
| 81310-30010 |
GRS190,UZS190 |
1 | ||
| 81310-30010 |
GRS19#,URS190,UZS190 |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-30200A0 |
GRS190,UZS190 IVORY,TRIM0# |
1 | ||
| 81250-30200B1 |
GRS190,URS190,UZS190 LT.GRAY,TRIM1#,2# |
1 | ||
| 81250-30200B0 |
GRS190,UZS190 GRAY,TRIM1#,2# |
1 | ||
| 81360-30060A1 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 81360-30060A0 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 81360-30060B0 |
GRS19#,URS190 LT.GRAY,TRIM1#,2# |
1 | ||
| 81250-30200A0 |
GRS190,URS190,UZS190 IVORY,TRIM0# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-30010 |
GRS19#,URS190,UZS190 |
1 | ||
| 81080-30010 |
GRS190,UZS190 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
GRS19#,URS190,UZS190 12V 8W |
2 | ||
| 90981-11062 |
GRS190,UZS190 12V 8W |
2 | ||
| 81320A - LAMP ASSY, STEERING SPOT | ||||
| 81320-30010A0 |
GRS190,UZS190 IVORY,TRIM0# |
1 | ||
| 81320-30010B0 |
GRS190,UZS190 GRAY,TRIM1#,2# |
1 | ||
| 81320-30010A0 |
GRS19#,URS190,UZS190 IVORY,TRIM0# |
1 | ||
| 81320-30010B1 |
GRS190..GCC,GEN LT.GRAY,TRIM1#,2# |
1 | ||
| 81320-30010A1 |
GRS190..GCC,GEN IVORY,TRIM0# |
1 | ||
| 81320-30010B1 |
GRS190..GCC,GEN LT.GRAY,TRIM1#,20,22,24,25,26 |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-48010 |
GRS19#,URS190,UZS190 |
1 | ||
| 81250-48010 |
GRS190,UZS190 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13050 |
GRS190,UZS190 12V 5W |
1 | ||
| 99132-13050 |
GRS19#,URS190,UZS190 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100B1 |
GRS190,UZS190 GRAY,TRIM1#,2# |
2 | ||
| 81340-30100A0 |
GRS190,UZS190 IVORY,TRIM0# |
2 | ||
| 81340-30100A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 81340-30100A0 |
GRS19#,URS190,UZS190 IVORY,TRIM0# |
2 | ||
| 81340-30100A0 |
GRS19#,URS190,UZS190 MOON ROOF-WITH,IVORY,TRIM0# |
2 | ||
| 81340-30100A0 |
GRS190..GEN INDONESIA SPEC,IVORY,TRIM0# |
2 | ||
| 81340-30100B0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-30100A0 |
GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 81340-30100A0 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 81340-30100A0 |
GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 81340-30100B0 |
GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-30100A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,IVORY,TRIM0# |
2 | ||
| 81340-30100B0 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-30100B0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-30100B0 |
GRS190..GEN INDONESIA SPEC,LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-30100B0 |
GRS19#,URS190,UZS190 MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-30100B0 |
GRS190..GCC,GEN LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-30100B0 |
GRS190..GCC,GEN;GRS190..LHD..EUR;GRS196,URS190,UZS190..LHD INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-30100B0 |
GRS190..GCC,GEN LT.GRAY,TRIM1#,20,22,24,25,26 |
2 | ||
| 81340-30100A4 |
GRS190..GCC,GEN IVORY,TRIM0# |
2 | ||
| Linked diagrams | ||||
| 5501 | ||||
| 8202 | ||||

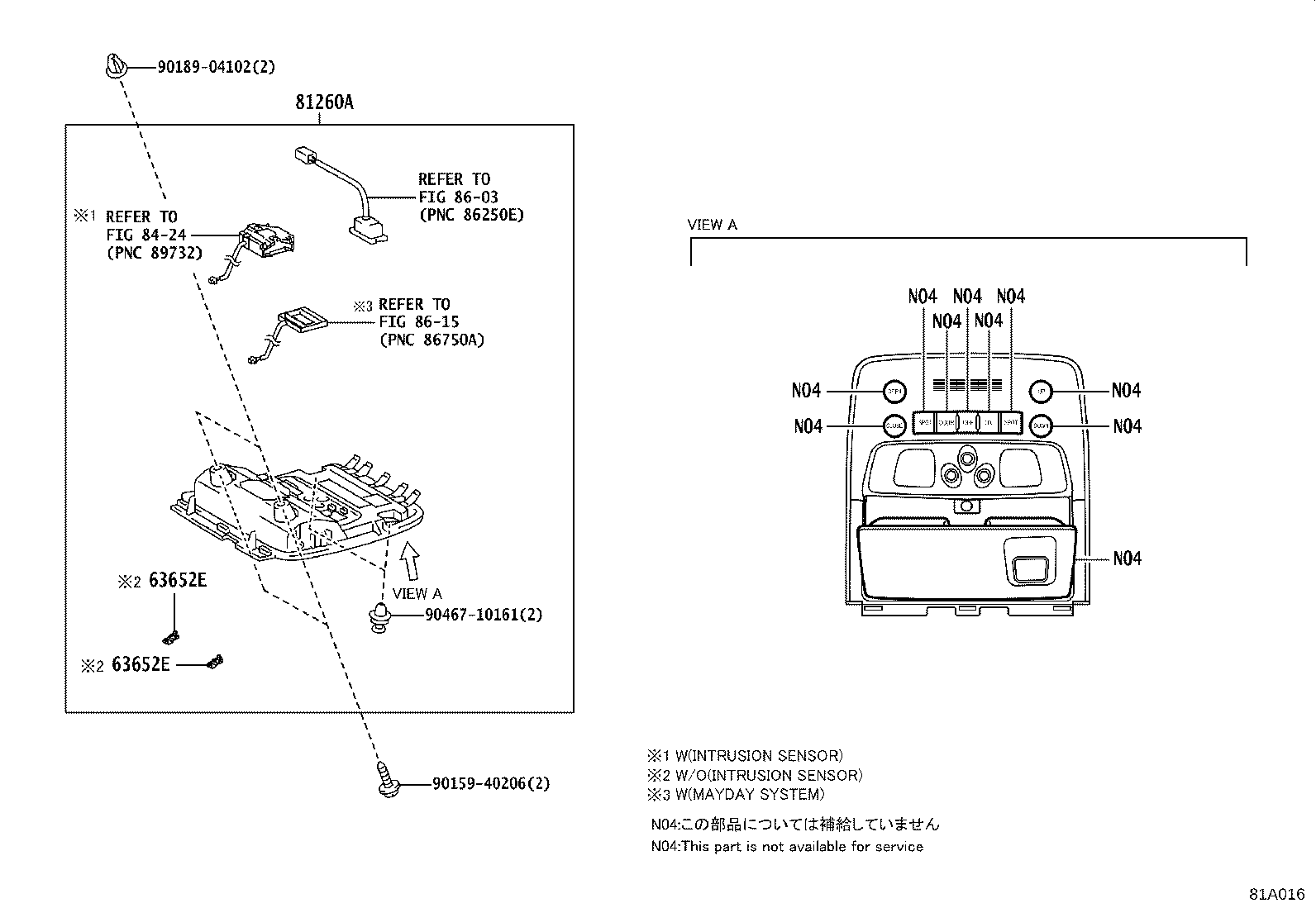

ILLUST NO. 2 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63652E - COVER, ROOF CONSOLE BOX, NO.1 | ||||
| 63652-30010A0 |
GRS190,UZS190..EUR,GEN IVORY,TRIM0# |
2 | ||
| 63652-30010B0 |
GRS190,UZS190..EUR,GEN GRAY,TRIM1#,2# |
2 | ||
| 63652-30010A0 |
GRS190..GEN INDONESIA SPEC,IVORY,TRIM0# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
2 | ||
| 63652-30010A0 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,IVORY,TRIM0# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC,LT.GRAY,TRIM1#,2# |
2 | ||
| 63652-30010A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC,LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN HONG KONG SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN HONG KONG SPEC,LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010A1 |
GRS190..GEN INDONESIA SPEC,IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH,IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN HONG KONG SPEC,IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN HONG KONG SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652E - COVER, ROOF CONSOLE BOX, NO.1 | ||||
| 63652-30010A0 |
GRS190,UZS190..EUR,GEN IVORY,TRIM0# |
2 | ||
| 63652-30010B0 |
GRS190,UZS190..EUR,GEN GRAY,TRIM1#,2# |
2 | ||
| 63652-30010A0 |
GRS190..GEN INDONESIA SPEC,IVORY,TRIM0# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
2 | ||
| 63652-30010A0 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,IVORY,TRIM0# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC,LT.GRAY,TRIM1#,2# |
2 | ||
| 63652-30010A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC,LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN HONG KONG SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010B1 |
GRS190..GEN HONG KONG SPEC,LT.GRAY,TRIM1#,20,24,25,26 |
2 | ||
| 63652-30010A1 |
GRS190..GEN INDONESIA SPEC,IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH,IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN HONG KONG SPEC,IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 63652-30010A1 |
GRS190..GEN HONG KONG SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
2 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-30480A0 |
GRS190..GEN INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30520A0 |
GRS190..GEN MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30480B0 |
GRS190..GEN INTERMITTENT WIPER-AUTO(RAIN SENSOR),GRAY,TRIM1#,2# |
1 | ||
| 81260-30500A0 |
GRS190..GEN IVORY,TRIM0# |
1 | ||
| 81260-30500B0 |
GRS190..GEN GRAY,TRIM1#,2# |
1 | ||
| 81260-30520A0 |
GRS190,UZS190..RHD MOON ROOF-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30520B0 |
GRS190..GEN MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),GRAY,TRIM1#,2# |
1 | ||
| 81260-30520B0 |
GRS190,UZS190..RHD MOON ROOF-WITH,GRAY,TRIM1#,2# |
1 | ||
| 81260-30864B1 |
GRS190,URS190..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30874A0 |
GRS190,URS190..RHD MOON ROOF-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30874B1 |
GRS190,URS190..RHD MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30864A0 |
GRS190,URS190..RHD IVORY,TRIM0# |
1 | ||
| 81260-30A81A0 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30B01A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30A91A0 |
GRS190..GEN INDONESIA SPEC,IVORY,TRIM0# |
1 | ||
| 81260-30A81B1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30A91B1 |
GRS190..GEN INDONESIA SPEC,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30B01A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30B01B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30B01B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30865A0 |
GRS190,URS190..RHD IVORY,TRIM0# |
1 | ||
| 81260-30865B1 |
GRS190,URS190..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30875B1 |
GRS190,URS190..RHD MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30875A0 |
GRS190,URS190..RHD MOON ROOF-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30A92A0 |
GRS190..GEN INDONESIA SPEC,IVORY,TRIM0# |
1 | ||
| 81260-30A82B1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30A92B1 |
GRS190..GEN INDONESIA SPEC,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30A82A0 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30B02A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30B02B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30B02A0 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0# |
1 | ||
| 81260-30B02B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30866A0 |
GRS190,URS190..RHD IVORY,TRIM0# |
1 | ||
| 81260-30876A0 |
GRS190,URS190..RHD MOON ROOF-WITH,IVORY,TRIM0# |
1 | ||
| 81260-30866B1 |
GRS190,URS190..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30876B1 |
GRS190,URS190..RHD MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-30867B1 |
GRS190..GEN LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30877A1 |
GRS190..GEN MOON ROOF-WITH,IVORY,TRIM0#,26 |
1 | ||
| 81260-30867A1 |
GRS190..GEN IVORY,TRIM0#,26 |
1 | ||
| 81260-30877B1 |
GRS190..GEN MOON ROOF-WITH,LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30A83A1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#,26 |
1 | ||
| 81260-30A83B1 |
GRS190..GEN INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30A93A1 |
GRS190..GEN INDONESIA SPEC,IVORY,TRIM0#,26 |
1 | ||
| 81260-30A93B1 |
GRS190..GEN INDONESIA SPEC,LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30B03B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30B03A1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH,IVORY,TRIM0#,26 |
1 | ||
| 81260-30B03B1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30B03A1 |
GRS190..GEN INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#,26 |
1 | ||
| 81260-30A93A1 |
GRS190..GEN HONG KONG SPEC,IVORY,TRIM0#,26 |
1 | ||
| 81260-30B03B1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30A83A1 |
GRS190..GEN HONG KONG SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#,26 |
1 | ||
| 81260-30A83B1 |
GRS190..GEN HONG KONG SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30A93B1 |
GRS190..GEN HONG KONG SPEC,LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30B03A1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#,26 |
1 | ||
| 81260-30B03B1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,20,24,25,26 |
1 | ||
| 81260-30B03A1 |
GRS190..GEN HONG KONG SPEC&MOON ROOF-WITH,IVORY,TRIM0#,26 |
1 | ||
| Common parts | ||||
| 90159-40206 | ||||
| 90189-04102 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8603 | ||||
| 8615 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
