GRS190L-BETQKV (2007)
Toyota Lexus Gs30/35/43/460
Production
Sep 2007
-
Dec 2011
Engine
3GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )GRS19#

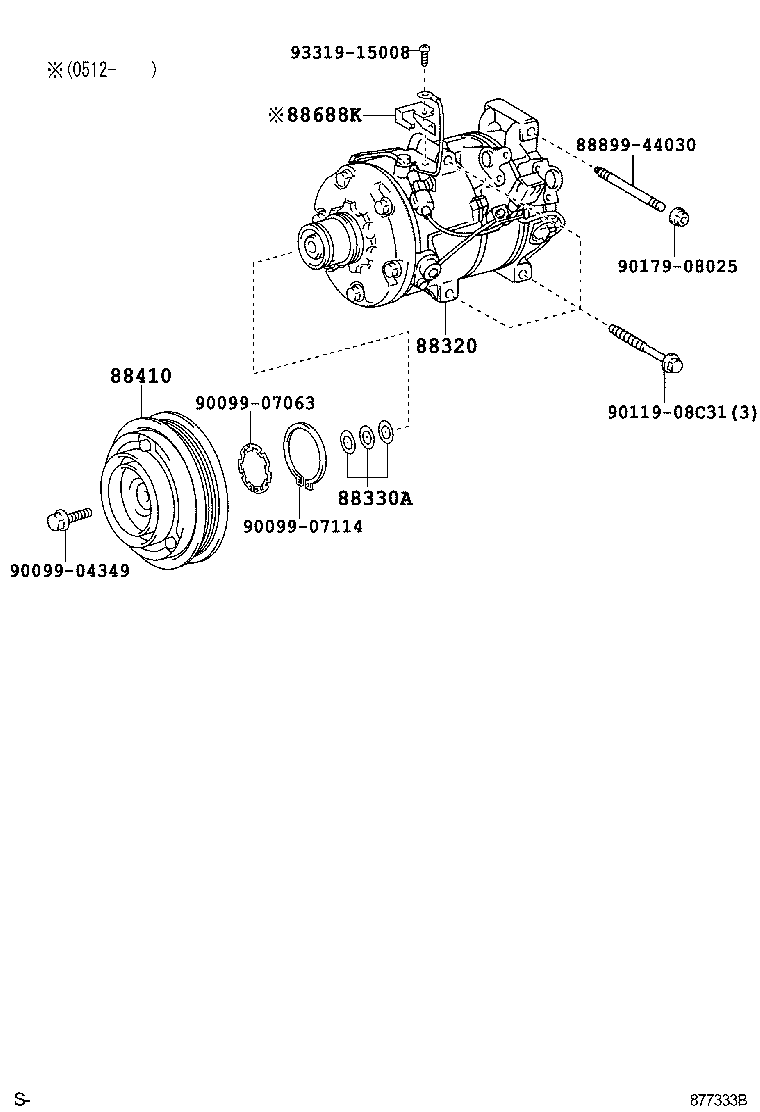

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-3A270 |
GRS190..GCC CHINA SPEC |
1 | ||
| 88320-3A300 |
GRS190..GCC CHINA SPEC |
1 | ||
| 88320-3A290 |
GRS190..GCC |
1 | ||
| 88320-3A300 |
GRS190..GCC ARGENTINA SPEC |
1 | ||
| 88320-3A320 |
GRS190..GCC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GRS19# |
1 | ||
| 88335-14020 |
GRS190 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-3A280 |
GRS190 |
1 | ||
| 88410-3A290 |
GRS19# |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-33460 |
GRS19# |
1 | ||
| Common parts | ||||
| 88899-44030 | ||||
| 90099-04349 | ||||
| 90099-07063 | ||||
| 90099-07114 | ||||
| 90119-08C31 | ||||
| 90179-08025 | ||||
| 93319-15008 | ||||
