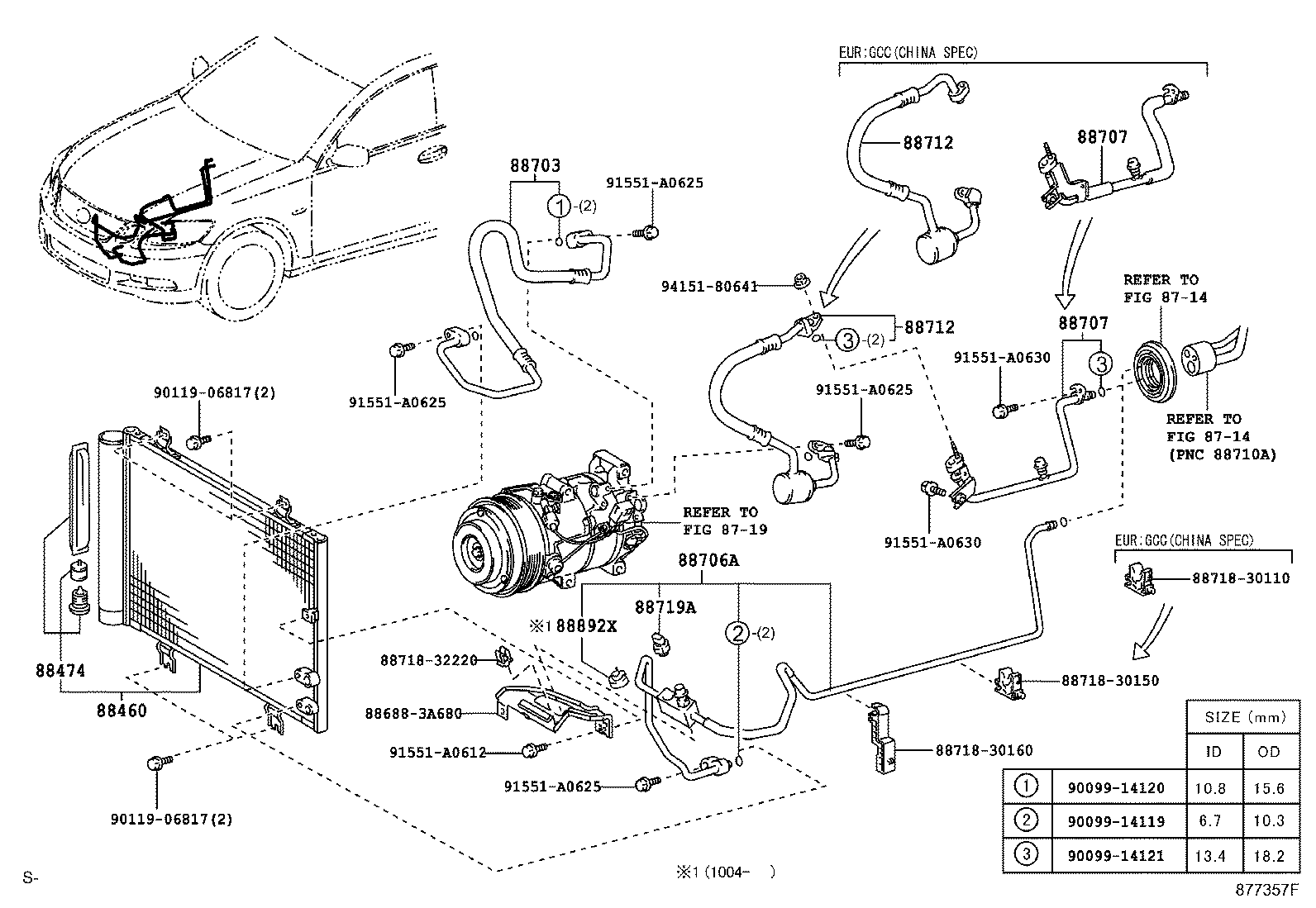

Toyota Lexus gs30/35/43/460 GRS190 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-30881	GRS190,UZS190..GCC	01/2005 - 09/2007	1
88460-30871	GRS190..GCC ARGENTINA SPEC	02/2008 - 09/2009	1
88460-30871	GRS190..GCC CHINA SPEC	09/2007 - 12/2999	1
88460-30871	GRS190..GCC CHINA SPEC	01/2005 - 09/2007	1
88460-30881	GRS190,UZS190..GCC	09/2007 - 12/2999	1
88474 - DRYER, COOLER
88474-17010	GRS19#,UZS190	09/2007 - 12/2999	1
88474-17010	GRS190,UZS190	01/2005 - 09/2007	1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-3A620	GRS190..GCC	01/2005 - 09/2007	1
88711-3A600	GRS190..GCC CHINA SPEC	09/2007 - 06/2009	1
88711-3A600	GRS190..GCC CHINA SPEC	01/2005 - 09/2007	1
88711-3A601	GRS190..GCC ARGENTINA SPEC	06/2009 - 09/2009	1
88711-3A601	GRS190..GCC CHINA SPEC	06/2009 - 12/2999	1
88711-3A620	GRS190..GCC	09/2007 - 12/2999	1
88711-3A600	GRS190..GCC ARGENTINA SPEC	02/2008 - 06/2009	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-3A450	GRS190..LHD	01/2005 - 09/2007	1
88706-3A450	GRS19#..LHD	09/2007 - 12/2999	1
88707 - PIPE SUB-ASSY, SUCTION
88707-30760	GRS190..GCC	01/2005 - 09/2007	1
88707-30740	GRS190..GCC CHINA SPEC	01/2005 - 09/2007	1
88707-30740	GRS190..GCC CHINA SPEC	09/2007 - 12/2999	1
88707-30760	GRS190..GCC	09/2007 - 12/2999	1
88707-30790	GRS190..GCC ARGENTINA SPEC	02/2008 - 09/2009	1
88707 - PIPE SUB-ASSY, SUCTION
88707-30760	GRS190..GCC	01/2005 - 09/2007	1
88707-30740	GRS190..GCC CHINA SPEC	01/2005 - 09/2007	1
88707-30740	GRS190..GCC CHINA SPEC	09/2007 - 12/2999	1
88707-30760	GRS190..GCC	09/2007 - 12/2999	1
88707-30790	GRS190..GCC ARGENTINA SPEC	02/2008 - 09/2009	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30200	GRS190..GCC	01/2005 - 08/2007	1
88712-30160	GRS190..GCC CHINA SPEC	01/2005 - 09/2007	1
88712-30160	GRS190..GCC CHINA SPEC	09/2007 - 06/2009	1
88712-30350	GRS190..GCC ARGENTINA SPEC	06/2009 - 09/2009	1
88712-30160	GRS190..GCC ARGENTINA SPEC	02/2008 - 06/2009	1
88712-30350	GRS190..GCC CHINA SPEC	06/2009 - 12/2999	1
88712-30201	GRS190..GCC	09/2007 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30200	GRS190..GCC	01/2005 - 08/2007	1
88712-30160	GRS190..GCC CHINA SPEC	01/2005 - 09/2007	1
88712-30160	GRS190..GCC CHINA SPEC	09/2007 - 06/2009	1
88712-30350	GRS190..GCC ARGENTINA SPEC	06/2009 - 09/2009	1
88712-30160	GRS190..GCC ARGENTINA SPEC	02/2008 - 06/2009	1
88712-30350	GRS190..GCC CHINA SPEC	06/2009 - 12/2999	1
88712-30201	GRS190..GCC	09/2007 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020	GRS19#,URS190,UZS190	09/2007 - 04/2010	1
88719-33020	GRS19#,URS190	04/2010 - 12/2999	1
88892X - COVER, COOLER, NO.2
88892-50120	GRS19#,URS190	04/2010 - 12/2999	1
Common parts
88688-3A680
88718-30110
88718-30150
88718-30160
88718-32220
90099-14119
90099-14120
90099-14121
90119-06817
91551-A0612
91551-A0625
91551-A0630
94151-80641
Linked diagrams
8714
8719

GRS190L-BETQKV (2007)

(0501- )GRS190..LHD
