GRS190L-BETQKV (2007)
Toyota Lexus Gs30/35/43/460

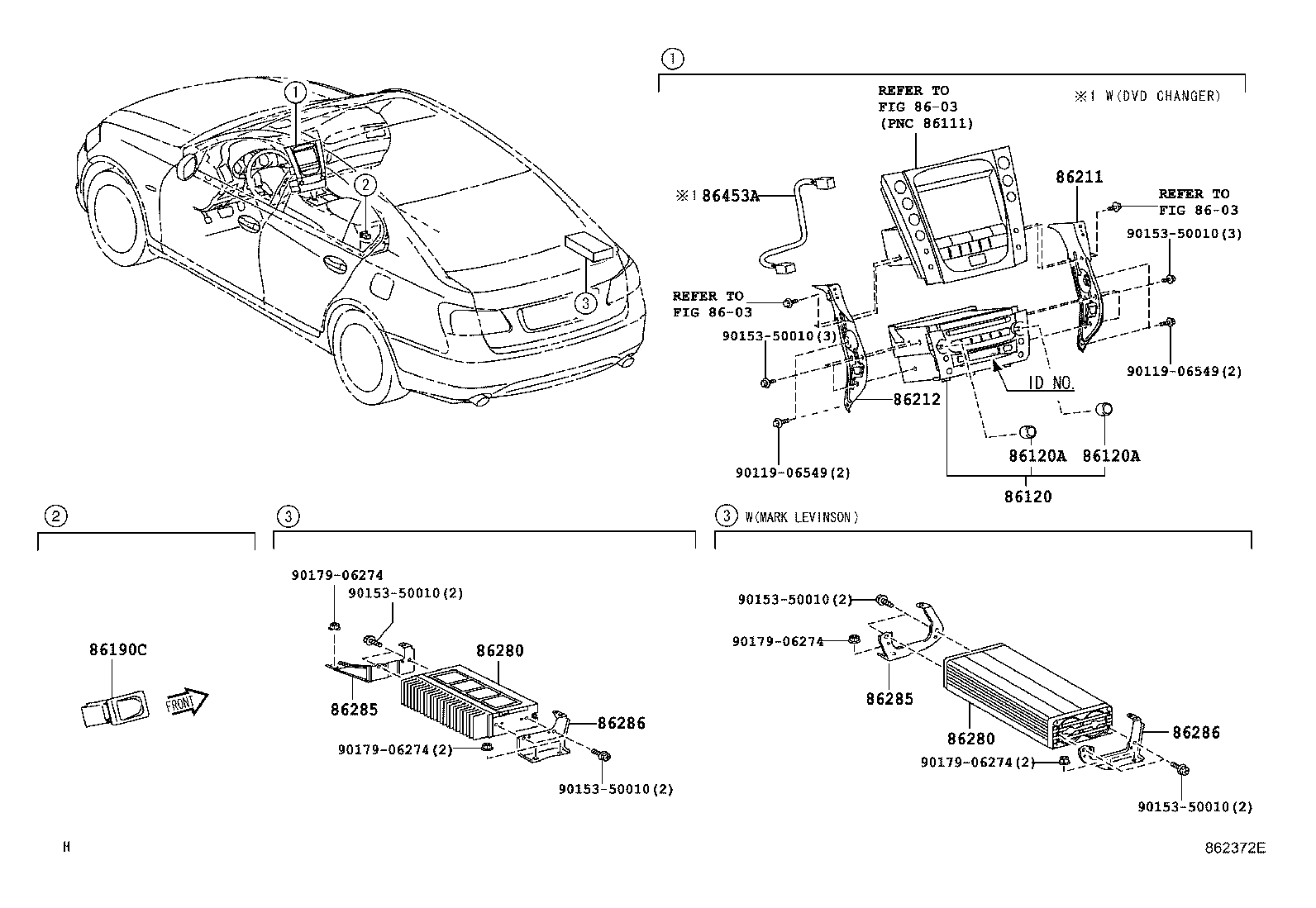

ILLUST NO. 1 OF 2(0501-0909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-30A00C0 |
GRS190..GCC PIONEER,CHINA SPEC,BLACK,TRIM1#,2# |
1 | ||
| 86120-30D50C0 |
GRS190,UZS190..GCC PIONEER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30D50E0 |
GRS190,UZS190..GCC PIONEER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30A00E0 |
GRS190..GCC PIONEER,CHINA SPEC,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30G80C0 |
GRS190,URS190..GCC PIONEER,CHINA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM),BLACK,TRIM1#,2# |
1 | ||
| 86120-30G80E0 |
GRS190,URS190..GCC PIONEER,CHINA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J00E0 |
GRS190,URS190,UZS190..GCC PIONEER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J00C0 |
GRS190,URS190,UZS190..GCC PIONEER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30J00C0 |
GRS190,UZS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 86120-30J00E0 |
GRS190,UZS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J00C0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30J00C0 |
GRS190..GCC PIONEER,EGYPT SPEC,BLACK,TRIM1#,2# |
1 | ||
| 86120-30J00E0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J60E0 |
GRS190..GCC PIONEER,ARGENTINA SPEC,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J00E0 |
GRS190..GCC PIONEER,EGYPT SPEC,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J60C0 |
GRS190..GCC PIONEER,ARGENTINA SPEC,BLACK,TRIM1#,2# |
1 | ||
| 86120-30N60C0 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM2# |
1 | ||
| 86120-30L40E0 |
GRS190..GCC PIONEER,CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L90C0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30L90E0 |
GRS190,URS190..GCC PIONEER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L90C0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 86120-30L90E0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L90E0 |
GRS190..GCC PIONEER,EGYPT SPEC,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L90C0 |
GRS190..GCC PIONEER,EGYPT SPEC,BLACK,TRIM1#,2# |
1 | ||
| 86120-30L90C0 |
GRS190,URS190..GCC PIONEER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30L90E0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L40C0 |
GRS190..GCC PIONEER,CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM1#,2# |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22054 |
GRS19#,URS190,UZS190 BLACK |
2 | ||
| 90010-22054 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
2 | ||
| 90010-22055 |
GRS19#,URS190,UZS190 BROWN |
2 | ||
| 90010-22046 |
GRS190,UZS190 BROWN |
2 | ||
| 90010-22045 |
GRS190,UZS190 BLACK |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22054 |
GRS19#,URS190,UZS190 BLACK |
2 | ||
| 90010-22054 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
2 | ||
| 90010-22055 |
GRS19#,URS190,UZS190 BROWN |
2 | ||
| 90010-22046 |
GRS190,UZS190 BROWN |
2 | ||
| 90010-22045 |
GRS190,UZS190 BLACK |
2 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48010 |
GRS19#,URS190,UZS190 |
1 | ||
| 86190-30010 |
GRS19#,URS190 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30300 |
GRS190,UZS190 |
1 | ||
| 86211-30300 |
GRS19#,URS190,UZS190 |
1 | ||
| 86211-30360 |
GRS19#,URS190 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30330 |
GRS19#,URS190 |
1 | ||
| 86212-30280 |
GRS19#,URS190,UZS190 |
1 | ||
| 86212-30280 |
GRS190,UZS190 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W330 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86280-0W470 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86280-30620 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86280-0W720 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W330 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86280-0W470 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86280-30620 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86280-0W720 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30300 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86285-30300 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86285-30350 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86285-30360 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30300 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86285-30300 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86285-30350 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86285-30360 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30070 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86286-30130 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86286-30070 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86286-30120 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30070 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86286-30130 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86286-30070 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86286-30120 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86453A - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-30010 |
GRS190..GCC CHINA SPEC |
1 | ||
| 86453-30040 |
GRS196,UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86453-30040 |
GRS190..GCC AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER |
1 | ||
| 86453-30040 |
GRS190..GCC EGYPT SPEC |
1 | ||
| 86453-30040 |
GRS190,UZS190..GCC AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR |
1 | ||
| Common parts | ||||
| 90119-06549 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8603 | ||||

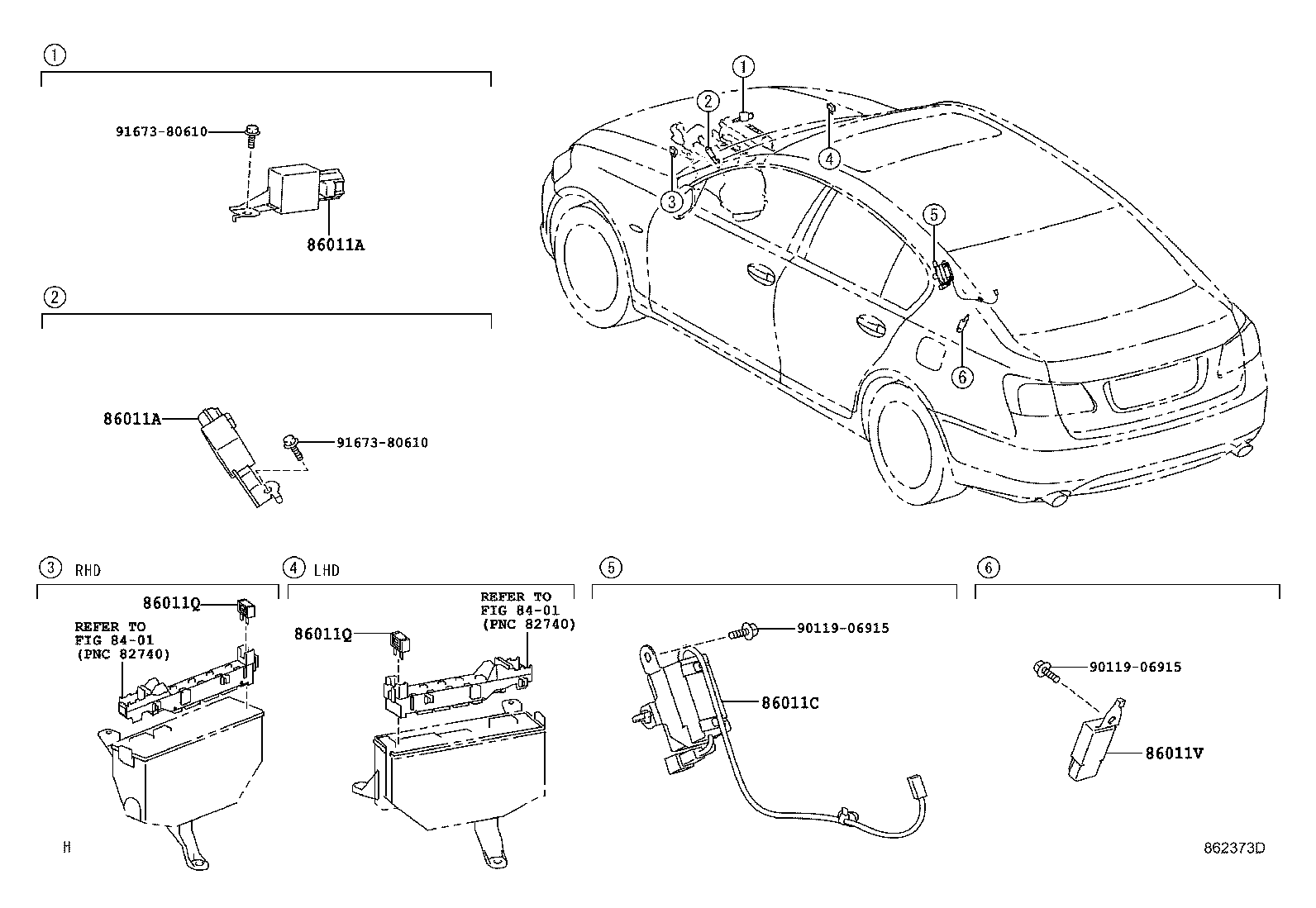

ILLUST NO. 2 OF 2(0501- )GRS19#
CONDENSER & NOISE FILTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04181 |
GRS190 |
2 | ||
| 90980-04181 |
GRS190 |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04181 |
GRS190 |
2 | ||
| 90980-04181 |
GRS190 |
2 | ||
| 86011C - FILTER, NOISE | ||||
| 863B0-30010 |
GRS19#,URS190,UZS190 |
1 | ||
| 90980-05368 |
GRS190,URS190,UZS190 |
1 | ||
| 90980-05368 |
GRS190,UZS190 |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GRS19#,URS190,UZS190 |
1 | ||
| 90980-04066 |
GRS190,UZS190 |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GRS19#,URS190,UZS190 |
1 | ||
| 90980-04066 |
GRS190,UZS190 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04184 |
GRS19#,URS190,UZS190 |
1 | ||
| 90980-04184 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-30A00C0 |
GRS190..GCC PIONEER,CHINA SPEC,BLACK,TRIM1#,2# |
1 | ||
| 86120-30D50C0 |
GRS190,UZS190..GCC PIONEER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30D50E0 |
GRS190,UZS190..GCC PIONEER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30A00E0 |
GRS190..GCC PIONEER,CHINA SPEC,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30G80C0 |
GRS190,URS190..GCC PIONEER,CHINA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM),BLACK,TRIM1#,2# |
1 | ||
| 86120-30G80E0 |
GRS190,URS190..GCC PIONEER,CHINA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J00E0 |
GRS190,URS190,UZS190..GCC PIONEER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J00C0 |
GRS190,URS190,UZS190..GCC PIONEER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30J00C0 |
GRS190,UZS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 86120-30J00E0 |
GRS190,UZS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J00C0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30J00C0 |
GRS190..GCC PIONEER,EGYPT SPEC,BLACK,TRIM1#,2# |
1 | ||
| 86120-30J00E0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J60E0 |
GRS190..GCC PIONEER,ARGENTINA SPEC,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J00E0 |
GRS190..GCC PIONEER,EGYPT SPEC,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30J60C0 |
GRS190..GCC PIONEER,ARGENTINA SPEC,BLACK,TRIM1#,2# |
1 | ||
| 86120-30N60C0 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM2# |
1 | ||
| 86120-30L40E0 |
GRS190..GCC PIONEER,CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L90C0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30L90E0 |
GRS190,URS190..GCC PIONEER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L90C0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 86120-30L90E0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L90E0 |
GRS190..GCC PIONEER,EGYPT SPEC,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L90C0 |
GRS190..GCC PIONEER,EGYPT SPEC,BLACK,TRIM1#,2# |
1 | ||
| 86120-30L90C0 |
GRS190,URS190..GCC PIONEER,BLACK,TRIM1#,2# |
1 | ||
| 86120-30L90E0 |
GRS190..GCC PIONEER,AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30L40C0 |
GRS190..GCC PIONEER,CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM1#,2# |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22054 |
GRS19#,URS190,UZS190 BLACK |
2 | ||
| 90010-22054 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
2 | ||
| 90010-22055 |
GRS19#,URS190,UZS190 BROWN |
2 | ||
| 90010-22046 |
GRS190,UZS190 BROWN |
2 | ||
| 90010-22045 |
GRS190,UZS190 BLACK |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22054 |
GRS19#,URS190,UZS190 BLACK |
2 | ||
| 90010-22054 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
2 | ||
| 90010-22055 |
GRS19#,URS190,UZS190 BROWN |
2 | ||
| 90010-22046 |
GRS190,UZS190 BROWN |
2 | ||
| 90010-22045 |
GRS190,UZS190 BLACK |
2 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48010 |
GRS19#,URS190,UZS190 |
1 | ||
| 86190-30010 |
GRS19#,URS190 |
1 | ||
| 861A1 - COMPUTER, MULTI-MEDIA INTERFACE | ||||
| 861A0-77010 |
GRS19#,URS190 |
1 | ||
| 861A0-77010 |
GRS19#,URS190 |
1 | ||
| 861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1 | ||||
| 861A2-30010 |
GRS19#,URS190 |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-30570 |
GRS19#,URS190 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30300 |
GRS190,UZS190 |
1 | ||
| 86211-30300 |
GRS19#,URS190,UZS190 |
1 | ||
| 86211-30360 |
GRS19#,URS190 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30330 |
GRS19#,URS190 |
1 | ||
| 86212-30280 |
GRS19#,URS190,UZS190 |
1 | ||
| 86212-30280 |
GRS190,UZS190 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W330 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86280-0W470 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86280-30620 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86280-0W720 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W330 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86280-0W470 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86280-30620 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86280-0W720 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30300 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86285-30300 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86285-30350 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86285-30360 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30300 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86285-30300 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86285-30350 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86285-30360 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30070 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86286-30130 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86286-30070 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86286-30120 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30070 |
GRS190,UZS190..GCC,GEN |
1 | ||
| 86286-30130 |
GRS190,URS190..GCC,GEN |
1 | ||
| 86286-30070 |
UZS190;GRS190,URS190..GCC,GEN |
1 | ||
| 86286-30120 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM) |
1 | ||
| Common parts | ||||
| 90119-06549 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
