GRS190L-BETQKV (2007)
Toyota Lexus Gs30/35/43/460
(0709- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-30310 |
UZS190;GRS190,URS190..GCC |
1 | ||
| 69052-48080 |
GRS190,UZS190..GCC |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-30440 |
GRS190,UZS190 |
1 | ||
| 69055-50160 |
GRS19#,URS190,UZS190 |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-50160 |
GRS19#,URS190,UZS190 NO.1 OR NO.2 |
1 | ||
| 69056-33160 |
GRS190,UZS190 NO.2 |
1 | ||
| 69056-30250 |
GRS190,UZS190 NO.1 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-30A80 |
GRS190,UZS190..GCC |
1 | ||
| 69005-30C40 |
UZS190;GRS190,URS190..GCC |
1 | ||
| 69005-30D60 |
GRS190,URS190..GCC WITH(CARD KEY) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-50260 |
GRS19#,URS190,UZS190 BLANK KEY |
1 | ||
| 69515-30300 |
GRS190,UZS190..EUR,GCC |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-30290 |
GRS190,UZS190 |
2 | ||
| 69515-50240 |
GRS19#,URS190,UZS190 MASTER KEY |
2 | ||
| 69503D - KEY, CUT(CARD KEY) | ||||
| 69515-50220 |
GRS190,URS190 MASTER KEY,WITH(CARD KEY) |
1 | ||
| 69515-30330 |
GRS19#,URS190 MASTER KEY,WITH(CARD KEY) |
1 | ||
| 69503E - KEY, BLANK(CARD KEY) | ||||
| 69515-30350 |
GRS19#,URS190 MASTER KEY |
1 | ||
| 69515-50270 |
GRS190,URS190 BLANK KEY |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-53270 |
GRS190,UZS190..GCC |
1 | ||
| 89072-53280 |
GRS190..GCC;UZS190..LHD..EUR CHINA SPEC |
1 | ||
| 89072-53270 |
GRS190,UZS190..GCC |
1 | ||
| 89072-53280 |
GRS190..GCC CHINA SPEC |
1 | ||
| 89072-53271 |
GRS190,UZS190..GCC |
1 | ||
| 89072-53302 |
GRS190..GCC ARGENTINA SPEC&WIRELESS DOOR LOCK-WITH(PANIC),31#MHZ |
2 | ||
| 89072-50B51 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ&WITH(CARD KEY) |
2 | ||
| 89072-53302 |
GRS190..GCC ARGENTINA SPEC&WIRELESS DOOR LOCK-WITH(PANIC),31#MHZ&WITH(CARD KEY) |
2 | ||
| 89072-50B51 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ |
2 | ||
| 89072-53272 |
GRS190,URS190..GCC |
2 | ||
| 89072-53272 |
GRS190..GCC EGYPT SPEC |
2 | ||
| 89072-53272 |
GRS190..GCC EGYPT SPEC&WITH(CARD KEY) |
2 | ||
| 89072-53302 |
GRS190..GCC ARGENTINA SPEC |
2 | ||
| 89072-50B51 |
GRS190..GCC CHINA SPEC&WITH(CARD KEY) |
2 | ||
| 89072-53302 |
GRS190..GCC ARGENTINA SPEC&WITH(CARD KEY) |
2 | ||
| 89072-53273 |
GRS190..GCC EGYPT SPEC&WITH(CARD KEY) |
2 | ||
| 89072-50B51 |
GRS190..GCC CHINA SPEC |
2 | ||
| 89072-53273 |
GRS190..GCC EGYPT SPEC |
2 | ||
| 89072-50B51 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ |
2 | ||
| 89072-53273 |
GRS190,URS190..GCC |
2 | ||
| 89072-50B51 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ&WITH(CARD KEY) |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-52030 |
GRS190..GCC MOROCCO SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-52030 |
GRS190..GCC MOROCCO SPEC&WITH(CARD KEY),TYPE B:REFER ILLUST. |
1 | ||
| 89745-52020 |
GRS190..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 89745-52020 |
GRS190,UZS190 |
1 | ||
| 89745-52020 |
GRS190,UZS190..GCC TYPE A:REFER ILLUST. |
1 | ||
| 89745-52020 |
GRS190,UZS190..GCC TYPE A:REFER ILLUST. |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-52030 |
GRS190..GCC MOROCCO SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 89745-52030 |
GRS190..GCC MOROCCO SPEC&WITH(CARD KEY),TYPE B:REFER ILLUST. |
1 | ||
| 89745-52020 |
GRS190..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 89745-52020 |
GRS190,UZS190 |
1 | ||
| 89745-52020 |
GRS190,UZS190..GCC TYPE A:REFER ILLUST. |
1 | ||
| 89745-52020 |
GRS190,UZS190..GCC TYPE A:REFER ILLUST. |
1 | ||
| 89745B - BATTERY, TRANSMITTER(CARD KEY) | ||||
| 89745-50030 |
GRS190..GCC ARGENTINA SPEC&WIRELESS DOOR LOCK-WITH(PANIC),31#MHZ&WITH(CARD KEY) |
1 | ||
| 89745-50030 |
GRS190..GCC MOROCCO SPEC&WITH(CARD KEY) |
1 | ||
| 89745-50030 |
GRS190..GCC ARGENTINA SPEC&WITH(CARD KEY) |
1 | ||
| 89745-50030 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ&WITH(CARD KEY) |
1 | ||
| 89745-50030 |
GRS190..GCC EGYPT SPEC&WITH(CARD KEY) |
1 | ||
| 89745-50030 |
GRS19#,URS190 WITH(CARD KEY) |
1 | ||
| 89745-50030 |
GRS190,URS190..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN,433MHZ&WITH(CARD KEY) |
1 | ||
| 89745-50030 |
GRS190..GCC MOROCCO SPEC&WIRELESS DOOR LOCK-433MHZ&WITH(CARD KEY) |
1 | ||
| 89745-50030 |
GRS190..GCC CHINA SPEC&WITH(CARD KEY) |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-30320 |
GRS190,UZS190..GCC |
1 | ||
| 89904-30290 |
GRS190..GCC;UZS190..LHD..EUR CHINA SPEC |
1 | ||
| 89904-30320 |
GRS190,UZS190..GCC TYPE A:REFER ILLUST. |
1 | ||
| 89904-30290 |
GRS190..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 89904-50400 |
GRS190,URS190..GCC TYPE A:REFER ILLUST. |
2 | ||
| 89904-30321 |
GRS190,UZS190..GCC TYPE A:REFER ILLUST. |
1 | ||
| 89904-50460 |
GRS190..GCC ARGENTINA SPEC&WIRELESS DOOR LOCK-WITH(PANIC),31#MHZ&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50460 |
GRS190..GCC ARGENTINA SPEC&WIRELESS DOOR LOCK-WITH(PANIC),31#MHZ,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-53320 |
GRS190..GCC EGYPT SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-30630 |
GRS190..GCC MOROCCO SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-30630 |
GRS190..GCC MOROCCO SPEC&WITH(CARD KEY),TYPE B:REFER ILLUST. |
2 | ||
| 89904-53360 |
GRS190,URS190..GCC TYPE A:REFER ILLUST. |
2 | ||
| 89904-53320 |
GRS190..GCC EGYPT SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50460 |
GRS190..GCC ARGENTINA SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 89904-53361 |
GRS190,URS190..GCC TYPE A:REFER ILLUST. |
2 | ||
| 89904-53321 |
GRS190..GCC EGYPT SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-53321 |
GRS190..GCC EGYPT SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50460 |
GRS190..GCC ARGENTINA SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-53361 |
GRS190,URS190..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN,433MHZ&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-53361 |
GRS190,URS190..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN,433MHZ,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ,TYPE A:REFER ILLUST. |
2 | ||
| 89904-53321 |
GRS190,URS190..GCC TYPE A:REFER ILLUST. |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-30320 |
GRS190,UZS190..GCC |
1 | ||
| 89904-30290 |
GRS190..GCC;UZS190..LHD..EUR CHINA SPEC |
1 | ||
| 89904-30320 |
GRS190,UZS190..GCC TYPE A:REFER ILLUST. |
1 | ||
| 89904-30290 |
GRS190..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 89904-50400 |
GRS190,URS190..GCC TYPE A:REFER ILLUST. |
2 | ||
| 89904-30321 |
GRS190,UZS190..GCC TYPE A:REFER ILLUST. |
1 | ||
| 89904-50460 |
GRS190..GCC ARGENTINA SPEC&WIRELESS DOOR LOCK-WITH(PANIC),31#MHZ&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50460 |
GRS190..GCC ARGENTINA SPEC&WIRELESS DOOR LOCK-WITH(PANIC),31#MHZ,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-53320 |
GRS190..GCC EGYPT SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-30630 |
GRS190..GCC MOROCCO SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 89904-30630 |
GRS190..GCC MOROCCO SPEC&WITH(CARD KEY),TYPE B:REFER ILLUST. |
2 | ||
| 89904-53360 |
GRS190,URS190..GCC TYPE A:REFER ILLUST. |
2 | ||
| 89904-53320 |
GRS190..GCC EGYPT SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50460 |
GRS190..GCC ARGENTINA SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 89904-53361 |
GRS190,URS190..GCC TYPE A:REFER ILLUST. |
2 | ||
| 89904-53321 |
GRS190..GCC EGYPT SPEC&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-53321 |
GRS190..GCC EGYPT SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50460 |
GRS190..GCC ARGENTINA SPEC,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-53361 |
GRS190,URS190..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN,433MHZ&WITH(CARD KEY),TYPE A:REFER ILLUST. |
2 | ||
| 89904-53361 |
GRS190,URS190..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN,433MHZ,TYPE A:REFER ILLUST. |
2 | ||
| 89904-50430 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ,TYPE A:REFER ILLUST. |
2 | ||
| 89904-53321 |
GRS190,URS190..GCC TYPE A:REFER ILLUST. |
2 | ||
| 89904C - TRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY) | ||||
| 89904-50500 |
GRS19#,URS190..EUR,GCC WITH(CARD KEY) |
1 | ||
| 89904-50D10 |
GRS190..GCC ARGENTINA SPEC&WIRELESS DOOR LOCK-WITH(PANIC),31#MHZ&WITH(CARD KEY) |
1 | ||
| 89904-53310 |
GRS190..GCC MOROCCO SPEC&WITH(CARD KEY) |
1 | ||
| 89904-50D00 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ&WITH(CARD KEY) |
1 | ||
| 89904-50D00 |
GRS190..GCC CHINA SPEC&WITH(CARD KEY) |
1 | ||
| 89904-53310 |
GRS190..GCC EGYPT SPEC&WITH(CARD KEY) |
1 | ||
| 89904-53370 |
GRS190,URS190..GCC WITH(CARD KEY) |
1 | ||
| 89904-50D10 |
GRS190..GCC ARGENTINA SPEC&WITH(CARD KEY) |
1 | ||
| 89904-53311 |
GRS190..GCC EGYPT SPEC&WITH(CARD KEY) |
1 | ||
| 89904-53311 |
GRS190..GCC MOROCCO SPEC&WITH(CARD KEY) |
1 | ||
| 89904-50D00 |
GRS190..GCC CHINA SPEC&WIRELESS DOOR LOCK-31#MHZ&WITH(CARD KEY) |
1 | ||
| 89904-53371 |
GRS190,URS190..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN,433MHZ&WITH(CARD KEY) |
1 | ||
| 89904-53311 |
GRS190,URS190..GCC WITH(CARD KEY) |
1 | ||
| 89904-53371 |
GRS190,URS190..GCC WITH(CARD KEY) |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-53021 |
GRS190,URS190..GCC WITH(CARD KEY) |
1 | ||
| 89994-53021 |
GRS190,URS190..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN,433MHZ&WITH(CARD KEY) |
1 | ||
| 89994-53020 |
GRS190,URS190..GCC WITH(CARD KEY) |
1 | ||
| Common parts | ||||
| 89759-47010 | ||||
| 90179-05102 | ||||
| 90301-18014 | ||||

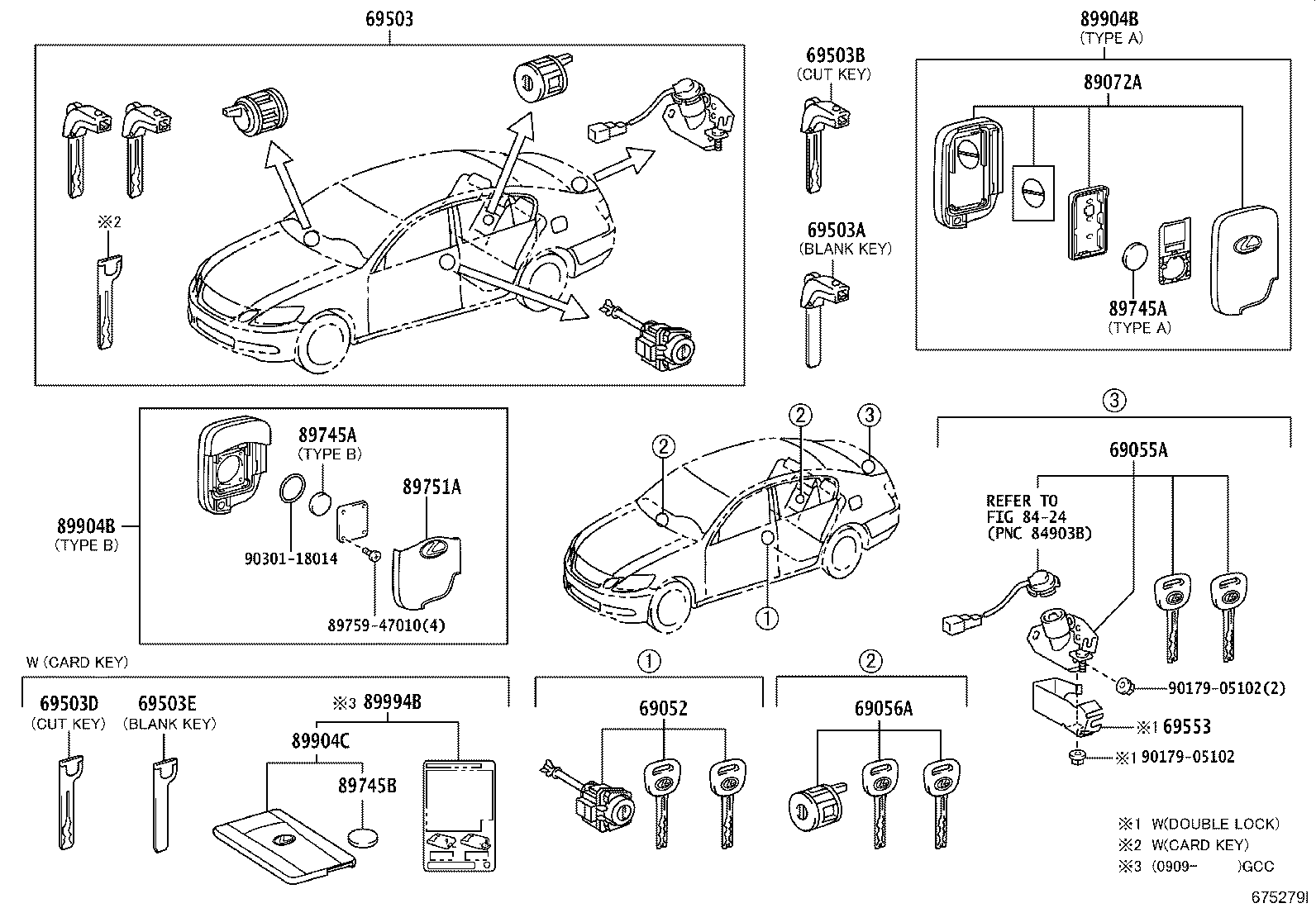

| Linked diagrams | ||||
| 8424 | ||||
