GRS190L-BETQKV (2007)

Toyota Lexus Gs30/35/43/460

Production Sep 2007 - Dec 2011
Engine 3GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

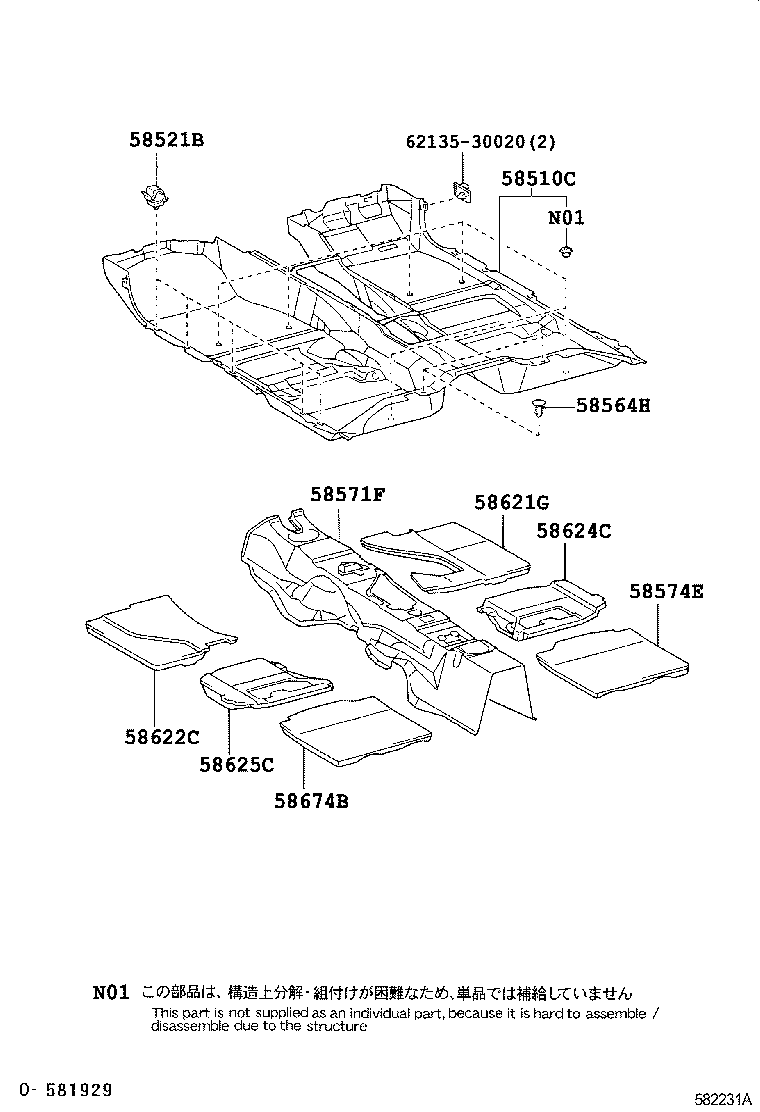

Click highlighted areas on diagram

diagram 58510C 58521B 58564H 58571F 58574E 58621G 58622C 58624C 58625C 58674B 6213530020
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-3K630C0

GRS190,UZS190..GCC

BLACK,TRIM2#

 1
58510-3K630B0

GRS190,UZS190..GCC

GRAY,TRIM1#

 1
58510-30B50A0

GRS190..GCC

CHINA SPEC,IVORY,TRIM0#

 1
58510-3K630A0

GRS190,UZS190..GCC

IVORY,TRIM0#

 1
58510-30B10A0

GRS190,UZS190..GCC

IVORY,TRIM0#

 1
58510-30C30D0

GRS190..GCC

CHINA SPEC&RED X BLACK INTERIOR PACKAGE,RED,TRIM20

 1
58510-30B10B0

GRS190,UZS190..GCC

LT.GRAY,TRIM1#

 1
58510-30B50B0

GRS190..GCC

CHINA SPEC,LT.GRAY,TRIM1#

 1
58510-30B10C0

GRS190,UZS190..GCC

BLACK,TRIM2#

 1
58510-30B50C0

GRS190..GCC

CHINA SPEC,BLACK,TRIM2#

 1
58510-30B50A1

GRS190..GCC

CHINA SPEC,IVORY,TRIM0#

 1
58510-30B10A1

GRS190..GCC

IVORY,TRIM0#

 1
58521B - HOOK, FLOOR CARPET
58521-30140

GRS19#,URS190,UZS190

 12
58521-30140

GRS190,UZS190

 12
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-05164B8

GRS190,UZS190

LT.GRAY

 2
90467-05164B8

GRS19#,URS190,UZS190

LT.GRAY

 2
58571F - PAD, FRONT FLOOR, FRONT
58571-30050

GRS190,UZS190..LHD

 1
58571-30170

GRS190,URS190,UZS190..LHD

 1
58574E - PAD, REAR FLOOR SILENCER, NO.1
58673-30020

GRS190,UZS190

 1
58673-30020

GRS19#,URS190,UZS190

 1
58621G - PAD, FRONT FLOOR SILENCER, RH
58621-30150

GRS190,UZS190

 1
58621-30150

GRS19#,URS190,UZS190

 1
58622C - PAD, FRONT FLOOR SILENCER, LH
58622-30160

GRS190,UZS190

 1
58622-30160

GRS190,URS190,UZS190

 1
58624C - PAD, CENTER FLOOR SILENCER, RH
58624-30140

GRS190,UZS190

 1
58624-30140

GRS19#,URS190,UZS190

 1
58625C - PAD, CENTER FLOOR SILENCER, LH
58625-30090

GRS190,UZS190

 1
58625-30090

GRS19#,URS190,UZS190

 1
58674B - PAD, REAR FLOOR SILENCER, NO.2
58674-30020

GRS190,UZS190

 1
58674-30020

GRS19#,URS190,UZS190

 1
Common parts
62135-30020
