GRS190L-BETQKV (2007)
Toyota Lexus Gs30/35/43/460

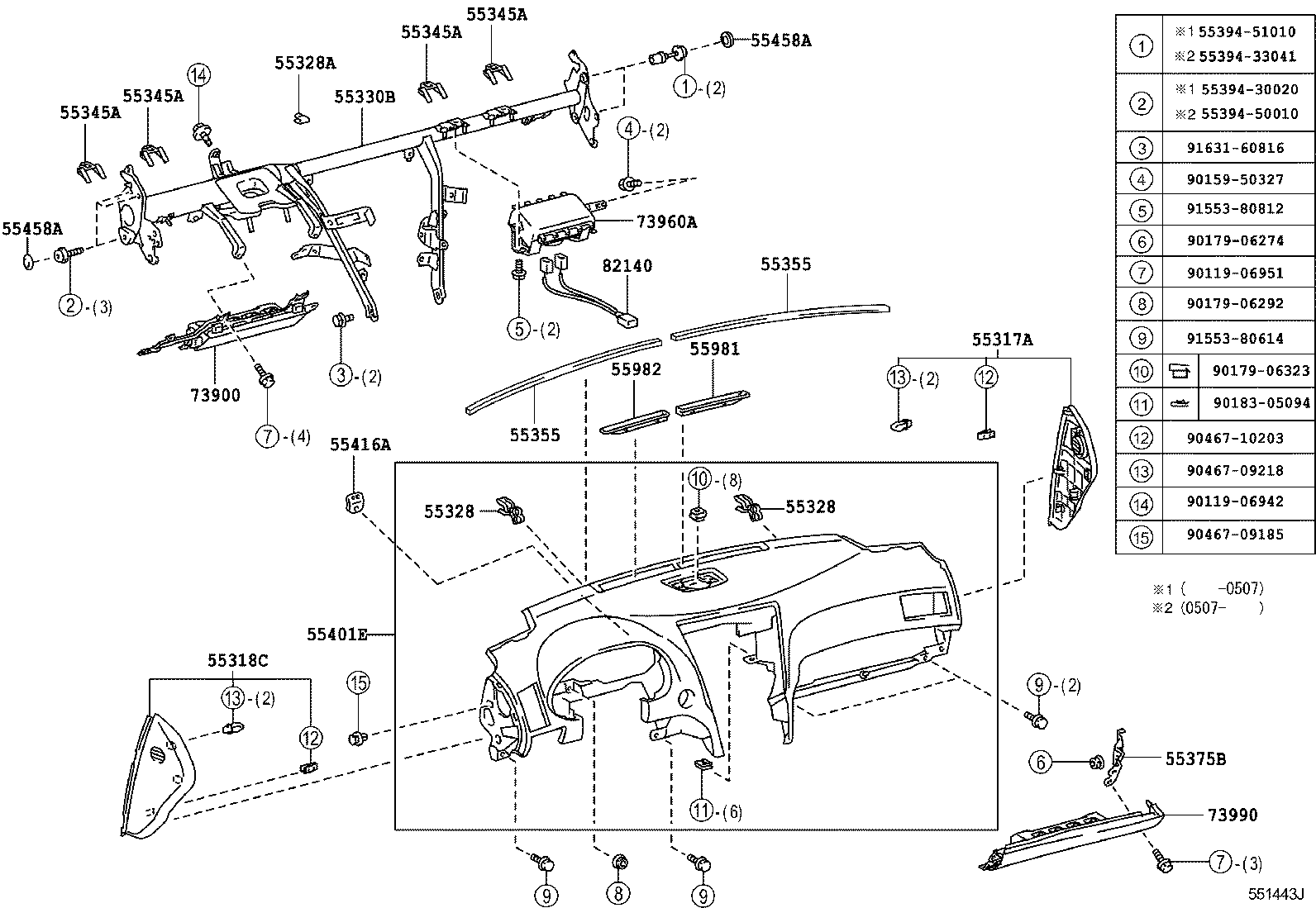

ILLUST NO. 1 OF 2(0501- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-30050C0 |
GRS190,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55317-30050E0 |
GRS19#,URS190,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55317-30050C0 |
GRS19#,URS190,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55317-30050E0 |
GRS190,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-30070E0 |
GRS19#,URS190,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55318-30070C0 |
GRS190,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55318-30070E0 |
GRS190,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55318-30070C0 |
GRS19#,URS190,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-30140 |
GRS19#,URS190,UZS190 |
2 | ||
| 55328-30140 |
GRS190,UZS190 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-30140 |
GRS19#,URS190,UZS190 |
2 | ||
| 55328-30140 |
GRS190,UZS190 |
2 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-48110 |
GRS19#,URS190 |
1 | ||
| 55328-30160 |
GRS190,UZS190 |
1 | ||
| 55328-50170 |
GRS19#,URS190,UZS190 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-30330 |
GRS190,UZS190..LHD |
1 | ||
| 55330-30330 |
GRS190,URS190,UZS190..LHD |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30050 |
GRS190,UZS190 |
4 | ||
| 55345-30060 |
GRS19#,URS190,UZS190 |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30050 |
GRS190,UZS190 |
4 | ||
| 55345-30060 |
GRS19#,URS190,UZS190 |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30050 |
GRS190,UZS190 |
4 | ||
| 55345-30060 |
GRS19#,URS190,UZS190 |
4 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-30050 |
GRS190,UZS190 |
4 | ||
| 55345-30060 |
GRS19#,URS190,UZS190 |
4 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30060 |
GRS190,UZS190 |
2 | ||
| 55355-30060 |
GRS190,URS190,UZS190 |
2 | ||
| 55355-30100 |
GRS19#,URS190,UZS190 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30060 |
GRS190,UZS190 |
2 | ||
| 55355-30060 |
GRS190,URS190,UZS190 |
2 | ||
| 55355-30100 |
GRS19#,URS190,UZS190 |
2 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-30150 |
GRS190,UZS190..LHD |
1 | ||
| 55375-30150 |
GRS19#,URS190,UZS190..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30730C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55401-30700C0 |
GRS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55401-30700E0 |
GRS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55401-30730E0 |
GRS19#,URS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
GRS190,UZS190 |
2 | ||
| 55416-30140 |
GRS19#,URS190,UZS190 |
2 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
GRS19#,URS190,UZS190 |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
GRS19#,URS190,UZS190 |
5 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30140 |
GRS190,UZS190 |
1 | ||
| 55981-30140 |
GRS19#,URS190,UZS190 |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-30080 |
GRS19#,URS190,UZS190 |
1 | ||
| 55982-30080 |
GRS190,UZS190 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-30020C0 |
GRS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 73900-30020A0 |
GRS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 73900-30020B1 |
GRS19#,URS190,UZS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 73900-30020B0 |
GRS190,UZS190..LHD GRAY,TRIM1# |
1 | ||
| 73900-30020C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 73900-30020A1 |
GRS19#,URS190..LHD IVORY,TRIM0# |
1 | ||
| 73900-30020A0 |
GRS19#,URS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-30080 |
GRS190,UZS190 |
1 | ||
| 73960-30080 |
GRS19#,URS190,UZS190 |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-30020C0 |
GRS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 73990-30020A0 |
GRS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 73990-30020B0 |
GRS190,UZS190..LHD GRAY,TRIM1# |
1 | ||
| 73990-30020C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 73990-30020B1 |
GRS19#,URS190,UZS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 73990-30020A0 |
GRS19#,URS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 73990-30020A1 |
GRS19#,URS190..LHD IVORY,TRIM0# |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-30020 |
GRS19#,URS190,UZS190 |
1 | ||
| 82140-30020 |
GRS190,UZS190 |
1 | ||
| Common parts | ||||
| 55394-30020 | ||||
| 55394-33041 | ||||
| 55394-50010 | ||||
| 55394-51010 | ||||
| 90119-06942 | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90179-06292 | ||||
| 90179-06323 | ||||
| 90183-05094 | ||||
| 90467-09185 | ||||
| 90467-09218 | ||||
| 90467-10203 | ||||
| 91553-80614 | ||||
| 91553-80812 | ||||
| 91631-60816 | ||||

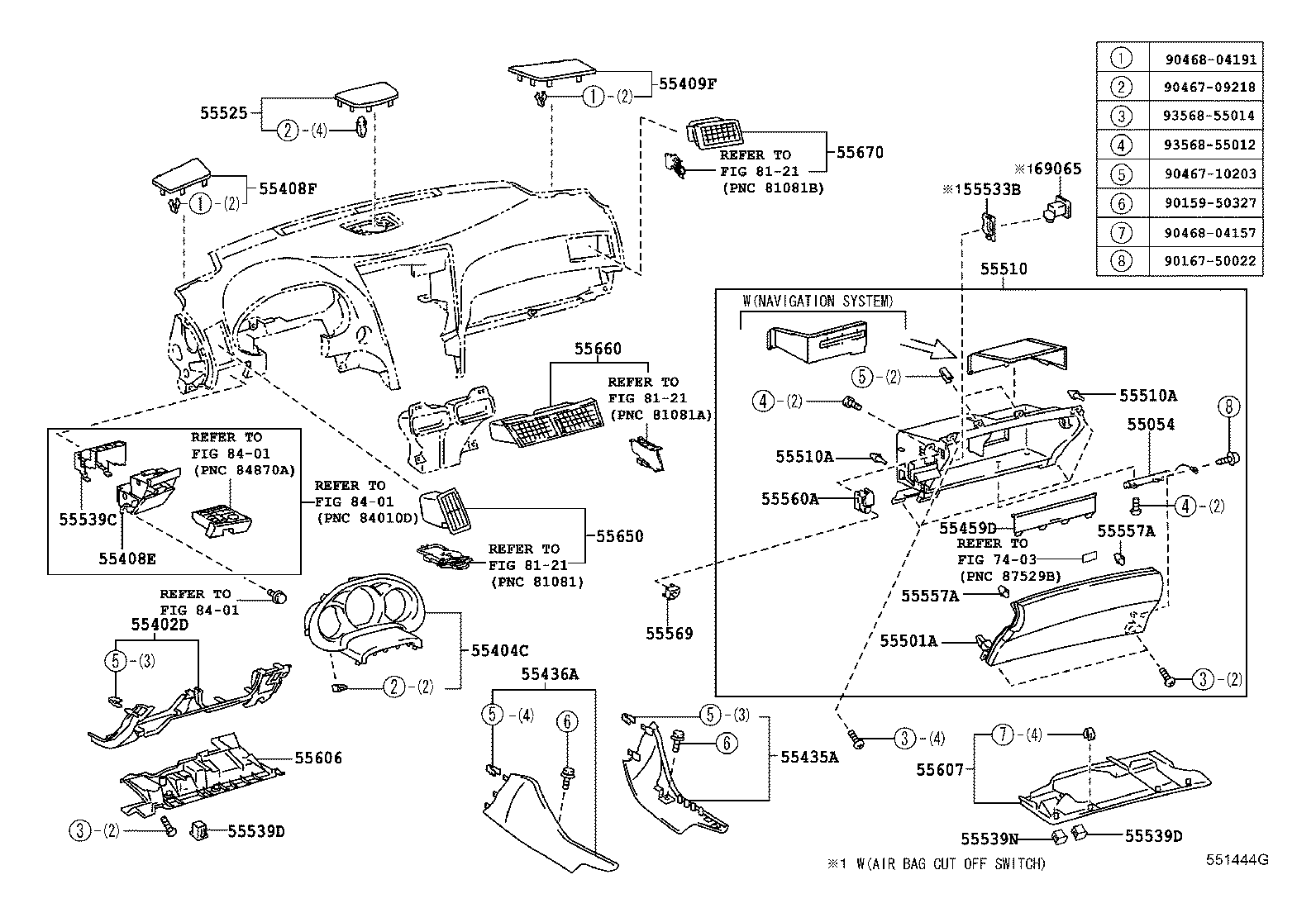

ILLUST NO. 2 OF 2(0501- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-30040 |
GRS19#,URS190,UZS190 |
1 | ||
| 55054-30040 |
GRS190,UZS190..LHD |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-30170A0 |
GRS19#,URS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 55402-30170A1 |
GRS19#,URS190..LHD IVORY,TRIM0# |
1 | ||
| 55402-30150A0 |
GRS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 55402-30150B0 |
GRS190,UZS190..LHD GRAY,TRIM1# |
1 | ||
| 55402-30170B0 |
GRS19#,URS190,UZS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 55402-30150C0 |
GRS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55402-30170C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-30890 |
GRS190,UZS190..LHD |
1 | ||
| 55404-30891 |
GRS19#,URS190,UZS190..LHD |
1 | ||
| 55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN | ||||
| 55408-30140B0 |
GRS190,UZS190..LHD GRAY,TRIM1# |
1 | ||
| 55408-30140C0 |
GRS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),IVORY,TRIM0# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY),IVORY,TRIM0# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&SUN SHADE-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY)&SUN SHADE-WITH&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&SUN SHADE-WITH&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30140A0 |
GRS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),LT.GRAY,TRIM1# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&SUN SHADE-WITH&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY),BLACK,TRIM2# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY)&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),BLACK,TRIM2# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY),LT.GRAY,TRIM1# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&SUN SHADE-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY)&SUN SHADE-WITH&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY)&SUN SHADE-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY)&SUN SHADE-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY)&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30210A0 |
GRS196;GRS190,URS190,UZS190..GCC IVORY,TRIM0# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&SUN SHADE-WITH&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY)&SUN SHADE-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&SUN SHADE-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER & MEMORY)&SUN SHADE-WITH&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240A0 |
GRS190..GCC CHINA SPEC&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240A1 |
GRS190..GCC CHINA SPEC&ART WORKS&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&ART WORKS&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&ART WORKS&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240A1 |
GRS190..GCC CHINA SPEC&ART WORKS&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30210C0 |
GRS196;GRS190,URS190,UZS190..GCC BLACK,TRIM2# |
1 | ||
| 55408-30210B0 |
GRS196;GRS190,URS190,UZS190..GCC LT.GRAY,TRIM1# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&ART WORKS&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&ART WORKS&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240B0 |
GRS190..GCC CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 55408-30240C0 |
GRS190..GCC CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55408-30210A1 |
GRS196;GRS190,URS190..GCC IVORY,TRIM0# |
1 | ||
| 55408-30240A1 |
GRS190..GCC CHINA SPEC&SUN SHADE-WITH&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408-30240A1 |
GRS190..GCC CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM0# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-30120C0 |
GRS190,UZS190..GCC,GEN BLACK,TRIM1#,2# |
1 | ||
| 55408-30120E0 |
GRS190,UZS190..GCC,GEN ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30120C0 |
UZS190;GRS190..GCC,GEN BLACK,TRIM1#,2# |
1 | ||
| 55408-30120E0 |
UZS190;GRS190..GCC,GEN ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30111E0 |
GRS190..GCC AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30111C0 |
GRS190..GCC AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55408-30111C0 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM1#,2# |
1 | ||
| 55408-30121E0 |
GRS190,URS190..GCC,GEN ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30121C0 |
GRS190,URS190..GCC,GEN BLACK,TRIM1#,2# |
1 | ||
| 55408-30111E0 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-30230C0 |
GRS190,UZS190..GCC,GEN BLACK,TRIM1#,2# |
1 | ||
| 55409-30230E0 |
GRS190,UZS190..GCC,GEN ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30230C0 |
UZS190;GRS190..GCC,GEN BLACK,TRIM1#,2# |
1 | ||
| 55409-30221C0 |
GRS190..GCC AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55409-30230E0 |
UZS190;GRS190..GCC,GEN ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30221C0 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM1#,2# |
1 | ||
| 55409-30231C0 |
GRS190,URS190..GCC,GEN BLACK,TRIM1#,2# |
1 | ||
| 55409-30221E0 |
GRS190..GCC CHINA SPEC&ART WORKS&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30231E0 |
GRS190,URS190..GCC,GEN ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30221E0 |
GRS190..GCC AUDIO-AM/FM,CASSETTE,CD CHANGER,10SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30220B0 |
GRS190,UZS190..LHD GRAY,TRIM1# |
1 | ||
| 55435-30220C0 |
GRS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55435-30220B1 |
GRS19#,URS190,UZS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 55435-30220A0 |
GRS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 55435-30220C1 |
GRS190..GCC CHINA SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20 |
1 | ||
| 55435-30220B3 |
GRS19#,URS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 55435-30220A0 |
GRS19#,URS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 55435-30220A3 |
GRS19#,URS190..LHD IVORY,TRIM0# |
1 | ||
| 55435-30220C4 |
GRS190,URS190..GCC BLACK/RED,TRIM24,25 |
1 | ||
| 55435-30220C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55435-30220C2 |
GRS190,URS190..GCC BLACK,TRIM20 |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-30140A0 |
GRS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 55436-30140B0 |
GRS190,UZS190..LHD GRAY,TRIM1# |
1 | ||
| 55436-30140C1 |
GRS190..GCC CHINA SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20 |
1 | ||
| 55436-30140C0 |
GRS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55436-30140C2 |
GRS190,URS190..GCC BLACK,TRIM20 |
1 | ||
| 55436-30140B1 |
GRS19#,URS190,UZS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 55436-30140A3 |
GRS19#,URS190..LHD IVORY,TRIM0# |
1 | ||
| 55436-30140A0 |
GRS19#,URS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 55436-30140C4 |
GRS190,URS190..GCC BLACK/RED,TRIM24,25 |
1 | ||
| 55436-30140C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55436-30140B3 |
GRS19#,URS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
GRS19#,URS190,UZS190 |
1 | ||
| 55459-30060 |
GRS19#,URS190 |
1 | ||
| 55459-48020 |
GRS190,UZS190..LHD |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-30200C1 |
GRS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55501-30200C0 |
GRS190,UZS190..LHD BLACK,TRIM1# |
1 | ||
| 55501-30200C2 |
GRS19#,URS190,UZS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 55501-30200E0 |
GRS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55501-30200E1 |
GRS19#,URS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55501-30200C1 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55501-30200E0 |
GRS190,URS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30370E0 |
GRS190,UZS190..LHD WITH(*EMV & NAVIGATION SYSTEM),IVORY,TRIM0# |
1 | ||
| 55550-30360E0 |
GRS190,UZS190..LHD IVORY,TRIM0# |
1 | ||
| 55550-30360C0 |
GRS190,UZS190..LHD GRAY,TRIM1# |
1 | ||
| 55550-30370C1 |
GRS190,UZS190..LHD WITH(*EMV & NAVIGATION SYSTEM),BLACK,TRIM2# |
1 | ||
| 55550-30360C1 |
GRS190,UZS190..LHD BLACK,TRIM2# |
1 | ||
| 55550-30370C0 |
GRS190,UZS190..LHD WITH(*EMV & NAVIGATION SYSTEM),GRAY,TRIM1# |
1 | ||
| 55550-30361E0 |
UZS190..GCC;GRS19#,URS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55550-30371C1 |
UZS190..GCC;GRS19#,URS190..LHD WITH(*EMV & DVD NAVIGATION SYSTEM),BLACK,TRIM2# |
1 | ||
| 55550-30361C2 |
UZS190..GCC;GRS19#,URS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 55550-30361C1 |
UZS190..GCC;GRS19#,URS190..LHD BLACK,TRIM2# |
1 | ||
| 55550-30371C2 |
UZS190..GCC;GRS19#,URS190..LHD WITH(*EMV & DVD NAVIGATION SYSTEM),LT.GRAY,TRIM1# |
1 | ||
| 55550-30371E0 |
UZS190..GCC;GRS19#,URS190..LHD WITH(*EMV & DVD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 55550-30362C1 |
GRS19#,URS190..LHD BLACK,TRIM2# |
1 | ||
| 55550-30362C2 |
GRS19#,URS190..LHD LT.GRAY,TRIM1# |
1 | ||
| 55550-30461E1 |
GRS190,URS190..GCC CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 55550-30372E1 |
GRS190..GCC;URS190..LHD WITH(*EMV & DVD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 55550-30461C1 |
GRS190,URS190..GCC CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM2# |
1 | ||
| 55550-30362E1 |
GRS19#,URS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55550-30372C1 |
GRS190..GCC;URS190..LHD WITH(*EMV & DVD NAVIGATION SYSTEM),BLACK,TRIM2# |
1 | ||
| 55550-30372C2 |
GRS190..GCC;URS190..LHD WITH(*EMV & DVD NAVIGATION SYSTEM),LT.GRAY,TRIM1# |
1 | ||
| 55550-30461E1 |
GRS190..GCC CHINA SPEC&MOON ROOF-WITH&WITH(*EMV & HDD NAVIGATION SYSTEM),ORCHID BROWN,TRIM0# |
1 | ||
| 55550-30461C1 |
GRS190..GCC CHINA SPEC&MOON ROOF-WITH&WITH(*EMV & HDD NAVIGATION SYSTEM),BLACK,TRIM2# |
1 | ||
| 55550-30461C0 |
GRS190,URS190..GCC CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM),LT.GRAY,TRIM1# |
1 | ||
| 55550-30461C0 |
GRS190..GCC CHINA SPEC&MOON ROOF-WITH&WITH(*EMV & HDD NAVIGATION SYSTEM),LT.GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
GRS19#,URS190,UZS190 |
2 | ||
| 90541-04002 |
GRS190,UZS190..LHD |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
GRS19#,URS190,UZS190 |
2 | ||
| 90541-04002 |
GRS190,UZS190..LHD |
2 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55510-30120C0 |
GRS190,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55510-30120E0 |
GRS190,URS190,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55510-30121E0 |
GRS19#,URS190,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55510-30120E0 |
GRS190,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55510-30120C0 |
GRS190,URS190,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55510-30121C0 |
GRS19#,URS190,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-30240 |
GRS190,UZS190..LHD |
1 | ||
| 55539-30330 |
GRS19#,URS190,UZS190 |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
GRS190..GCC CHINA SPEC |
2 | ||
| 55539-48020 |
GRS190..GCC ARGENTINA SPEC |
2 | ||
| 55539-48020 |
GRS190..GCC CHINA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM) |
2 | ||
| 55539-48020 |
GRS190..GCC CHINA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM)&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
GRS190..GCC CHINA SPEC |
2 | ||
| 55539-48020 |
GRS190..GCC ARGENTINA SPEC |
2 | ||
| 55539-48020 |
GRS190..GCC CHINA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM) |
2 | ||
| 55539-48020 |
GRS190..GCC CHINA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM)&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
GRS190,URS190 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-30080 |
GRS19#,URS190,UZS190 |
2 | ||
| 55557-30080 |
GRS190,UZS190..LHD |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-30080 |
GRS19#,URS190,UZS190 |
2 | ||
| 55557-30080 |
GRS190,UZS190..LHD |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-30050C0 |
GRS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55560-30051C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55560-30051E0 |
GRS19#,URS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55560-30050E0 |
GRS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-30020C0 |
GRS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55569-30020E0 |
GRS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55569-30021C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55569-30021E0 |
GRS19#,URS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-30231 |
GRS19#,URS190..LHD |
1 | ||
| 55606-30230 |
GRS190,UZS190..LHD |
1 | ||
| 55606-30230 |
GRS190,URS190,UZS190..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30290 |
GRS19#,URS190,UZS190..LHD |
1 | ||
| 55607-30290 |
GRS190,UZS190..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30280E0 |
GRS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55650-30281E0 |
GRS19#,URS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55650-30280C0 |
GRS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55650-30281C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30411C0 |
GRS19#,URS190,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55660-30411E0 |
GRS19#,URS190,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55660-30410C0 |
GRS190,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55660-30410E0 |
GRS190,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30440C0 |
GRS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55670-30441C0 |
GRS19#,URS190,UZS190..LHD BLACK,TRIM1#,2# |
1 | ||
| 55670-30441E0 |
GRS19#,URS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55670-30440E0 |
GRS190,UZS190..LHD ORCHID BROWN,TRIM0# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90167-50022 | ||||
| 90467-09218 | ||||
| 90467-10203 | ||||
| 90468-04157 | ||||
| 90468-04191 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
