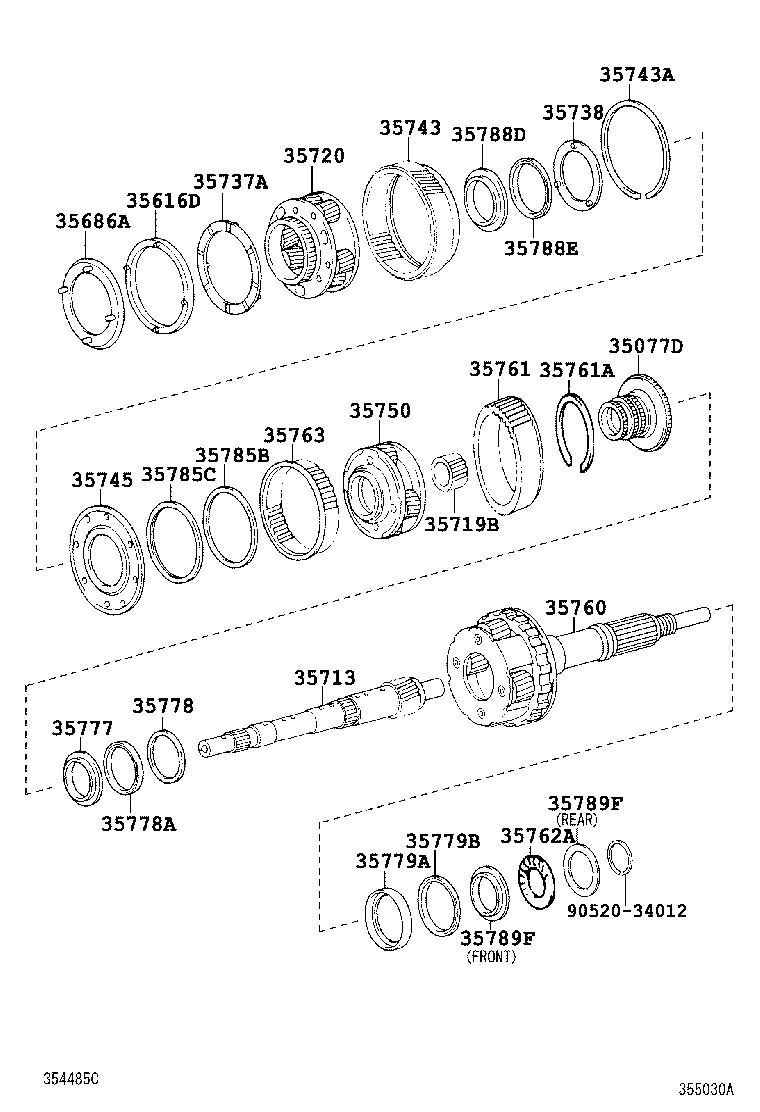

GRS190L-BETQKV (2007)
Toyota Lexus Gs30/35/43/460
(0501- )GRS190..GCC,GEN
A760E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35077D - FLANGE SUB-ASSY, RR PLANETARY RING GEAR | ||||
| 35077-30030 |
GRS190..GCC,GEN |
1 | ||
| 35077-30030 |
GRS196;GRS190..GCC,GEN |
1 | ||
| 35616D - WASHER, CLUTCH DRUM THRUST | ||||
| 35616-60010 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35616-60010 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35686A - WASHER, CLUTCH DRUM THRUST, NO.2 | ||||
| 35686-60010 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35686-60010 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35713 - SHAFT, INTERMEDIATE | ||||
| 35713-30080 |
GRS196;GRS190..GCC,GEN |
1 | ||
| 35713-30080 |
GRS190..GCC,GEN |
1 | ||
| 35719B - GEAR, PLANETARY SUN | ||||
| 35719-30090 |
GRS196;GRS190..GCC,GEN |
1 | ||
| 35719-30090 |
GRS190..GCC,GEN |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-30140 |
GRS190..GCC,GEN |
1 | ||
| 35720-30140 |
GRS196;GRS190..GCC,GEN |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-60030 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35737-60030 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-60030 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35738-60030 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-50020 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35743-50020 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99076 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 90520-99076 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35745 - FLANGE, FRONT PLANETARY RING GEAR | ||||
| 35745-50040 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35745-50040 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35750 - GEAR ASSY, CENTER PLANETARY | ||||
| 35750-30030 |
GRS190..GCC,GEN |
1 | ||
| 35750-30030 |
GRS196;GRS190..GCC,GEN |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30121 |
GRS190..GCC,GEN |
1 | ||
| 35760-30121 |
GRS190..GCC,GEN |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-30040 |
GRS190..GCC,GEN |
1 | ||
| 35761-30040 |
GRS196;GRS190..GCC,GEN |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90520-99073 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 90520-99073 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-36001 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 90374-36001 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35763 - GEAR, CENTER PLANETARY RING | ||||
| 35763-30020 |
GRS190..GCC,GEN |
1 | ||
| 35763-30020 |
GRS196;GRS190..GCC,GEN |
1 | ||
| 35777 - RACE, THRUST BEARING, NO.7 | ||||
| 35777-60010 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35777-60010 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35778 - RACE, THRUST BEARING, NO.8 | ||||
| 35778-60010 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35778-60010 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35778A - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-32010 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 90374-32010 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35779A - RACE, THRUST BEARING, NO.9 | ||||
| 35779-60011 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35779-60011 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35779B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-43007 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 90374-43007 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35785B - RACE, THRUST BEARING, NO.4 | ||||
| 35785-60010 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35785-60010 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35785C - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-55004 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 90374-55004 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35788D - RACE, THRUST BEARING, NO.3 | ||||
| 35788-60010 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 35788-60010 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35788E - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-44005 |
GRS196,UZS190;GRS190..GCC,GEN |
1 | ||
| 90374-44005 |
UZS190;GRS190..GCC,GEN |
1 | ||
| 35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-35060 |
UZS190;GRS190..GCC,GEN REAR,T=3.8 |
1 | ||
| 35789-35070 |
UZS190;GRS190..GCC,GEN REAR,T=3.9 |
1 | ||
| 35789-50080 |
UZS190;GRS190..GCC,GEN REAR,T=3.95 |
1 | ||
| 35789-35080 |
UZS190;GRS190..GCC,GEN REAR,T=4.0 |
1 | ||
| 35789-50120 |
UZS190;GRS190..GCC,GEN REAR,T=4.30 |
1 | ||
| 35789-50090 |
UZS190;GRS190..GCC,GEN REAR,T=4.05 |
1 | ||
| 35789-35090 |
UZS190;GRS190..GCC,GEN REAR,T=4.1 |
1 | ||
| 35789-50070 |
UZS190;GRS190..GCC,GEN REAR,T=3.85 |
1 | ||
| 35789-35110 |
UZS190;GRS190..GCC,GEN FRONT |
1 | ||
| 35789-35100 |
UZS190;GRS190..GCC,GEN REAR,T=4.2 |
1 | ||
| 35789-50110 |
UZS190;GRS190..GCC,GEN REAR,T=4.25 |
1 | ||
| 35789-50100 |
UZS190;GRS190..GCC,GEN REAR,T=4.15 |
1 | ||
| 35789-35060 |
GRS190..GCC,GEN REAR,T=3.8 |
1 | ||
| 35789-35070 |
GRS190..GCC,GEN REAR,T=3.9 |
1 | ||
| 35789-50130 |
UZS190;GRS190..GCC,GEN REAR,T=4.35 |
1 | ||
| 35789-35090 |
GRS190..GCC,GEN REAR,T=4.1 |
1 | ||
| 35789-35100 |
GRS190..GCC,GEN REAR,T=4.2 |
1 | ||
| 35789-50090 |
GRS190..GCC,GEN REAR,T=4.05 |
1 | ||
| 35789-50130 |
GRS190..GCC,GEN REAR,T=4.35 |
1 | ||
| 35789-50080 |
GRS190..GCC,GEN REAR,T=3.95 |
1 | ||
| 35789-35080 |
GRS190..GCC,GEN REAR,T=4.0 |
1 | ||
| 35789-50110 |
GRS190..GCC,GEN REAR,T=4.25 |
1 | ||
| 35789-35110 |
GRS190..GCC,GEN FRONT |
1 | ||
| 35789-50100 |
GRS190..GCC,GEN REAR,T=4.15 |
1 | ||
| 35789-50070 |
GRS190..GCC,GEN REAR,T=3.85 |
1 | ||
| 35789-50120 |
GRS190..GCC,GEN REAR,T=4.30 |
1 | ||
| 35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-35060 |
UZS190;GRS190..GCC,GEN REAR,T=3.8 |
1 | ||
| 35789-35070 |
UZS190;GRS190..GCC,GEN REAR,T=3.9 |
1 | ||
| 35789-50080 |
UZS190;GRS190..GCC,GEN REAR,T=3.95 |
1 | ||
| 35789-35080 |
UZS190;GRS190..GCC,GEN REAR,T=4.0 |
1 | ||
| 35789-50120 |
UZS190;GRS190..GCC,GEN REAR,T=4.30 |
1 | ||
| 35789-50090 |
UZS190;GRS190..GCC,GEN REAR,T=4.05 |
1 | ||
| 35789-35090 |
UZS190;GRS190..GCC,GEN REAR,T=4.1 |
1 | ||
| 35789-50070 |
UZS190;GRS190..GCC,GEN REAR,T=3.85 |
1 | ||
| 35789-35110 |
UZS190;GRS190..GCC,GEN FRONT |
1 | ||
| 35789-35100 |
UZS190;GRS190..GCC,GEN REAR,T=4.2 |
1 | ||
| 35789-50110 |
UZS190;GRS190..GCC,GEN REAR,T=4.25 |
1 | ||
| 35789-50100 |
UZS190;GRS190..GCC,GEN REAR,T=4.15 |
1 | ||
| 35789-35060 |
GRS190..GCC,GEN REAR,T=3.8 |
1 | ||
| 35789-35070 |
GRS190..GCC,GEN REAR,T=3.9 |
1 | ||
| 35789-50130 |
UZS190;GRS190..GCC,GEN REAR,T=4.35 |
1 | ||
| 35789-35090 |
GRS190..GCC,GEN REAR,T=4.1 |
1 | ||
| 35789-35100 |
GRS190..GCC,GEN REAR,T=4.2 |
1 | ||
| 35789-50090 |
GRS190..GCC,GEN REAR,T=4.05 |
1 | ||
| 35789-50130 |
GRS190..GCC,GEN REAR,T=4.35 |
1 | ||
| 35789-50080 |
GRS190..GCC,GEN REAR,T=3.95 |
1 | ||
| 35789-35080 |
GRS190..GCC,GEN REAR,T=4.0 |
1 | ||
| 35789-50110 |
GRS190..GCC,GEN REAR,T=4.25 |
1 | ||
| 35789-35110 |
GRS190..GCC,GEN FRONT |
1 | ||
| 35789-50100 |
GRS190..GCC,GEN REAR,T=4.15 |
1 | ||
| 35789-50070 |
GRS190..GCC,GEN REAR,T=3.85 |
1 | ||
| 35789-50120 |
GRS190..GCC,GEN REAR,T=4.30 |
1 | ||
| Common parts | ||||
| 90520-34012 | ||||
