VCV10R-BTPGKQ (1992)
Toyota Lexus Es300
Production
Mar 1992
-
Aug 1996
Engine
3VZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9203- )

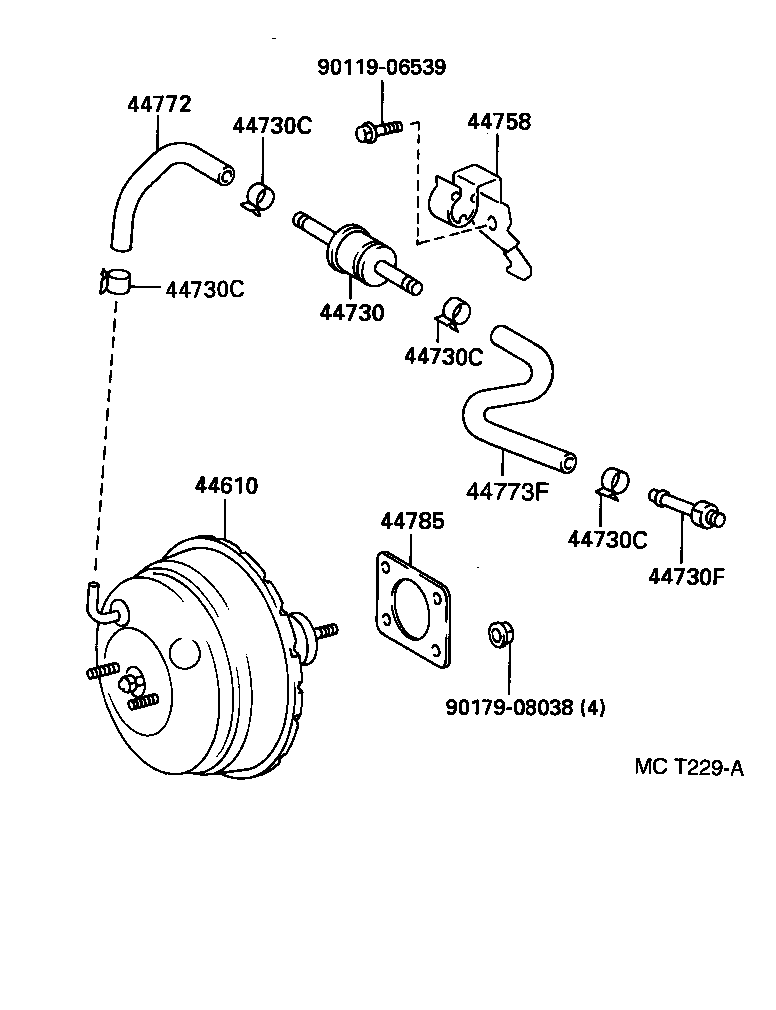

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-33240 |
VCV10 |
1 | ||
| 44610-33100 |
VCV10 W(*66) |
1 | ||
| 44610-33120 |
VCV10 |
1 | ||
| 44610-33340 |
VCV10 |
1 | ||
| 44610-33200 |
VCV10 W(*66) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20120 |
VCV10 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
VCV10 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
VCV10 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
VCV10 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
VCV10 |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
VCV10 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-33010 |
VCV10 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-33010 |
VCV10 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-33010 |
VCV10 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
VCV10 |
1 | ||
| Common parts | ||||
| 90119-06539 | ||||
| 90179-08038 | ||||
