Toyota Lexus es300 MCV30 ACCELERATOR LINK

Home Blog About Contact Search

MCV30R-BEAGKQ (2001)

Toyota Lexus Es300

Production Jul 2001 - Mar 2006

Engine 1MZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

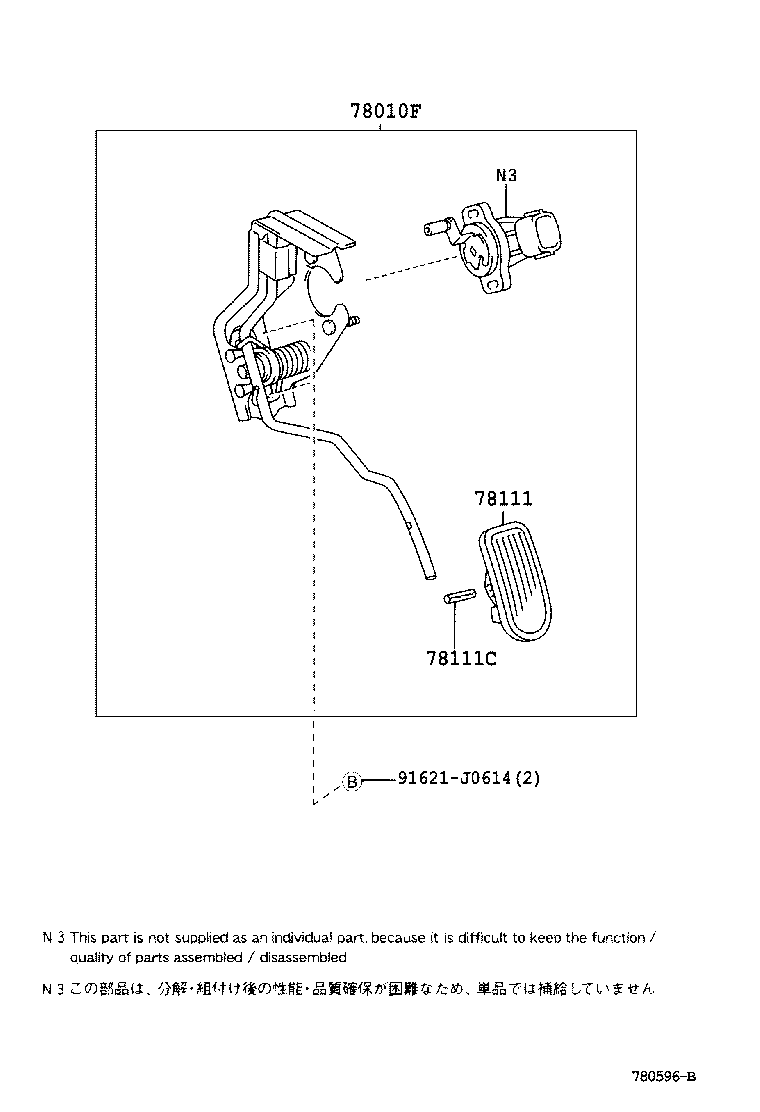

Click highlighted areas on diagram

Part #	Description	Period	Qty
78010F - PEDAL ASSY, ACCELERATOR
78010-33030	MCV30..ARL	07/2001 - 06/2004	1
78010-33030	MCV30..ARL	06/2004 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-33020	MCV30..ARL	06/2004 - 12/2999	1
78111-33020	MCV30..ARL	07/2001 - 06/2004	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	MCV30	06/2004 - 12/2999	1
90254-04019	MCV30	07/2001 - 06/2004	1
Common parts
91621-J0614
