MCV30R-BEAGKQ (2001)
Toyota Lexus Es300

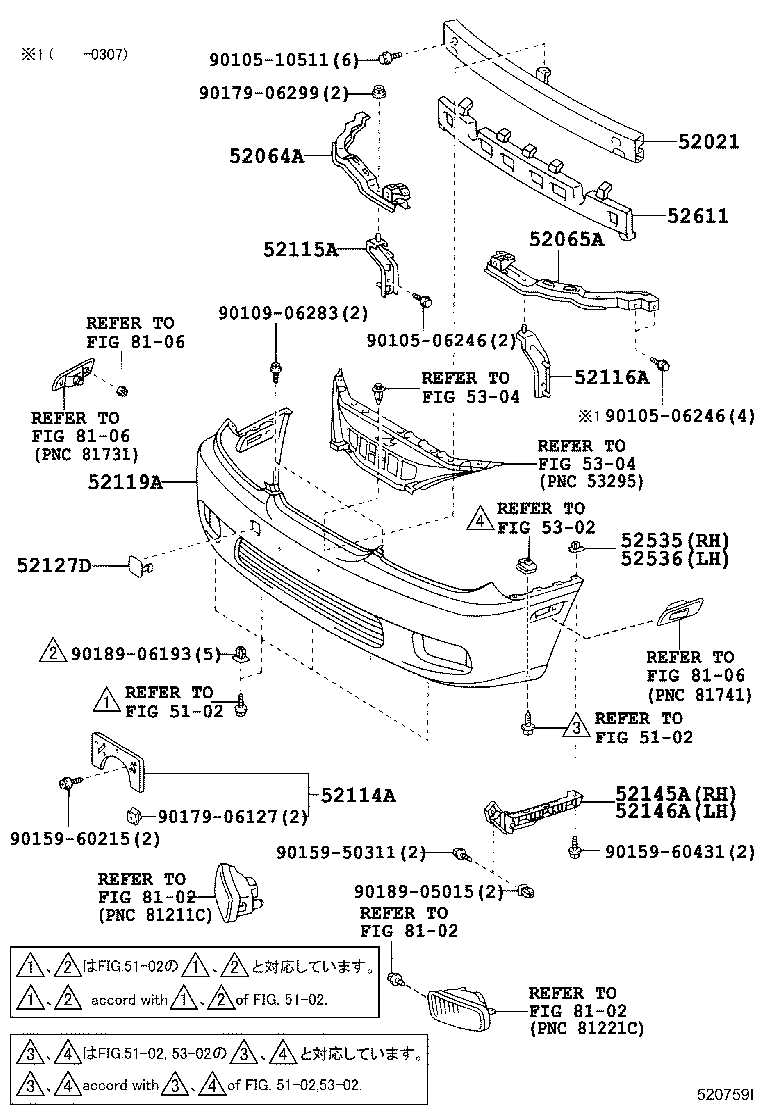

(0107-0406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-33130 |
MCV30 |
1 | ||
| 52021-33130 |
MCV30 |
1 | ||
| 52064A - BAR SUB-ASSY, FRONT BUMPER SIDE, RH | ||||
| 52064-33010 |
MCV30 |
1 | ||
| 52064-33010 |
MCV30 |
1 | ||
| 52065A - BAR SUB-ASSY, FRONT BUMPER SIDE, LH | ||||
| 52065-33010 |
MCV30 |
1 | ||
| 52065-33010 |
MCV30 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-33110 |
MCV30 |
1 | ||
| 52114-33110 |
MCV30 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-33070 |
MCV30 |
1 | ||
| 52115-33070 |
MCV30 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-33060 |
MCV30 |
1 | ||
| 52116-33060 |
MCV30 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-33928 |
MCV30 |
1 | ||
| 52119-33930 |
MCV30 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52128-33030B0 |
MCV30 SILVER ME.,1C0 |
1 | ||
| 52128-33030D0 |
MCV30 DK.RED MC.,3Q2 |
1 | ||
| 52128-33030C0 |
MCV30 BLACK,202 |
1 | ||
| 52128-33030G0 |
MCV30 GREEN M.M.,6S5 |
1 | ||
| 52128-33030H0 |
MCV30 LT. AQUA M.M.,772 |
1 | ||
| 52128-33030A0 |
MCV30 WHITE PEARL CS.,062 |
1 | ||
| 52128-33030D1 |
MCV30 SHELL ME.,3Q4 |
1 | ||
| 52128-33030E0 |
MCV30 BEIGE ME.,4P7 |
1 | ||
| 52128-33030A0 |
MCV30 WHITE PEARL CS.,062 |
1 | ||
| 52128-33030J0 |
MCV30 DARK BLUE MC.,8P8 |
1 | ||
| 52128-33030J0 |
MCV30 DARK BLUE MC.,8P8 |
1 | ||
| 52128-33030B3 |
MCV30 GRAY M.M.,1F5 |
1 | ||
| 52128-33030D0 |
MCV30 DK.RED MC.,3Q2 |
1 | ||
| 52128-33030G1 |
MCV30 GREEN M.M.,6T5 |
1 | ||
| 52128-33030C0 |
MCV30 BLACK,202 |
1 | ||
| 52128-33030E1 |
MCV30 BEIGE M.M.,4R3 |
1 | ||
| 52128-33030D1 |
MCV30 SHELL ME.,3Q4 |
1 | ||
| 52128-33030B4 |
MCV30 SILVER ME.,1F7 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-33040 |
MCV30 |
1 | ||
| 52145-33040 |
MCV30 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-33040 |
MCV30 |
1 | ||
| 52146-33040 |
MCV30 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30150 |
MCV30 |
1 | ||
| 52535-30150 |
MCV30 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-30150 |
MCV30 |
1 | ||
| 52535-30150 |
MCV30 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-33150 |
MCV30 |
1 | ||
| 52611-33130 |
MCV30 |
1 | ||
| Common parts | ||||
| 90105-06246 | ||||
| 90105-10511 | ||||
| 90109-06283 | ||||
| 90159-50311 | ||||
| 90159-60215 | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 90179-06299 | ||||
| 90189-05015 | ||||
| 90189-06193 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5304 | ||||
| 8102 | ||||
| 8106 | ||||

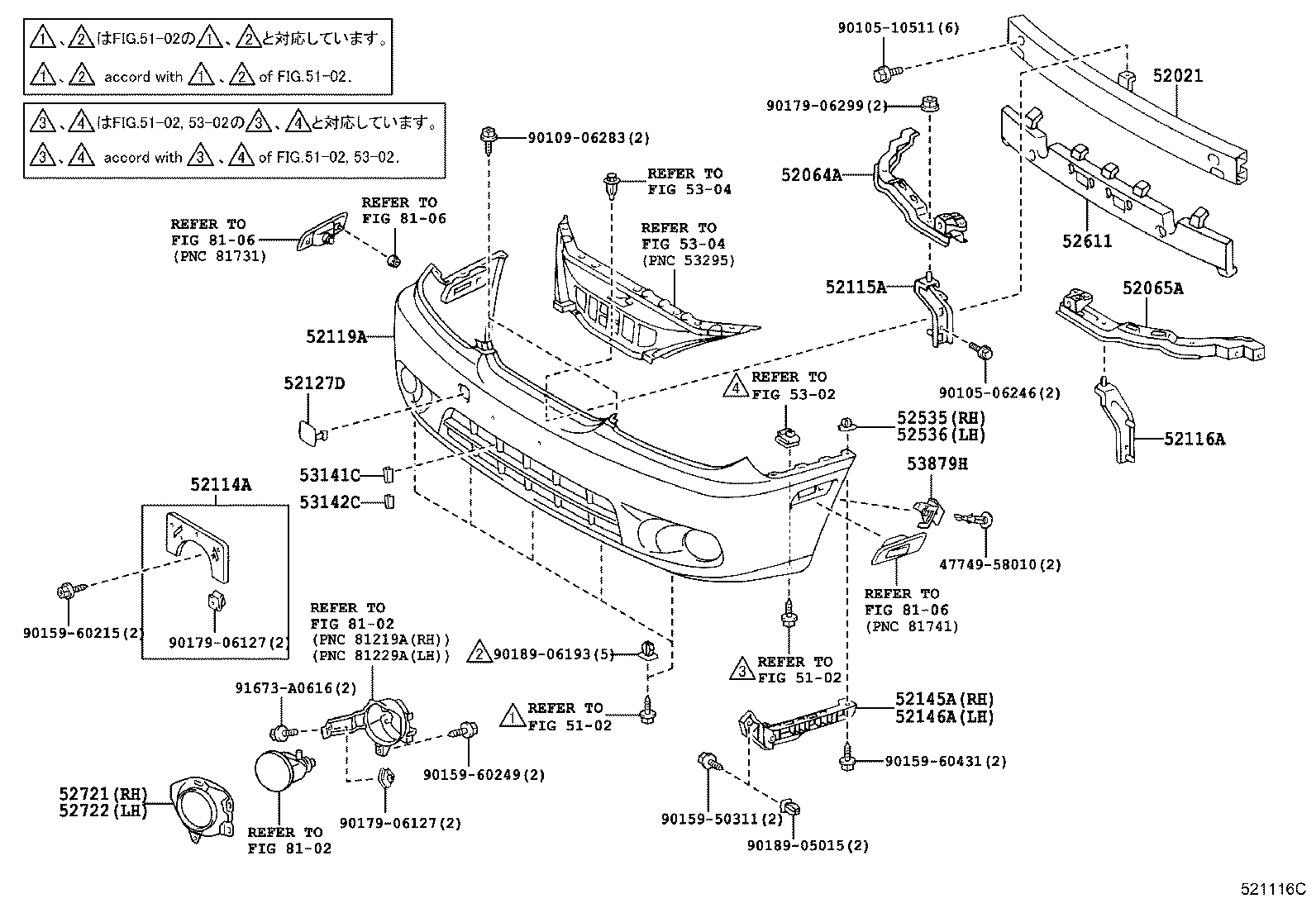

(0406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-33130 |
MCV30 |
1 | ||
| 52021-33130 |
MCV30 |
1 | ||
| 52064A - BAR SUB-ASSY, FRONT BUMPER SIDE, RH | ||||
| 52064-33010 |
MCV30 |
1 | ||
| 52064-33010 |
MCV30 |
1 | ||
| 52065A - BAR SUB-ASSY, FRONT BUMPER SIDE, LH | ||||
| 52065-33010 |
MCV30 |
1 | ||
| 52065-33010 |
MCV30 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-33110 |
MCV30 |
1 | ||
| 52114-33110 |
MCV30 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-33070 |
MCV30 |
1 | ||
| 52115-33070 |
MCV30 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-33060 |
MCV30 |
1 | ||
| 52116-33060 |
MCV30 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-33928 |
MCV30 |
1 | ||
| 52119-33930 |
MCV30 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52128-33030B0 |
MCV30 SILVER ME.,1C0 |
1 | ||
| 52128-33030D0 |
MCV30 DK.RED MC.,3Q2 |
1 | ||
| 52128-33030C0 |
MCV30 BLACK,202 |
1 | ||
| 52128-33030G0 |
MCV30 GREEN M.M.,6S5 |
1 | ||
| 52128-33030H0 |
MCV30 LT. AQUA M.M.,772 |
1 | ||
| 52128-33030A0 |
MCV30 WHITE PEARL CS.,062 |
1 | ||
| 52128-33030D1 |
MCV30 SHELL ME.,3Q4 |
1 | ||
| 52128-33030E0 |
MCV30 BEIGE ME.,4P7 |
1 | ||
| 52128-33030A0 |
MCV30 WHITE PEARL CS.,062 |
1 | ||
| 52128-33030J0 |
MCV30 DARK BLUE MC.,8P8 |
1 | ||
| 52128-33030J0 |
MCV30 DARK BLUE MC.,8P8 |
1 | ||
| 52128-33030B3 |
MCV30 GRAY M.M.,1F5 |
1 | ||
| 52128-33030D0 |
MCV30 DK.RED MC.,3Q2 |
1 | ||
| 52128-33030G1 |
MCV30 GREEN M.M.,6T5 |
1 | ||
| 52128-33030C0 |
MCV30 BLACK,202 |
1 | ||
| 52128-33030E1 |
MCV30 BEIGE M.M.,4R3 |
1 | ||
| 52128-33030D1 |
MCV30 SHELL ME.,3Q4 |
1 | ||
| 52128-33030B4 |
MCV30 SILVER ME.,1F7 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-33040 |
MCV30 |
1 | ||
| 52145-33040 |
MCV30 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-33040 |
MCV30 |
1 | ||
| 52146-33040 |
MCV30 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30150 |
MCV30 |
1 | ||
| 52535-30150 |
MCV30 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-30150 |
MCV30 |
1 | ||
| 52535-30150 |
MCV30 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-33150 |
MCV30 |
1 | ||
| 52611-33130 |
MCV30 |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-33010 |
MCV30..ARL |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-33010 |
MCV30..ARL |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-33030 |
MCV30 |
5 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-33030 |
MCV30 |
5 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
MCV30 |
2 | ||
| Common parts | ||||
| 47749-58010 | ||||
| 90105-06246 | ||||
| 90105-10511 | ||||
| 90109-06283 | ||||
| 90159-50311 | ||||
| 90159-60215 | ||||
| 90159-60249 | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 90179-06299 | ||||
| 90189-05015 | ||||
| 90189-06193 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5304 | ||||
| 8102 | ||||
| 8106 | ||||
