MCV30L-BEAGKV (2001)

Toyota Lexus Es300

Production Jul 2001 - Mar 2006
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )

Click highlighted areas on diagram

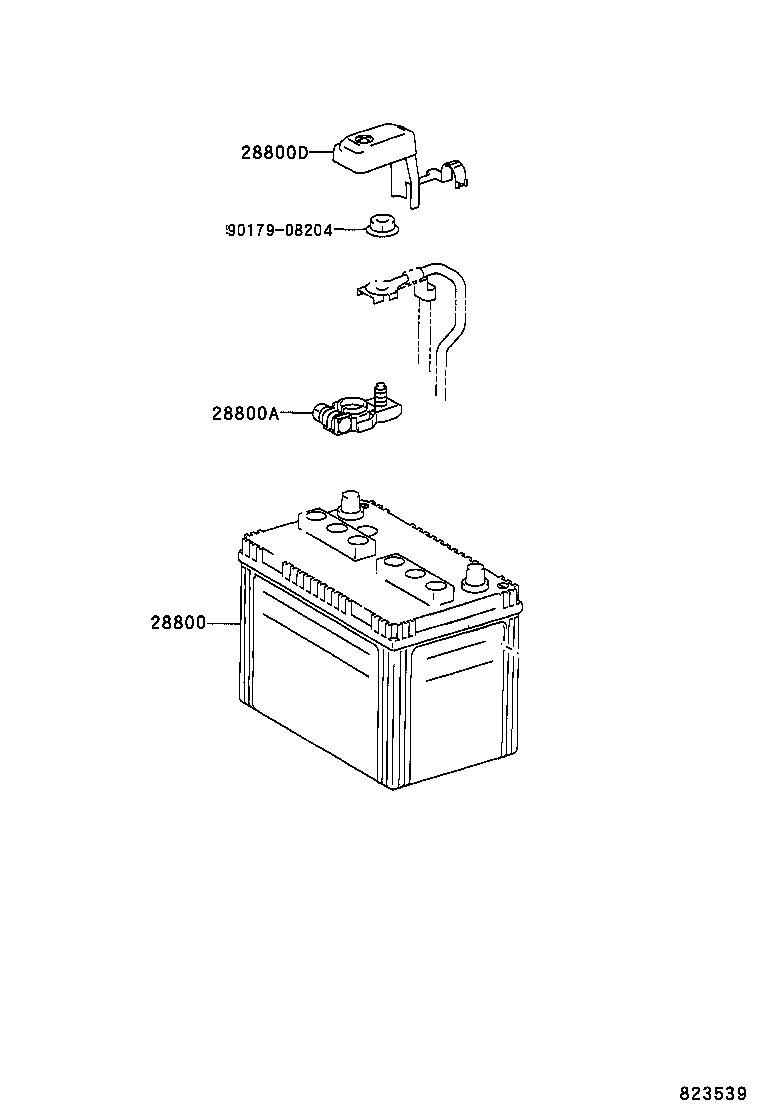

diagram 28800 28800A 28800D 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-42042

1MZFE..MCV30

55D23L,YUASA

 1
28800-42041

1MZFE..MCV30

55D23L

 1
28800-42061

1MZFE..MCV30

55D23L,FURUKAWA

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

1MZFE..MCV30

 1
90982-05054

1MZFE..MCV30

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

1MZFE..MCV30

 1
82821-12490

1MZFE..MCV30

 1
Common parts
90179-08204
