Toyota Lexus es300 MCV20 WIRING & CLAMP

MCV20R-BTPGKQ (1996)

Toyota Lexus Es300

Production Aug 1996 - Jul 2001

Engine 1MZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 7 OF 8(9608- )

Click highlighted areas on diagram

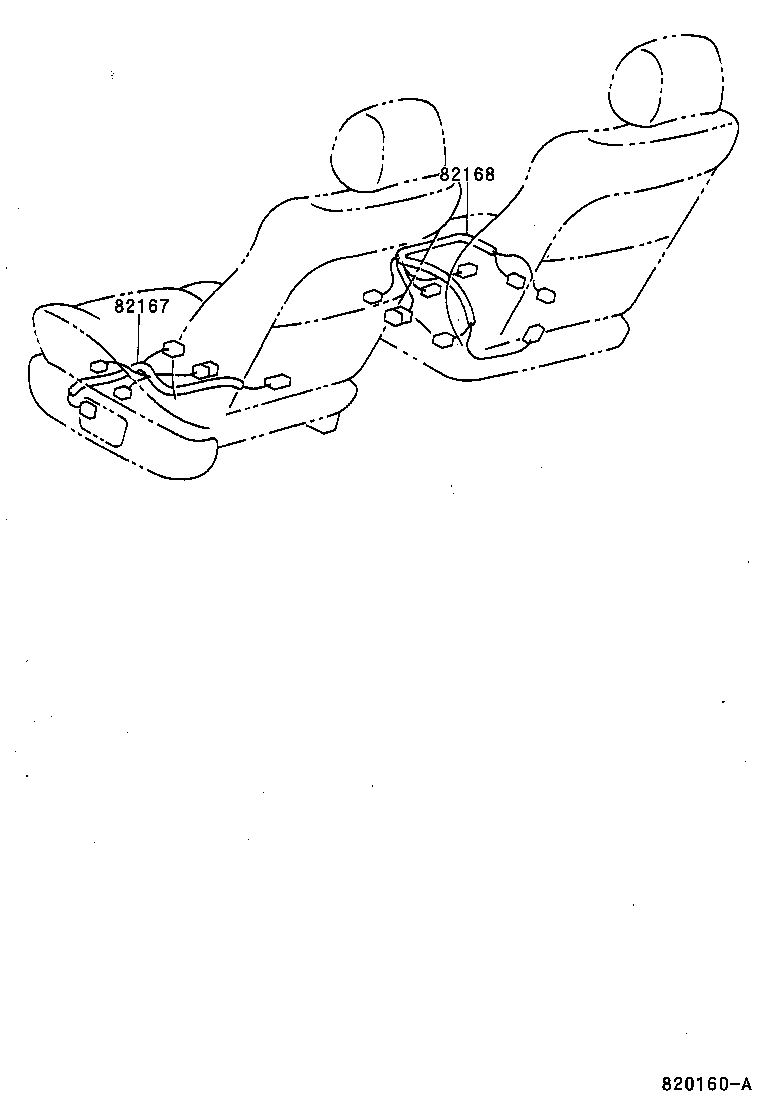

SEAT WIRE

Part #	Description	Period	Qty
82167 - WIRE, SEAT, NO.1
82167-33120	MCV20	08/1996 - 10/1996	1
82167-33121	MCV20..ARL	10/1996 - 12/2999	1
82168 - WIRE, SEAT, NO.2
82168-33050	MCV20	08/1996 - 10/1996	1
82168-33051	MCV20..ARL	10/1996 - 01/2000	1
82168-33100	MCV20..ARL	01/2000 - 12/2999	1

ILLUST NO. 1 OF 8(9608- )

Click highlighted areas on diagram

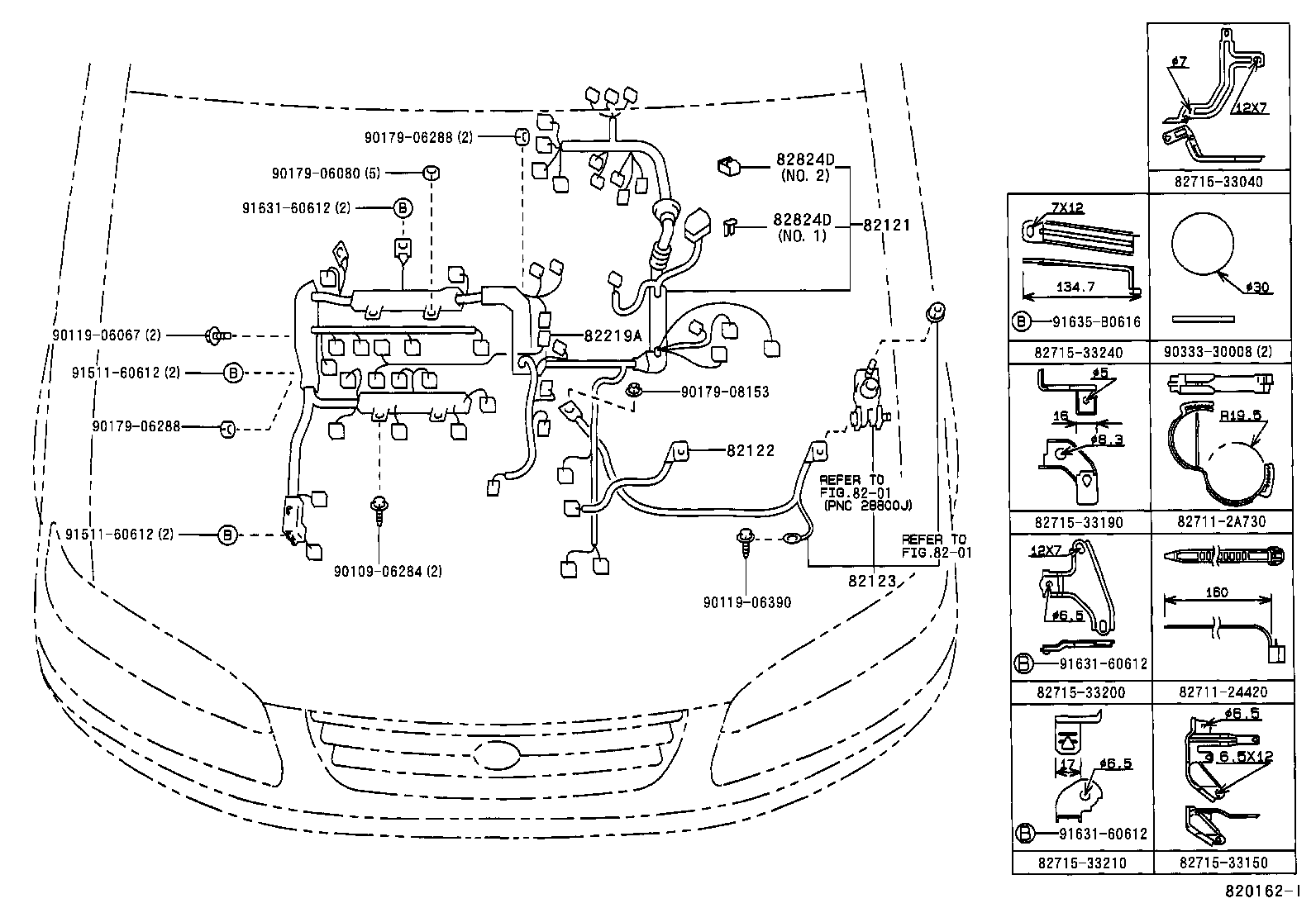

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-3T060	MCV20	08/1996 - 08/1997	1
82121-3T010	MCV20..ARL HONG KONG SPEC	08/1996 - 12/2999	1
82121-3T061	MCV20..ARL	08/1997 - 12/2999	1
82122 - WIRE, ENGINE, NO.2
82122-33020	MCV20	02/1997 - 08/1997	1
82122-07010	MCV20	08/1997 - 08/1998	1
82122-33020	MCV20	08/1999 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-06020	MCV20	08/1996 - 08/1998	1
82123-33020	MCV20	08/1998 - 12/2999	1
82219A - WIRE, SENSOR
82219-33030	MCV20	08/1998 - 12/2999	1
82219-07010	MCV20	08/1996 - 08/1998	1
82824D - CONNECTOR, WIRING HARNESS
82824-50110	MCV20..ARL NO.2	08/1999 - 12/2999	1
82824-24010	MCV20 NO.1	08/1996 - 12/2999	1
82824D - CONNECTOR, WIRING HARNESS
82824-50110	MCV20..ARL NO.2	08/1999 - 12/2999	1
82824-24010	MCV20 NO.1	08/1996 - 12/2999	1
Common parts
82711-24420
82711-2A730
82715-33040
82715-33150
82715-33190
82715-33200
82715-33210
82715-33240
90109-06284
90119-06067
90119-06390
90179-06080
90179-06288
90179-08153
90333-30008
91511-60612
91631-60612
91635-B0616
Linked diagrams
8201

ILLUST NO. 2 OF 8(9608- )

Click highlighted areas on diagram

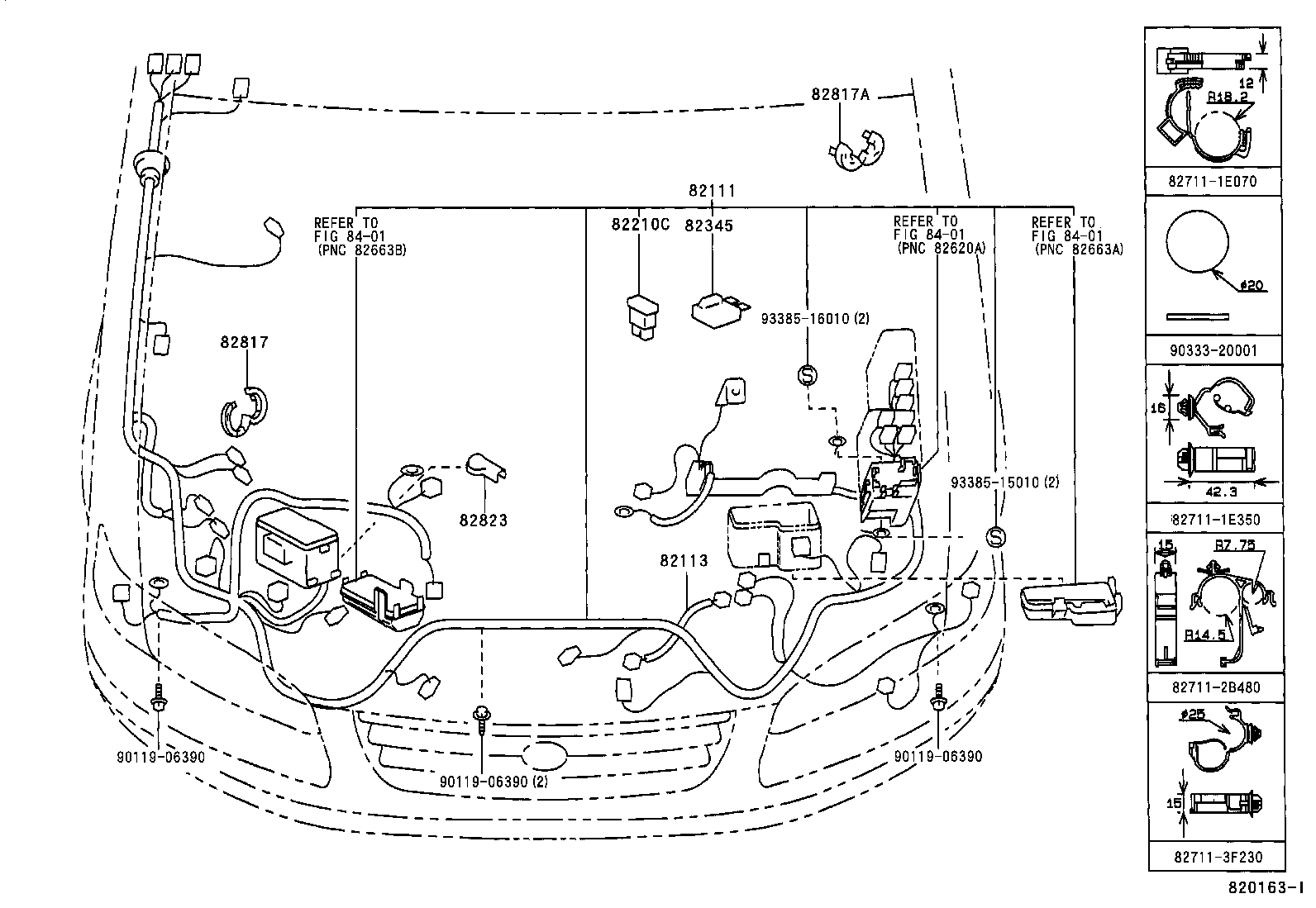

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-3T042	MCV20	08/1997 - 08/1998	1
82115-33340	MCV20..ARL	08/1999 - 12/2999	1
82111-3T041	MCV20	02/1997 - 08/1997	1
82111-3T740	MCV20..ARL	08/1998 - 08/1999	1
82111-3T040	MCV20	08/1996 - 02/1997	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-33030	MCV20	08/1998 - 12/2999	1
82113-06030	MCV20	08/1996 - 08/1998	1
82210C - FUSIBLE LINK
90982-08202	MCV20 60A,TERM.:MALE,YEL	08/1996 - 12/2999	1
90982-08281	MCV20 40A,TERM.:FEMALE,GRN	08/1996 - 12/2999	1
90982-08280	MCV20 30A,TERM.:FEMALE,PNK	08/1996 - 12/2999	2
90982-08282	MCV20 50A,TERM.:FEMALE,RED	08/1996 - 12/2999	1
90982-08246	MCV20 100A,TERM.:MALE,BLUE	08/1996 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-33350	MCV20	08/1996 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-2B730	MCV20	08/1996 - 12/2999	1
82823 - CAP, TERMINAL, NO.1
82823-22050	MCV20	08/1996 - 12/2999	1
Common parts
82711-1E070
82711-1E350
82711-2B480
82711-3F230
90119-06390
90333-20001
93385-15010
93385-16010
Linked diagrams
8401

ILLUST NO. 5 OF 8(9608- )

Click highlighted areas on diagram

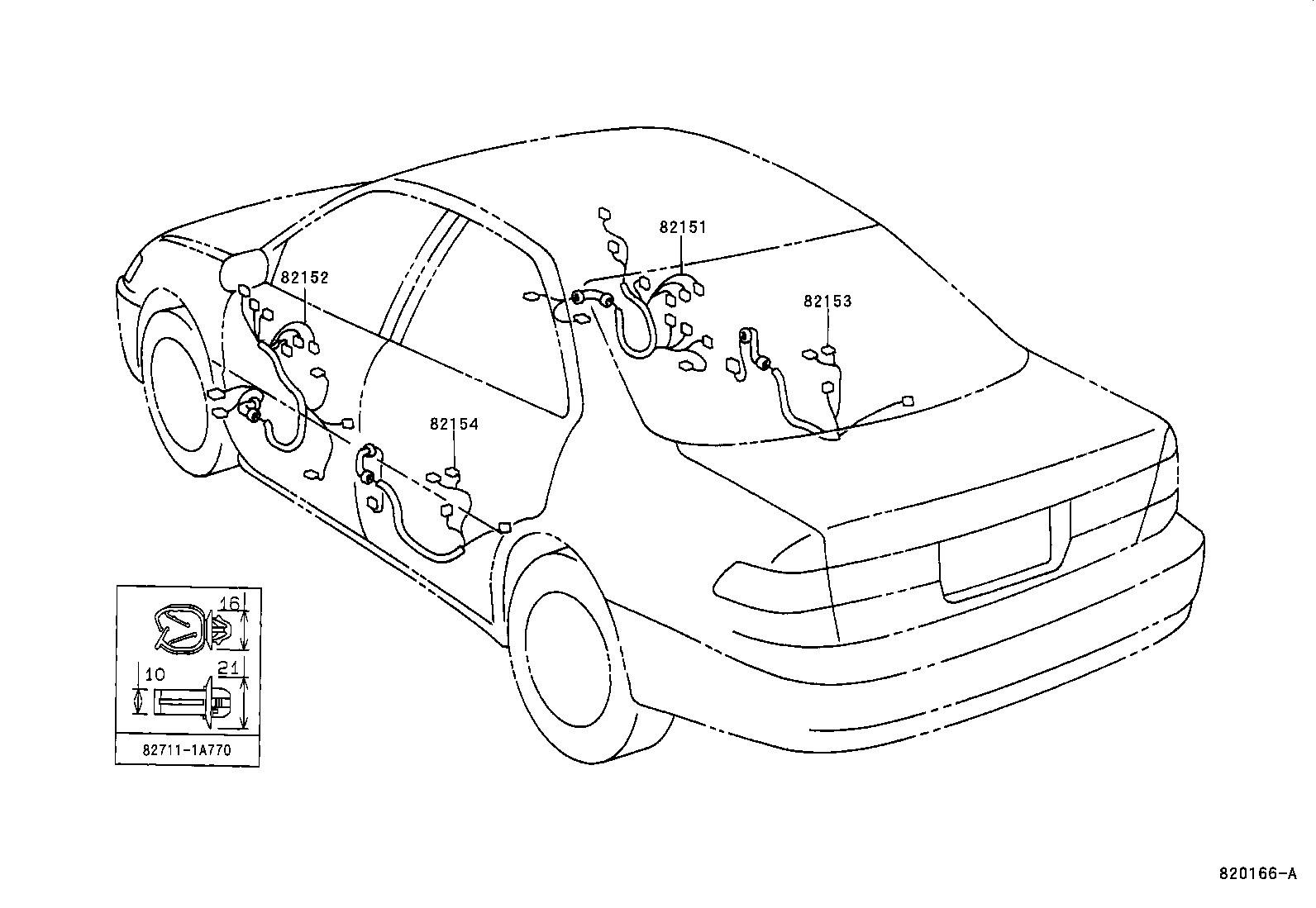

DOOR WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-33580	MCV20	08/1996 - 08/1998	1
82151-33770	MCV20..ARL	08/1998 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-33710	MCV20..ARL	08/1996 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-33070	MCV20	08/1996 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-33070	MCV20	08/1996 - 12/2999	1
Common parts
82711-1A770

ILLUST NO. 6 OF 8(9608- )ARL

Click highlighted areas on diagram

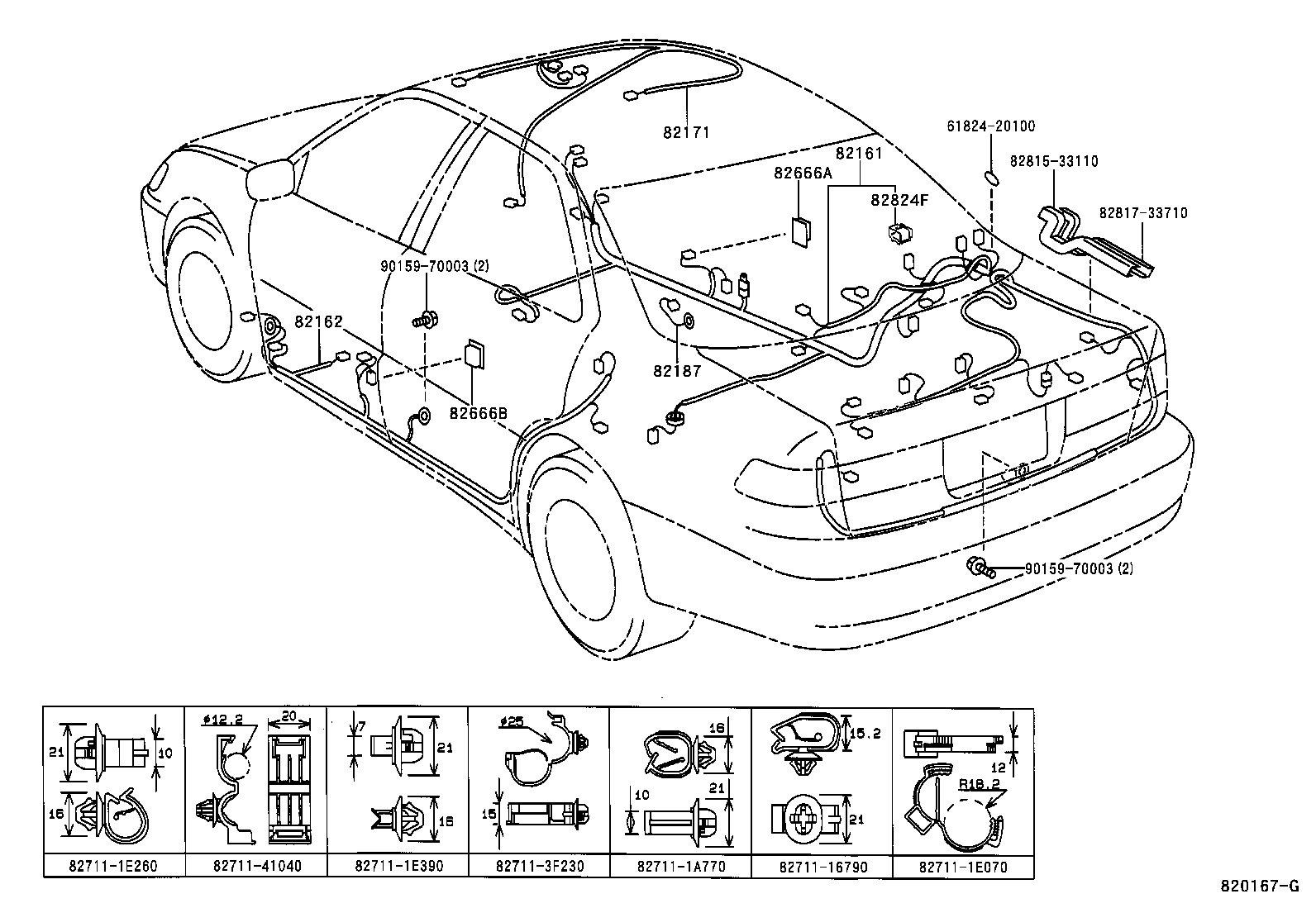

ROOF & FLOOR WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-33671	MCV20	10/1996 - 08/1997	1
82161-33681	MCV20 W(POWER SEAT)	10/1996 - 08/1997	1
82161-3Y110	MCV20..ARL	08/1999 - 01/2001	1
82161-3T580	MCV20..ARL	08/1998 - 08/1999	1
82161-3T590	MCV20..ARL W(POWER SEAT)	08/1998 - 08/1999	1
82161-3Y120	MCV20..ARL W(POWER SEAT)	08/1999 - 12/1999	1
82161-3Y121	MCV20..ARL	01/2001 - 12/2999	1
82161-3T190	MCV20 W(POWER SEAT)	08/1997 - 08/1998	1
82161-3T180	MCV20	08/1997 - 08/1998	1
82161-3Y121	MCV20..ARL W(POWER SEAT)	12/1999 - 01/2001	1
82161-33670	MCV20	08/1996 - 10/1996	1
82161-33680	MCV20 W(POWER SEAT)	08/1996 - 10/1996	1
82162 - WIRE, FLOOR, NO.2
82162-33550	MCV20 W(POWER SEAT)	08/1996 - 10/1996	1
82162-3T430	MCV20..ARL	08/1998 - 08/1999	1
82162-3T030	MCV20	08/1997 - 08/1998	1
82162-33760	MCV20	08/1996 - 10/1996	1
82162-3T791	MCV20..ARL	01/2001 - 12/2999	1
82162-3T440	MCV20..ARL W(POWER SEAT)	08/1998 - 08/1999	1
82162-3T791	MCV20..ARL W(POWER SEAT)	12/1999 - 01/2001	1
82162-33761	MCV20	10/1996 - 08/1997	1
82162-3T770	MCV20..ARL	08/1999 - 01/2001	1
82162-3T040	MCV20 W(POWER SEAT)	08/1997 - 08/1998	1
82162-33551	MCV20 W(POWER SEAT)	10/1996 - 08/1997	1
82162-3T790	MCV20..ARL W(POWER SEAT)	08/1999 - 12/1999	1
82171 - WIRE, ROOF, NO.1
82171-33460	MCV20..ARL	08/1996 - 08/1999	1
82171-33470	MCV20 W(MOON ROOF)	08/1996 - 08/1998	1
82171-33650	MCV20..ARL W(MOON ROOF)	08/1998 - 08/1999	1
82171-33690	MCV20..ARL W(MOON ROOF)	08/1999 - 12/2999	1
82171-33680	MCV20..ARL	08/1999 - 12/2999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-33030	MCV20..ARL	08/1996 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-33190	MCV20..ARL	03/1997 - 12/2999	1
82666-AA020	MCV20	08/1996 - 03/1997	1
82666B - HOLDER, CONNECTOR NO.3
82666-AA010	MCV20	08/1996 - 03/1997	1
82666-33180	MCV20..ARL	03/1997 - 12/2999	1
82824F - CONNECTOR, WIRING HARNESS
82824-12220	MCV20..ARL	08/1999 - 12/2999	1
Common parts
61824-20100
82711-16790
82711-1A770
82711-1E070
82711-1E260
82711-1E390
82711-3F230
82711-41040
82815-33110
82817-33710
90159-70003

ILLUST NO. 8 OF 8(9608- )

Click highlighted areas on diagram

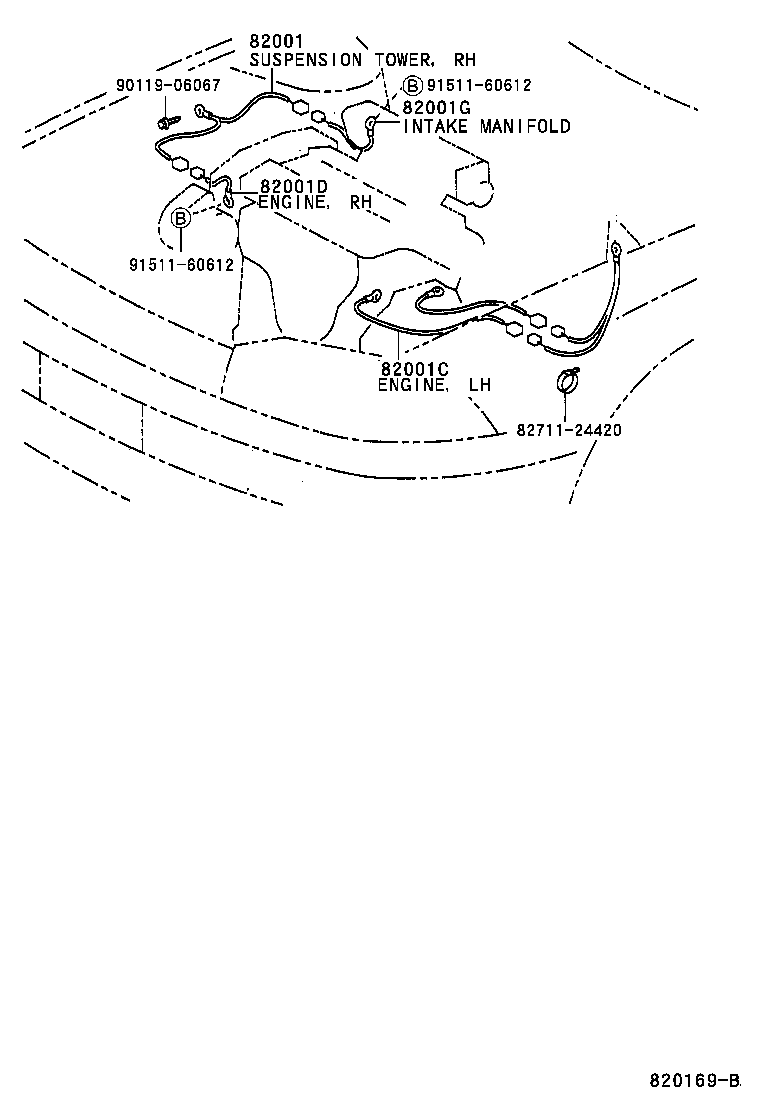

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07346	MCV20	08/1996 - 12/2999	1
82001C - CABLE, BOND, NO.2
90980-07390	MCV20	08/1996 - 08/1999	1
90980-07400	MCV20	08/1999 - 12/2999	1
82001D - CABLE, BOND, NO.3
90980-07287	MCV20	08/1996 - 12/2999	1
82001G - CABLE, BOND, NO.4
90980-07347	MCV20	08/1996 - 12/2999	1
Common parts
82711-24420
90119-06067
91511-60612

ILLUST NO. 3 OF 8(9608- )ARL

Click highlighted areas on diagram

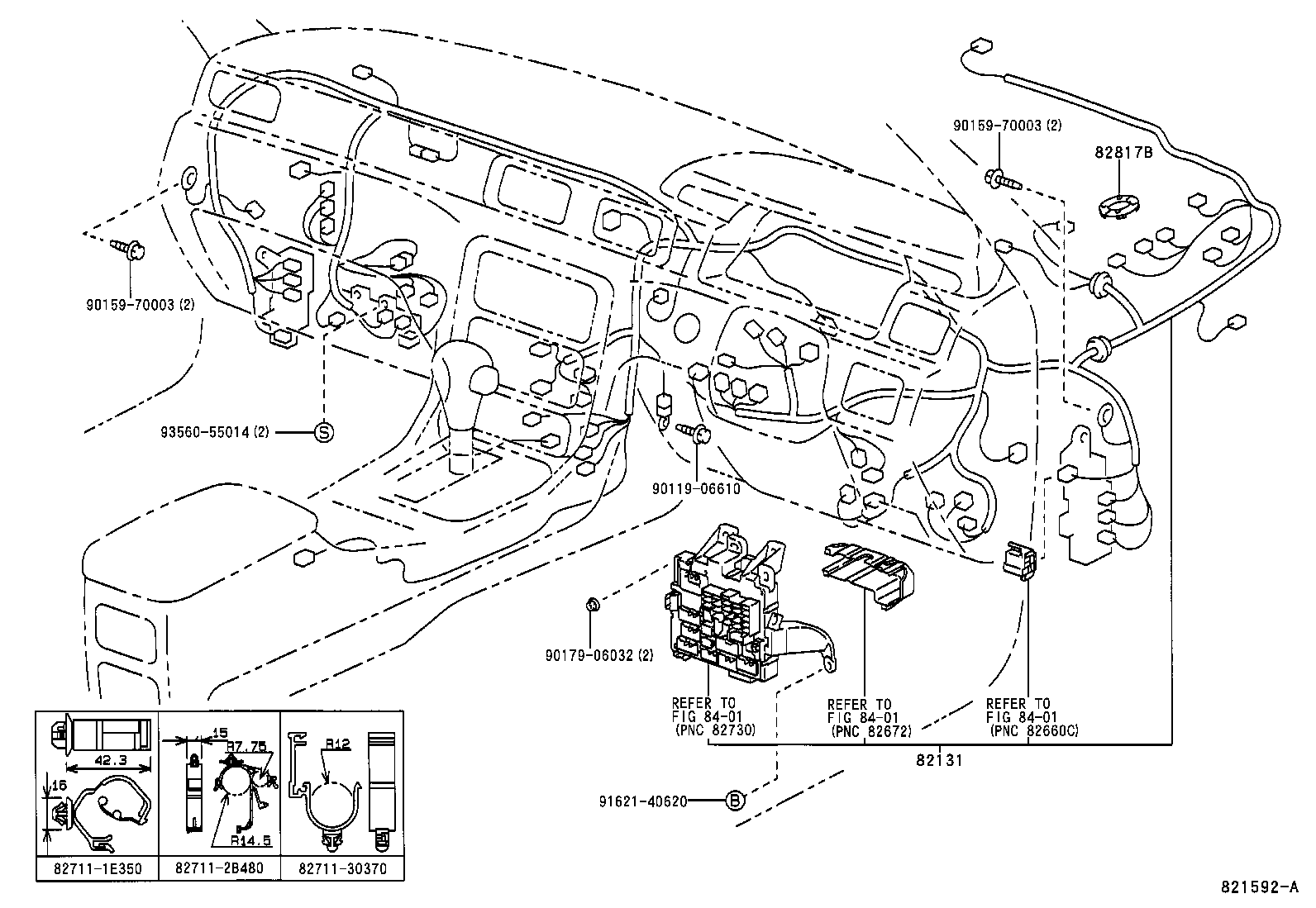

COWL WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82135-33730	MCV20	08/1997 - 08/1998	1
82131-3T490	MCV20	08/1996 - 08/1997	1
82129-33420	MCV20..ARL	08/1998 - 08/1999	1
82131-3T580	MCV20..ARL	08/1999 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-2B730	MCV20	08/1996 - 12/2999	1
Common parts
82711-1E350
82711-2B480
82711-30370
90119-06610
90159-70003
90179-06032
91621-40620
93560-55014
Linked diagrams
8401

ILLUST NO. 4 OF 8(9608- )ARL

Click highlighted areas on diagram

INSTRUMENT PANEL WIRE

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-33490	MCV20	08/1996 - 08/1997	1
82141-3T660	MCV20..ARL	08/1998 - 08/1999	1
82141-3T670	MCV20..ARL W(7 SPEAKER)	08/1998 - 08/1999	1
82145-33500	MCV20..ARL W(AM/FM CASSETTE & CD AUTO CHANGER & 7SPAKER)	08/1999 - 12/2999	1
82145-33490	MCV20..ARL	08/1999 - 12/2999	1
82141-33500	MCV20 W(7 SPEAKER)	08/1996 - 08/1997	1
82141-3T260	MCV20	08/1997 - 08/1998	1
82141-3T270	MCV20 W(7 SPEAKER)	08/1997 - 08/1998	1
82345A - DIODE
82345-12050	MCV20 TYPE A:REFER TO ILLUSTRATION	08/1996 - 12/2999	1
82345-22051	MCV20..ARL TYPE B:REFER TO ILLUSTRATION	08/1999 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-33160	MCV20	08/1996 - 12/2999	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-06010	MCV20..ARL	08/1996 - 08/1999	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-06010	MCV20..ARL	08/1996 - 08/1999	1
82824E - CONNECTOR, WIRING HARNESS
82824-30180	MCV20..ARL NO.3	08/1996 - 12/2999	3
82824-22080	MCV20 NO.2	08/1996 - 08/1999	3
82824-12210	MCV20 NO.1	08/1996 - 12/2999	1
82824-30190	MCV20 NO.4	08/1996 - 12/2999	1
82824-22080	MCV20..ARL NO.2	08/1999 - 12/2999	3
82824E - CONNECTOR, WIRING HARNESS
82824-30180	MCV20..ARL NO.3	08/1996 - 12/2999	3
82824-22080	MCV20 NO.2	08/1996 - 08/1999	3
82824-12210	MCV20 NO.1	08/1996 - 12/2999	1
82824-30190	MCV20 NO.4	08/1996 - 12/2999	1
82824-22080	MCV20..ARL NO.2	08/1999 - 12/2999	3
82824E - CONNECTOR, WIRING HARNESS
82824-30180	MCV20..ARL NO.3	08/1996 - 12/2999	3
82824-22080	MCV20 NO.2	08/1996 - 08/1999	3
82824-12210	MCV20 NO.1	08/1996 - 12/2999	1
82824-30190	MCV20 NO.4	08/1996 - 12/2999	1
82824-22080	MCV20..ARL NO.2	08/1999 - 12/2999	3
82824E - CONNECTOR, WIRING HARNESS
82824-30180	MCV20..ARL NO.3	08/1996 - 12/2999	3
82824-22080	MCV20 NO.2	08/1996 - 08/1999	3
82824-12210	MCV20 NO.1	08/1996 - 12/2999	1
82824-30190	MCV20 NO.4	08/1996 - 12/2999	1
82824-22080	MCV20..ARL NO.2	08/1999 - 12/2999	3
82824E - CONNECTOR, WIRING HARNESS
82824-30180	MCV20..ARL NO.3	08/1996 - 12/2999	3
82824-22080	MCV20 NO.2	08/1996 - 08/1999	3
82824-12210	MCV20 NO.1	08/1996 - 12/2999	1
82824-30190	MCV20 NO.4	08/1996 - 12/2999	1
82824-22080	MCV20..ARL NO.2	08/1999 - 12/2999	3
82824E - CONNECTOR, WIRING HARNESS
82824-30180	MCV20..ARL NO.3	08/1996 - 12/2999	3
82824-22080	MCV20 NO.2	08/1996 - 08/1999	3
82824-12210	MCV20 NO.1	08/1996 - 12/2999	1
82824-30190	MCV20 NO.4	08/1996 - 12/2999	1
82824-22080	MCV20..ARL NO.2	08/1999 - 12/2999	3
82824E - CONNECTOR, WIRING HARNESS
82824-30180	MCV20..ARL NO.3	08/1996 - 12/2999	3
82824-22080	MCV20 NO.2	08/1996 - 08/1999	3
82824-12210	MCV20 NO.1	08/1996 - 12/2999	1
82824-30190	MCV20 NO.4	08/1996 - 12/2999	1
82824-22080	MCV20..ARL NO.2	08/1999 - 12/2999	3
82824E - CONNECTOR, WIRING HARNESS
82824-30180	MCV20..ARL NO.3	08/1996 - 12/2999	3
82824-22080	MCV20 NO.2	08/1996 - 08/1999	3
82824-12210	MCV20 NO.1	08/1996 - 12/2999	1
82824-30190	MCV20 NO.4	08/1996 - 12/2999	1
82824-22080	MCV20..ARL NO.2	08/1999 - 12/2999	3
Common parts
82711-1E350
87616-22010
90119-06493
90159-70003
93567-55016
Linked diagrams
8401
