MCV20R-BTPGKQ (1996)
Toyota Lexus Es300
Production
Aug 1996
-
Jul 2001
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(9608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33050 |
MCV20 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-33040 |
MCV20 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
MCV20 *H,L=220 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-33020 |
MCV20 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-33020 |
MCV20 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33020 |
MCV20 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-33010 |
MCV20 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-33020 |
MCV20 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-33020 |
MCV20 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-33020 |
MCV20 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-33020 |
MCV20 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-33020 |
MCV20 |
2 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-33020 |
MCV20 |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-33020 |
MCV20 |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-33020 |
MCV20 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33090 |
MCV20 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-33040 |
MCV20 |
1 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90119-06642 | ||||
| 90179-06219 | ||||
| 90333-30004 | ||||
| 90959-01530 | ||||
| 96132-41100 | ||||

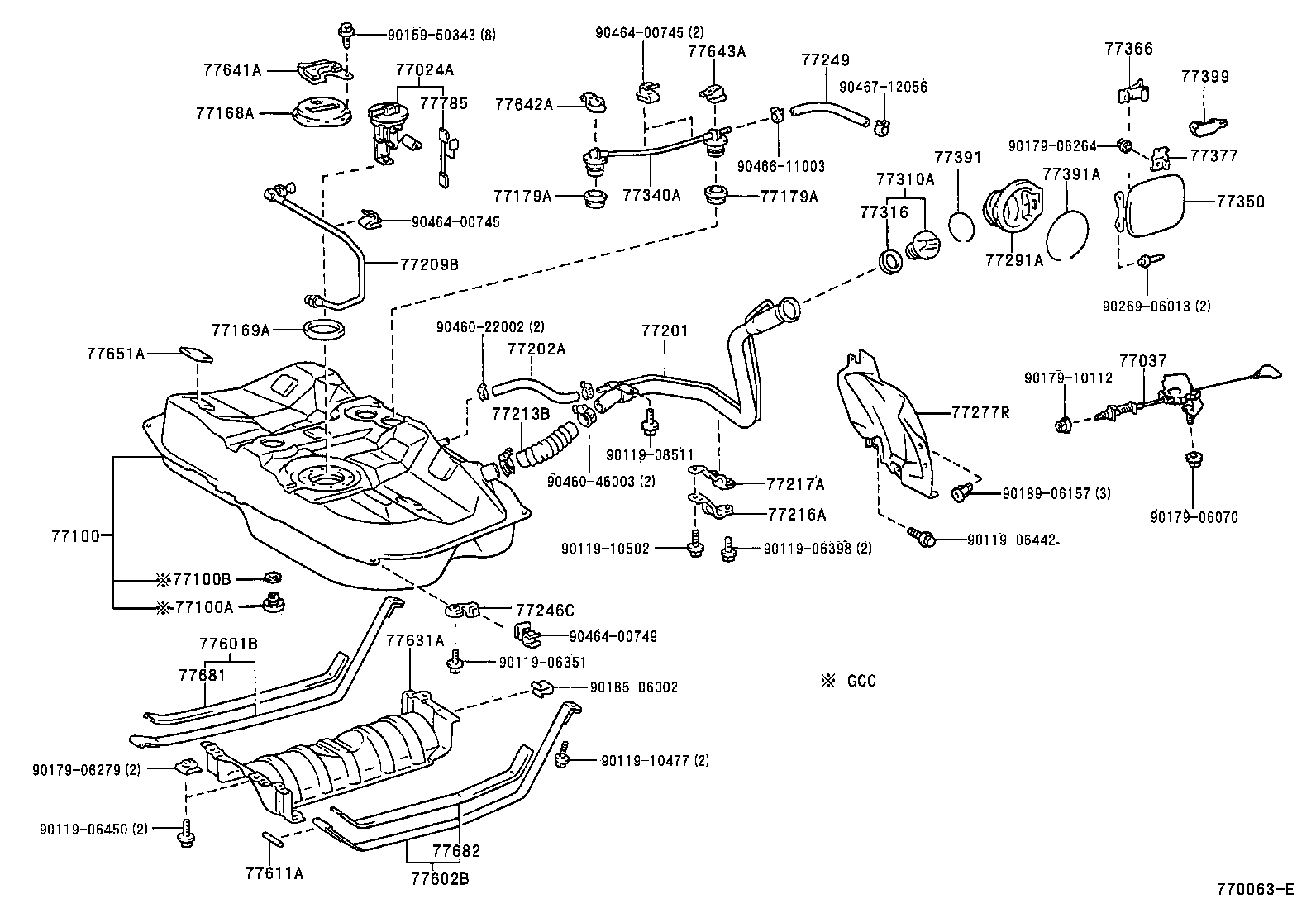

ILLUST NO. 1 OF 2(9608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33010 |
MCV20 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77030-33030 |
MCV20 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39355 |
MCV20..ARL |
1 | ||
| 77001-39335 |
MCV20 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33030 |
MCV20 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33010 |
MCV20 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV20 |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
MCV20 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-33050 |
MCV20..ARL |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13024 |
MCV20 L=240 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-33010 |
MCV20 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-33060 |
MCV20 L=224 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-33010 |
MCV20 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33010 |
MCV20 |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-33010 |
MCV20 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95333-06020 |
MCV20 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-33050 |
MCV20 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33020 |
MCV20 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
MCV20 |
1 | ||
| 77310-16011 |
MCV20 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
MCV20 |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-33020 |
MCV20 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33060 |
MCV20 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-33020 |
MCV20 |
1 | ||
| 77360-22020 |
MCV20 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20050 |
MCV20 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
MCV20 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-33010 |
MCV20 |
1 | ||
| 77399 - HANGER, FUEL TANK CAP | ||||
| 77399-20010 |
MCV20 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33010 |
MCV20 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33010 |
MCV20 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
MCV20 |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-33021 |
MCV20 |
1 | ||
| 77631-33020 |
MCV20 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-33010 |
MCV20 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-33010 |
MCV20 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-33010 |
MCV20 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-32030 |
MCV20 |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
MCV20 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
MCV20 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-33020 |
MCV20 |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06398 | ||||
| 90119-06442 | ||||
| 90119-06450 | ||||
| 90119-08511 | ||||
| 90119-10477 | ||||
| 90119-10502 | ||||
| 90159-50343 | ||||
| 90179-06070 | ||||
| 90179-06264 | ||||
| 90179-06279 | ||||
| 90179-10112 | ||||
| 90185-06002 | ||||
| 90189-06157 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 90464-00749 | ||||
| 90466-11003 | ||||
| 90467-12056 | ||||
