MCV20R-BTPGKQ (1996)
Toyota Lexus Es300

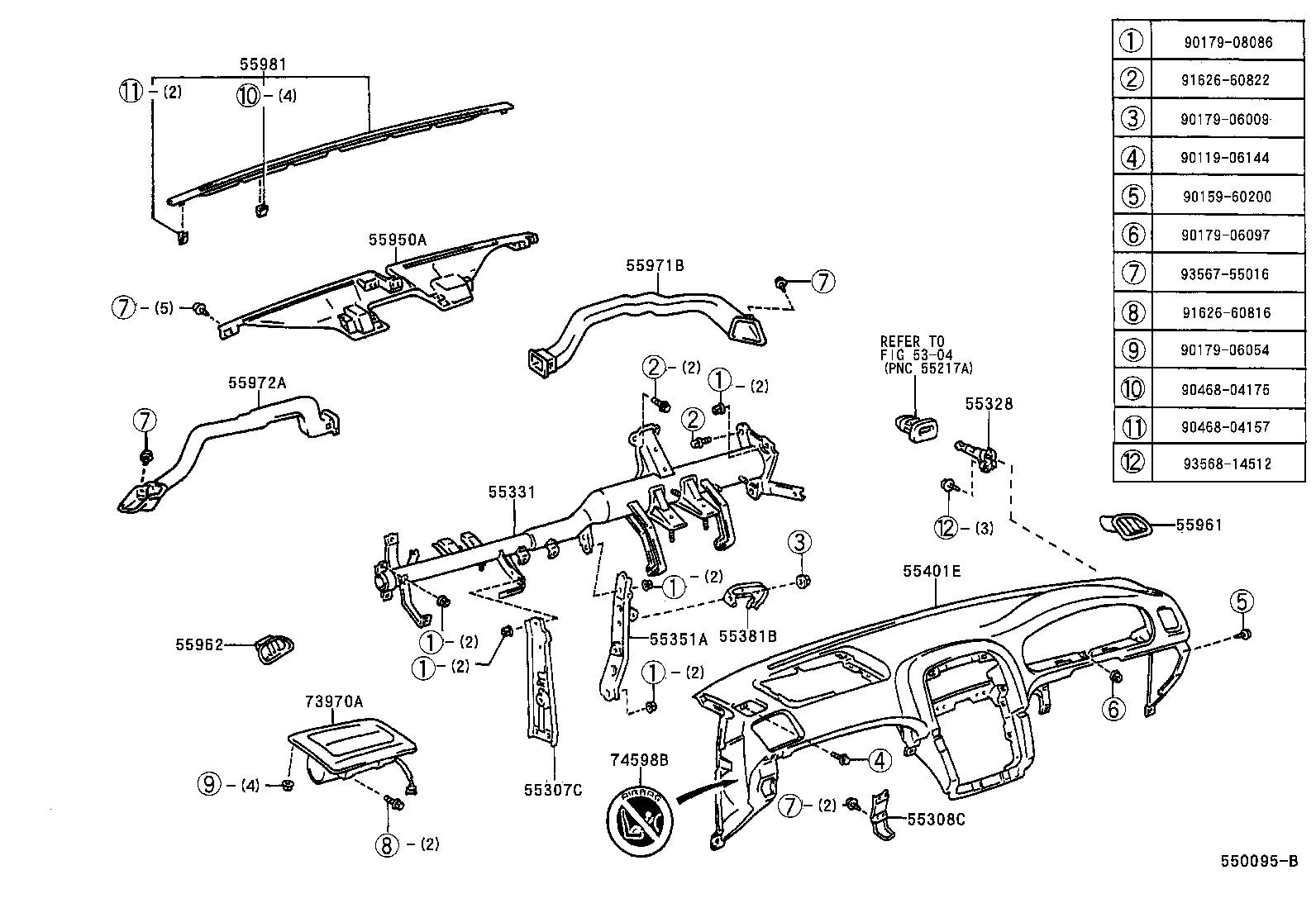

ILLUST NO. 1 OF 2(9608- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-33100 |
MCV20..ARL |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-33080 |
MCV20..ARL |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-24010 |
MCV20 |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-33160 |
MCV20..ARL |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-33060 |
MCV20..ARL |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-33060 |
MCV20..ARL |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-33150C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55401-33150G0 |
MCV20..ARL DK.SAGE,TRIM6# |
1 | ||
| 55401-33150E0 |
MCV20..ARL OAK,TRIM0# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-33070 |
MCV20 |
1 | ||
| 55950-33071 |
MCV20..ARL |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-33050G0 |
MCV20..ARL DK.SAGE,TRIM6# |
1 | ||
| 55961-33050E0 |
MCV20..ARL OAK,TRIM0# |
1 | ||
| 55961-33050C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-33070E0 |
MCV20..ARL OAK,TRIM0# |
1 | ||
| 55962-33070G0 |
MCV20..ARL DK.SAGE,TRIM6# |
1 | ||
| 55962-33070C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-33060 |
MCV20..ARL |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-33060 |
MCV20..ARL |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-33060 |
MCV20..ARL |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-33070E0 |
MCV20 OAK,TRIM0# |
1 | ||
| 73970-33072E0 |
MCV20..ARL OAK,TRIM0# |
1 | ||
| 73970-33050G0 |
MCV20 DK.SAGE,TRIM6# |
1 | ||
| 73970-33070G0 |
MCV20 DK.SAGE,TRIM6# |
1 | ||
| 73970-33073E0 |
MCV20..ARL OAK,TRIM0# |
1 | ||
| 73970-33072G0 |
MCV20..ARL DK.SAGE,TRIM6# |
1 | ||
| 73970-33073C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 73970-0W071G0 |
MCV20 DK.SAGE,TRIM6# |
1 | ||
| 73970-0W071E0 |
MCV20 OAK,TRIM0# |
1 | ||
| 73970-33073G0 |
MCV20..ARL DK.SAGE,TRIM6# |
1 | ||
| 73970-33050E0 |
MCV20 OAK,TRIM0# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
MCV20 |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90159-60200 | ||||
| 90179-06009 | ||||
| 90179-06054 | ||||
| 90179-06097 | ||||
| 90179-08086 | ||||
| 90468-04157 | ||||
| 90468-04175 | ||||
| 91626-60816 | ||||
| 91626-60822 | ||||
| 93567-55016 | ||||
| 93568-14512 | ||||

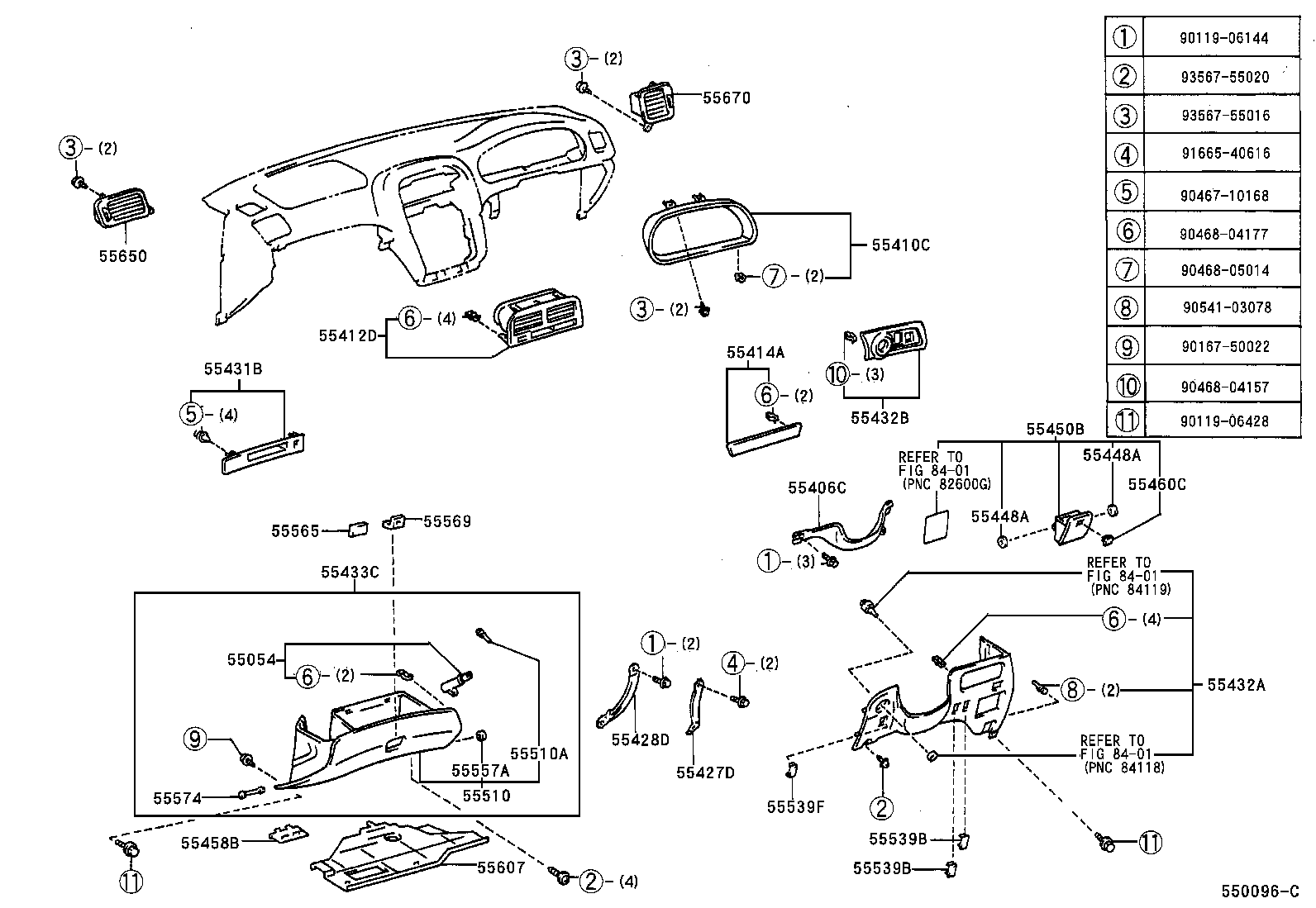

ILLUST NO. 2 OF 2(9608- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33050 |
MCV20 |
1 | ||
| 55406C - INSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55406-33040 |
MCV20..ARL |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-33070 |
MCV20..ARL |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-33060 |
MCV20 |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-33060 |
MCV20 |
1 | ||
| 55414-33050 |
MCV20 |
1 | ||
| 55427D - RETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1 | ||||
| 55427-33060 |
MCV20..ARL |
1 | ||
| 55428D - RETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2 | ||||
| 55428-33060 |
MCV20..ARL |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-33040 |
MCV20..ARL |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55302-33070G0 |
MCV20..ARL SAGE,TRIM6# |
1 | ||
| 55302-33070A0 |
MCV20..ARL IVORY,TRIM0# |
1 | ||
| 55302-33070C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-33080A0 |
MCV20..ARL IVORY,TRIM0# |
1 | ||
| 55480-33080G0 |
MCV20..ARL SAGE,TRIM6# |
1 | ||
| 55480-33080C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55303-33090A0 |
MCV20..ARL W(CD AUTO CHANGER),IVORY,TRIM0# |
1 | ||
| 55303-33090G0 |
MCV20..ARL W(CD AUTO CHANGER),SAGE,TRIM6# |
1 | ||
| 55303-33100C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55303-33100G0 |
MCV20..ARL SAGE,TRIM6# |
1 | ||
| 55303-33090C0 |
MCV20..ARL W(CD AUTO CHANGER),BLACK,TRIM2# |
1 | ||
| 55303-33100A0 |
MCV20..ARL IVORY,TRIM0# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-33050 |
MCV20 |
2 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-33050 |
MCV20 |
2 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-33061A0 |
MCV20..ARL IVORY,TRIM0# |
1 | ||
| 55450-33060G0 |
MCV20 SAGE,TRIM6# |
1 | ||
| 55450-33061G0 |
MCV20..ARL SAGE,TRIM6# |
1 | ||
| 55450-33060A0 |
MCV20 IVORY,TRIM0# |
1 | ||
| 55450-33061C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-33070 |
MCV20 |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-33010G0 |
MCV20..ARL SAGE,TRIM6# |
1 | ||
| 55460-33010C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55460-33010A0 |
MCV20..ARL IVORY,TRIM0# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-33040G0 |
MCV20..ARL W(CD AUTO CHANGER),SAGE,TRIM6# |
1 | ||
| 55501-33070G0 |
MCV20..ARL SAGE,TRIM6# |
1 | ||
| 55501-33040A0 |
MCV20..ARL W(CD AUTO CHANGER),IVORY,TRIM0# |
1 | ||
| 55501-33070C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55501-33040C0 |
MCV20..ARL W(CD AUTO CHANGER),BLACK,TRIM2# |
1 | ||
| 55501-33070A0 |
MCV20..ARL IVORY,TRIM0# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05020 |
MCV20 |
2 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-20080A2 |
MCV20..ARL IVORY,TRIM0# |
2 | ||
| 55539-20080G3 |
MCV20..ARL SAGE,TRIM6# |
2 | ||
| 55539-20080C0 |
MCV20..ARL BLACK,TRIM2# |
2 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-20080A2 |
MCV20..ARL IVORY,TRIM0# |
2 | ||
| 55539-20080G3 |
MCV20..ARL SAGE,TRIM6# |
2 | ||
| 55539-20080C0 |
MCV20..ARL BLACK,TRIM2# |
2 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080C0 |
MCV20 BLACK,TRIM2# |
1 | ||
| 55539-20080G3 |
MCV20 SAGE,TRIM6# |
1 | ||
| 55539-20080A2 |
MCV20 IVORY,TRIM0# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
MCV20 |
2 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020C0 |
MCV20 BLACK,TRIM2# |
1 | ||
| 55565-22020A0 |
MCV20 IVORY,TRIM0# |
1 | ||
| 55565-22020G1 |
MCV20 SAGE,TRIM6# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030C0 |
MCV20 BLACK,TRIM2# |
1 | ||
| 55569-22030G1 |
MCV20 SAGE,TRIM6# |
1 | ||
| 55569-22030A0 |
MCV20 IVORY,TRIM0# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
MCV20 |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-33050 |
MCV20..ARL |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33070C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| 55650-33070G0 |
MCV20..ARL DK.SAGE,TRIM6# |
1 | ||
| 55650-33070E0 |
MCV20..ARL OAK,TRIM0# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33080E0 |
MCV20..ARL OAK,TRIM0# |
1 | ||
| 55670-33080G0 |
MCV20..ARL DK.SAGE,TRIM6# |
1 | ||
| 55670-33080C0 |
MCV20..ARL BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90119-06428 | ||||
| 90167-50022 | ||||
| 90467-10168 | ||||
| 90468-04157 | ||||
| 90468-04177 | ||||
| 90468-05014 | ||||
| 90541-03078 | ||||
| 91665-40616 | ||||
| 93567-55016 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
