MCV20R-BTPGKQ (1996)

Toyota Lexus Es300

Production Aug 1996 - Jul 2001
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

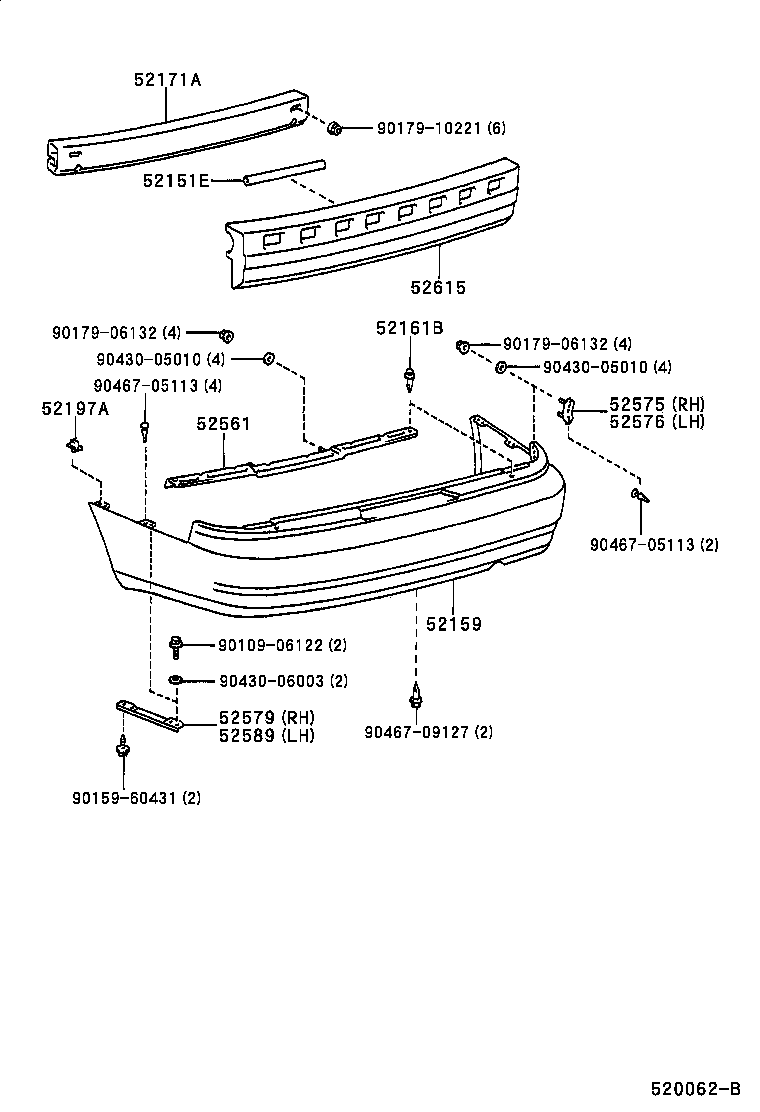

Click highlighted areas on diagram

diagram 52151E 52159 52161B 52171A 52197A 52561 52575 52576 52579 52589 52615 9010906122 9015960431 9017906132 9017906132 9017910221 9043005010 9043005010 9043006003 9046705113 9046705113 9046709127
Part # Description Qty Price
52151E - BAR, REAR BUMPER
52151-33010

MCV20

 1
52159 - COVER, REAR BUMPER
52159-33906

MCV20

 1
52161B - PIECE, REAR BUMPER
52161-16010

MCV20

 2
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-33040

MCV20

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-33010

MCV20

 2
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-33040

MCV20

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-33070

MCV20

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52575-33070

MCV20

 1
52579 - RETAINER, REAR BUMPER SIDE, NO.3
52579-33040

MCV20

 1
52589 - RETAINER, REAR BUMPER END, NO.2
52589-33030

MCV20

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-33060

MCV20

 1
Common parts
90109-06122
90159-60431
90179-06132
90179-10221
90430-05010
90430-06003
90467-05113
90467-09127
