MCV20R-BTPGKQ (1996)

Toyota Lexus Es300

Production Aug 1996 - Jul 2001
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16403F 16406A 16406A 16441 16442 16461 16462 16491 16491A 16491A 16491B 16491B 16495 9338516012
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-20091

1MZFE..MCV20..ARL

 1
16400-20090

1MZFE..MCV20

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1MZFE..MCV20

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1MZFE..MCV20

 1
96711-19007

1MZFE..MCV20

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-20090

1MZFE..MCV20..ARL

 1
16406A - SUPPORT(FOR OIL COOLER)
16406-62060

1MZFE..MCV20

 2
16406A - SUPPORT(FOR OIL COOLER)
16406-62060

1MZFE..MCV20

 2
16441 - TANK, RADIATOR, UPPER
16441-20090

1MZFE..MCV20

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-46090

1MZFE..MCV20

 1
16461 - TANK, RADIATOR, LOWER
16461-20090

1MZFE..MCV20

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16442-46090

1MZFE..MCV20

 1
16491 - COOLER, OIL(FOR ATM)
16491-7A310

1MZFE..MCV20

 1
16491A - RING, O(FOR ATM OIL COOLER)
16492-50020

1MZFE..MCV20

 2
16491A - RING, O(FOR ATM OIL COOLER)
16492-50020

1MZFE..MCV20

 2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-62060

1MZFE..MCV20

 2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-62060

1MZFE..MCV20

 2
16495 - NUT, FLARE(FOR ATM OIL COOLER)
16495-20090

1MZFE..MCV20

 1
Common parts
93385-16012

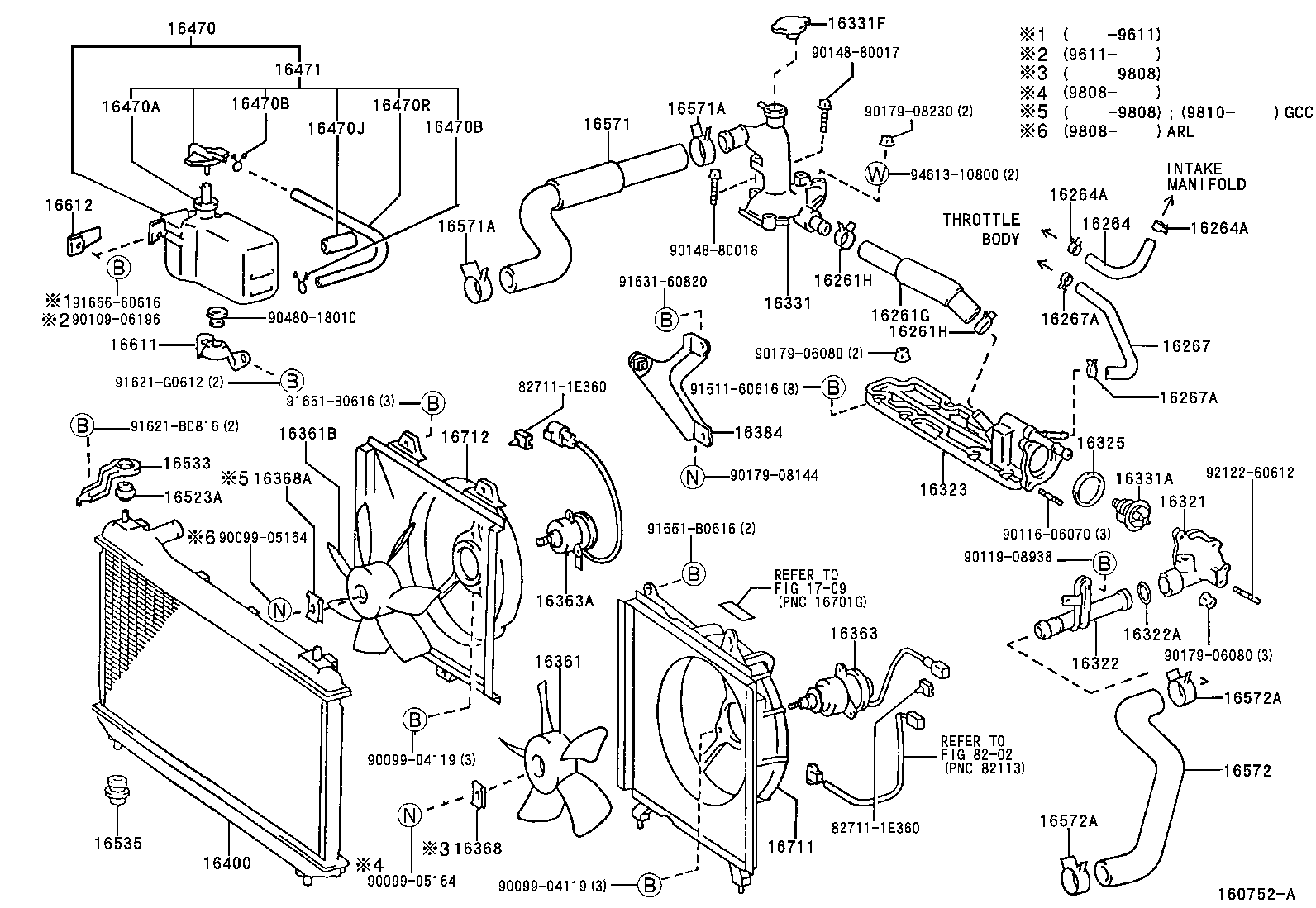

ILLUST NO. 1 OF 2(9608- )

Click highlighted areas on diagram

diagram 16261G 16261H 16261H 16264 16264A 16264A 16267 16267A 16267A 16321 16322 16322A 16323 16325 16331 16331A 16331F 16361 16361B 16363 16363A 16368 16368A 16384 16400 16470 16470A 16470B 16470B 16470J 16470R 16471 16523A 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16611 16612 16711 16712 1709 8202 827111E360 827111E360 9009904119 9009904119 9009905164 9009905164 9010906196 9011606070 9011908938 9014880017 9014880018 9017906080 9017906080 9017908144 9017908230 9048018010 9151160616 91621B0816 91621G0612 9163160820 91651B0616 91651B0616 9166660616 9212260612 9461310800
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-20010

1MZFE..MCV20

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90467-28008

1MZFE..MCV20

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90467-28008

1MZFE..MCV20

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-20010

1MZFE..MCV20

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-41300

1MZFE..MCV20

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-41300

1MZFE..MCV20

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-20010

1MZFE..MCV20

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96135-41300

1MZFE..MCV20

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96135-41300

1MZFE..MCV20

 2
16321 - INLET, WATER
16321-20010

1MZFE..MCV20..ARL

 1
16321-20020

1MZFE..MCV20..ARL

W(TEMPERATURE SENSOR)

 1
16322 - PIPE, WATER INLET
16322-20020

1MZFE..MCV20

 1
16322A - RING, O(FOR WATER INLET)
96761-35031

1MZFE..MCV20

 1
16323 - HOUSING, WATER INLET
16323-20010

1MZFE..MCV20

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

1MZFE..MCV20

 1
16331 - OUTLET, WATER
16331-20020

1MZFE..MCV20

 1
16331-20040

1MZFE..MCV20

 1
16331A - THERMOSTAT
90916-03084

1MZFE..MCV20

*WAX 82-95

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-62090

1MZFE..MCV20

 1
16361 - FAN
16361-20030

1MZFE..MCV20

 1
16361-20110

1MZFE..MCV20

 1
16361B - FAN, NO.2
16361-20040

1MZFE..MCV20

 1
16361-20120

1MZFE..MCV20..ARL

 1
16363 - MOTOR, COOLING FAN
16363-0A030

1MZFE..MCV20

 1
16363-20090

1MZFE..MCV20

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-0A040

1MZFE..MCV20

 1
16363-20100

1MZFE..MCV20..ARL

 1
16368 - BRACKET, COOLING MOTOR
16368-0A010

1MZFE..MCV20

 1
16368A - BRACKET, COOLING MOTOR, NO.2
16368-0A010

1MZFE..MCV20

 1
16384 - BRACKET, FAN BELT ADJUSTING BAR
16384-20010

1MZFE..MCV20

 1
16400 - RADIATOR ASSY
16400-20091

1MZFE..MCV20..ARL

 1
16400-20090

1MZFE..MCV20

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-20040

1MZFE..MCV20

 1
16470-20030

1MZFE..MCV20

 1
16470-20031

1MZFE..MCV20

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

1MZFE..MCV20

*H,L=110

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1MZFE..MCV20

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1MZFE..MCV20

 2
16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK)
85338-70070

1MZFE..MCV20

 1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16472-20030

1MZFE..MCV20

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-20020

1MZFE..MCV20

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-74010

1MZFE..MCV20

 2
16533 - SUPPORT, RADIATOR, UPPER
16533-74320

1MZFE..MCV20

 2
16533-74290

1MZFE..MCV20

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-20010

1MZFE..MCV20

 2
16571 - HOSE, RADIATOR, INLET
16571-20020

1MZFE..MCV20

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37004

1MZFE..MCV20

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37004

1MZFE..MCV20

 2
16572 - HOSE, RADIATOR, OUTLET
16572-20040

1MZFE..MCV20

 1
16572-20020

1MZFE..MCV20

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1MZFE..MCV20

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1MZFE..MCV20

 2
16611 - BRACKET, RADIATOR RESERVE TANK
16611-74080

1MZFE..MCV20

 1
16612 - BRACKET, RADIATOR RESERVE TANK, NO.2
16612-74030

1MZFE..MCV20

 1
16711 - SHROUD, FAN
16711-20050

1MZFE..MCV20

 1
16711-20091

1MZFE..MCV20

 1
16712 - SHROUD, FAN, NO.2
16711-20060

1MZFE..MCV20

 1
16711-20100

1MZFE..MCV20..ARL

 1
Common parts
82711-1E360
90099-04119
90099-05164
90109-06196
90116-06070
90119-08938
90148-80017
90148-80018
90179-06080
90179-08144
90179-08230
90480-18010
91511-60616
91621-B0816
91621-G0612
91631-60820
91651-B0616
91666-60616
92122-60612
94613-10800
Linked diagrams
1709
8202
