GSV40L-BETGKC (2006)

Toyota Lexus Es240/350

Production Jul 2006 - Aug 2009

Engine 2GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0605-0908)

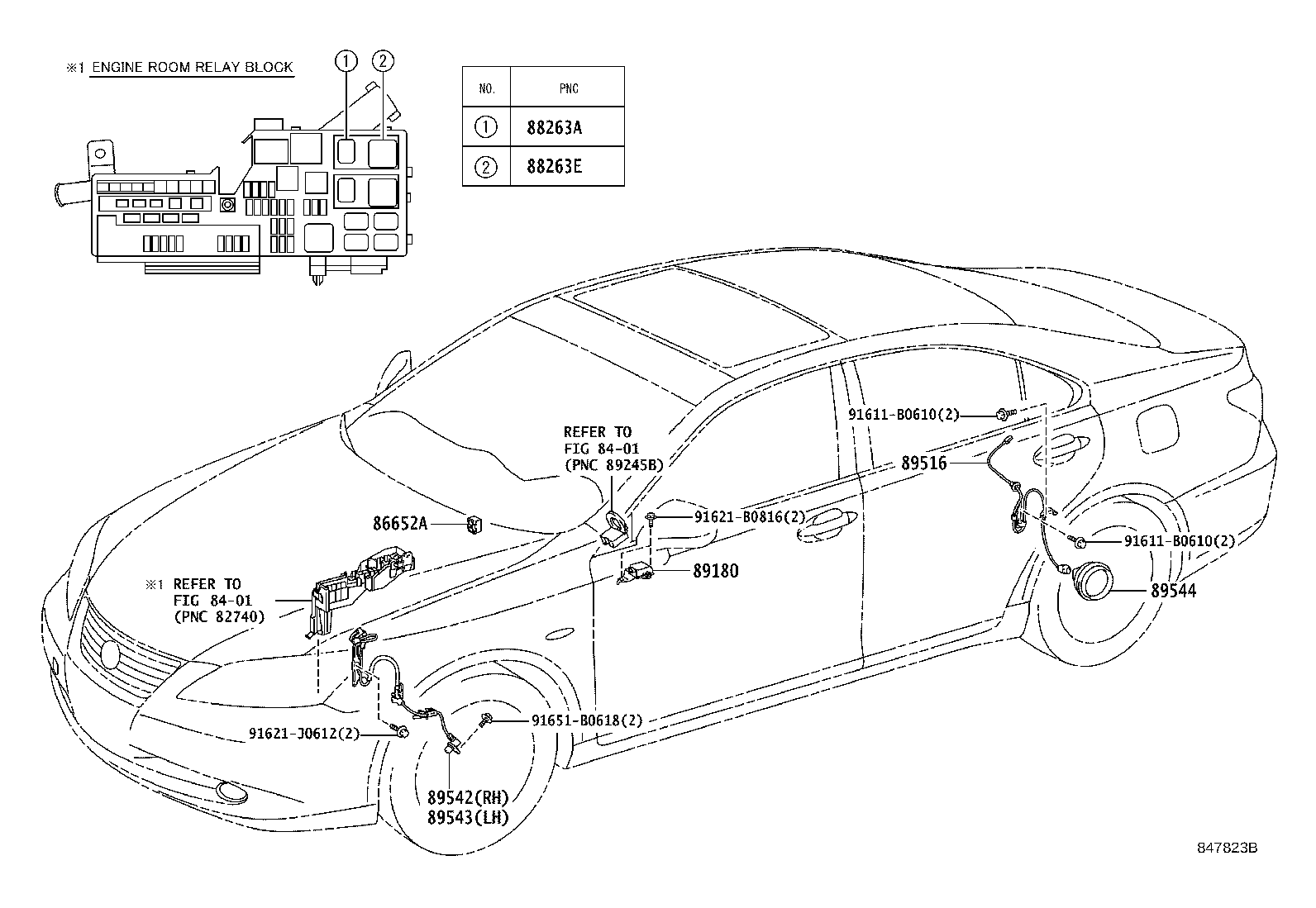

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86652A - BUZZER ASSY, SKID CONTROL
86652-48010	GSV40	05/2006 - 08/2009	1
88263A - RELAY, SKID CONTROL
88263-32070	GSV40	05/2006 - 08/2009	1
88263E - RELAY, SKID CONTROL NO.2
88263-21010	GSV40	05/2006 - 08/2009	1
89180 - SENSOR ASSY, YAWRATE
89180-33070	GSV40	05/2006 - 08/2009	1
89516 - WIRE, SKID CONTROL SENSOR
89516-33030	GSV40 RH	05/2006 - 08/2009	1
89516-33040	GSV40 LH	05/2006 - 08/2009	1
89542 - SENSOR, SPEED, FRONT RH
89542-33090	GSV40	05/2006 - 08/2009	1
89543 - SENSOR, SPEED, FRONT LH
89543-33080	GSV40	05/2006 - 08/2009	1
89544 - SENSOR, SKID CONTROL
89544-48010	GSV40	05/2006 - 08/2009	2
Common parts
91611-B0610
91621-B0816
91621-J0612
91651-B0618
Linked diagrams
8401
