GSV40L-BETGKC (2009)
Toyota Lexus Es240/350
Production
Aug 2009
-
Jun 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0605- )GSV40

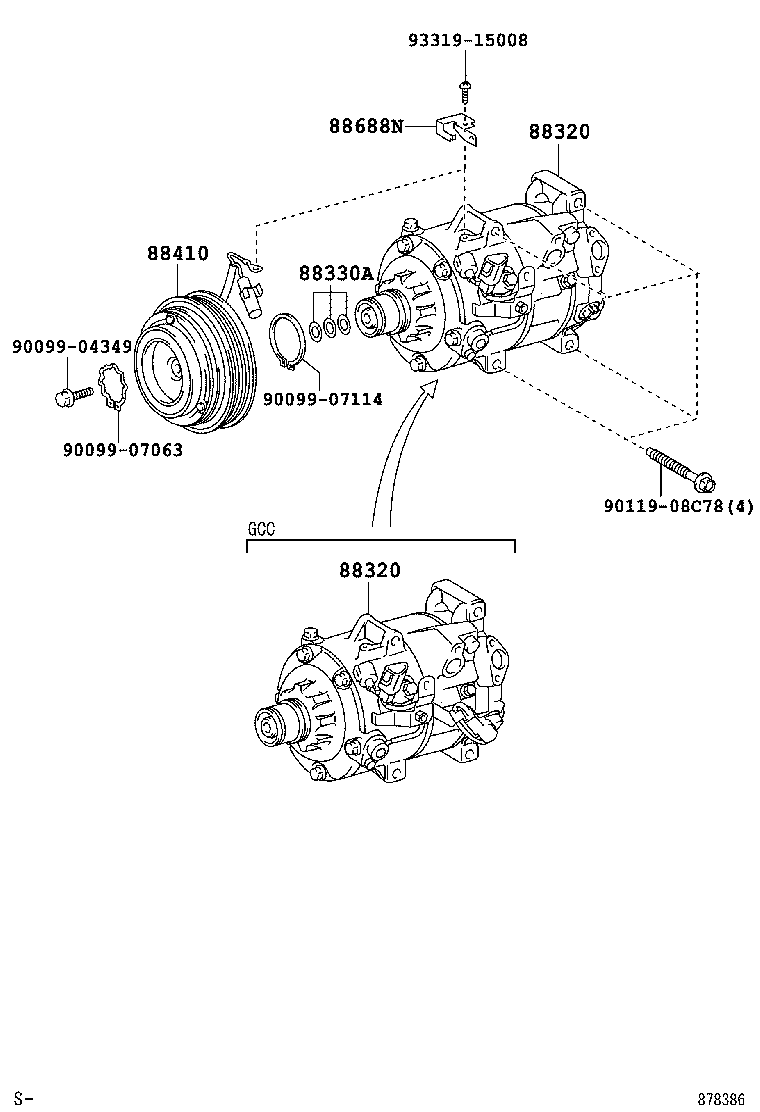

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-33210 |
GSV40..CHI |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-33210 |
GSV40..CHI |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GSV40 |
1 | ||
| 88335-14020 |
GSV40 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-33150 |
GSV40 |
1 | ||
| 88410-33150 |
GSV40 |
1 | ||
| 88688N - BRACKET, COOLER | ||||
| 88688-48250 |
GSV40 |
1 | ||
| 88688-33460 |
GSV40 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07063 | ||||
| 90099-07114 | ||||
| 90119-08C78 | ||||
| 93319-15008 | ||||
