GSV40L-BETGKC (2009)
Toyota Lexus Es240/350
Production
Aug 2009
-
Jun 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

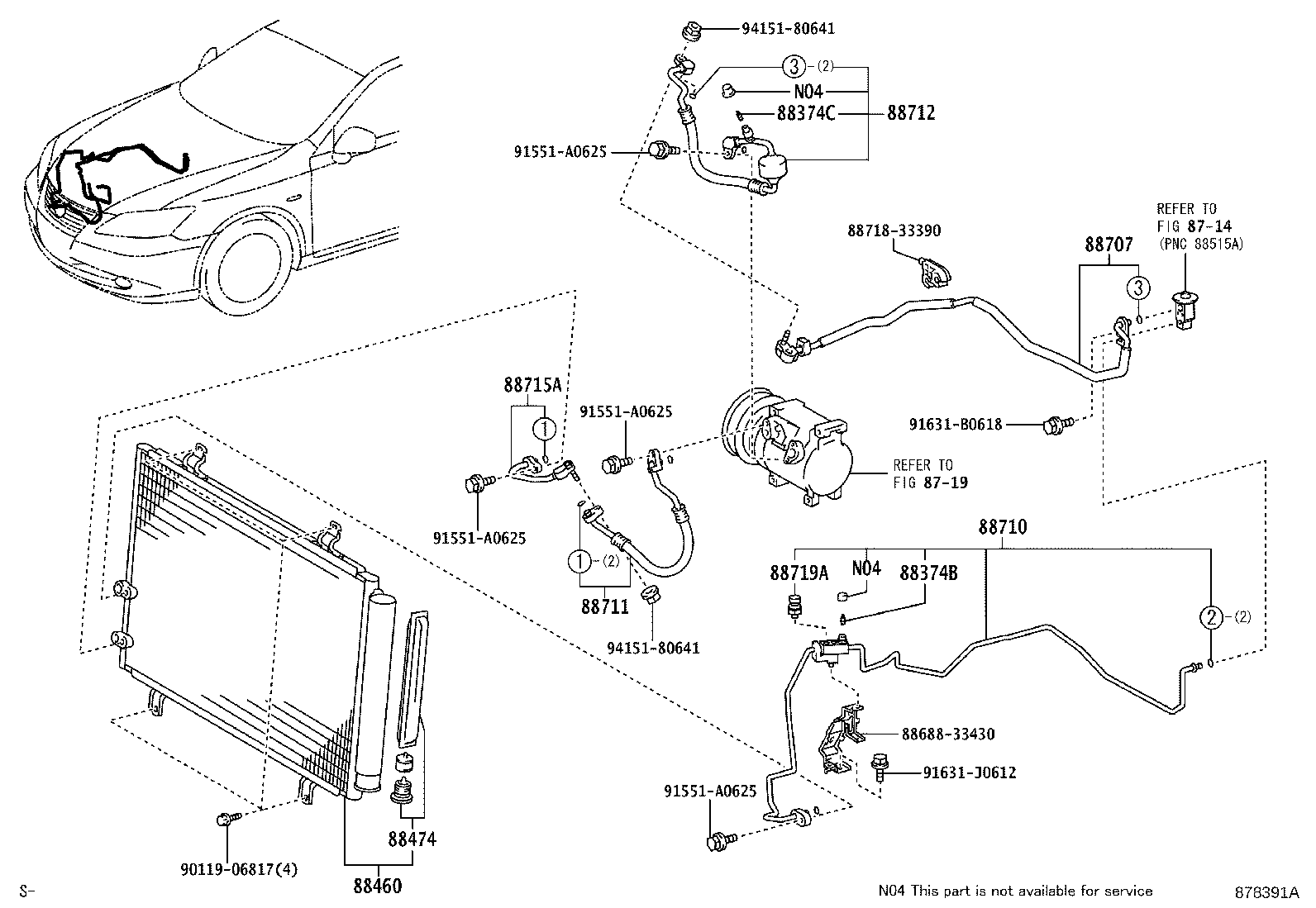

ILLUST NO. 1 OF 2(0605- )GSV40
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ACV40,GSV40 |
1 | ||
| 88374-30010 |
GSV40 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GSV40 |
1 | ||
| 88374-30010 |
ACV40,GSV40 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-33100 |
ACV40,GSV40 |
1 | ||
| 88460-33100 |
GSV40 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GSV40 |
1 | ||
| 88474-17010 |
ACV40,GSV40 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-33100 |
ACV40,GSV40 |
1 | ||
| 88707-33010 |
GSV40 |
1 | ||
| 88707-33010 |
ACV40,GSV40 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-33320 |
ACV40,GSV40 |
1 | ||
| 88710-33320 |
GSV40 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-33230 |
GSV40 |
1 | ||
| 88711-33230 |
GSV40 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-33270 |
GSV40 |
1 | ||
| 88712-33270 |
GSV40 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-33020 |
GSV40 |
1 | ||
| 88715-33020 |
ACV40,GSV40 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
GSV40 |
1 | ||
| 88719-33020 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 88688-33430 | ||||
| 88718-33390 | ||||
| 90119-06817 | ||||
| 91551-A0625 | ||||
| 91631-B0618 | ||||
| 91631-J0612 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(0605- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
