GSV40L-BETGKC (2009)
Toyota Lexus Es240/350

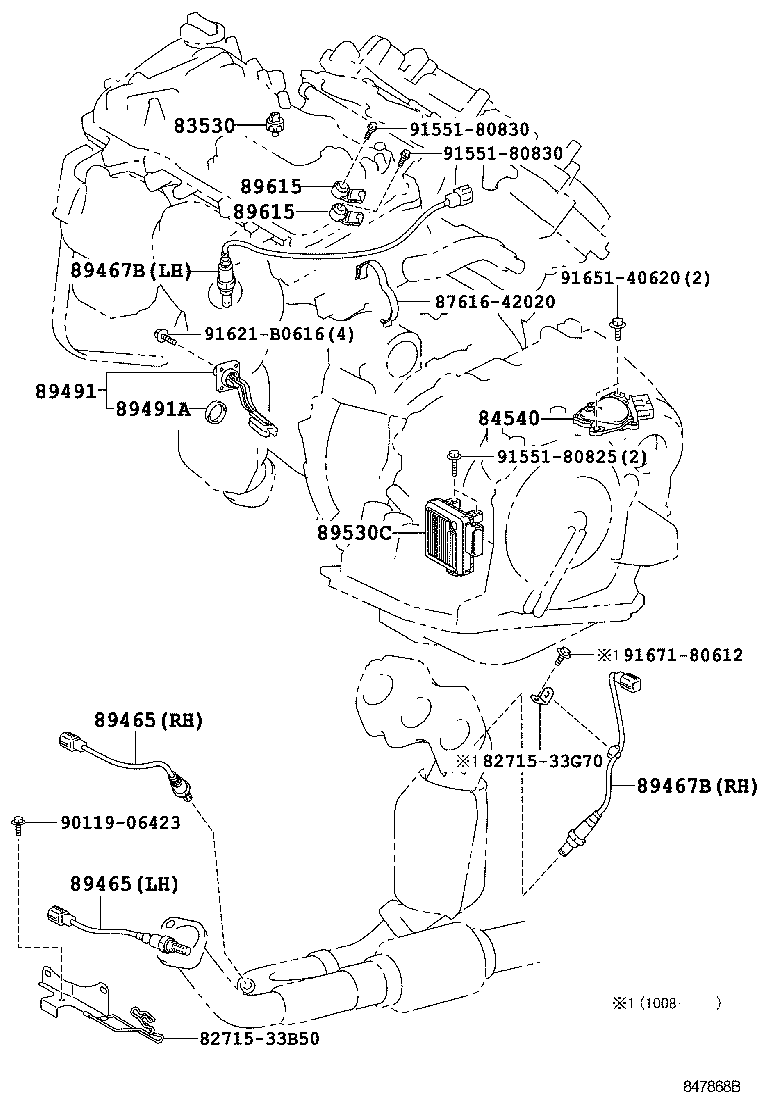

ILLUST NO. 1 OF 8(0605- )GSV40
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GSV40 DENSO |
1 | ||
| 83530-60020 |
ACV40,GSV40 YAZAKI |
1 | ||
| 83530-60020 |
GSV40 YAZAKI |
1 | ||
| 83530-28020 |
ACV40,GSV40 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33010 |
GSV40 |
1 | ||
| 84540-33010 |
GSV40 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-33420 |
GSV40 RH |
1 | ||
| 89465-33420 |
GSV40 RH |
1 | ||
| 89465-33360 |
GSV40 LH |
1 | ||
| 89465-33360 |
GSV40 LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-33420 |
GSV40 RH |
1 | ||
| 89465-33420 |
GSV40 RH |
1 | ||
| 89465-33360 |
GSV40 LH |
1 | ||
| 89465-33360 |
GSV40 LH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-33130 |
GSV40 RH |
1 | ||
| 89467-33090 |
GSV40 LH |
1 | ||
| 89467-33170 |
GSV40 LH |
1 | ||
| 89467-33180 |
GSV40 RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-33130 |
GSV40 RH |
1 | ||
| 89467-33090 |
GSV40 LH |
1 | ||
| 89467-33170 |
GSV40 LH |
1 | ||
| 89467-33180 |
GSV40 RH |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-48010 |
GSV40 |
1 | ||
| 89491-48010 |
GSV40 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
GSV40 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-33060 |
GSV40 |
1 | ||
| 89530-33080 |
GSV40..CHI |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSV40 |
2 | ||
| 89615-20090 |
GSV40 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSV40 |
2 | ||
| 89615-20090 |
GSV40 |
2 | ||
| Common parts | ||||
| 82715-33B50 | ||||
| 82715-33G70 | ||||
| 87616-42020 | ||||
| 90119-06423 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91621-B0616 | ||||
| 91651-40620 | ||||
| 91671-80612 | ||||
ILLUST NO. 2 OF 8(0605- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30020 |
ACV40,GSV40 |
1 | ||
| 85942-30020 |
GSV40 |
1 | ||
| 85942-58010 |
ACV40,GSV40 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30060 |
GSV40..CHI |
1 | ||
ILLUST NO. 4 OF 8(0605- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
2GRFE..GSV40..CHI |
1 | ||
| 90987-02030 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30170 |
GSV40 |
1 | ||
| 81980-30170 |
ACV40,GSV40 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
GSV40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08283 |
ACV40,GSV40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08283 |
ACV40,GSV40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08283 |
GSV40 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
GSV40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08283 |
ACV40,GSV40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08283 |
ACV40,GSV40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08283 |
GSV40 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09021 |
GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09022 |
GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09021 |
GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09022 |
GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33330 |
GSV40..CHI |
1 | ||
| 82672-33350 |
ACV40,GSV40..CHI |
1 | ||
| 82672-33430 |
GSV40..CHI RUSSIA SPEC |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-33030 |
GSV40 |
1 | ||
| 82673-33030 |
ACV40,GSV40 |
1 | ||
| 82675B - TERMINAL, JUNCTION | ||||
| 82675-44010 |
GSV40 |
1 | ||
| 82675-44010 |
ACV40,GSV40 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-33634 |
ACV40,GSV40..CHI TAIWAN SPEC |
1 | ||
| 82730-33G50 |
GSV40..CHI RUSSIA SPEC |
1 | ||
| 82730-33665 |
ACV40,GSV40..CHI |
1 | ||
| 82730-33633 |
GSV40..CHI TAIWAN SPEC |
1 | ||
| 82730-33664 |
ACV40,GSV40..CHI |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69015 |
ACV40,GSV40 |
1 | ||
| 84340-19025 |
ACV40,GSV40 |
1 | ||
| 84340-69015 |
GSV40 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GSV40 |
1 | ||
| 84345-51010 |
ACV40,GSV40 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACV40,GSV40 |
1 | ||
| 84550-16060 |
GSV40 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GSV40 |
1 | ||
| 90987-02027 |
ACV40,GSV40 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
GSV40 |
1 | ||
| 90987-02027 |
ACV40,GSV40 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02025 |
GSV40..CHI |
1 | ||
| 90987-02030 |
ACV40,GSV40 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-33140 |
GSV40 |
1 | ||
| 85940-33140 |
ACV40,GSV40 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-33040 |
ACV40,GSV40 |
1 | ||
| 89111-33010 |
GSV40 |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-33010 |
GSV40 |
1 | ||
| 89227-33010 |
ACV40,GSV40 |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-33090 |
GSV40 |
1 | ||
| 89430-33091 |
ACV40,GSV40 |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-33080 |
GSV40 |
1 | ||
| 89940-33220 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 91641-C0612 | ||||
| 93219-15010 | ||||
| 93313-14010 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 8(0605- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-33140 |
GSV40 |
1 | ||
| 84119-33140 |
ACV40,GSV40 |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-30010 |
GSV40 |
1 | ||
| 84150-30010 |
ACV40,GSV40 |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90010-01096 |
GSV40 14V 0.91W,W(CAP) |
1 | ||
| 90010-01096 |
ACV40,GSV40 14V 0.91W,W(CAP) |
1 | ||
| 84155 - SWITCH, HEADLAMP SWIVEL MAIN | ||||
| 84155-48010 |
GSV40 |
1 | ||
| 84155-48010 |
ACV40,GSV40 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-30180 |
GSV40 |
1 | ||
| 84751-30180 |
ACV40,GSV40 |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01109 |
GSV40 14V 1.4W |
1 | ||
| 90010-01070 |
ACV40,GSV40 14V1.8W,W(GREEN CAP) |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-50010 |
GSV40..CHI TAIWAN SPEC&PREMIUM PLUS PACKAGE |
1 | ||
| 84770-50010 |
GSV40..CHI TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 84770-50010 |
GSV40..CHI RUSSIA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 84770-50010 |
GSV40..CHI PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 84770-50010 |
GSV40..CHI TAIWAN SPEC&PREMIUM PLUS PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 84770-50010 |
GSV40..CHI PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84770-50010 |
GSV40..CHI PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 84770-50010 |
GSV40..CHI |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33080 |
ACV40,GSV40 |
1 | ||
| 84840-33080 |
GSV40 |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-51020 |
ACV40,GSV40 |
1 | ||
| 84840-51020 |
GSV40 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-30020 |
ACV40,GSV40 |
1 | ||
| 84872-30020 |
GSV40 |
1 | ||
| 84870B - BULB, OUTER MIRROR SWITCH | ||||
| 84999-10470 |
ACV40,GSV40 14V 1.12W |
1 | ||
| 84999-10470 |
GSV40 14V 1.12W |
1 | ||
| 84870C - CAP, OUTER MIRROR SWITCH BULB | ||||
| 84998-10430 |
ACV40,GSV40 |
1 | ||
| 84998-10430 |
GSV40 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-30020 |
GSV40 |
1 | ||
| 84873-30020 |
ACV40,GSV40 |
1 | ||
| 84873B - BULB, RETRACTABLE OUTER MIRROR SWITCH | ||||
| 90010-01095 |
GSV40 14V0.63W,W/GREEN CAP |
1 | ||
| 90010-01095 |
ACV40,GSV40 14V0.63W,W/GREEN CAP |
1 | ||
| 84940D - SWITCH ASSY, REAR SUN SHADE | ||||
| 84940-33030 |
GSV40 |
1 | ||
| 84940-33030 |
ACV40,GSV40 |
1 | ||
| 84940E - BULB, REAR SUN SHADE | ||||
| 90010-01117 |
GSV40 14V 0.98W |
1 | ||
| 90010-01117 |
ACV40,GSV40 14V 0.98W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-24050 |
ACV40,GSV40 |
1 | ||
| 85500-24050 |
GSV40 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
GSV40 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
ACV40,GSV40 12V 1.2W W/O SOCKET |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
ACV40,GSV40 |
1 | ||
| 84998-10510 |
GSV40 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
ACV40,GSV40 |
1 | ||
| 85520-89101 |
GSV40 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
GSV40 |
1 | ||
| 85530-42010 |
ACV40,GSV40 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-60100C0 |
GSV40..CHI BLACK |
1 | ||
| 85535-28060C0 |
ACV40,GSV40..CHI BLACK,TRIM0#,1#,2# |
1 | ||
| 85535-35080C0 |
GSV40..CHI RUSSIA SPEC,BLACK,TRIM0#,1#,2# |
1 | ||
| 85539B - LABEL, POWER OUTLET NOTICE, CENTER | ||||
| 85539-60020 |
GSV40..CHI RUSSIA SPEC |
1 | ||
| 85539-48030 |
ACV40,GSV40..CHI |
1 | ||
| 85539-60020 |
GSV40..CHI |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30022 |
ACV40,GSV40 |
1 | ||
| 89611-30023 |
ACV40,GSV40 |
1 | ||
| 89611-30020 |
GSV40 |
1 | ||
| 89611-30021 |
ACV40,GSV40 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 6 OF 8(0605- )
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30311 |
ACV40,GSV40..CHI |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-33150C0 |
GSV40 BLACK,TRIM2# |
1 | ||
| 84250-33150E0 |
GSV40 ORCHID BROWN,TRIM0# |
1 | ||
| 84250-33190E0 |
GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON,ORCHID BROWN,TRIM0# |
1 | ||
| 84250-33190C0 |
GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER,BLACK,TRIM2# |
1 | ||
| 84250-33190J0 |
GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER,DK.BLUE,TRIM1# |
1 | ||
| 84250-33190C0 |
GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON,BLACK,TRIM2# |
1 | ||
| 84250-33190J0 |
GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON,DK.BLUE,TRIM1# |
1 | ||
| 84250-33290 |
GSV40..CHI |
1 | ||
| 84250-33190E0 |
GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER,ORCHID BROWN,TRIM0# |
1 | ||
| 84250-33150J0 |
GSV40 DK.BLUE,TRIM1# |
1 | ||
| 84250-33280 |
GSV40..CHI |
1 | ||
| 84250-33260 |
GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP |
1 | ||
| 84250-33290 |
GSV40..CHI PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 84250-33280 |
GSV40..CHI PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 84250-33290 |
GSV40..CHI PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
GSV40 |
1 | ||
| 84306-48030 |
ACV40,GSV40 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33440 |
GSV40..CHI |
1 | ||
| 84652-33441 |
ACV40,GSV40 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
ACV40,GSV40 |
1 | ||
| 89235-48010 |
GSV40 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-52030 |
GSV40 |
1 | ||
| 89245-52030 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 8 OF 8(0605- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33110 |
GSV40 |
1 | ||
| 83320-33110 |
GSV40 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ACV40,GSV40 |
2 | ||
| 84231-53010 |
GSV40 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ACV40,GSV40 |
2 | ||
| 84231-53010 |
GSV40 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GSV40 |
2 | ||
| 84231-53010 |
ACV40,GSV40 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GSV40 |
2 | ||
| 84231-53010 |
ACV40,GSV40 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33110 |
ACV40,GSV40 |
1 | ||
| 84810-33110 |
GSV40 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33110 |
ACV40,GSV40 |
2 | ||
| 84810-33110 |
GSV40 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33110 |
ACV40,GSV40 |
2 | ||
| 84810-33110 |
GSV40 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-33070 |
GSV40 |
1 | ||
| 84040-33070 |
ACV40,GSV40 |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-33070 |
GSV40 RH |
1 | ||
| 84927-33060 |
GSV40 LH |
1 | ||
| 84927-33060 |
GSV40 LH |
1 | ||
| 84927-33070 |
GSV40 RH |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-33070 |
GSV40 RH |
1 | ||
| 84927-33060 |
GSV40 LH |
1 | ||
| 84927-33060 |
GSV40 LH |
1 | ||
| 84927-33070 |
GSV40 RH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-30070 |
ACV40,GSV40 |
1 | ||
| 84930-33110 |
GSV40 |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-50010 |
ACV40,GSV40 |
1 | ||
| 84945-50010 |
GSV40 |
1 | ||
| 85911A - RELAY, AUTO CURTAIN | ||||
| 85911-50010 |
ACV40,GSV40 |
1 | ||
| 85911-50010 |
GSV40 |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-43020 |
ACV40,GSV40..CHI |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89810-33020 |
GSV40..CHI TAIWAN SPEC&PREMIUM PLUS PACKAGE |
1 | ||
| 89810-33020 |
GSV40..CHI |
1 | ||
| 89810-33020 |
GSV40..CHI PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 89810-33020 |
GSV40..CHI PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 89810-33020 |
GSV40..CHI PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 89810-33020 |
GSV40..CHI RUSSIA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| Common parts | ||||
| 90119-05021 | ||||
| 90164-40103 | ||||
| 90901-48003 | ||||
| 91631-J0612 | ||||
ILLUST NO. 7 OF 8(0605- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-50280C0 |
GSV40..CHI BLACK,TRIM2# |
1 | ||
| 84920-50280B0 |
GSV40..CHI LT.GRAY,TRIM1# |
1 | ||
| 84920-50280A2 |
GSV40..CHI IVORY,TRIM0# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-53030B3 |
GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-53040A0 |
GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84921-53030C0 |
GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84921-53030A0 |
GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84921-53040C0 |
GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84921-53040A3 |
ACV40,GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84921-53030C0 |
ACV40,GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84921-53030B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-53040B3 |
GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-53040C0 |
ACV40,GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84921-53040B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-53030A3 |
ACV40,GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-53030B3 |
GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-53040A0 |
GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84921-53030C0 |
GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84921-53030A0 |
GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84921-53040C0 |
GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84921-53040A3 |
ACV40,GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84921-53030C0 |
ACV40,GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84921-53030B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-53040B3 |
GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-53040C0 |
ACV40,GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84921-53040B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-53030A3 |
ACV40,GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-53010A0 |
GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84921-53010C0 |
GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84921-53020C0 |
GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84921-53010C0 |
ACV40,GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84921-53010A3 |
ACV40,GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84921-53020B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-53010B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-53020B3 |
GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-53020A0 |
GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84921-53020C0 |
ACV40,GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84921-53010B3 |
GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-53020A3 |
ACV40,GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-53010A0 |
GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84921-53010C0 |
GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84921-53020C0 |
GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84921-53010C0 |
ACV40,GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84921-53010A3 |
ACV40,GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84921-53020B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-53010B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-53020B3 |
GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-53020A0 |
GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84921-53020C0 |
ACV40,GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84921-53010B3 |
GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84921-53020A3 |
ACV40,GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-30240A0 |
GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84920-33050C0 |
GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84920-33050B0 |
GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84920-30240C0 |
GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84920-30240B3 |
GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84920-30240C0 |
ACV40,GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84920-33050A1 |
ACV40,GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84920-33050A0 |
GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84920-33050C0 |
ACV40,GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84920-33050B0 |
ACV40,GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84920-30240B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84920-30240A4 |
ACV40,GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-30240A0 |
GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84920-33050C0 |
GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84920-33050B0 |
GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84920-30240C0 |
GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84920-30240B3 |
GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84920-30240C0 |
ACV40,GSV40 BLACK,TRIM2#,RH |
1 | ||
| 84920-33050A1 |
ACV40,GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84920-33050A0 |
GSV40 IVORY,TRIM0#,LH |
1 | ||
| 84920-33050C0 |
ACV40,GSV40 BLACK,TRIM2#,LH |
1 | ||
| 84920-33050B0 |
ACV40,GSV40 LT.GRAY,TRIM1#,LH |
1 | ||
| 84920-30240B3 |
ACV40,GSV40 LT.GRAY,TRIM1#,RH |
1 | ||
| 84920-30240A4 |
ACV40,GSV40 IVORY,TRIM0#,RH |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-33060 |
GSV40..CHI |
1 | ||
| 84070-33100 |
GSV40..CHI |
1 | ||
| 84070-33090 |
GSV40..CHI TAIWAN SPEC |
1 | ||
| 84070-33090 |
GSV40..CHI RUSSIA SPEC |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-33080 |
GSV40 |
1 | ||
| 84070-33030 |
GSV40 |
1 | ||
| 84928 - SWITCH, SEAT VARIABLE CUSHION | ||||
| 84928-33010B0 |
ACV40,GSV40 LT.GRAY,TRIM1# |
1 | ||
| 84928-33010B0 |
GSV40 LT.GRAY,TRIM1# |
1 | ||
| 84928-33010C0 |
ACV40,GSV40 BLACK,TRIM2# |
1 | ||
| 84928-33010C0 |
GSV40 BLACK,TRIM2# |
1 | ||
| 84928-33010A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 84928-33010A0 |
GSV40 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93560-54010 | ||||
ILLUST NO. 3 OF 8(0605- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2GRFE..GSV40 |
1 | ||
| 28300-28010 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
2GRFE..GSV40 |
1 | ||
| 90987-02027 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 90987-02027 |
2GRFE..GSV40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09021 |
GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09022 |
GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09021 |
GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09022 |
GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09021 |
GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09025 |
GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09022 |
GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GSV40..CHI 30A,MINI FUSE,GRN,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITHOUT |
1 | ||
| 90982-09020 |
GSV40..CHI 7.5A,MINI FUSE,BROWN,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09024 |
GSV40..CHI 25A,MINI FUSE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09023 |
GSV40..CHI 20A,MINI FUSE,YELLOW,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 90982-09021 |
GSV40..CHI 10A,MINI FUSE,RED,PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH) |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSV40..CHI 15A,MINI FUSE,BLUE,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GSV40 |
1 | ||
| 82616-58010 |
ACV40,GSV40 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-07090 |
ACV40,GSV40 |
1 | ||
| 82620-07090 |
GSV40 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-07080 |
GSV40 |
1 | ||
| 82620-07080 |
ACV40,GSV40 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-33440 |
GSV40..CHI RUSSIA SPEC |
1 | ||
| 82662-33210 |
GSV40..CHI |
1 | ||
| 82662-33251 |
GSV40..CHI |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33070 |
ACV40,GSV40 |
1 | ||
| 82663-33070 |
GSV40 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-33100 |
GSV40 |
1 | ||
| 82720-33100 |
GSV40 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33010 |
GSV40 |
1 | ||
| 82740-33010 |
GSV40 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GSV40 |
1 | ||
| 82824-41010 |
ACV40,GSV40 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GSV40 |
1 | ||
| 82824-41010 |
ACV40,GSV40 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
ACV40,GSV40 |
1 | ||
| 90987-04010 |
GSV40 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ACV40,GSV40..CHI |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
GSV40 |
1 | ||
| 90987-02025 |
GSV40 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GSV40 |
1 | ||
| 90987-02028 |
GSV40 |
1 | ||
| Common parts | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
