GSV40L-BETGKC (2009)
Toyota Lexus Es240/350
Production
Aug 2009
-
Jun 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

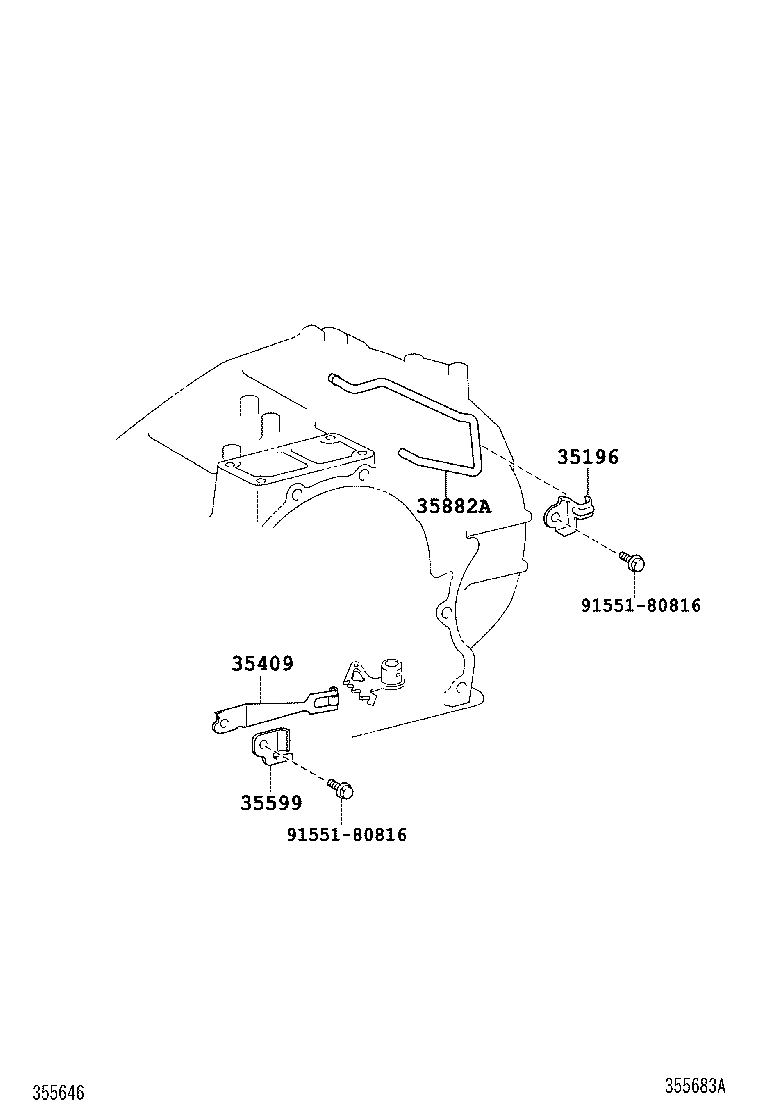

ILLUST NO. 2 OF 2(0605- )GSV40
Click highlighted areas on diagram
U660E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-33010 |
GSV40 |
1 | ||
| 35196-33010 |
GSV40 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-33010 |
GSV40 |
1 | ||
| 35409-33010 |
GSV40 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-33010 |
GSV40 |
1 | ||
| 35599-33010 |
GSV40 |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-33040 |
GSV40 |
1 | ||
| 35882-33040 |
GSV40 |
1 | ||
| Common parts | ||||
| 91551-80816 | ||||

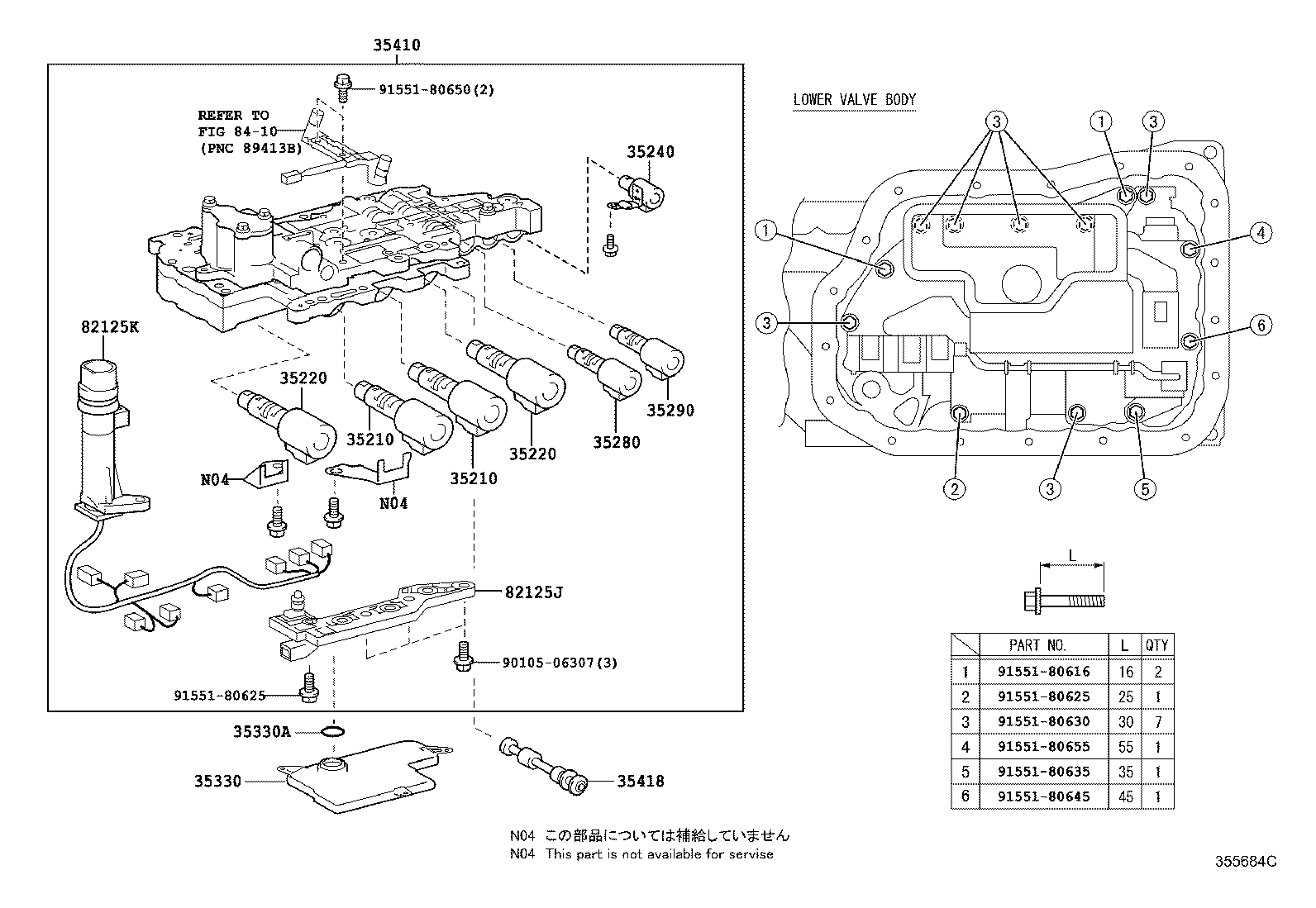

ILLUST NO. 1 OF 2(0605- )GSV40
Click highlighted areas on diagram
U660E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-33030 |
GSV40 |
2 | ||
| 35210-33030 |
GSV40 |
2 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-33030 |
GSV40 |
2 | ||
| 35210-33030 |
GSV40 |
2 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-33040 |
GSV40 |
2 | ||
| 35220-33040 |
GSV40 |
2 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-33040 |
GSV40 |
2 | ||
| 35220-33040 |
GSV40 |
2 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-33040 |
GSV40 |
1 | ||
| 35240-73010 |
GSV40 |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-52040 |
GSV40 |
1 | ||
| 35280-52040 |
GSV40 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-33040 |
GSV40 |
1 | ||
| 35290-33040 |
GSV40 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-33050 |
GSV40 |
1 | ||
| 35330-33050 |
GSV40 |
1 | ||
| 35330A - RING, O (FOR OIL STRAINER) | ||||
| 90301-27010 |
GSV40 |
1 | ||
| 90301-27015 |
GSV40 |
1 | ||
| 90301-27010 |
GSV40 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-33170 |
GSV40 |
1 | ||
| 35410-33171 |
GSV40 |
1 | ||
| 35410-33240 |
GSV40 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-33020 |
GSV40 |
1 | ||
| 35418-73010 |
GSV40 |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-33090 |
GSV40 |
1 | ||
| 82125-33150 |
GSV40 |
1 | ||
| 82125-33090 |
GSV40 |
1 | ||
| 82125K - WIRE, TRANSMISSION | ||||
| 82125-33100 |
GSV40 |
1 | ||
| 82125-33160 |
GSV40 |
1 | ||
| 82125-33100 |
GSV40 |
1 | ||
| Common parts | ||||
| 90105-06307 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80630 | ||||
| 91551-80635 | ||||
| 91551-80645 | ||||
| 91551-80650 | ||||
| 91551-80655 | ||||
| Linked diagrams | ||||
| 8410 | ||||
