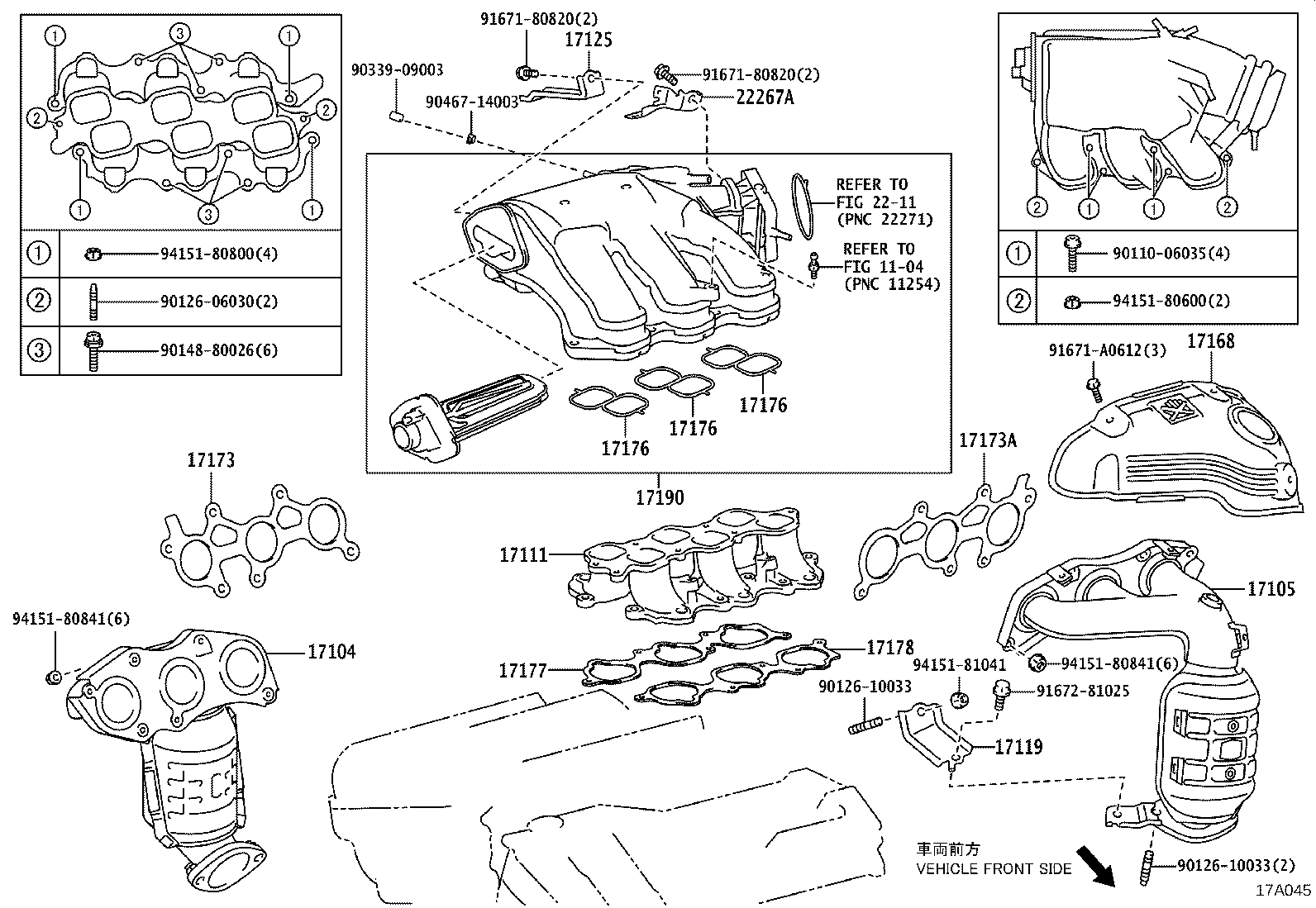

Toyota Lexus es240/350 GSV40 MANIFOLD

Part #	Description	Period	Qty
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31161	2GRFE..GSV40 *114=TOYOTA/R31161/Y,(J)	08/2009 - 08/2010	1
17140-31161	2GRFE..GSV40 *114=TOYOTA/R31161/Y	08/2010 - 12/2999	1
17140-0P041	2GRFE..GSV40 *114=TOYOTA/R0P041/Y,(L)	08/2009 - 08/2010	1
17140-31160	2GRFE..GSV40 *114=TOYOTA/R31160/Y	05/2006 - 08/2007	1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31160	2GRFE..GSV40 *114=TOYOTA/L31160/Y	08/2009 - 12/2999	1
17150-31160	2GRFE..GSV40 *114=TOYOTA/L31160/Y	05/2006 - 08/2009	1
17111 - MANIFOLD, INTAKE
17111-31141	2GRFE..GSV40	05/2006 - 08/2009	1
17111-31141	2GRFE..GSV40	08/2009 - 12/2999	1
17119 - STAY, MANIFOLD, NO.2
17119-31020	2GRFE..GSV40	05/2006 - 08/2009	1
17119-31020	2GRFE..GSV40	08/2009 - 12/2999	1
17125 - STAY, SURGE TANK, NO.1
17125-31040	2GRFE..GSV40	05/2006 - 08/2009	1
17125-31040	2GRFE..GSV40	08/2009 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-31010	2GRFE..GSV40	05/2006 - 02/2007	1
17168-31011	2GRFE..GSV40	08/2009 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31020	2GRFE..GSV40	05/2006 - 08/2009	1
17173-31020	2GRFE..GSV40	08/2009 - 12/2999	1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31020	2GRFE..GSV40	08/2009 - 12/2999	1
17173-31020	2GRFE..GSV40	05/2006 - 08/2009	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31040	2GRFE..GSV40	05/2006 - 08/2009	3
17176-31040	2GRFE..GSV40	08/2009 - 11/2011	3
17176-31090	2GRFE..GSV40	12/2011 - 12/2999	3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31040	2GRFE..GSV40	05/2006 - 08/2009	3
17176-31040	2GRFE..GSV40	08/2009 - 11/2011	3
17176-31090	2GRFE..GSV40	12/2011 - 12/2999	3
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31040	2GRFE..GSV40	05/2006 - 08/2009	3
17176-31040	2GRFE..GSV40	08/2009 - 11/2011	3
17176-31090	2GRFE..GSV40	12/2011 - 12/2999	3
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31040	2GRFE..GSV40	08/2009 - 12/2999	1
17177-31040	2GRFE..GSV40	05/2006 - 08/2009	1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-31030	2GRFE..GSV40	05/2006 - 08/2009	1
17178-31030	2GRFE..GSV40	08/2009 - 12/2999	1
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31081	2GRFE..GSV40	08/2009 - 11/2011	1
17190-31081	2GRFE..GSV40	05/2006 - 08/2009	1
17190-31200	2GRFE..GSV40	12/2011 - 12/2999	1
22267A - BRACKET, THROTTLE BODY
22267-31030	2GRFE..GSV40	08/2009 - 12/2999	1
22267-31030	2GRFE..GSV40	05/2006 - 08/2009	1
Common parts
90110-06035
90126-06030
90126-10033
90148-80026
90339-09003
90467-14003
91671-80820
91671-A0612
91672-81025
94151-80600
94151-80800
94151-80841
94151-81041
Linked diagrams
1104
2211

GSV40L-BETGKC (2009)

(0605- )2GRFE
