GSV40L-BETGKC (2009)
Toyota Lexus Es240/350
Production
Aug 2009
-
Jun 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

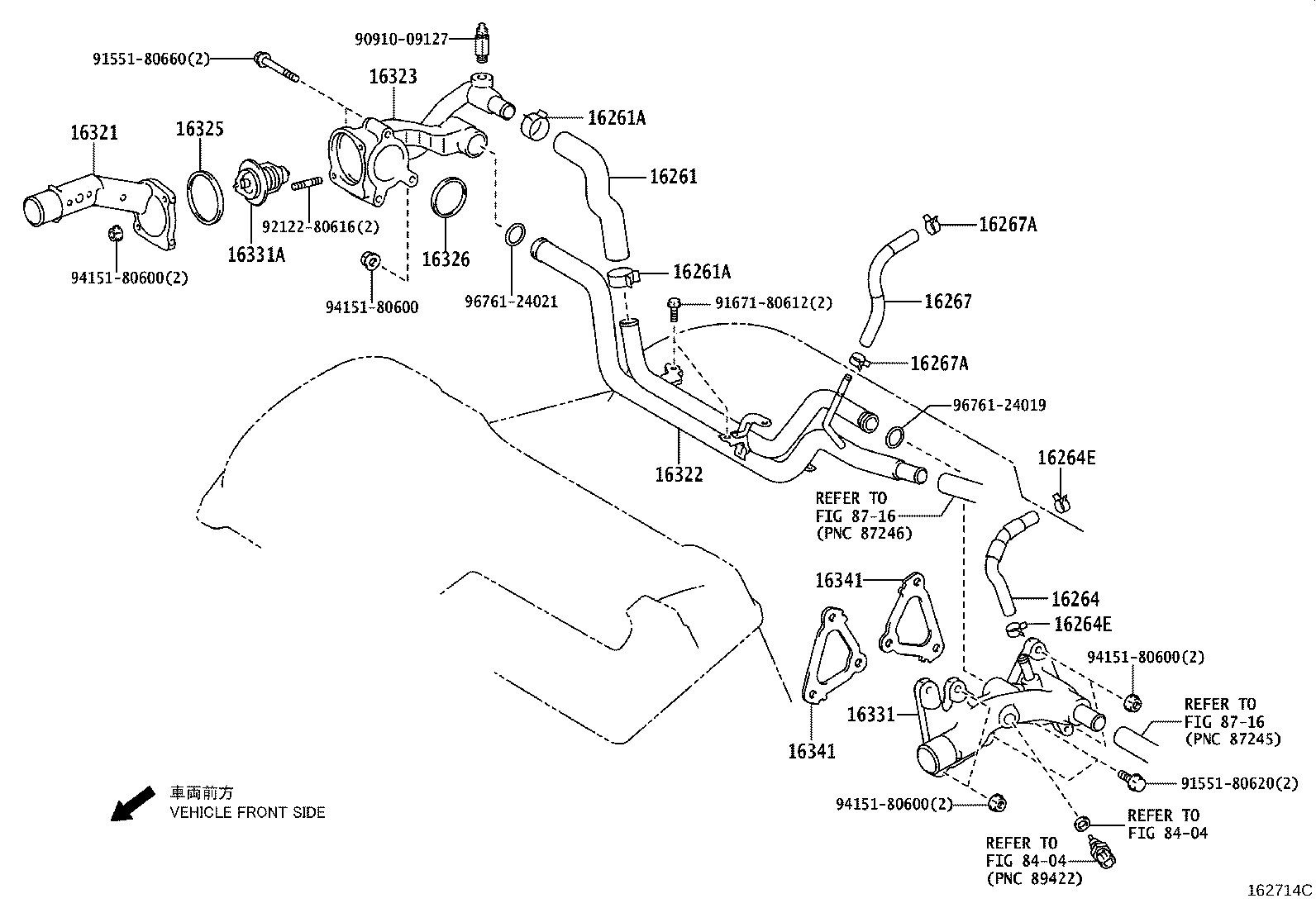

ILLUST NO. 2 OF 2(0605- )2GRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31050 |
2GRFE..GSV40 |
1 | ||
| 16261-31050 |
2GRFE..GSV40 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2GRFE..GSV40 |
2 | ||
| 96136-42701 |
2GRFE..GSV40 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2GRFE..GSV40 |
2 | ||
| 96136-42701 |
2GRFE..GSV40 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31081 |
2GRFE..GSV40 |
1 | ||
| 16264-31081 |
2GRFE..GSV40 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSV40 |
2 | ||
| 96137-41501 |
2GRFE..GSV40 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSV40 |
2 | ||
| 96137-41501 |
2GRFE..GSV40 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31040 |
2GRFE..GSV40 |
1 | ||
| 16267-31040 |
2GRFE..GSV40 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GSV40 |
2 | ||
| 96137-41501 |
2GRFE..GSV40 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GSV40 |
2 | ||
| 96137-41501 |
2GRFE..GSV40 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-31011 |
2GRFE..GSV40 |
1 | ||
| 16321-31011 |
2GRFE..GSV40 |
1 | ||
| 16321-31030 |
2GRFE..GSV40 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-31020 |
2GRFE..GSV40..CHI |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-31040 |
2GRFE..GSV40 |
1 | ||
| 16323-0W011 |
2GRFE..GSV40 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2GRFE..GSV40 |
1 | ||
| 16325-62010 |
2GRFE..GSV40 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-31010 |
2GRFE..GSV40 |
1 | ||
| 16325-31010 |
2GRFE..GSV40 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31140 |
2GRFE..GSV40..CHI |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03140 |
2GRFE..GSV40 *WAX 82-95 |
1 | ||
| 90916-03133 |
2GRFE..GSV40 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSV40 |
2 | ||
| 16341-31010 |
2GRFE..GSV40 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSV40 |
2 | ||
| 16341-31010 |
2GRFE..GSV40 |
2 | ||
| Common parts | ||||
| 90910-09127 | ||||
| 91551-80620 | ||||
| 91551-80660 | ||||
| 91671-80612 | ||||
| 92122-80616 | ||||
| 94151-80600 | ||||
| 96761-24019 | ||||
| 96761-24021 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||
