ACV40L-BEAGKC (2009)
Toyota Lexus Es240/350

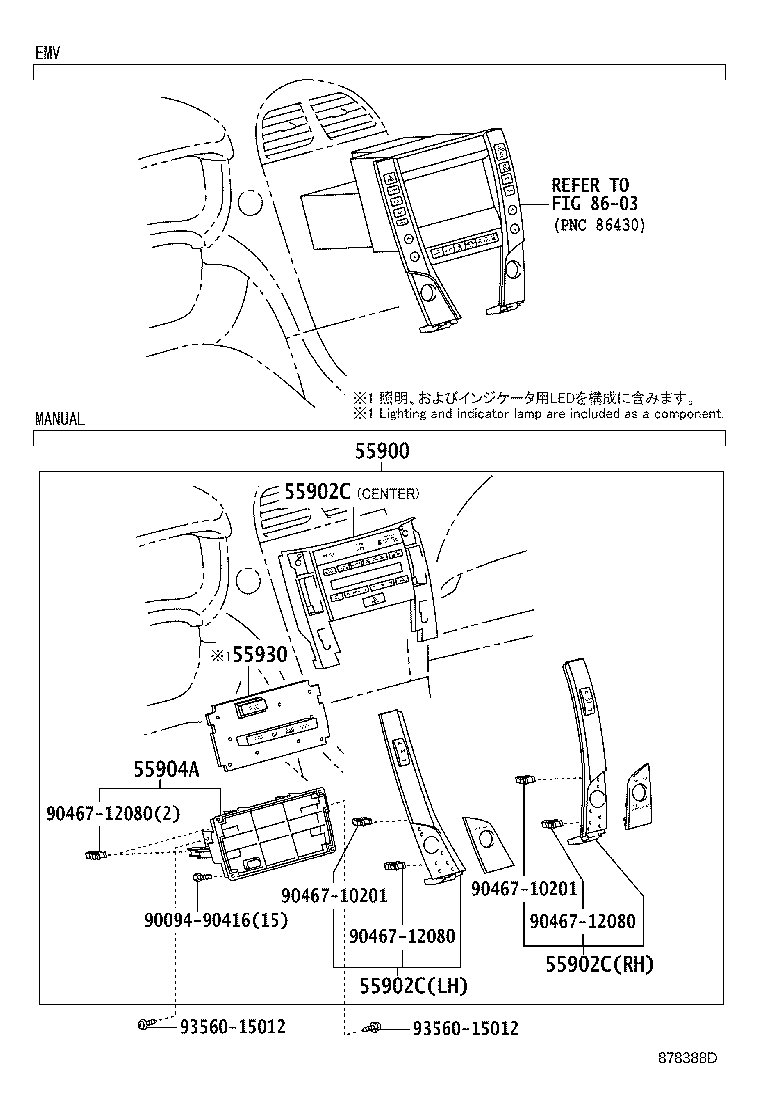

ILLUST NO. 1 OF 3(0605- )
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-33C22E1 |
ACV40;GSV40..GCC DK.BROWN,TRIM01,11,21 |
1 | ||
| 55900-33C22E1 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21 |
1 | ||
| 55900-33C22E0 |
ACV40;GSV40..GCC MD.BROWN,TRIM00,10,20 |
1 | ||
| 55900-33E70E0 |
ACV40;GSV40..GCC MD.BROWN,TRIM00,10,20 |
1 | ||
| 55900-33C22E1 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,DK.BROWN,TRIM01,11,21 |
1 | ||
| 55900-33C22E0 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20 |
1 | ||
| 55900-33C22E0 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,MD.BROWN,TRIM00,10,20 |
1 | ||
| 55900-33E70E1 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21 |
1 | ||
| 55900-33E70E0 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20 |
1 | ||
| 55900-33E70E1 |
ACV40;GSV40..GCC DK.BROWN,TRIM01,11,21 |
1 | ||
| 55900-33E70E1 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,DK.BROWN,TRIM01,11,21 |
1 | ||
| 55900-33E70E0 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,MD.BROWN,TRIM00,10,20 |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-33550 |
ACV40;GSV40..GCC LH |
1 | ||
| 55902-33492 |
ACV40;GSV40..GCC CENTER |
1 | ||
| 55902-33492 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,CENTER |
1 | ||
| 55902-33492 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,CENTER |
1 | ||
| 55902-33810 |
ACV40;GSV40..GCC RH |
1 | ||
| 55902-33B00 |
ACV40;GSV40..GCC RH |
1 | ||
| 55902-33A90 |
ACV40;GSV40..GCC LH |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-33550 |
ACV40;GSV40..GCC LH |
1 | ||
| 55902-33492 |
ACV40;GSV40..GCC CENTER |
1 | ||
| 55902-33492 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,CENTER |
1 | ||
| 55902-33492 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,CENTER |
1 | ||
| 55902-33810 |
ACV40;GSV40..GCC RH |
1 | ||
| 55902-33B00 |
ACV40;GSV40..GCC RH |
1 | ||
| 55902-33A90 |
ACV40;GSV40..GCC LH |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-33550 |
ACV40;GSV40..GCC LH |
1 | ||
| 55902-33492 |
ACV40;GSV40..GCC CENTER |
1 | ||
| 55902-33492 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,CENTER |
1 | ||
| 55902-33492 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,CENTER |
1 | ||
| 55902-33810 |
ACV40;GSV40..GCC RH |
1 | ||
| 55902-33B00 |
ACV40;GSV40..GCC RH |
1 | ||
| 55902-33A90 |
ACV40;GSV40..GCC LH |
1 | ||
| 55904A - HOUSING SUB-ASSY, HEATER CONTROL | ||||
| 55904-33260 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 55904-33260 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 55904-33260 |
ACV40;GSV40..GCC |
1 | ||
| 55930 - CONTROL ASSY, CENTER CLUSTER MODULE | ||||
| 55930-33020 |
ACV40;GSV40..GCC |
1 | ||
| 55930-33020 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 55930-33020 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 93560-15012 | ||||
| Linked diagrams | ||||
| 8603 | ||||

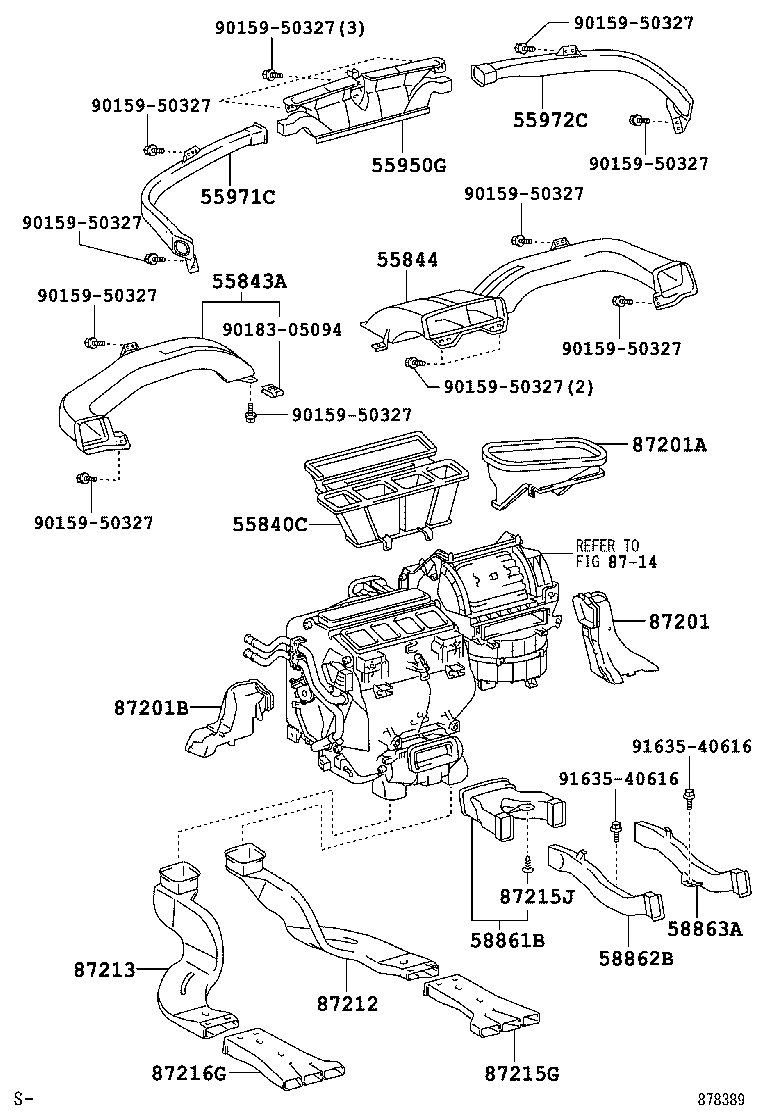

ILLUST NO. 2 OF 3(0605- )
DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55840-33030 |
ACV40,GSV40 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-33150 |
ACV40,GSV40 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-33150 |
ACV40,GSV40 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-33100 |
ACV40,GSV40 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-33110 |
ACV40,GSV40 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-33110 |
ACV40,GSV40 |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-33040 |
ACV40,GSV40 |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-33050 |
ACV40,GSV40 |
1 | ||
| 58863A - DUCT, CONSOLE BOX, NO.3 | ||||
| 58863-33030 |
ACV40,GSV40 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-33290 |
ACV40,GSV40 |
1 | ||
| 87201A - DUCT SUB-ASSY, AIR | ||||
| 87201-33340 |
ACV40,GSV40 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-33280 |
ACV40,GSV40 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-33040 |
ACV40,GSV40 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-33050 |
ACV40,GSV40 |
1 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-33010 |
ACV40,GSV40 |
1 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-05161C0 |
ACV40,GSV40 BLACK |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-33010 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90183-05094 | ||||
| 91635-40616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 3 OF 3(0605- )
SENSOER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
ACV40,GSV40 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ACV40,GSV40 |
1 | ||
| 88625R - THERMISTOR, COOLER (SENSOR, SMOG VENTILATION) | ||||
| 88898-50030 |
ACV40,GSV40 |
1 | ||
| 88898-50031 |
ACV40,GSV40 |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-33090 |
ACV40,GSV40 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-33030 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 88688-33510 | ||||
| 90119-06782 | ||||
| 91551-A0612 | ||||
