Toyota Lexus es240/350 ACV40 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-33021	ACV40,GSV40	08/2009 - 06/2012	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-33543	ACV40,GSV40	08/2009 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-33120	ACV40,GSV40	08/2009 - 06/2012	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-33260	ACV40,GSV40	08/2009 - 12/2999	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-33290	ACV40,GSV40	08/2009 - 12/2999	1
87106L - SERVO SUB-ASSY, DAMPER
87106-33270	ACV40,GSV40	08/2009 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-33120	ACV40,GSV40	08/2009 - 12/2999	1
87130D - BLOWER ASSY
87130-48220	ACV40,GSV40	08/2009 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-30040	ACV40,GSV40	08/2009 - 06/2012	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-48310	ACV40,GSV40	08/2009 - 07/2010	1
88501-48311	ACV40,GSV40	08/2010 - 05/2012	1
88515 - VALVE, COOLER EXPANSION
88515-33020	ACV40,GSV40	08/2009 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-33090	ACV40,GSV40	08/2009 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-33190	ACV40,GSV40	08/2009 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-33A30	ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP	08/2009 - 10/2010	1
88650-33A30	ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP	08/2009 - 10/2010	1
88650-33A51	ACV40;GSV40..GCC	11/2010 - 12/2999	1
88650-33A31	ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP	11/2010 - 12/2999	1
88650-33A31	ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP	11/2010 - 12/2999	1
88650-33A50	ACV40;GSV40..GCC	08/2009 - 10/2010	1
88897M - GROMMET (FOR HEATER PIPE)
90480-01696	ACV40,GSV40	08/2009 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-33040	ACV40,GSV40	08/2009 - 12/2999	1
Common parts
87124-33070
87124-33080
90099-00318
90119-06952
90159-50322
90159-60383
90179-06282
90480-26030

ACV40L-BEAGKC (2009)

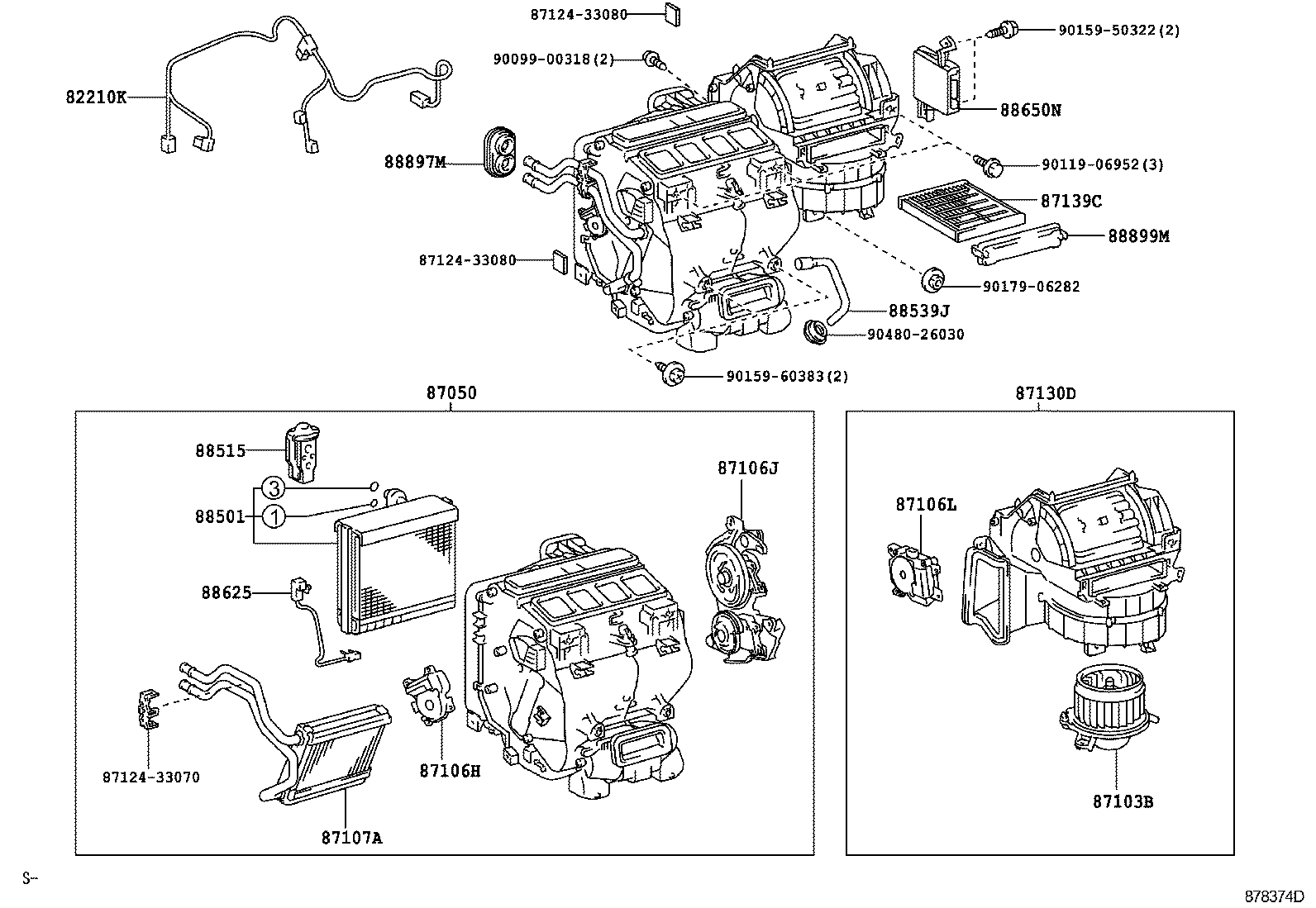

ILLUST NO. 1 OF 2(0605- )

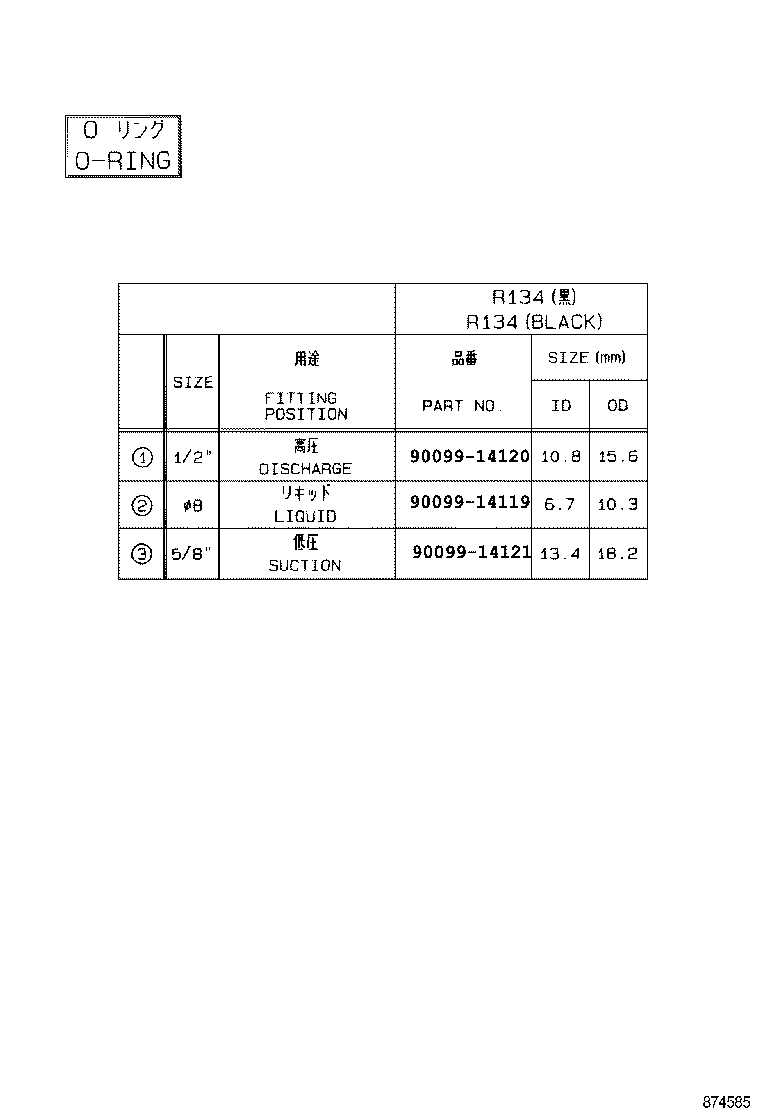

ILLUST NO. 2 OF 2(0605- )
