ACV40L-BEAGKC (2009)
Toyota Lexus Es240/350

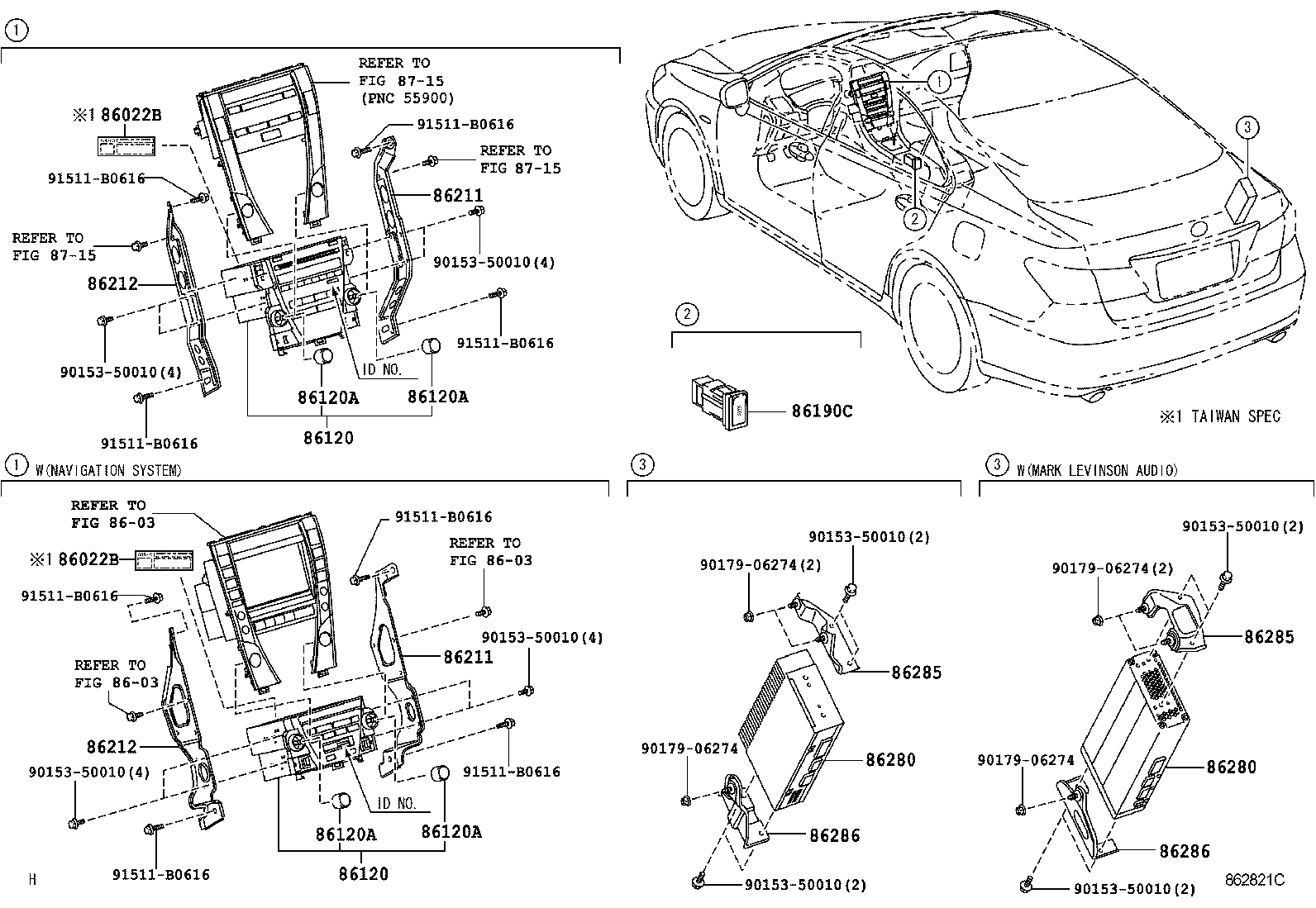

ILLUST NO. 1 OF 3(0605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-33F20 |
ACV40 PIONEER,ID=P2890,TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86120-33F60 |
ACV40,GSV40..CHI PIONEER,ID=P7571,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86120-33F70 |
ACV40 PIONEER,ID=P7569,TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86120-33F10 |
ACV40 PIONEER,ID=P2892,TAIWAN SPEC |
1 | ||
| 86120-33F71 |
ACV40,GSV40..CHI PIONEER,ID=P7569,TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86120-33F50 |
ACV40 PIONEER,ID=P2891,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86120-33F40 |
ACV40 PIONEER,ID=P2893 |
1 | ||
| 86120-33F21 |
ACV40 PIONEER,ID=P2890,TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-33F20 |
ACV40 PIONEER,ID=P2890,TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86120-33F60 |
ACV40,GSV40..CHI PIONEER,ID=P7571,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86120-33F70 |
ACV40 PIONEER,ID=P7569,TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86120-33F10 |
ACV40 PIONEER,ID=P2892,TAIWAN SPEC |
1 | ||
| 86120-33F71 |
ACV40,GSV40..CHI PIONEER,ID=P7569,TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86120-33F50 |
ACV40 PIONEER,ID=P2891,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86120-33F40 |
ACV40 PIONEER,ID=P2893 |
1 | ||
| 86120-33F21 |
ACV40 PIONEER,ID=P2890,TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22070 |
ACV40,GSV40 |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22070 |
ACV40,GSV40 |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22070 |
ACV40,GSV40 |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22070 |
ACV40,GSV40 |
2 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53040 |
ACV40,GSV40..CHI |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-33220 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86211-33220 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86211-33191 |
ACV40;GSV40..GCC |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-33220 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86211-33220 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86211-33191 |
ACV40;GSV40..GCC |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-33220 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86212-33191 |
ACV40;GSV40..GCC |
1 | ||
| 86212-33220 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-33220 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86212-33191 |
ACV40;GSV40..GCC |
1 | ||
| 86212-33220 |
ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W730 |
ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86280-33170 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86280-33160 |
ACV40;GSV40..GCC |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W730 |
ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86280-33170 |
ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 86280-33160 |
ACV40;GSV40..GCC |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-33120 |
ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86285-33090 |
ACV40,GSV40 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-33120 |
ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86285-33090 |
ACV40,GSV40 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-33110 |
ACV40,GSV40 |
1 | ||
| 86286-33120 |
ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-33110 |
ACV40,GSV40 |
1 | ||
| 86286-33120 |
ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 91511-B0616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
| 8715 | ||||

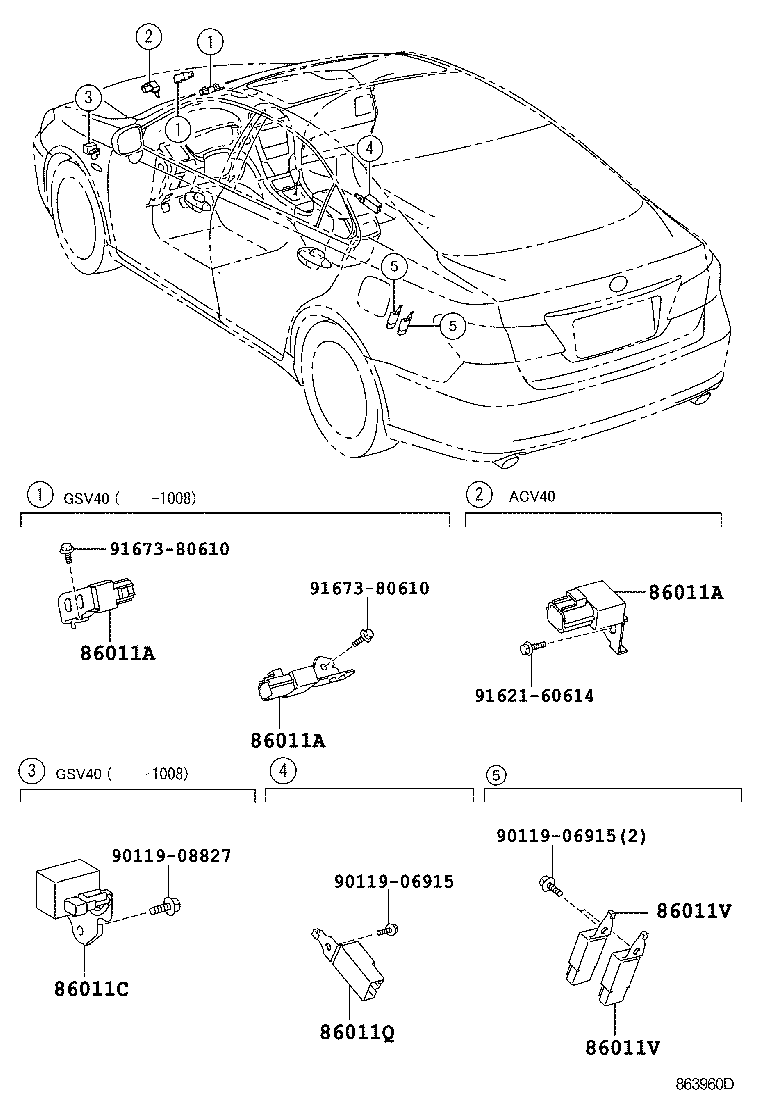

ILLUST NO. 2 OF 3(0908- )
CONDENSR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04157 |
ACV40 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04157 |
ACV40 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04157 |
ACV40 |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04184 |
ACV40,GSV40 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04184 |
ACV40,GSV40 |
2 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04184 |
ACV40,GSV40 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08827 | ||||
| 91621-60614 | ||||
| 91673-80610 | ||||
ILLUST NO. 3 OF 3(0908- )
MINI JACK & ECU & WIRING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-53040 |
ACV40,GSV40..CHI |
1 | ||
| 861A1 - COMPUTER, MULTI-MEDIA INTERFACE | ||||
| 861A0-48030 |
ACV40 |
1 | ||
| 861A0-77010 |
ACV40 AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 861A0-77010 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 861A0-48030 |
ACV40 |
1 | ||
| 861A0-77010 |
ACV40 AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 861A0-77010 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1 | ||||
| 861A2-33020 |
ACV40,GSV40..CHI |
1 | ||
| 861A3 - BRACKET, MULTI-MEDIA INTERFACE, NO.2 | ||||
| 861A3-33020 |
ACV40,GSV40..CHI |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-33040 |
ACV40,GSV40 |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86203-33050 |
ACV40,GSV40..CHI |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||
