ACV40L-BEAGKC (2009)

Toyota Lexus Es240/350

Production Aug 2009 - Jun 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

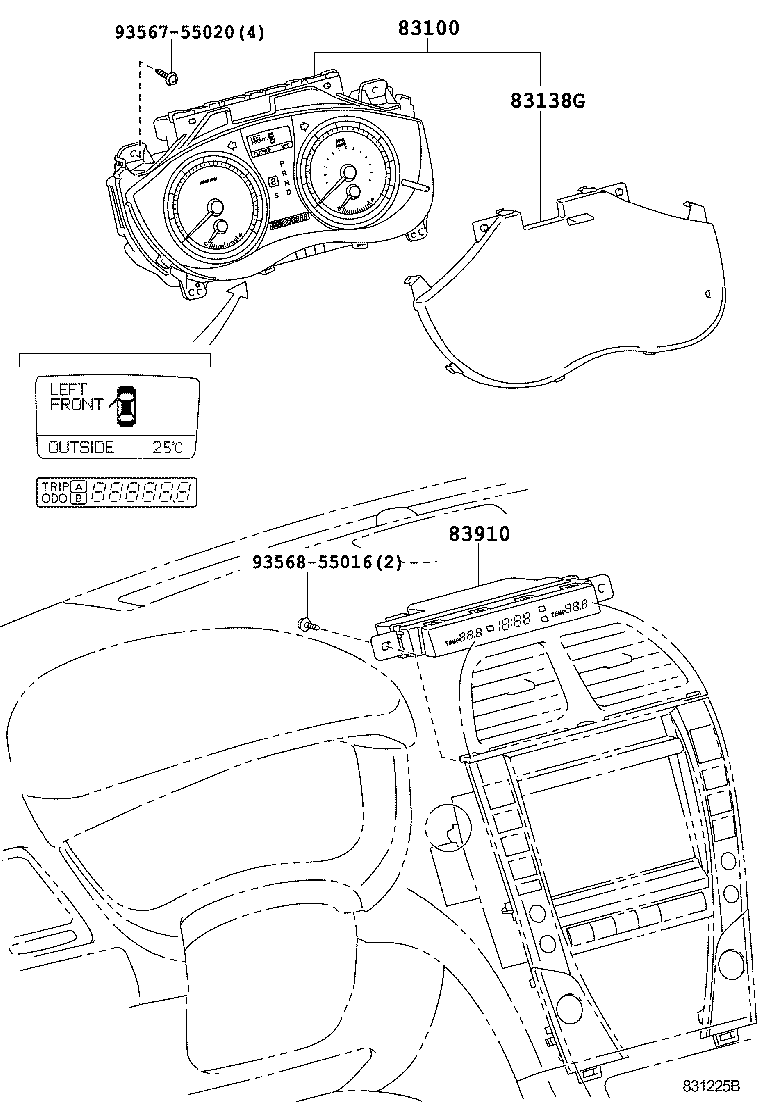

Click highlighted areas on diagram

diagram 83100 83138G 83910 9356755020 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-33J50

ACV40

 1
83800-33L30

ACV40

TAIWAN SPEC

 1
83800-33J51

ACV40

 1
83138G - GLASS, COMBINATION METER
83852-33B70

ACV40,GSV40

 1
83910 - CLOCK ASSY
83910-33200

ACV40;GSV40..GCC

AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP

 1
83910-33200

ACV40;GSV40..GCC

AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

 1
Common parts
93567-55020
93568-55016
