ACV40L-BEAGKC (2009)
Toyota Lexus Es240/350
ILLUST NO. 3 OF 9(0605- )

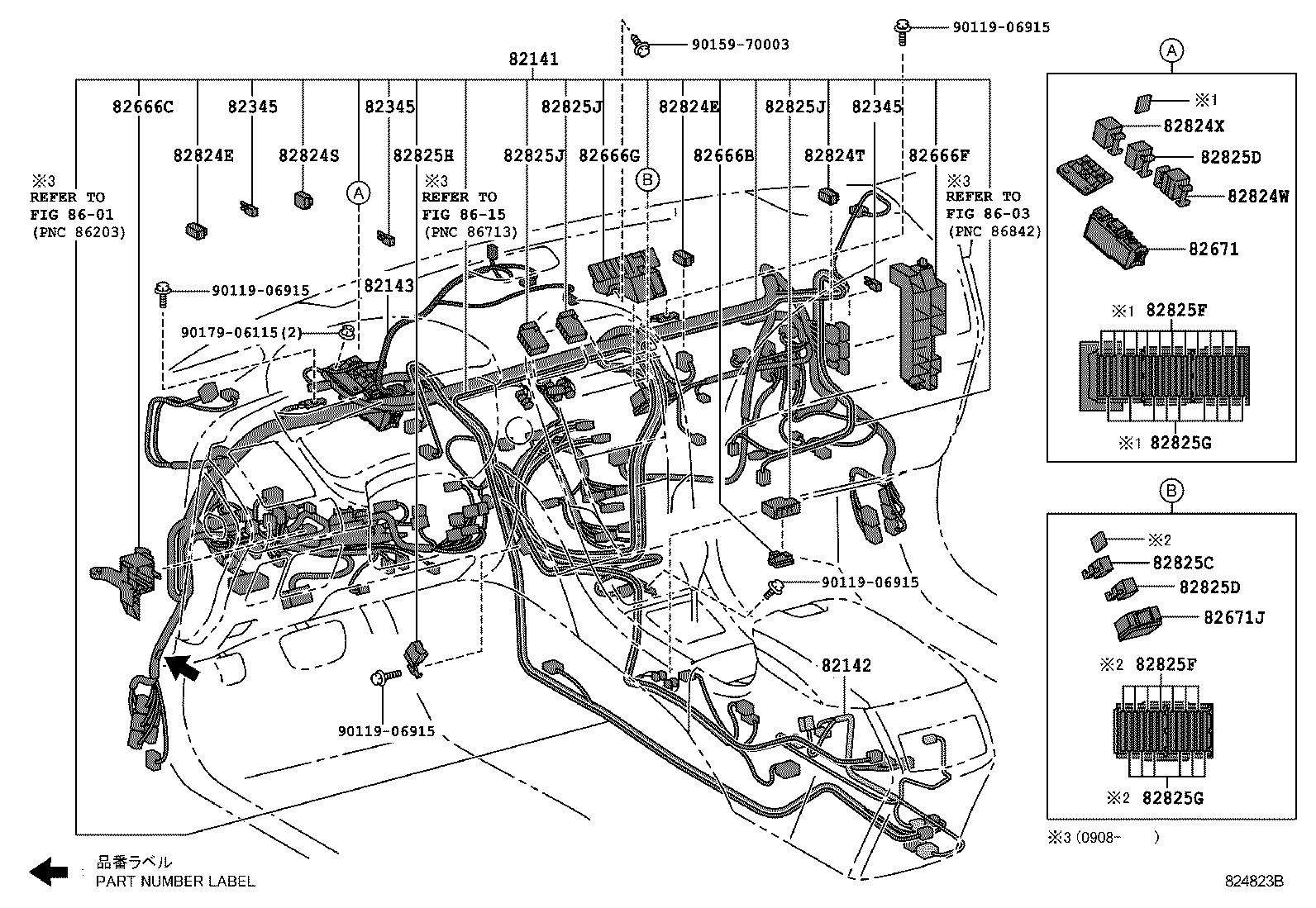

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-33T60 |
ACV40,GSV40..CHI AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82141-33T20 |
ACV40;GSV40..GCC |
1 | ||
| 82141-33T31 |
ACV40 TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82141-33T50 |
ACV40 AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82141-33T41 |
ACV40,GSV40..CHI TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82141-33T61 |
ACV40,GSV40..CHI AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82141-33T21 |
ACV40;GSV40..GCC |
1 | ||
| 82141-33T51 |
ACV40 AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82141-33T50 |
ACV40 PART NUMBER LABEL=82141-33T50 |
1 | ||
| 82141-33T60 |
ACV40,GSV40..CHI PART NUMBER LABEL=82141-33T60 |
1 | ||
| 82141-33T21 |
ACV40;GSV40..GCC PART NUMBER LABEL=82141-33T21 |
1 | ||
| 82141-33T20 |
ACV40;GSV40..GCC PART NUMBER LABEL=82141-33T20 |
1 | ||
| 82141-33T41 |
ACV40,GSV40..CHI PART NUMBER LABEL=82141-33T41 |
1 | ||
| 82141-33T31 |
ACV40 PART NUMBER LABEL=82141-33T31 |
1 | ||
| 82141-33T51 |
ACV40 PART NUMBER LABEL=82141-33T51 |
1 | ||
| 82141-33T61 |
ACV40,GSV40..CHI PART NUMBER LABEL=82141-33T61 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-33460 |
ACV40,GSV40..CHI |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-33041 |
ACV40,GSV40 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
ACV40,GSV40 |
3 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
ACV40,GSV40 |
3 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
ACV40,GSV40 |
3 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-26080 |
ACV40,GSV40 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-33300 |
ACV40,GSV40 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-33320 |
ACV40,GSV40 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42241 |
ACV40,GSV40 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-33050 |
ACV40,GSV40 |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-33060 |
ACV40,GSV40 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ACV40,GSV40 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ACV40,GSV40 |
2 | ||
| 82824S - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ACV40,GSV40 |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-30170 |
ACV40,GSV40 |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-33240 |
ACV40,GSV40 |
1 | ||
| 82824X - CONNECTOR, WIRING HARNESS | ||||
| 82824-33250 |
ACV40,GSV40 |
1 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACV40,GSV40 |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-42190 |
ACV40,GSV40 |
2 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-42190 |
ACV40,GSV40 |
2 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-42200 |
ACV40,GSV40 |
18 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-42200 |
ACV40,GSV40 |
18 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-42210 |
ACV40,GSV40 |
14 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-42210 |
ACV40,GSV40 |
14 | ||
| 82825H - CONNECTOR, WIRING HARNESS | ||||
| 82824-48070 |
ACV40,GSV40 |
1 | ||
| 82825J - CONNECTOR, WIRING HARNESS | ||||
| 82824-48080 |
ACV40,GSV40 |
3 | ||
| 82825J - CONNECTOR, WIRING HARNESS | ||||
| 82824-48080 |
ACV40,GSV40 |
3 | ||
| 82825J - CONNECTOR, WIRING HARNESS | ||||
| 82824-48080 |
ACV40,GSV40 |
3 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8603 | ||||
| 8615 | ||||
ILLUST NO. 4 OF 9(0605- )

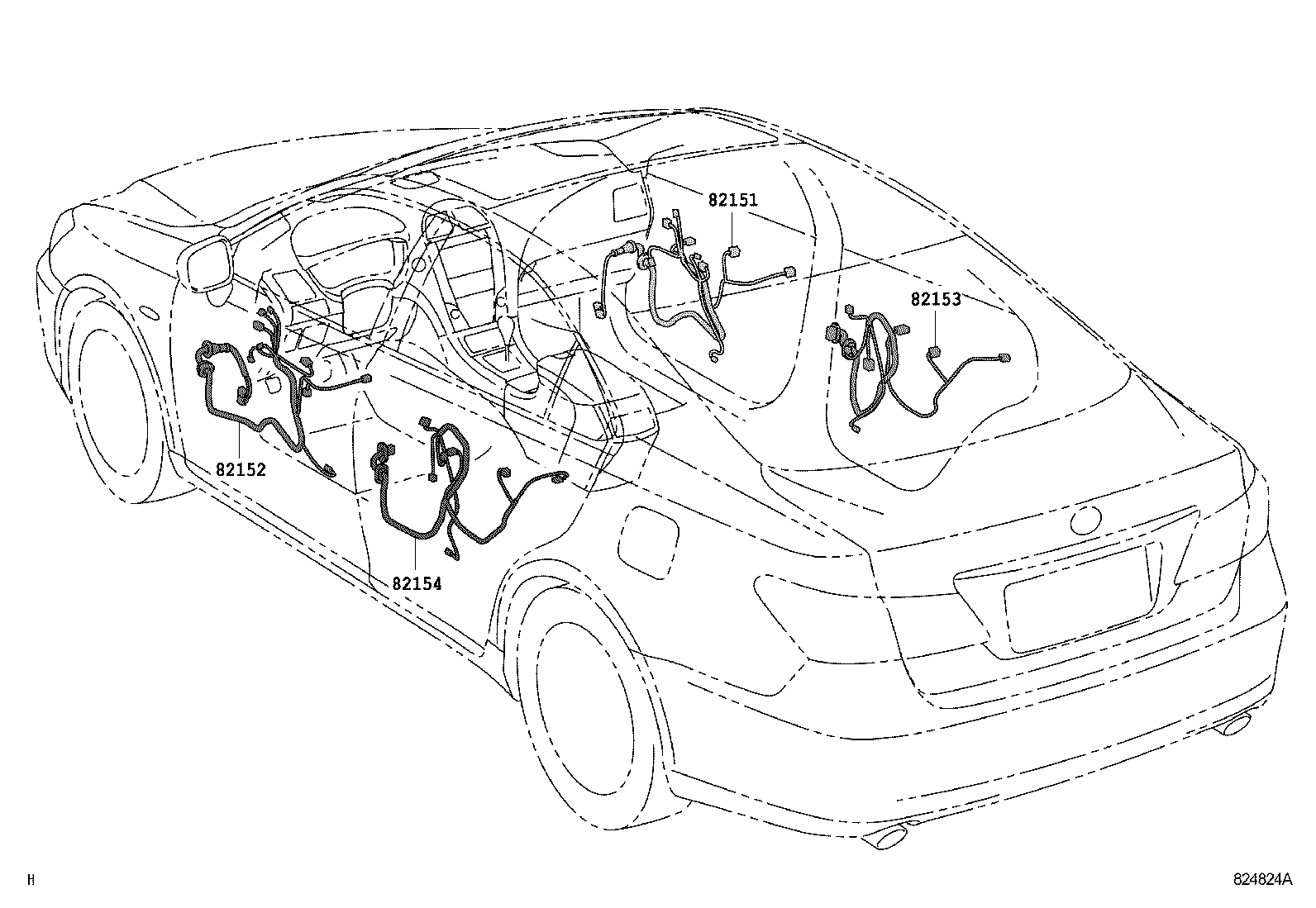

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-33C30 |
ACV40 |
1 | ||
| 82151-33C40 |
ACV40 *DRP(MEMORY) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-33C80 |
ACV40 |
1 | ||
| 82152-33C90 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-33270 |
ACV40,GSV40 |
1 | ||
| 82153-33280 |
ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-33211 |
ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82154-33201 |
ACV40,GSV40 |
1 | ||
ILLUST NO. 5 OF 9(0605- )

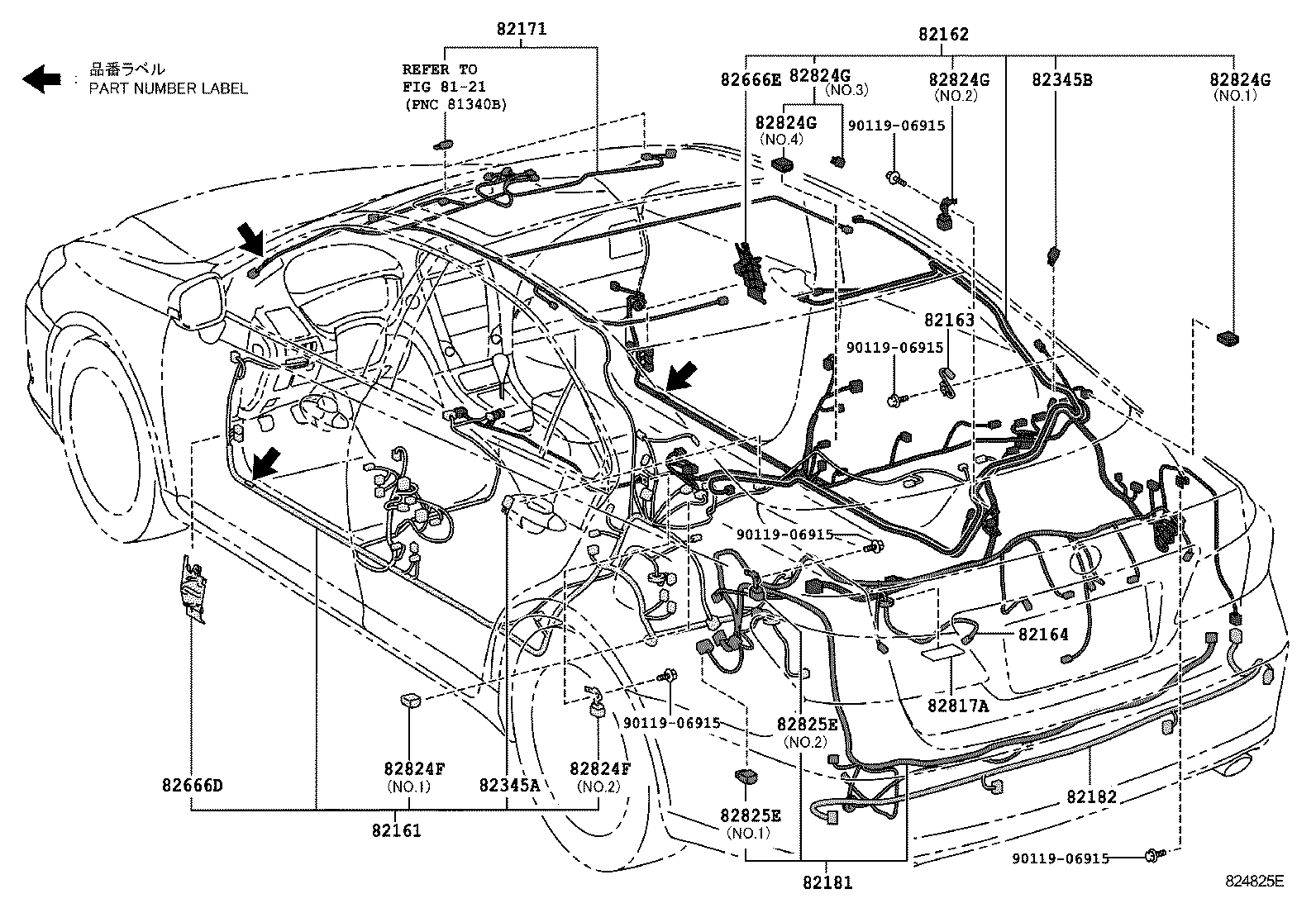

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-33L60 |
ACV40 |
1 | ||
| 82161-33L60 |
ACV40 PART NUMBER LABEL=82161-33L60 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-33Q10 |
ACV40 |
1 | ||
| 82162-33Q50 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82162-33U30 |
ACV40 |
1 | ||
| 82162-33Q80 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82162-33U90 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82162-33Q81 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82162-33U60 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82162-33Q51 |
ACV40,GSV40..CHI TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82162-33Q31 |
ACV40 TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82162-33Q51 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82162-33Q31 |
ACV40 TAIWAN SPEC&MOON ROOF-WITH(GLASS ROOF)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82162-33Q11 |
ACV40 |
1 | ||
| 82162-33Q81 |
ACV40 MOON ROOF-WITH(GLASS ROOF)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82162-33Q51 |
ACV40 TAIWAN SPEC&MOON ROOF-WITH(GLASS ROOF)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82162-33Q51 |
ACV40 MOON ROOF-WITH(GLASS ROOF)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82162-33Q50 |
ACV40 PART NUMBER LABEL=82162-33Q50 |
1 | ||
| 82162-33Q80 |
ACV40 PART NUMBER LABEL=82162-33Q80 |
1 | ||
| 82162-33U30 |
ACV40 PART NUMBER LABEL=82162-33U30 |
1 | ||
| 82162-33U90 |
ACV40 PART NUMBER LABEL=82162-33U90 |
1 | ||
| 82162-33Q81 |
ACV40 PART NUMBER LABEL=82162-33Q81 |
1 | ||
| 82162-33U60 |
ACV40 PART NUMBER LABEL=82162-33U60 |
1 | ||
| 82162-33Q10 |
ACV40 PART NUMBER LABEL=82162-33Q10 |
1 | ||
| 82162-33Q11 |
ACV40 PART NUMBER LABEL=82162-33Q11 |
1 | ||
| 82162-33Q51 |
ACV40 PART NUMBER LABEL=82162-33Q51 |
1 | ||
| 82162-33Q31 |
ACV40 PART NUMBER LABEL=82162-33Q31 |
1 | ||
| 82162-33Q51 |
ACV40,GSV40..CHI PART NUMBER LABEL=82162-33Q51 |
1 | ||
| 82162-33Q81 |
ACV40 PART NUMBER LABEL=82162-33Q81 |
1 | ||
| 82162-33Q51 |
ACV40 PART NUMBER LABEL=82162-33Q51 |
1 | ||
| 82162-33Q31 |
ACV40 PART NUMBER LABEL=82162-33Q31 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-33100 |
ACV40,GSV40 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-33060 |
ACV40,GSV40 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-33E10 |
ACV40 ULTRA LUXURY PACKAGE |
1 | ||
| 82171-33E10 |
ACV40 PART NUMBER LABEL=82171-33E10 |
1 | ||
| 82171-33D90 |
ACV40;GSV40..GCC PART NUMBER LABEL=82171-33D90 |
1 | ||
| 82171-33E10 |
ACV40 MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 82171-33D90 |
ACV40;GSV40..GCC |
1 | ||
| 82171-33E10 |
ACV40 PART NUMBER LABEL=82171-33E10 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-33260 |
ACV40 AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82181-33250 |
ACV40 |
1 | ||
| 82181-33260 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 82181-33260 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-33110 |
ACV40 CLEARANCE SONER-WITH |
1 | ||
| 82182-33110 |
ACV40 |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
ACV40,GSV40 |
2 | ||
| 82345B - DIODE | ||||
| 82345-32010 |
ACV40,GSV40 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-33290 |
ACV40,GSV40 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-33390 |
ACV40,GSV40 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-33800 |
ACV40,GSV40 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48070 |
ACV40,GSV40 NO.2 |
1 | ||
| 82824-28180 |
ACV40,GSV40 NO.1 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48070 |
ACV40,GSV40 NO.2 |
1 | ||
| 82824-28180 |
ACV40,GSV40 NO.1 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ACV40,GSV40 NO.1 |
1 | ||
| 82824-48070 |
ACV40,GSV40 NO.2 |
1 | ||
| 82824-48080 |
ACV40,GSV40 NO.4 |
1 | ||
| 82824-48110 |
ACV40,GSV40 NO.3 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ACV40,GSV40 NO.1 |
1 | ||
| 82824-48070 |
ACV40,GSV40 NO.2 |
1 | ||
| 82824-48080 |
ACV40,GSV40 NO.4 |
1 | ||
| 82824-48110 |
ACV40,GSV40 NO.3 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ACV40,GSV40 NO.1 |
1 | ||
| 82824-48070 |
ACV40,GSV40 NO.2 |
1 | ||
| 82824-48080 |
ACV40,GSV40 NO.4 |
1 | ||
| 82824-48110 |
ACV40,GSV40 NO.3 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ACV40,GSV40 NO.1 |
1 | ||
| 82824-48070 |
ACV40,GSV40 NO.2 |
1 | ||
| 82824-48080 |
ACV40,GSV40 NO.4 |
1 | ||
| 82824-48110 |
ACV40,GSV40 NO.3 |
1 | ||
| 82825E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ACV40,GSV40 NO.1 |
1 | ||
| 82824-48070 |
ACV40,GSV40 NO.2 |
1 | ||
| 82825E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ACV40,GSV40 NO.1 |
1 | ||
| 82824-48070 |
ACV40,GSV40 NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 6 OF 9(0605- )

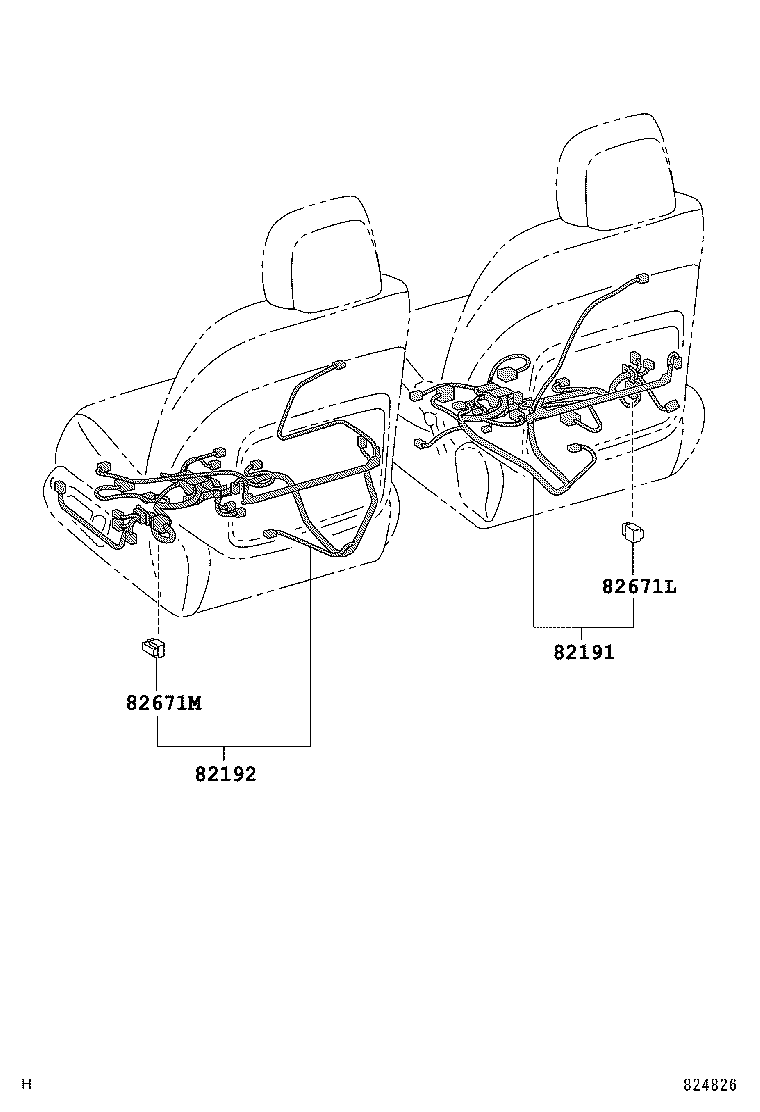

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-33580 |
ACV40 *DRP(MEMORY) |
1 | ||
| 82191-33600 |
ACV40 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-33530 |
ACV40 |
1 | ||
| 82192-33520 |
ACV40 *DRP(MEMORY) |
1 | ||
| 82671L - BLOCK, JUNCTION, NO.4 | ||||
| 82671-30360 |
ACV40,GSV40 |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-30360 |
ACV40,GSV40 |
1 | ||
ILLUST NO. 9 OF 9(0605- )

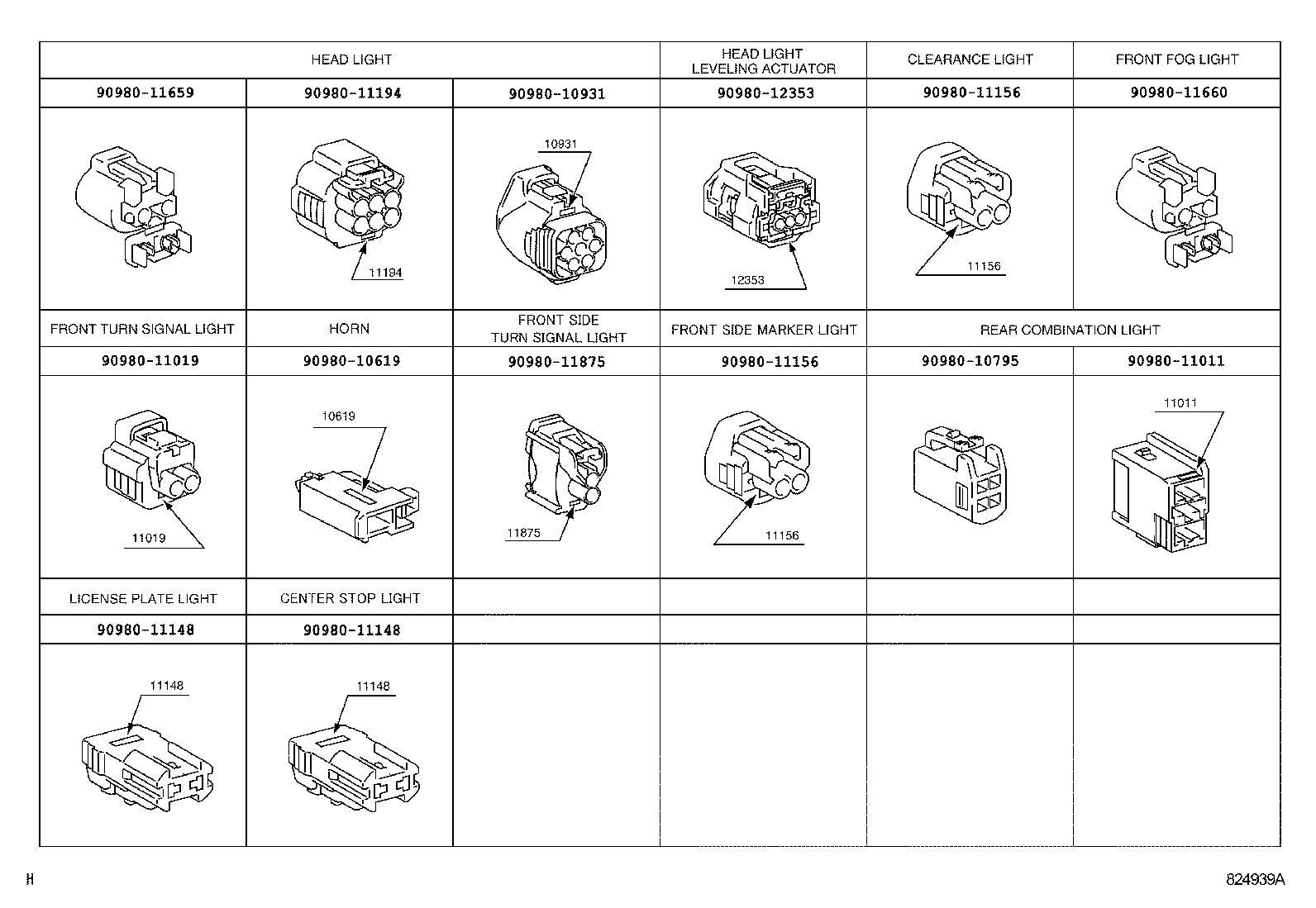

CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10931 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-11875 | ||||
| 90980-12353 | ||||
ILLUST NO. 1 OF 9(0605- )

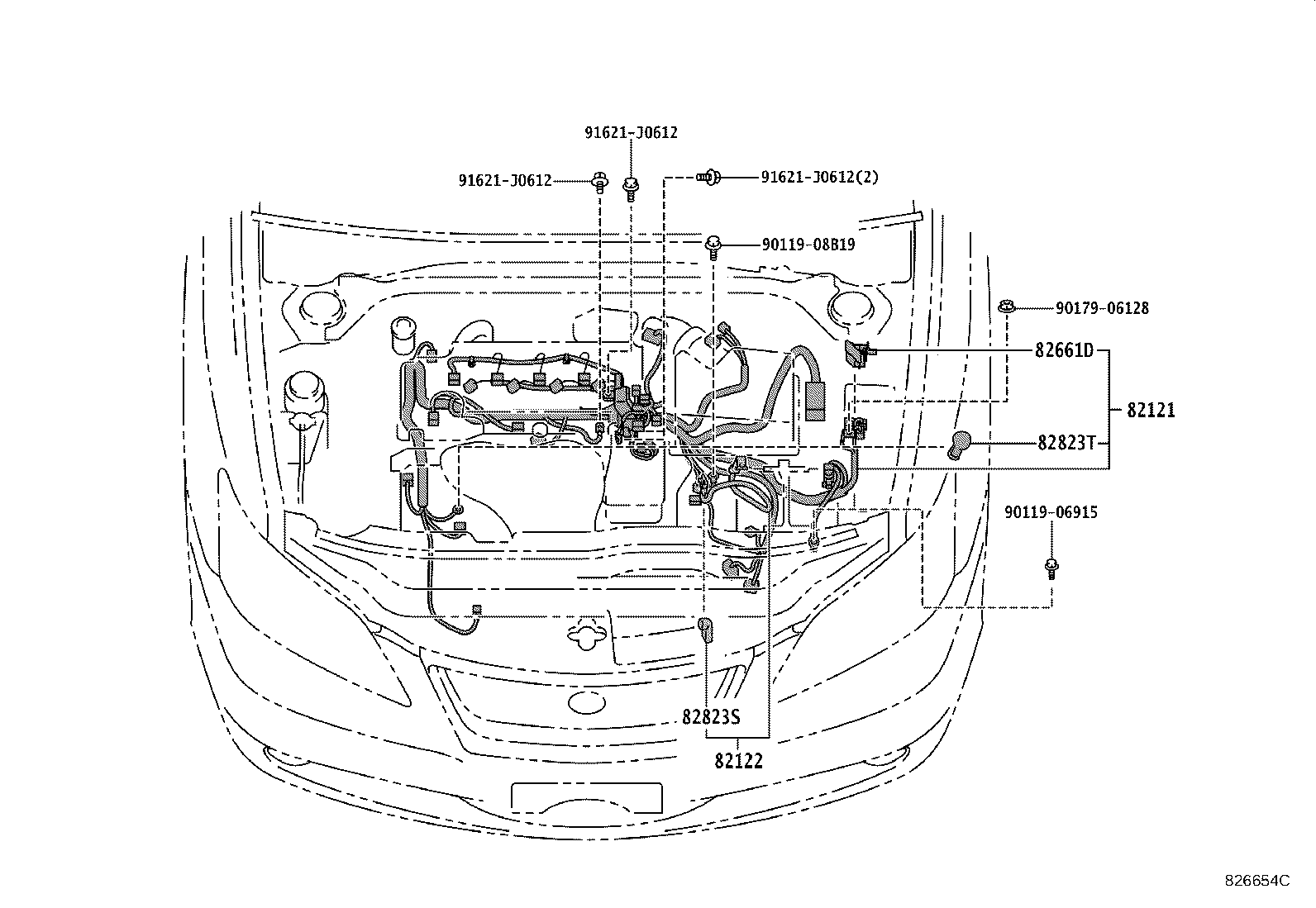

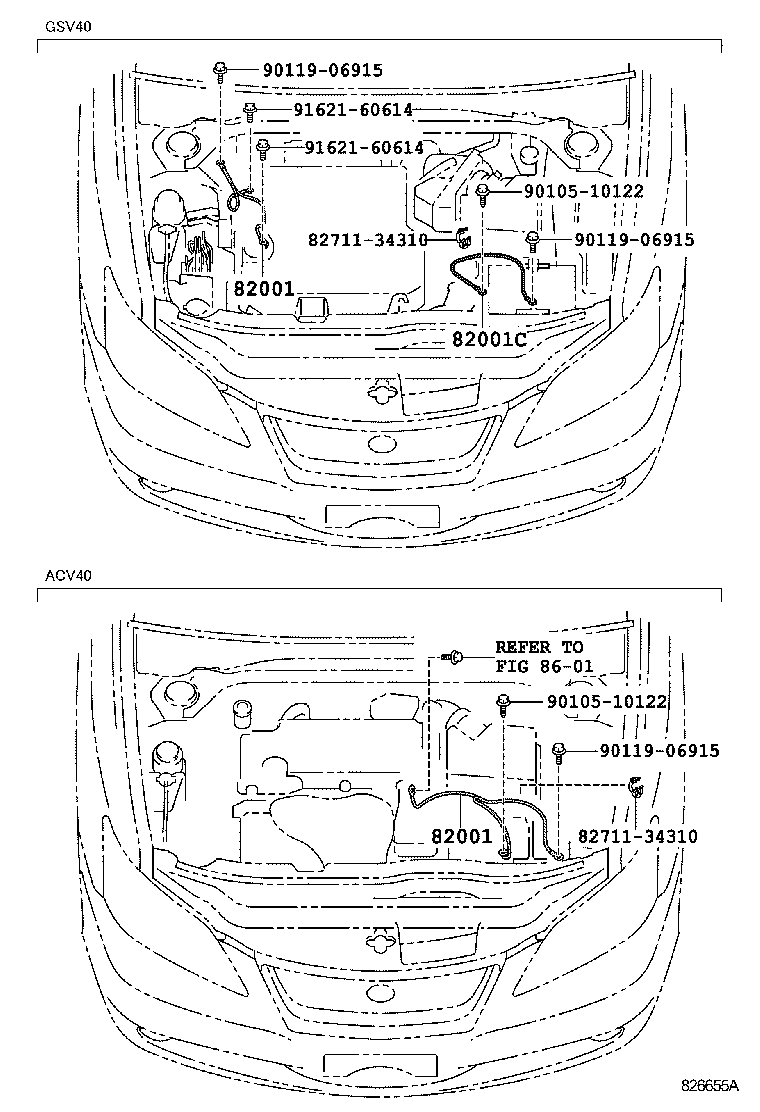

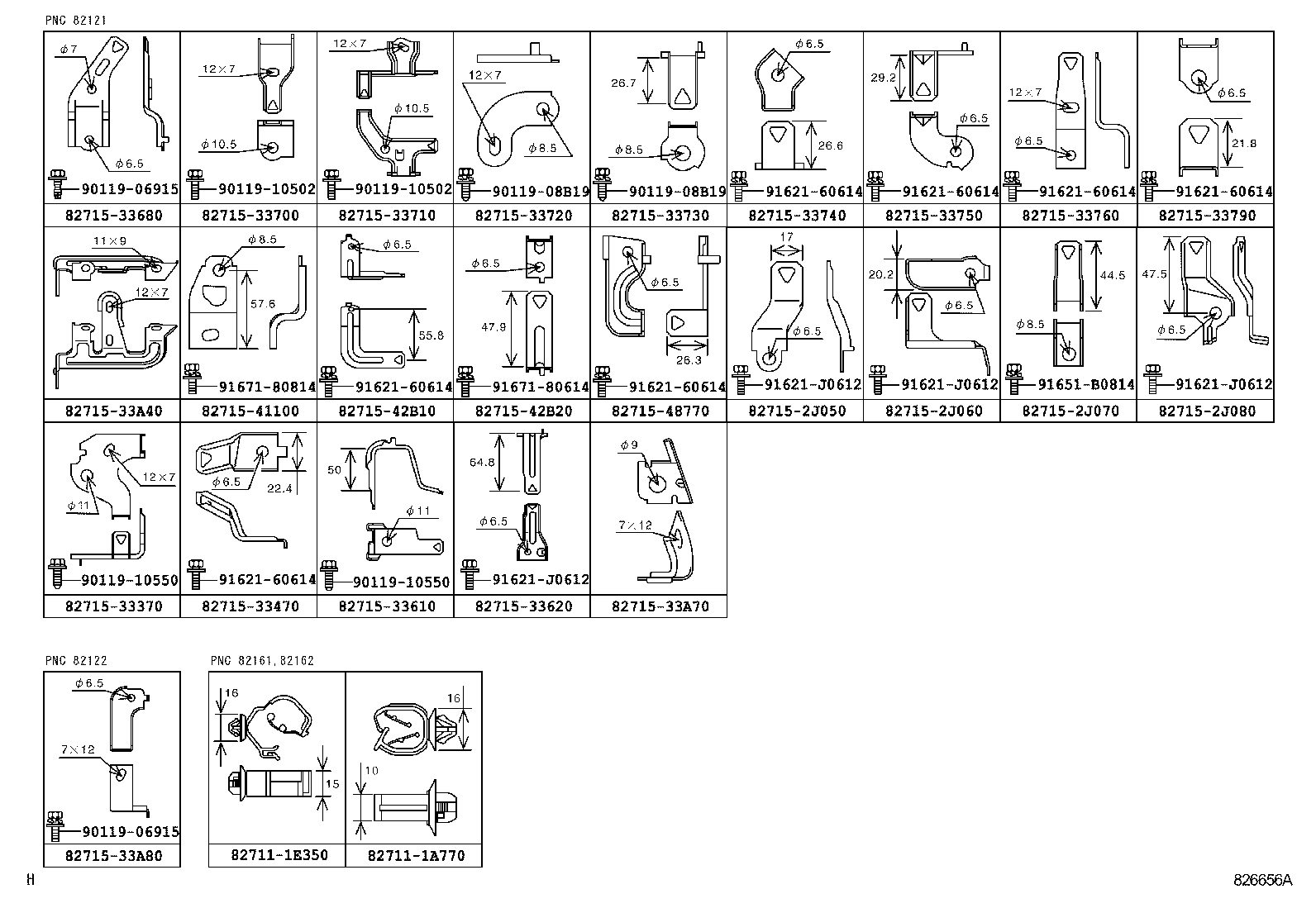

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-33L80 |
ACV40 |
1 | ||
| 82111-33L80 |
ACV40 PART NUMBER LABEL=82111-33L80 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 91621-B0625 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(0908- )ACV40
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-33C50 |
ACV40 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-33080 |
ACV40,GSV40 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-33010 |
ACV40,GSV40 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
ACV40,GSV40 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22080 |
ACV40 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08B19 | ||||
| 90179-06128 | ||||
| 91621-J0612 | ||||
ILLUST NO. 8 OF 9(0605- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07428 |
ACV40 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07428 |
ACV40 |
1 | ||
| Common parts | ||||
| 82711-34310 | ||||
| 90105-10122 | ||||
| 90119-06915 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 7 OF 9(0605- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E350 | ||||
| 82715-2J050 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-33370 | ||||
| 82715-33470 | ||||
| 82715-33610 | ||||
| 82715-33620 | ||||
| 82715-33680 | ||||
| 82715-33700 | ||||
| 82715-33710 | ||||
| 82715-33720 | ||||
| 82715-33730 | ||||
| 82715-33740 | ||||
| 82715-33750 | ||||
| 82715-33760 | ||||
| 82715-33790 | ||||
| 82715-33A40 | ||||
| 82715-33A70 | ||||
| 82715-33A80 | ||||
| 82715-41100 | ||||
| 82715-42B10 | ||||
| 82715-42B20 | ||||
| 82715-48770 | ||||
| 90119-06915 | ||||
| 90119-08B19 | ||||
| 90119-10502 | ||||
| 90119-10550 | ||||
| 91621-60614 | ||||
| 91621-J0612 | ||||
| 91651-B0814 | ||||
| 91671-80614 | ||||
| 91671-80814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
