ACV40L-BEAGKC (2009)

Toyota Lexus Es240/350

Production Aug 2009 - Jun 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0908-1206)

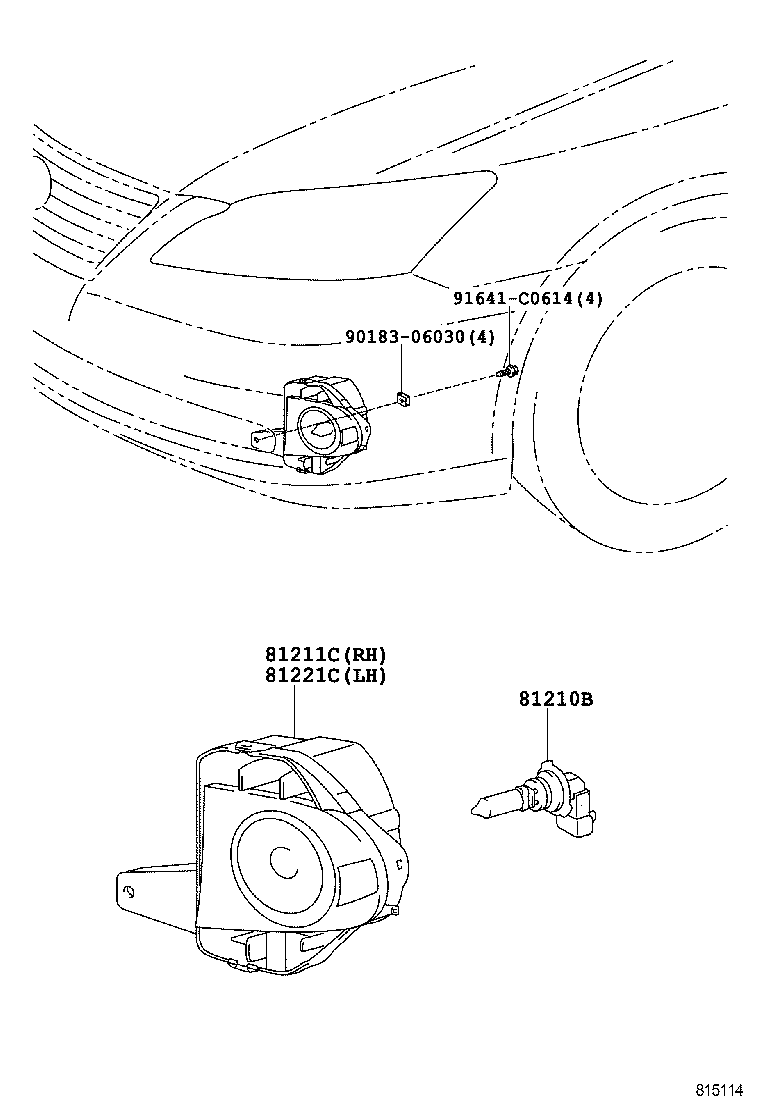

Click highlighted areas on diagram

diagram 81210B 81211C 81221C 9018306030 91641C0614
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13047

ACV40,GSV40

12V 51W,HALOGEN

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-33230

ACV40,GSV40..CHI

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-33230

ACV40,GSV40..CHI

 1
Common parts
90183-06030
91641-C0614
