ACV40L-BEAGKC (2009)
Toyota Lexus Es240/350

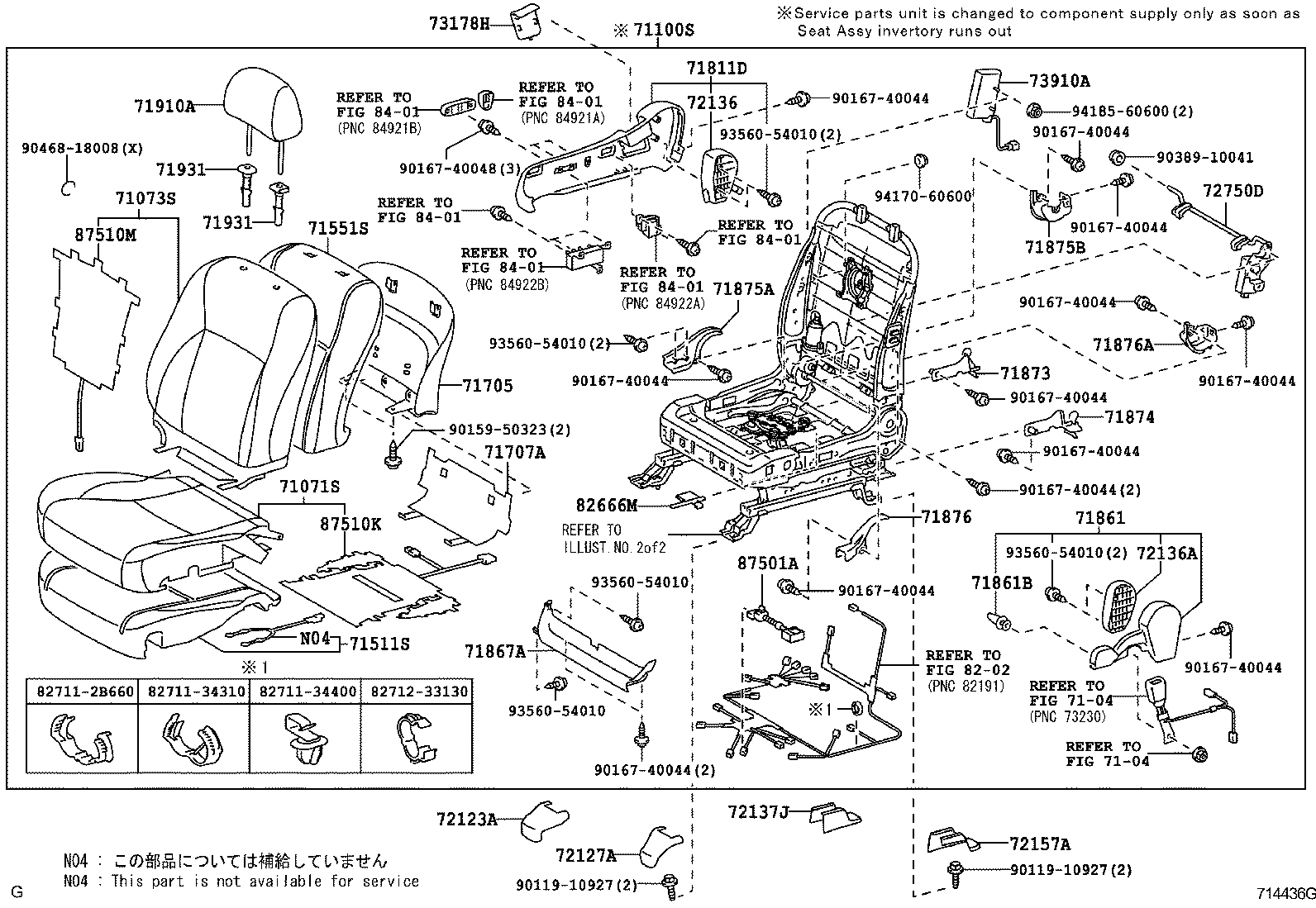

ILLUST NO. 1 OF 2(0605- )
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33F90B2 |
ACV40;GSV40..GCC LT.GRAY,TRIM1# |
1 | ||
| 71071-33F90A4 |
ACV40;GSV40..GCC IVORY,TRIM0# |
1 | ||
| 71071-33K50E0 |
ACV40 SPECIAL EDITION,SADDLE TAN,TRIM20,21 |
1 | ||
| 71071-33F90C2 |
ACV40;GSV40..GCC BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33J91C1 |
ACV40;GSV40..GCC BLACK,TRIM2# |
1 | ||
| 71073-33K31C1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),BLACK/MEDIUM GRAY,TRIM2# |
1 | ||
| 71073-33J91A2 |
ACV40;GSV40..GCC IVORY,TRIM0# |
1 | ||
| 71073-33K31A2 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),IVORY,TRIM0# |
1 | ||
| 71073-33J91B1 |
ACV40;GSV40..GCC LT.GRAY,TRIM1# |
1 | ||
| 71073-33K31B1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),LT.GRAY/MD.GRAY,TRIM1# |
1 | ||
| 71073-33J92A2 |
ACV40;GSV40..GCC IVORY,TRIM0# |
1 | ||
| 71073-33P10E0 |
ACV40 SPECIAL EDITION,SADDLE TAN,TRIM20,21 |
1 | ||
| 71073-33K32A2 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0# |
1 | ||
| 71073-33J92B1 |
ACV40;GSV40..GCC LT.GRAY,TRIM1# |
1 | ||
| 71073-33J92C1 |
ACV40;GSV40..GCC BLACK,TRIM2# |
1 | ||
| 71073-33K32B1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1# |
1 | ||
| 71073-33K32B1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 71073-33K32A2 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 71073-33K32C1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 71073-33K32C1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-33K51C1 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71100-33K51B1 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71100-33K61C1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),BLACK,TRIM2# |
1 | ||
| 71100-33K61A1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),IVORY,TRIM0# |
1 | ||
| 71100-33K61B1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1# |
1 | ||
| 71100-33K51A1 |
ACV40 IVORY,TRIM0# |
1 | ||
| 71100-33V30E0 |
ACV40 SPECIAL EDITION,SADDLE TAN,TRIM20,21 |
1 | ||
| 71100-33K52A0 |
ACV40 IVORY,TRIM0# |
1 | ||
| 71100-33K52B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71100-33K62B0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1# |
1 | ||
| 71100-33K52C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71100-33K62C0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 71100-33K62A0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0# |
1 | ||
| 71100-33K62A0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 71100-33K62C0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2# |
1 | ||
| 71100-33K62B0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 71100-33Q21A0 |
ACV40 TAIWAN SPEC,IVORY,TRIM0# |
1 | ||
| 71100-33Q21C0 |
ACV40 TAIWAN SPEC,BLACK,TRIM2# |
1 | ||
| 71100-33Q21B0 |
ACV40 TAIWAN SPEC,LT.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-33080 |
ACV40,GSV40 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33270 |
ACV40;GSV40..GCC |
1 | ||
| 71551-33280 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 71551-33280 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 71551-33280 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-33490B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71705-33490C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71705-33490A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-33081A1 |
ACV40,GSV40 IVORY,TRIM0# |
2 | ||
| 71707-33080A1 |
ACV40,GSV40 IVORY,TRIM0# |
2 | ||
| 71707-33080B0 |
ACV40 LT.GRAY,TRIM1# |
2 | ||
| 71707-33081B0 |
ACV40 LT.GRAY,TRIM1# |
2 | ||
| 71707-33081C0 |
ACV40 BLACK,TRIM2# |
2 | ||
| 71707-33080C0 |
ACV40 BLACK,TRIM2# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33250C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71811-33250A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71811-33250B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33140C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71861-33140B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71861-33140A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 67921-50050B0 |
ACV40,GSV40 LT.GRAY |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-33060B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71867-33060A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71867-33060C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-30020 |
ACV40,GSV40 |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
ACV40,GSV40 |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-33040A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71875-33040B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71875-33040C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58050 |
ACV40,GSV40 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60150B7 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71875-60150A3 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71875-60150C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
ACV40,GSV40 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33592A2 |
ACV40;GSV40..GCC IVORY,TRIM0# |
2 | ||
| 71910-33592B1 |
ACV40;GSV40..GCC LT.GRAY,TRIM1# |
2 | ||
| 71910-33592C1 |
ACV40;GSV40..GCC BLACK,TRIM2# |
2 | ||
| 71910-33800E0 |
ACV40 SPECIAL EDITION,SADDLE TAN,TRIM20,21 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B5 |
ACV40,GSV40 W(LOCK)&W(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71930-52030C0 |
ACV40,GSV40 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020B2 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020C0 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030A3 |
ACV40,GSV40 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A6 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B5 |
ACV40,GSV40 W(LOCK)&W(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71930-52030C0 |
ACV40,GSV40 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020B2 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020C0 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030A3 |
ACV40,GSV40 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A6 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-33070C0 |
ACV40,GSV40 BLACK,TRIM1#,2# |
1 | ||
| 72123-33070E0 |
ACV40,GSV40 CAMEL,TRIM0# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-33010C0 |
ACV40,GSV40 BLACK,TRIM1#,2# |
1 | ||
| 72127-33010E0 |
ACV40,GSV40 CAMEL,TRIM0# |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-33090 |
ACV40,GSV40 |
1 | ||
| 72136A - SPACER, SEAT TRACK, LOWER NO.2 | ||||
| 72136-33100 |
ACV40,GSV40 |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-33100C0 |
ACV40,GSV40 BLACK,TRIM1#,2# |
1 | ||
| 72137-33100E0 |
ACV40,GSV40 CAMEL,TRIM0# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33110C0 |
ACV40,GSV40 BLACK,TRIM1#,2# |
1 | ||
| 72157-33110E0 |
ACV40,GSV40 CAMEL,TRIM0# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30260 |
ACV40,GSV40 |
1 | ||
| 73178H - CAP, SEAT BELT ANCHOR COVER, RH | ||||
| 73178-33030B0 |
ACV40,GSV40 LT.GRAY,TRIM10,11 |
1 | ||
| 73178-33030C0 |
ACV40,GSV40 BLACK,TRIM10,11,2# |
1 | ||
| 73178-33030A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33020 |
ACV40,GSV40 |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-33270 |
ACV40,GSV40 |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-60060 |
ACV40,GSV40 |
1 | ||
| 87501-60010 |
ACV40,GSV40 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-33170 |
ACV40;GSV40..GCC |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-33030 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 82711-34310 | ||||
| 82711-34400 | ||||
| 82712-33130 | ||||
| 90119-10927 | ||||
| 90159-50323 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 90468-18008 | ||||
| 93560-54010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

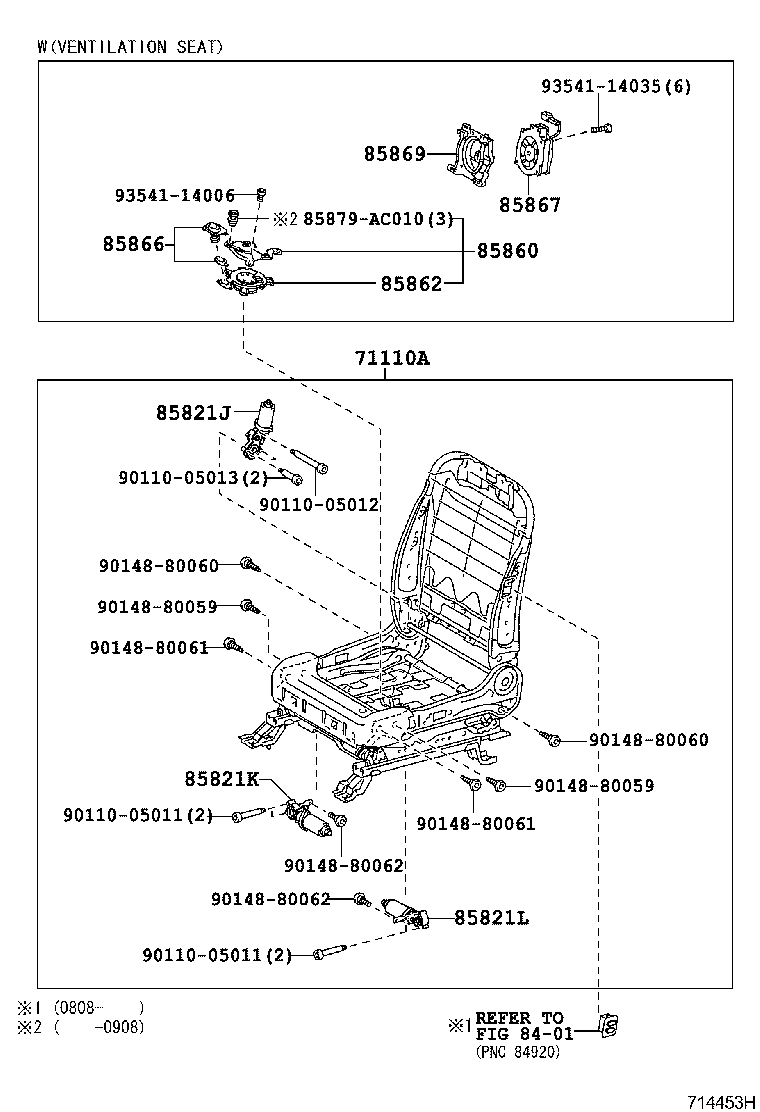

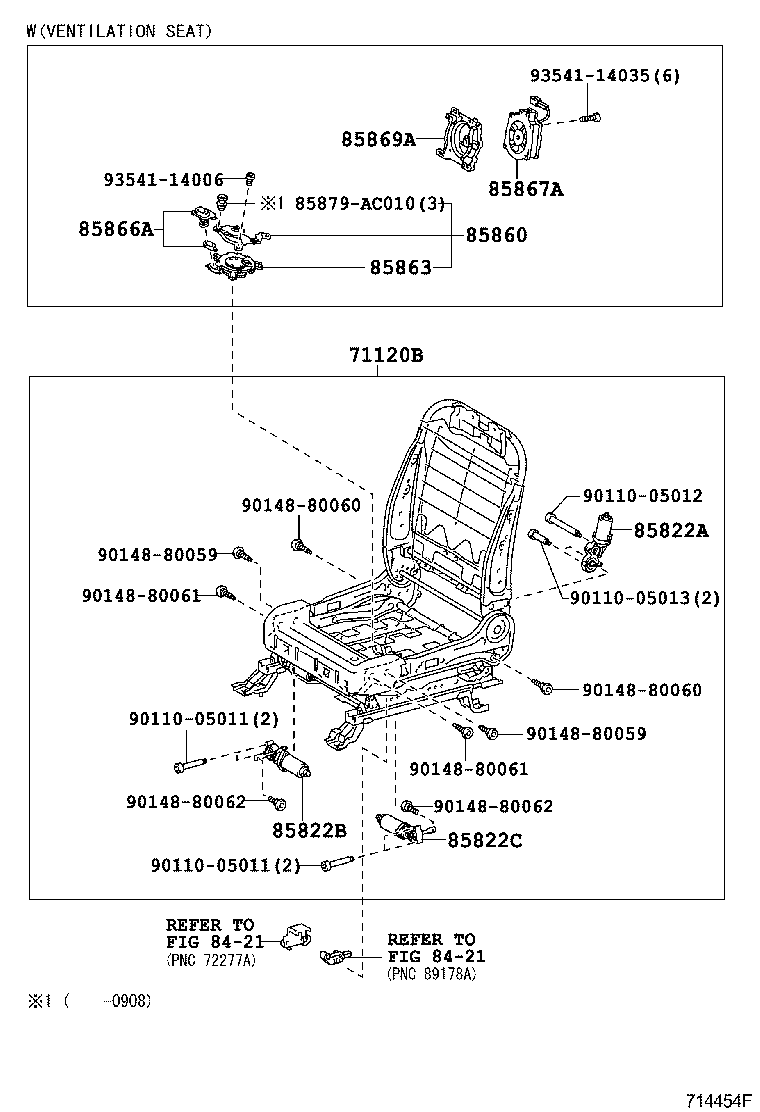

ILLUST NO. 2 OF 2(0605- )
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-33150 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 71110-33430 |
ACV40 |
1 | ||
| 71110-33150 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 71110-33150 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 71110-33430 |
ACV40 |
1 | ||
| 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-28090 |
ACV40 |
1 | ||
| 85801-28090 |
ACV40 |
1 | ||
| 85801-58020 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 85801-58020 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 85801-58020 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-28120 |
ACV40 |
1 | ||
| 85801-58040 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 85801-58040 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 85801-28120 |
ACV40 |
1 | ||
| 85801-58040 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-58030 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 85801-58030 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 85801-28110 |
ACV40 |
1 | ||
| 85801-28110 |
ACV40 |
1 | ||
| 85801-58030 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 85860 - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL | ||||
| 85860-30020 |
ACV40,GSV40 |
2 | ||
| 85862 - BLOWER, SEAT CLIMATE CONTROL, RH | ||||
| 85862-30020 |
ACV40,GSV40 |
1 | ||
| 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-30010 |
ACV40,GSV40 |
1 | ||
| 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-33010 |
ACV40,GSV40 |
1 | ||
| 85869 - COVER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85869-30010 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 85879-AC010 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90148-80059 | ||||
| 90148-80060 | ||||
| 90148-80061 | ||||
| 90148-80062 | ||||
| 93541-14006 | ||||
| 93541-14035 | ||||
| Linked diagrams | ||||
| 8401 | ||||

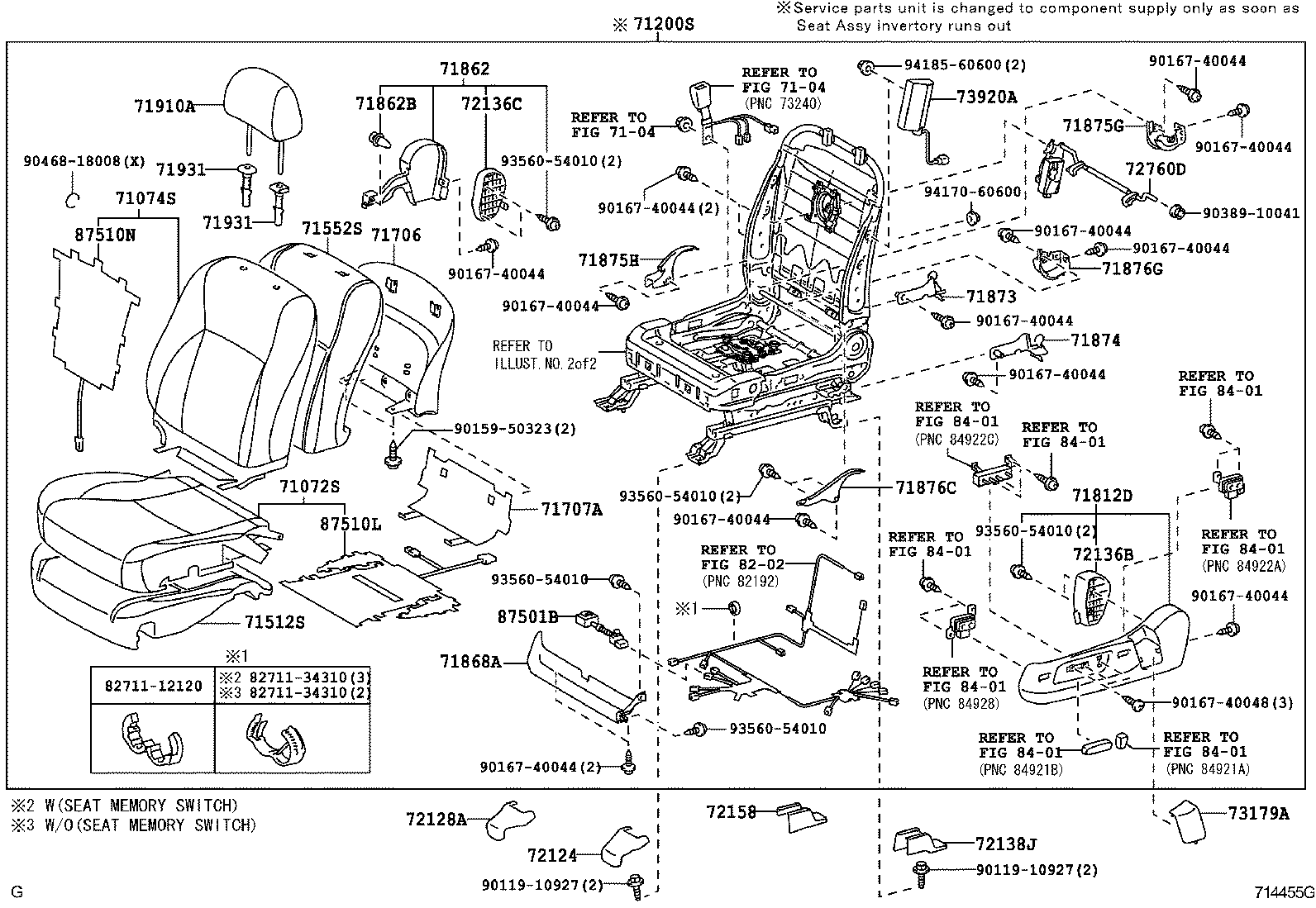

ILLUST NO. 2 OF 2(0605- )
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-33272 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 71120-33272 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 71120-33400 |
ACV40 |
1 | ||
| 71120-33400 |
ACV40 |
1 | ||
| 71120-33272 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 85822A - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-60020 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 85801-33030 |
ACV40 |
1 | ||
| 85801-33030 |
ACV40 |
1 | ||
| 85801-60020 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 85801-60020 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-60040 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 85801-33050 |
ACV40 |
1 | ||
| 85801-60040 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 85801-33050 |
ACV40 |
1 | ||
| 85801-60040 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-33040 |
ACV40 |
1 | ||
| 85801-60030 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
1 | ||
| 85801-60030 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
1 | ||
| 85801-33040 |
ACV40 |
1 | ||
| 85801-60030 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP |
1 | ||
| 85860 - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL | ||||
| 85860-30020 |
ACV40,GSV40 |
2 | ||
| 85863 - BLOWER, SEAT CLIMATE CONTROL, LH | ||||
| 85862-30020 |
ACV40,GSV40 |
1 | ||
| 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85866-30010 |
ACV40,GSV40 |
1 | ||
| 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-33010 |
ACV40,GSV40 |
1 | ||
| 85869A - COVER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85869-30010 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 85879-AC010 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90148-80059 | ||||
| 90148-80060 | ||||
| 90148-80061 | ||||
| 90148-80062 | ||||
| 93541-14006 | ||||
| 93541-14035 | ||||
| Linked diagrams | ||||
| 8421 | ||||
ILLUST NO. 1 OF 2(0605- )
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33G50B2 |
ACV40;GSV40..GCC LT.GRAY,TRIM1# |
1 | ||
| 71072-33G50A3 |
ACV40;GSV40..GCC IVORY,TRIM0# |
1 | ||
| 71072-33L50E0 |
ACV40 SPECIAL EDITION,SADDLE TAN,TRIM20,21 |
1 | ||
| 71072-33G50C2 |
ACV40;GSV40..GCC BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33J91C1 |
ACV40;GSV40..GCC BLACK,TRIM2# |
1 | ||
| 71074-33J91B1 |
ACV40;GSV40..GCC LT.GRAY,TRIM1# |
1 | ||
| 71074-33N20E0 |
ACV40 SPECIAL EDITION,SADDLE TAN,TRIM20,21 |
1 | ||
| 71074-33J91A2 |
ACV40;GSV40..GCC IVORY,TRIM0# |
1 | ||
| 71074-33J92A2 |
ACV40;GSV40..GCC IVORY,TRIM0# |
1 | ||
| 71074-33J92B1 |
ACV40;GSV40..GCC LT.GRAY,TRIM1# |
1 | ||
| 71074-33J92C1 |
ACV40;GSV40..GCC BLACK,TRIM2# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-33N31A1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),IVORY,TRIM0# |
1 | ||
| 71200-33N31C1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),BLACK,TRIM2# |
1 | ||
| 71200-33Q71C2 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71200-33Q71B2 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71200-33N31B1 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),BLACK,TRIM1# |
1 | ||
| 71200-33Q71A2 |
ACV40 IVORY,TRIM0# |
1 | ||
| 71020-33A50E0 |
ACV40 SPECIAL EDITION,SADDLE TAN,TRIM20,21 |
1 | ||
| 71200-33N32B0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1# |
1 | ||
| 71200-33N32A0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0# |
1 | ||
| 71200-33N32C0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 71200-33N32A0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 71200-33V91A0 |
ACV40 TAIWAN SPEC,IVORY,TRIM0# |
1 | ||
| 71200-33V91C0 |
ACV40 TAIWAN SPEC,BLACK,TRIM2# |
1 | ||
| 71200-33Q72A0 |
ACV40 IVORY,TRIM0# |
1 | ||
| 71200-33N32C0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2# |
1 | ||
| 71200-33V91B0 |
ACV40 TAIWAN SPEC,LT.GRAY,TRIM1# |
1 | ||
| 71200-33N32B0 |
ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 71200-33Q72B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71200-33Q72C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-33250 |
ACV40,GSV40 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33180 |
ACV40,GSV40 |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-33010B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71706-33010C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71706-33010A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-33081A1 |
ACV40,GSV40 IVORY,TRIM0# |
2 | ||
| 71707-33080A1 |
ACV40,GSV40 IVORY,TRIM0# |
2 | ||
| 71707-33080B0 |
ACV40 LT.GRAY,TRIM1# |
2 | ||
| 71707-33081B0 |
ACV40 LT.GRAY,TRIM1# |
2 | ||
| 71707-33081C0 |
ACV40 BLACK,TRIM2# |
2 | ||
| 71707-33080C0 |
ACV40 BLACK,TRIM2# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33290A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71812-33290C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71812-33290B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33150A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71862-33150C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71862-33150B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 67921-50050B0 |
ACV40,GSV40 LT.GRAY |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-33060A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71868-33060B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71868-33060C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-30020 |
ACV40,GSV40 |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
ACV40,GSV40 |
2 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
ACV40,GSV40 |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-60170A4 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71876-60170C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71876-60170B9 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-33050B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 71876-33050C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 71876-33050A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60140 |
ACV40,GSV40 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33592A2 |
ACV40;GSV40..GCC IVORY,TRIM0# |
2 | ||
| 71910-33592B1 |
ACV40;GSV40..GCC LT.GRAY,TRIM1# |
2 | ||
| 71910-33592C1 |
ACV40;GSV40..GCC BLACK,TRIM2# |
2 | ||
| 71910-33800E0 |
ACV40 SPECIAL EDITION,SADDLE TAN,TRIM20,21 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B5 |
ACV40,GSV40 W(LOCK)&W(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71930-52030C0 |
ACV40,GSV40 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020B2 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020C0 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030A3 |
ACV40,GSV40 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A6 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B5 |
ACV40,GSV40 W(LOCK)&W(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71930-52030C0 |
ACV40,GSV40 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-42020B2 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1# |
2 | ||
| 71931-42020C0 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-52030A3 |
ACV40,GSV40 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71931-42020A6 |
ACV40,GSV40 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-33010E0 |
ACV40,GSV40 CAMEL,TRIM0# |
1 | ||
| 72124-33010C0 |
ACV40,GSV40 BLACK,TRIM1#,2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-33010C0 |
ACV40,GSV40 BLACK,TRIM1#,2# |
1 | ||
| 72128-33010E0 |
ACV40,GSV40 CAMEL,TRIM0# |
1 | ||
| 72136B - SPACER, SEAT TRACK, LOWER NO.3 | ||||
| 72136-33110 |
ACV40,GSV40 |
1 | ||
| 72136C - SPACER, SEAT TRACK, LOWER NO.4 | ||||
| 72136-33120 |
ACV40,GSV40 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-33080C0 |
ACV40,GSV40 BLACK,TRIM1#,2# |
1 | ||
| 72138-33080E0 |
ACV40,GSV40 CAMEL,TRIM0# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-33130E0 |
ACV40,GSV40 CAMEL,TRIM0# |
1 | ||
| 72158-33130C0 |
ACV40,GSV40 BLACK,TRIM1#,2# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-30170 |
ACV40,GSV40 |
1 | ||
| 73179A - CAP, SEAT BELT ANCHOR COVER, LH | ||||
| 73179-33010A1 |
ACV40,GSV40 IVORY,TRIM0# |
1 | ||
| 73179-33010C0 |
ACV40,GSV40 BLACK,TRIM10,11,2# |
1 | ||
| 73179-33010B0 |
ACV40,GSV40 LT.GRAY,TRIM10,11 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33020 |
ACV40,GSV40 |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-60010 |
ACV40,GSV40 |
1 | ||
| 87501-60060 |
ACV40,GSV40 |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-33170 |
ACV40,GSV40 |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-33030 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 82711-34310 | ||||
| 90119-10927 | ||||
| 90159-50323 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 90468-18008 | ||||
| 93560-54010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
