ACV40L-BEAGKC (2009)
Toyota Lexus Es240/350

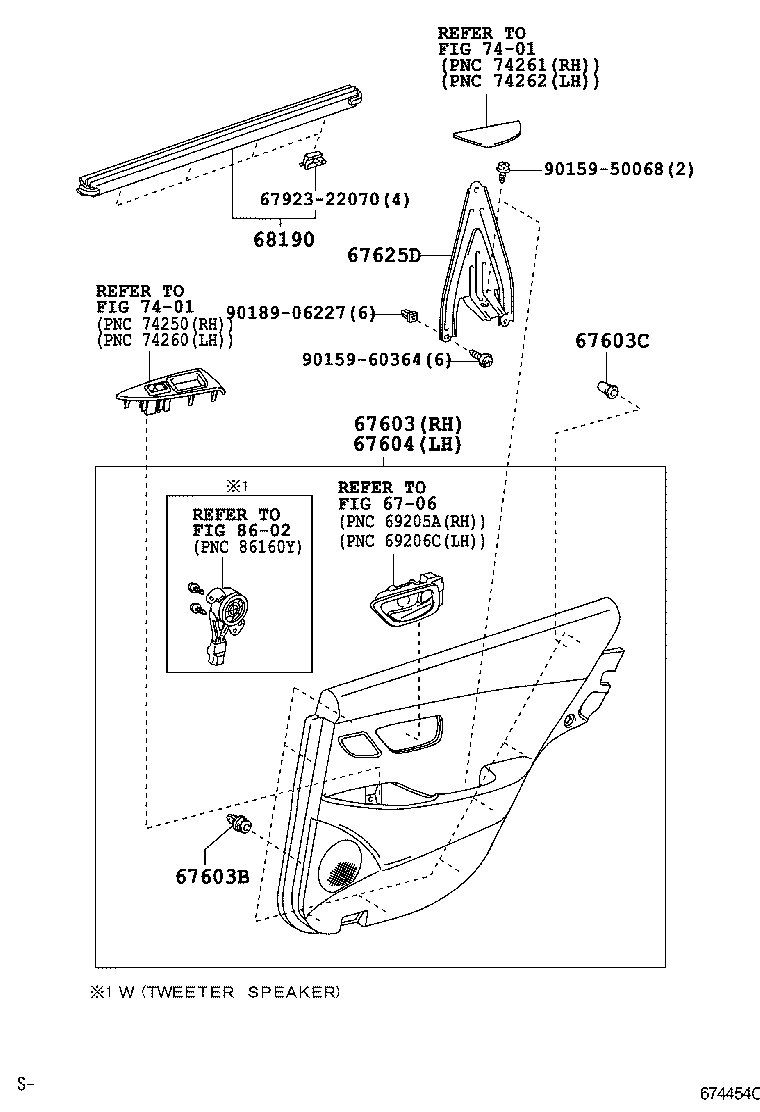

ILLUST NO. 2 OF 2(0605- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-33890B1 |
ACV40 TAIWAN SPEC,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67630-33890C1 |
ACV40 TAIWAN SPEC,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-33890C2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/SADDLE TAN,TRIM20,21 |
1 | ||
| 67630-33890A1 |
ACV40 TAIWAN SPEC,IVORY/IVORY,TRIM0# |
1 | ||
| 67630-33A00A2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/ORCHID BROWN,TRIM00,01 |
1 | ||
| 67630-33890B2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/BLACK,TRIM10,11 |
1 | ||
| 67630-33A00A1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67630-33890A2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/ORCHID BROWN,TRIM00,01 |
1 | ||
| 67630-33A00C1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-33A00B2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/BLACK,TRIM10,11 |
1 | ||
| 67630-33A10B1 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67630-33A10A1 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67630-33A00B1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67630-33B00B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67630-33A10C1 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67630-33B00A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67630-33B00C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67630-33B00A1 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67630-33A00C2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM20,21 |
1 | ||
| 67630-33B00B1 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67630-33B00C1 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67630-33890B1 |
ACV40 TAIWAN SPEC,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67630-33A00A1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67630-33890C1 |
ACV40 TAIWAN SPEC,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-33A00B1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67630-33890A1 |
ACV40 TAIWAN SPEC,IVORY/IVORY,TRIM0# |
1 | ||
| 67630-33A00C1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-33A10C1 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67630-33A10B1 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67630-33A10A1 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67630-33B00B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67630-33C90C0 |
ACV40 SPECIAL EDITION,BLACK/SADDLE TAN,TRIM20,21 |
1 | ||
| 67630-33E00C0 |
ACV40 BLACK/BLACK,TRIM2# |
1 | ||
| 67630-33B00A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67630-33E00A0 |
ACV40 IVORY/IVORY,TRIM0# |
1 | ||
| 67630-33B00C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67630-33E00B0 |
ACV40 LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67630-33E10A0 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67630-33E10A0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67630-33E10B0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67630-33E10C0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67630-33E10B0 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67630-33E10C0 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACV40,GSV40 |
18 | ||
| 67603C - CAP(FOR REAR DOOR TRIM BOARD) | ||||
| 67772-21030 |
ACV40,GSV40 |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-33890A1 |
ACV40 TAIWAN SPEC,IVORY/IVORY,TRIM0# |
1 | ||
| 67640-33890C1 |
ACV40 TAIWAN SPEC,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-33890B2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/BLACK,TRIM10,11 |
1 | ||
| 67640-33A00A1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67640-33A00A2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/ORCHID BROWN,TRIM00,01 |
1 | ||
| 67640-33890B1 |
ACV40 TAIWAN SPEC,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67640-33890C2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/SADDLE TAN,TRIM20,21 |
1 | ||
| 67640-33A00B1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67640-33A00C2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM20,21 |
1 | ||
| 67640-33A10C1 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67640-33A10A1 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67640-33890A2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/ORCHID BROWN,TRIM00,01 |
1 | ||
| 67640-33B00A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67640-33A00C1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-33A10B1 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67640-33B00B1 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67640-33A00B2 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/BLACK,TRIM10,11 |
1 | ||
| 67640-33B00B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67640-33B00A1 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67640-33B00C1 |
ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67640-33890A1 |
ACV40 TAIWAN SPEC,IVORY/IVORY,TRIM0# |
1 | ||
| 67640-33890B1 |
ACV40 TAIWAN SPEC,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67640-33B00C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67640-33A00A1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67640-33890C1 |
ACV40 TAIWAN SPEC,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-33A00B1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67640-33A10A1 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67640-33A00C1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-33B00A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67640-33B00C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67640-33B00B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67640-33A10B1 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67640-33A10C1 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67640-33D90C0 |
ACV40 BLACK/BLACK,TRIM2# |
1 | ||
| 67640-33D90A0 |
ACV40 IVORY/IVORY,TRIM0# |
1 | ||
| 67640-33E00A0 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67640-33E00A0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67640-33D90B0 |
ACV40 LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67640-33E00B0 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67640-33E00B0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67640-33D00C0 |
ACV40 SPECIAL EDITION,BLACK/SADDLE TAN,TRIM20,21 |
1 | ||
| 67640-33E00C0 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67640-33E00C0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67625D - BRACKET, REAR DOOR TRIM | ||||
| 67646-33010 |
ACV40,GSV40 |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-33070 |
ACV40,GSV40 RH |
1 | ||
| 68174-33070 |
ACV40,GSV40 LH |
1 | ||
| Common parts | ||||
| 67923-22070 | ||||
| 90159-50068 | ||||
| 90159-60364 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||
| 8602 | ||||

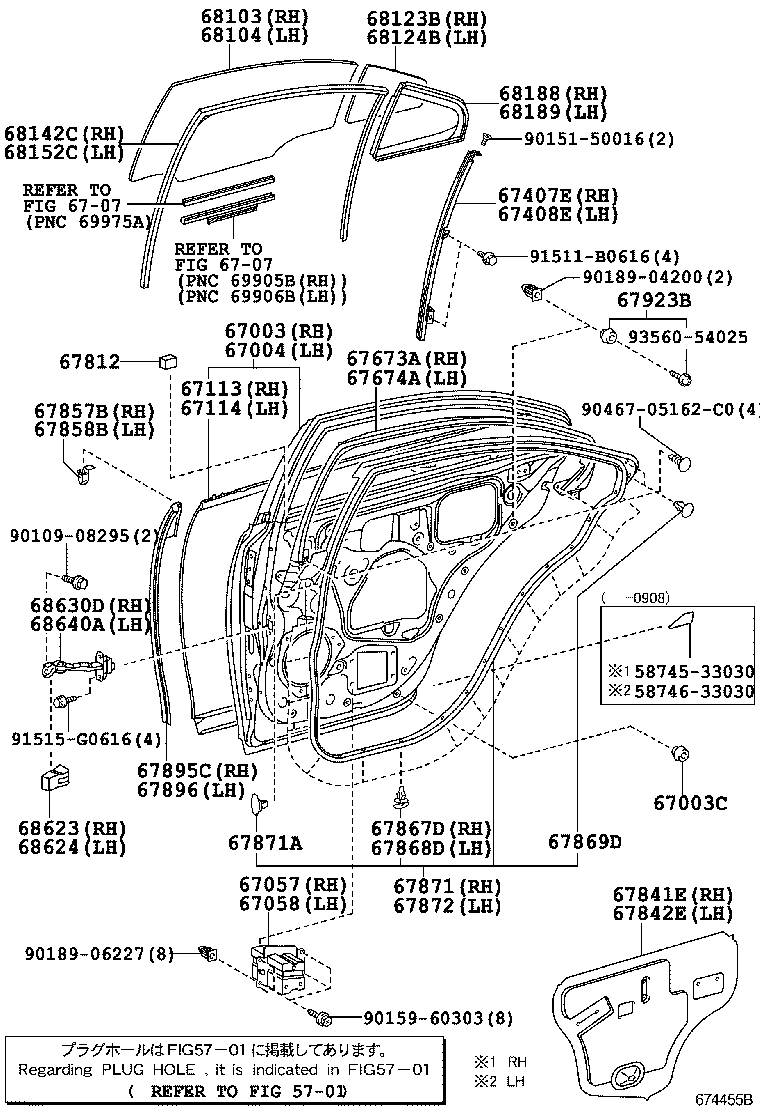

ILLUST NO. 1 OF 2(0605- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-33180 |
ACV40,GSV40 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
ACV40,GSV40 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-33180 |
ACV40,GSV40 |
1 | ||
| 67057 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH | ||||
| 67057-33030 |
ACV40,GSV40 |
1 | ||
| 67058 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH | ||||
| 67058-33020 |
ACV40,GSV40 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-33090 |
ACV40,GSV40 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-33090 |
ACV40,GSV40 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-33080 |
ACV40,GSV40 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-33080 |
ACV40,GSV40 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-33110 |
ACV40,GSV40 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-33110 |
ACV40,GSV40 |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-33080 |
ACV40,GSV40 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-33090 |
ACV40,GSV40 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-33090 |
ACV40,GSV40 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-33050 |
ACV40,GSV40 |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-33050 |
ACV40,GSV40 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACV40,GSV40 |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACV40,GSV40 |
16 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-06084 |
ACV40,GSV40 |
4 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-33090 |
ACV40,GSV40 |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 90467-04034 |
ACV40,GSV40 |
2 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-33090 |
ACV40,GSV40 |
1 | ||
| 67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH | ||||
| 67895-33020 |
ACV40,GSV40 |
1 | ||
| 67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH | ||||
| 67896-33020 |
ACV40,GSV40 |
1 | ||
| 67923B - CUSHION, REAR DOOR STIFFENER, NO.1 | ||||
| 67923-48060 |
ACV40,GSV40 |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-33160 |
ACV40,GSV40 *UVCT,T=4.0,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-33160 |
ACV40,GSV40 *UVCT,T=4.0,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-33070 |
ACV40,GSV40 *UVCT,T=4.0,GREEN |
1 | ||
| 68123-33071 |
ACV40,GSV40 *UVCT,T=4.0,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-33070 |
ACV40,GSV40 *UVCT,T=4.0,GREEN |
1 | ||
| 68124-33071 |
ACV40,GSV40 *UVCT,T=4.0,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-33100 |
ACV40,GSV40 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-33100 |
ACV40,GSV40 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-33050 |
ACV40,GSV40 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-33050 |
ACV40,GSV40 |
1 | ||
| 68623 - COVER, DOOR CHECK, RH | ||||
| 68621-53010 |
ACV40,GSV40 |
1 | ||
| 68624 - COVER, DOOR CHECK, LH | ||||
| 68622-53010 |
ACV40,GSV40 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-33081 |
ACV40,GSV40 |
1 | ||
| 68630-33080 |
ACV40,GSV40 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-33080 |
ACV40,GSV40 |
1 | ||
| 68640-33081 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 58745-33030 | ||||
| 58746-33030 | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90159-60303 | ||||
| 90189-04200 | ||||
| 90189-06227 | ||||
| 90467-05162C0 | ||||
| 91511-B0616 | ||||
| 91515-G0616 | ||||
| 93560-54025 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6707 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
