ACV40L-BEAGKC (2009)
Toyota Lexus Es240/350

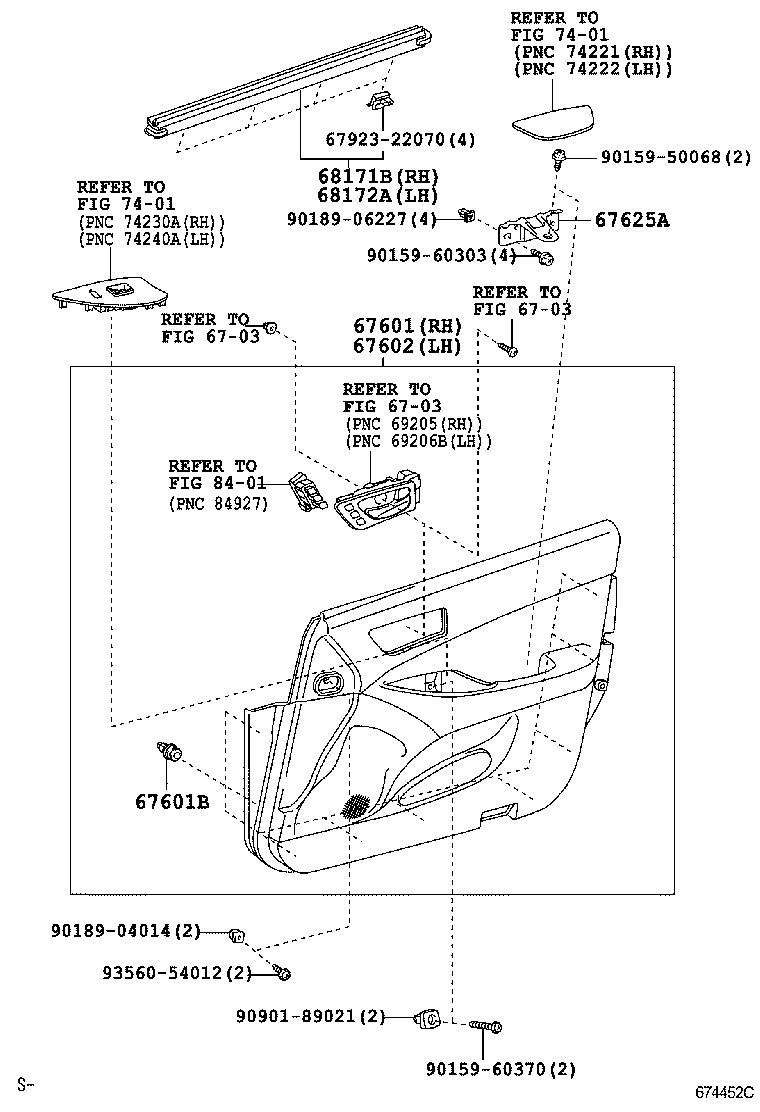

ILLUST NO. 2 OF 2(0605- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-33C50A1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY,TRIM00,01 |
1 | ||
| 67610-33C40B1 |
ACV40 TAIWAN SPEC,LT.GRAY,TRIM1# |
1 | ||
| 67610-33C50B1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM10,11 |
1 | ||
| 67610-33C50A1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM00,01 |
1 | ||
| 67610-33C40C1 |
ACV40 TAIWAN SPEC,BLACK,TRIM2# |
1 | ||
| 67610-33C50B1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.GRAY,TRIM10,11 |
1 | ||
| 67610-33C50C1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM20,21 |
1 | ||
| 67610-33C60B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1# |
1 | ||
| 67610-33C40A1 |
ACV40 TAIWAN SPEC,IVORY,TRIM0# |
1 | ||
| 67610-33C60A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67610-33C60A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0# |
1 | ||
| 67610-33C60B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67610-33C60C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2# |
1 | ||
| 67610-33D80C1 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67610-33C60C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67610-33C50C1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/BLACK,TRIM20,21 |
1 | ||
| 67610-33D80B1 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67610-33D80A1 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67610-33C40B1 |
ACV40 TAIWAN SPEC,LT.GRAY,TRIM1# |
1 | ||
| 67610-33C40B1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67610-33C40C1 |
ACV40 TAIWAN SPEC,BLACK,TRIM2# |
1 | ||
| 67610-33C40A1 |
ACV40 TAIWAN SPEC,IVORY,TRIM0# |
1 | ||
| 67610-33C40C1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67610-33C40A1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67610-33C60B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1# |
1 | ||
| 67610-33C60C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67610-33C60A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0# |
1 | ||
| 67610-33C60C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2# |
1 | ||
| 67610-33C60B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67610-33D80A1 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67610-33G00A0 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67610-33C60A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67610-33F20C0 |
ACV40 SPECIAL EDITION,BLACK/SADDLE TAN,TRIM20,21 |
1 | ||
| 67610-33D80B1 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67610-33D80C1 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67610-33G00C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67610-33G10A0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67610-33G00B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67610-33G10C0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67610-33G10A0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67610-33G10C0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/BLACK,TRIM2# |
1 | ||
| 67610-33G10B0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67610-33G10B0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACV40,GSV40 |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-33C10A1 |
ACV40 TAIWAN SPEC,IVORY,TRIM0# |
1 | ||
| 67620-33C10B1 |
ACV40 TAIWAN SPEC,LT. GRAY,TRIM1# |
1 | ||
| 67620-33C20A1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM00,01 |
1 | ||
| 67620-33C20A1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY,TRIM00,01 |
1 | ||
| 67620-33C20B1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM10,11 |
1 | ||
| 67620-33C20C1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/BLACK,TRIM20,21 |
1 | ||
| 67620-33C30B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1# |
1 | ||
| 67620-33C10C1 |
ACV40 TAIWAN SPEC,BLACK,TRIM2# |
1 | ||
| 67620-33C20B1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.GRAY,TRIM10,11 |
1 | ||
| 67620-33C30A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67620-33C20C1 |
ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM20,21 |
1 | ||
| 67620-33C30C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67620-33C30A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0# |
1 | ||
| 67620-33D50B1 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67620-33D50C1 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67620-33C30B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67620-33D50A1 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67620-33C10A1 |
ACV40 TAIWAN SPEC,IVORY,TRIM0# |
1 | ||
| 67620-33C10B1 |
ACV40 TAIWAN SPEC,LT. GRAY,TRIM1# |
1 | ||
| 67620-33C10C1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67620-33C10A1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67620-33C30C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2# |
1 | ||
| 67620-33C10B1 |
ACV40 TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT. GRAY,TRIM1# |
1 | ||
| 67620-33C10C1 |
ACV40 TAIWAN SPEC,BLACK,TRIM2# |
1 | ||
| 67620-33C30A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0# |
1 | ||
| 67620-33C30B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1# |
1 | ||
| 67620-33C30C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67620-33D50B1 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67620-33F80A0 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67620-33C30A1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
1 | ||
| 67620-33C30B1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
1 | ||
| 67620-33C30C1 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2# |
1 | ||
| 67620-33F80B0 |
ACV40 LT.GRAY,TRIM1# |
1 | ||
| 67620-33F90B0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67620-33F90A0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67620-33D50A1 |
ACV40 IVORY,TRIM0# |
1 | ||
| 67620-33F80C0 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67620-33F30C0 |
ACV40 SPECIAL EDITION,BLACK/SADDLE TAN,TRIM20,21 |
1 | ||
| 67620-33F90C0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2# |
1 | ||
| 67620-33F90B0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.GRAY,TRIM1# |
1 | ||
| 67620-33F90C0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
1 | ||
| 67620-33F90A0 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY,TRIM0# |
1 | ||
| 67620-33D50C1 |
ACV40 BLACK,TRIM2# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67645-33010 |
ACV40,GSV40 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-33070 |
ACV40,GSV40 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-33080 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 67923-22070 | ||||
| 90159-50068 | ||||
| 90159-60303 | ||||
| 90159-60370 | ||||
| 90189-04014 | ||||
| 90189-06227 | ||||
| 90901-89021 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8401 | ||||

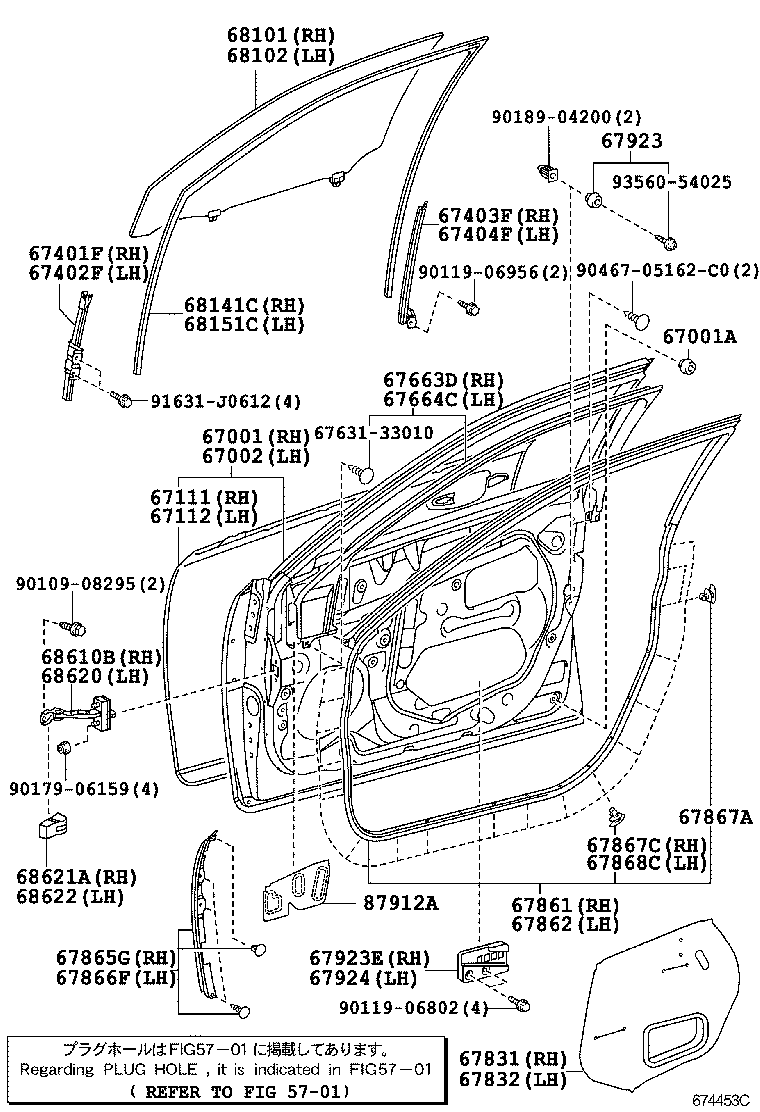

ILLUST NO. 1 OF 2(0605- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-33180 |
ACV40,GSV40 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
ACV40,GSV40 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-33180 |
ACV40,GSV40 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-33080 |
ACV40,GSV40 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-33080 |
ACV40,GSV40 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-33080 |
ACV40,GSV40 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-33080 |
ACV40,GSV40 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-33060 |
ACV40,GSV40 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-33060 |
ACV40,GSV40 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-33020 |
ACV40,GSV40 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-33020 |
ACV40,GSV40 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-33100 |
ACV40,GSV40 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-33100 |
ACV40,GSV40 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-33070 |
ACV40,GSV40 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-33070 |
ACV40,GSV40 |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-33010 |
ACV40,GSV40 |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-33010 |
ACV40,GSV40 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
ACV40,GSV40 |
4 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACV40,GSV40 |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACV40,GSV40 |
17 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-48060 |
ACV40,GSV40 |
2 | ||
| 67923E - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-33070 |
ACV40,GSV40 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-33040 |
ACV40,GSV40 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-33152 |
ACV40,GSV40 *UVCT,T=5.0,GREEN |
1 | ||
| 68101-33151 |
ACV40,GSV40 *UVCT,T=5.0,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-33152 |
ACV40,GSV40 *UVCT,T=5.0,GREEN |
1 | ||
| 68102-33151 |
ACV40,GSV40 *UVCT,T=5.0,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-33100 |
ACV40,GSV40 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-33090 |
ACV40,GSV40 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-33081 |
ACV40,GSV40 |
1 | ||
| 68610-33080 |
ACV40,GSV40 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-33080 |
ACV40,GSV40 |
1 | ||
| 68620-33081 |
ACV40,GSV40 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-53010 |
ACV40,GSV40 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-53010 |
ACV40,GSV40 |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-33020 |
ACV40,GSV40 LH |
1 | ||
| 87912-33010 |
ACV40,GSV40 RH |
1 | ||
| Common parts | ||||
| 67631-33010 | ||||
| 90109-08295 | ||||
| 90119-06802 | ||||
| 90119-06956 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 90467-05162C0 | ||||
| 91631-J0612 | ||||
| 93560-54025 | ||||
| Linked diagrams | ||||
| 5701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
